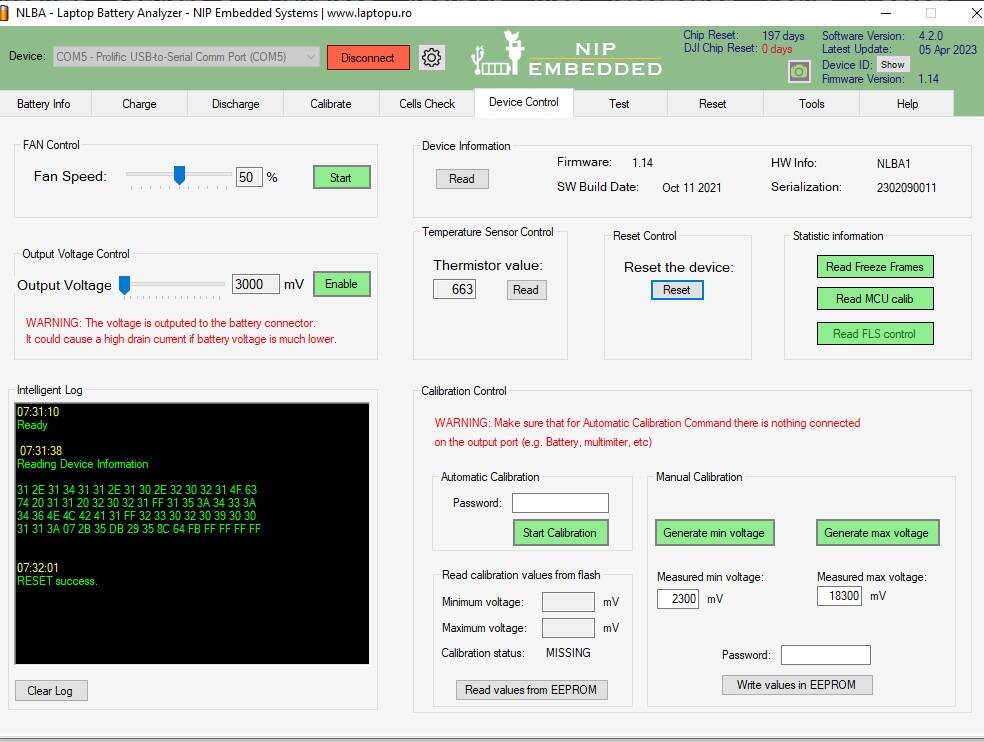

NLBA..Right hand LED always on. Not detecting batteries. It is detected by the computer....Repair needed

paul-4385
(@paul-4385)
New Member Customer
nlba
ReplyQuote
Topic starter Posted : 25/09/2023 6:37 am
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

Follow this tutorial and return your feedback.

https://www.laptopu.ro/2023/09/12/how-to-troubleshoot-the-nlba1-laptop-battery-analyzer-device/



ReplyQuote
Posted : 25/09/2023 1:54 pm
paul-4385
(@paul-4385)
New Member Customer

@djibattworkshop

I knew the XL4005 needed replacing. I replaced it twice with an IC from a variable power supplies that I use in my workshop.Each time the NLBA did not work,
I then ordered XL4005E1 via Ebay. It arrived quite quickly from China and fixed the NLBA

Thanks for your help

Paul
RapidPCs Ltd

ReplyQuote
Topic starter Posted : 03/12/2023 7:59 pm
Nicusor liked
ardian.sulejmani
(@ardian-sulejmani)
Active Member Customer

hello, im reading this about the u5 chip, where should i order it the programed one. ?

The U5 chip is flashed with firmware and it is secured. A new blank U5 chip will not work, only the chip shipped by the manufacturer (already flashed with the firmware) will work.

ReplyQuote
Posted : 04/12/2023 8:35 am
