[Solved] DELL XCMRD Unlocked but no charge BQ30472

Page 1 / 2
Battery salesman
(@battery-salesman)
Estimable Member Customer

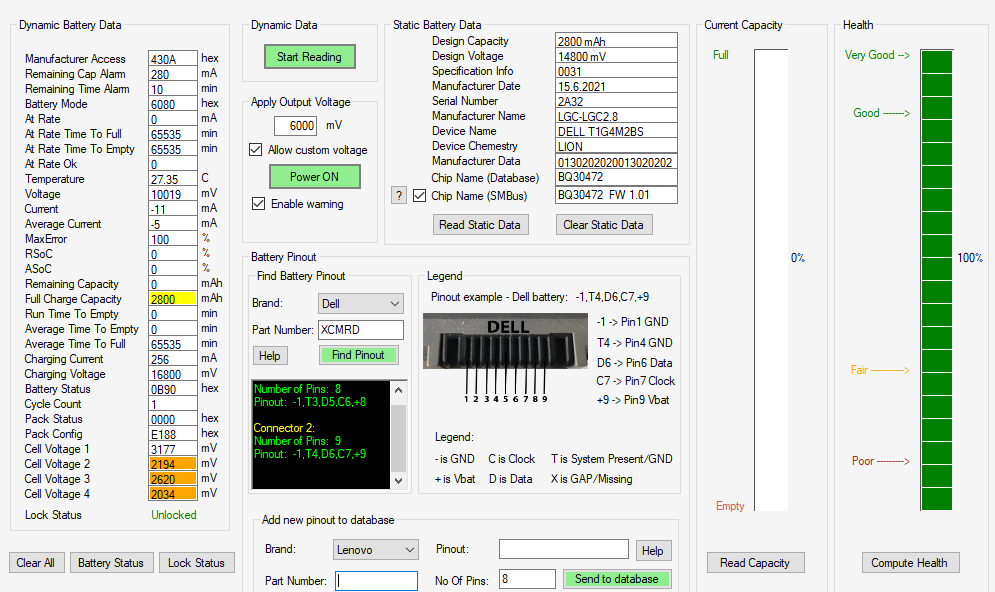

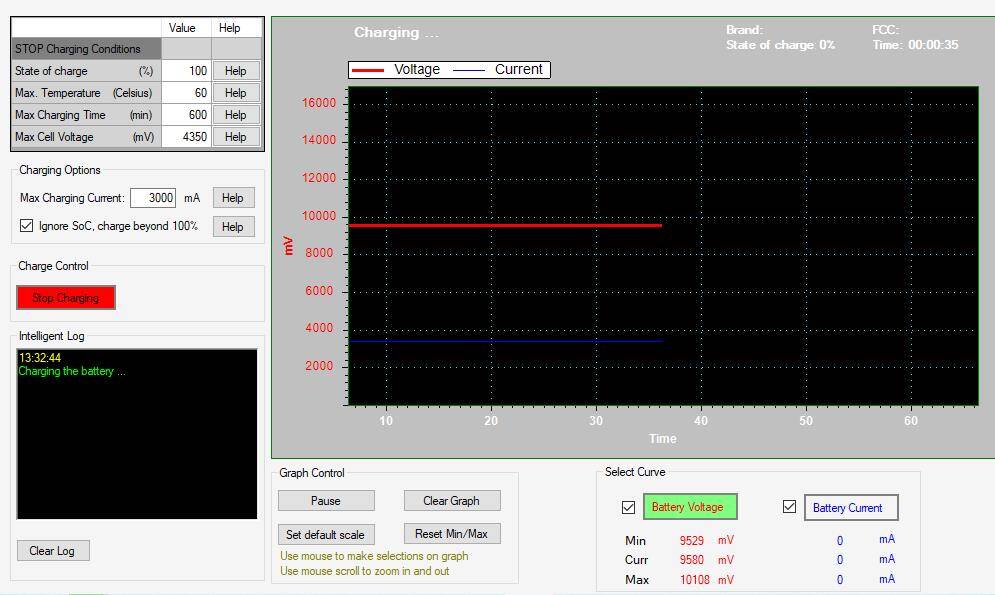

There is a DELL XCMRD battery. Chip bq30472. All attempts to force the battery to charge are unsuccessful. Contacts are connected correctly.

1



2
ReplyQuote
Topic starter Posted : 07/10/2021 10:34 am
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

The battery is in preCharge state due to long storage. It could be recovered using laptop for this model. Do you have it?

ReplyQuote
Posted : 07/10/2021 11:38 am
Battery salesman
(@battery-salesman)
Estimable Member Customer

I do not have a laptop. We sell new batteries. But I had a battery with a lower charge, but they all started the charge successfully. How do I get the battery to charge without disassembling it?

ReplyQuote
Topic starter Posted : 07/10/2021 12:57 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

Is it front LED is On?

Basing on small consumption current...



ReplyQuote
Posted : 07/10/2021 1:26 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator
Posted by: @battery_seller

How do I get the battery to charge without disassembling it?

Try to precharge it from the first tab.

Set Output Voltage to 10200mV, press Power On, wait 15s, paste snapshot here.

ReplyQuote
Posted : 07/10/2021 1:28 pm
Battery salesman
(@battery-salesman)
Estimable Member Customer
Posted by: @djibattworkshop

Is it front LED is On?

Basing on small consumption current...



YES. LED is On

ReplyQuote
Topic starter Posted : 07/10/2021 1:32 pm
Battery salesman
(@battery-salesman)
Estimable Member Customer
Posted by: @djibattworkshop
Posted by: @battery_seller

How do I get the battery to charge without disassembling it?

Try to precharge it from the first tab.

Set Output Voltage to 10200mV, press Power On, wait 15s, paste snapshot here.

2
ReplyQuote
Topic starter Posted : 07/10/2021 1:41 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

Have noticed Average Current was detected as 3mA, it means small charge was injected into the battery.

Try to increase Output Voltage to 10400mV and repeat procedure, but make snapshot after 5seconds after pushing the button.





ReplyQuote
Posted : 07/10/2021 1:48 pm
batFix
(@batfix)
Honorable Member

cells 2/3/4 are discharged way below cell 1

seems to me it's time to open the battery, inspect the cells

they could be corroded already

Lets Make NLBA Great ! Together.

ReplyQuote
Posted : 07/10/2021 1:50 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

Battery produced in June 2021, why it should be corroded?

Are you basing on your own experience with 10 years old batteries?



ReplyQuote
Posted : 07/10/2021 1:52 pm
batFix
(@batfix)
Honorable Member

Could be high humidity at the place; your turn to guess why is the Vdelta > 1000mV ?

Lets Make NLBA Great ! Together.

ReplyQuote
Posted : 07/10/2021 1:54 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator
Posted by: @batfix

your turn to guess why is the Vdelta > 1000mV ?

Its copy battery and there could be copy cells inside)

Also copy makers could use different batches cells in one pack, they not care too much about selecting and matching the cells.



ReplyQuote
Posted : 07/10/2021 2:18 pm
batFix
(@batfix)
Honorable Member

And what is your recommendation to Vladislav about adjusting Vcells ?

Lets Make NLBA Great ! Together.

ReplyQuote
Posted : 07/10/2021 2:22 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

First task is to precharge the battery to normal level. Recommendations about adjusting the cells could be made when SoC is 50...90% and battery starts normal charging. Due to different curves at low SoC it makes not too much sense to balance the cells now.





ReplyQuote
Posted : 07/10/2021 3:32 pm
batFix
(@batfix)
Honorable Member

So, just need replace all cells ...

Lets Make NLBA Great ! Together.

ReplyQuote
Posted : 07/10/2021 4:08 pm
