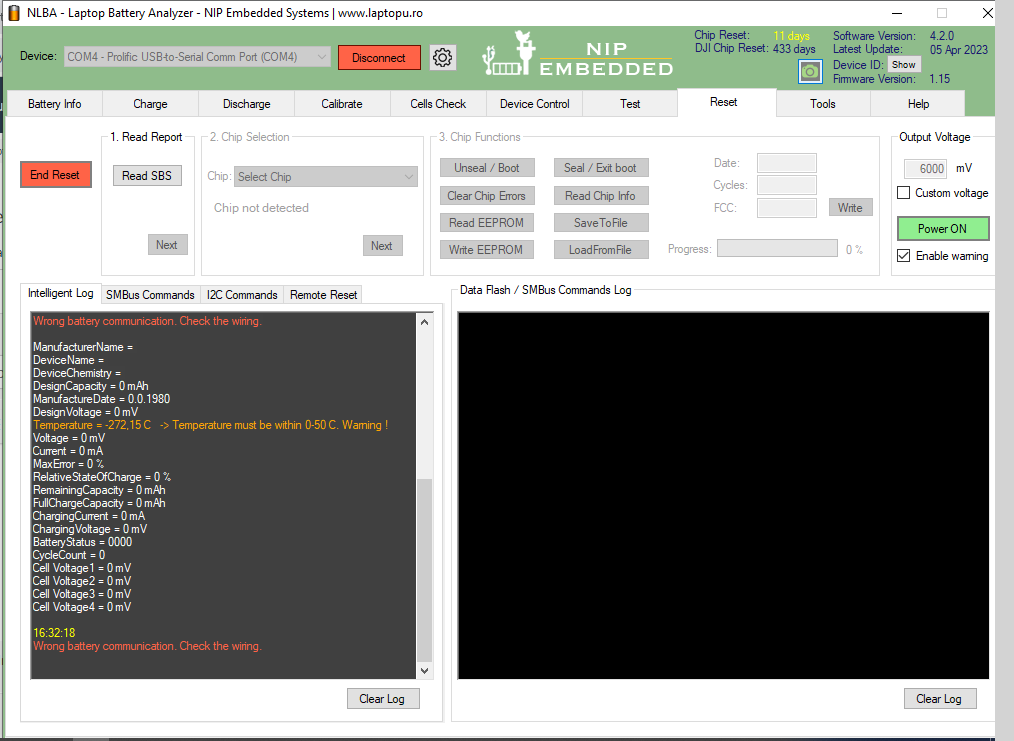

There is no communication with the battery.

Check your wiring.

There is no reason why this battery would be reading fine in other software but not in NLBA.

Did you changed Manufacture Date ?..

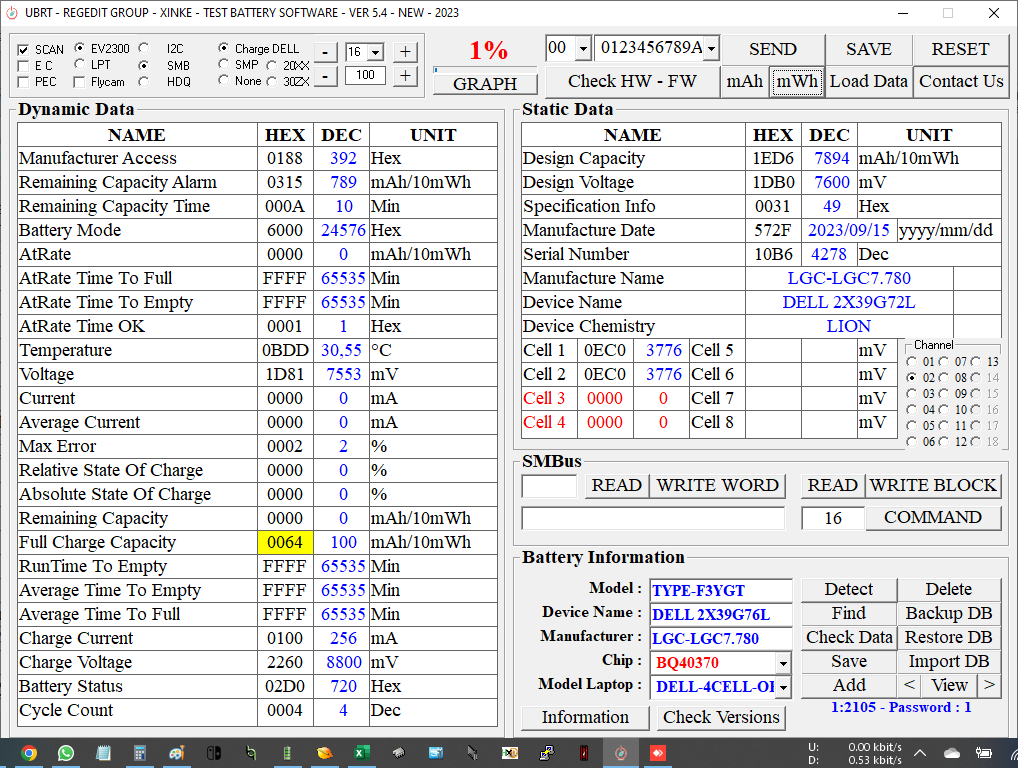

It is 15.09.2023

here is donor dump file

I dissambled and rebuilt everything and it is now showing in nlba, still dont know what was the culprit.

Flashed back donor file.

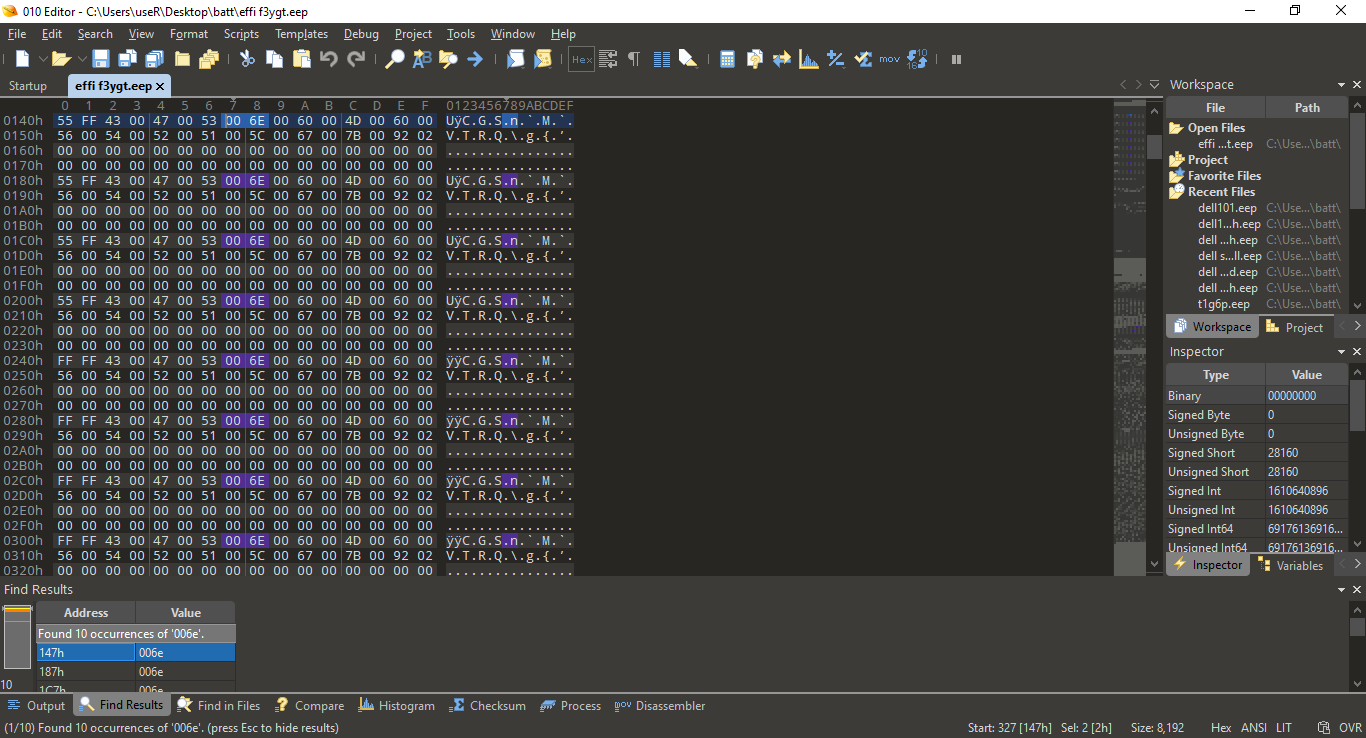

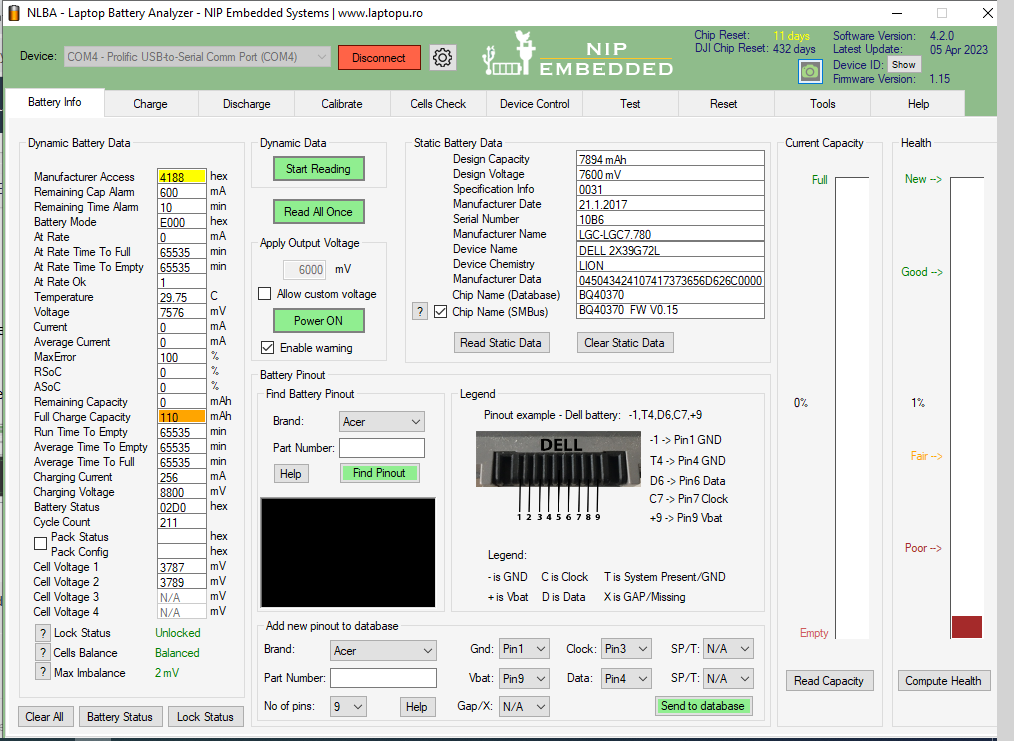

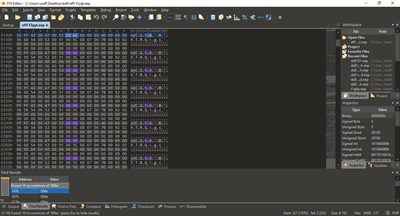

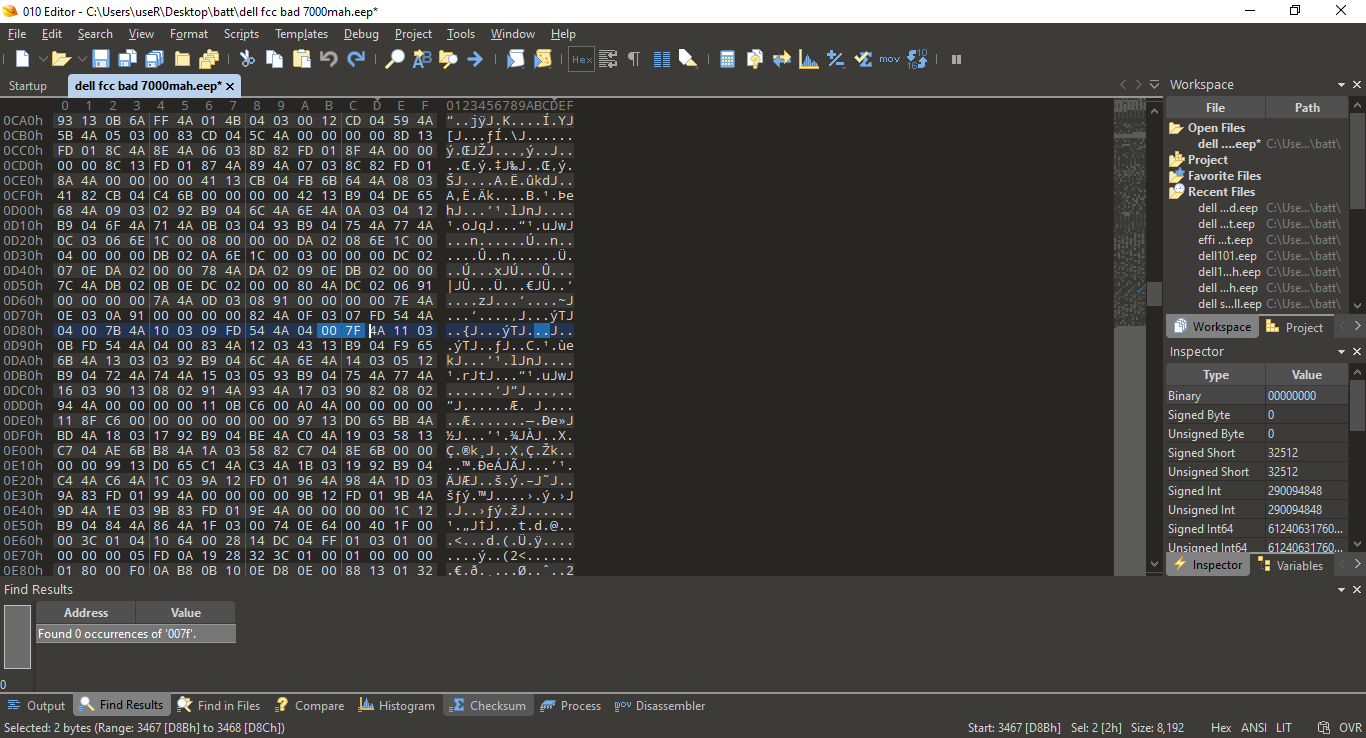

Fcc is also bad 110mah. I tried hex edit but up to 10 occurencies appear

What is the reason to use another battery dump instead of original eeprom ?..

@djibattworkshop I thought is was fine to use a dump from a perfectly working battery  to sort out my issue when in fact the dump I wrote was from another fcc problematic battery!

So I need help for this fcc edit issue.

this morning...edited values from 127mah to 7000mah. Still no changes.

What to try next ?

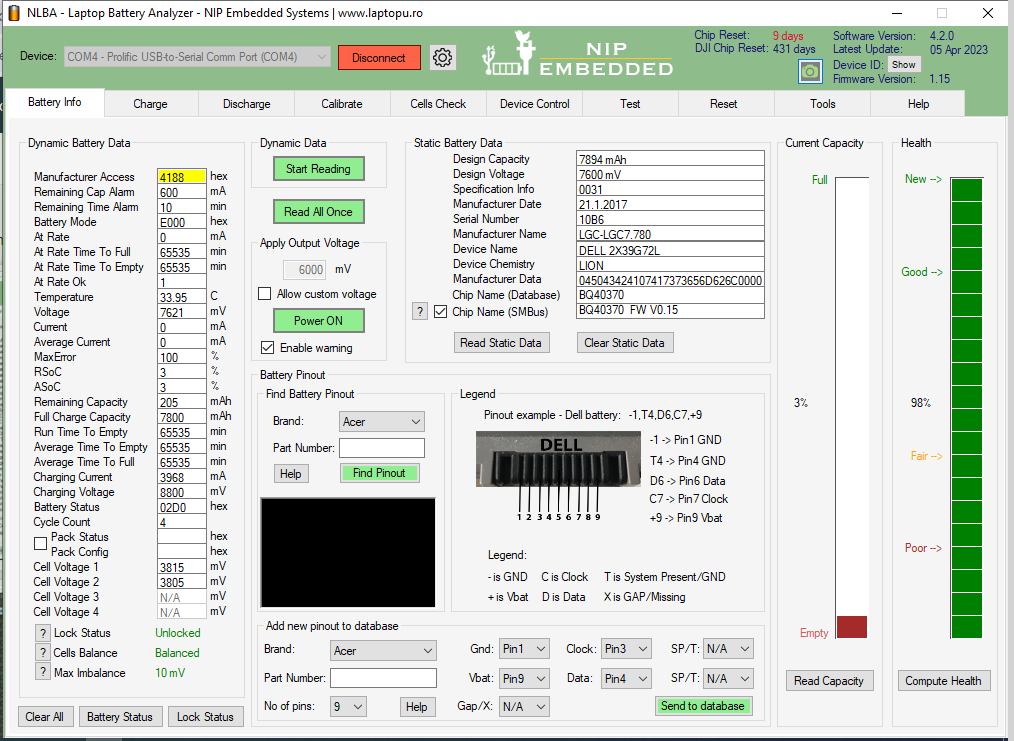

now working, chg, dsg OK!

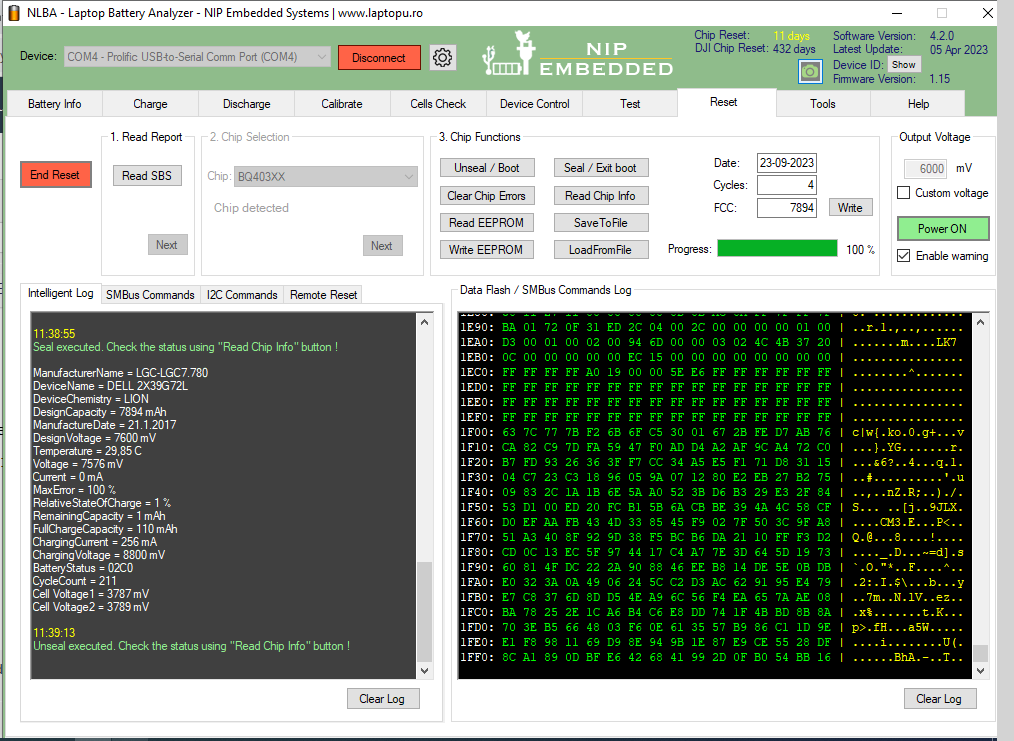

I edited 7000mah in hex and reset tab. It worked then in reset tab again, I edited to 78000mah and it is still working.

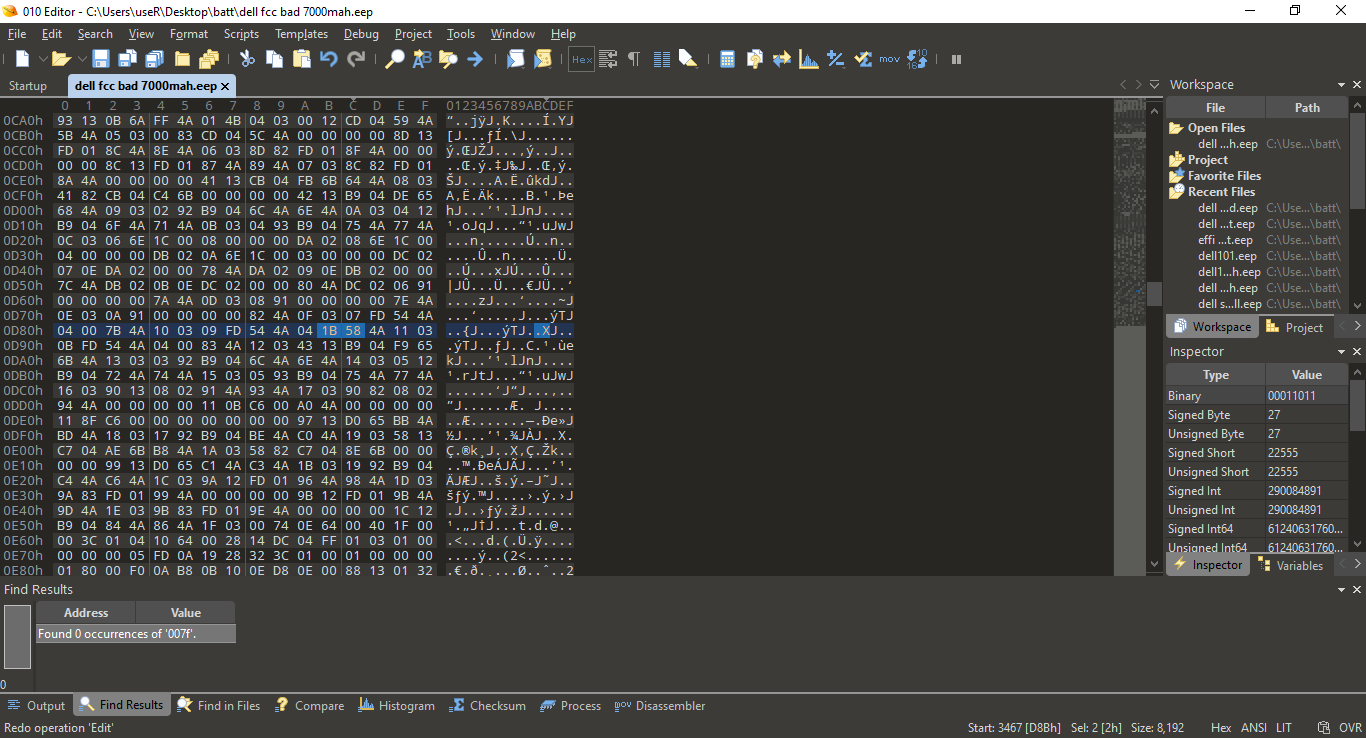

I made a dump [7000mah] if there is anything intersting for.

Posted by: @exwilliam

edited values from 127mah to 7000mah. Still no changes

dont use bq304xx FCC edit tutorial to work with bq403xx chips. These chips use different byteorder.

Also dont use BatInfo tab to search for FCC in the dump. It is converted in background from 10mWh units to mAh so it will confuse search and could find not proper location in eeprom. You already bricked one chip this way.

Posted by: @exwilliam

I made a dump [7000mah] if there is anything intersting for

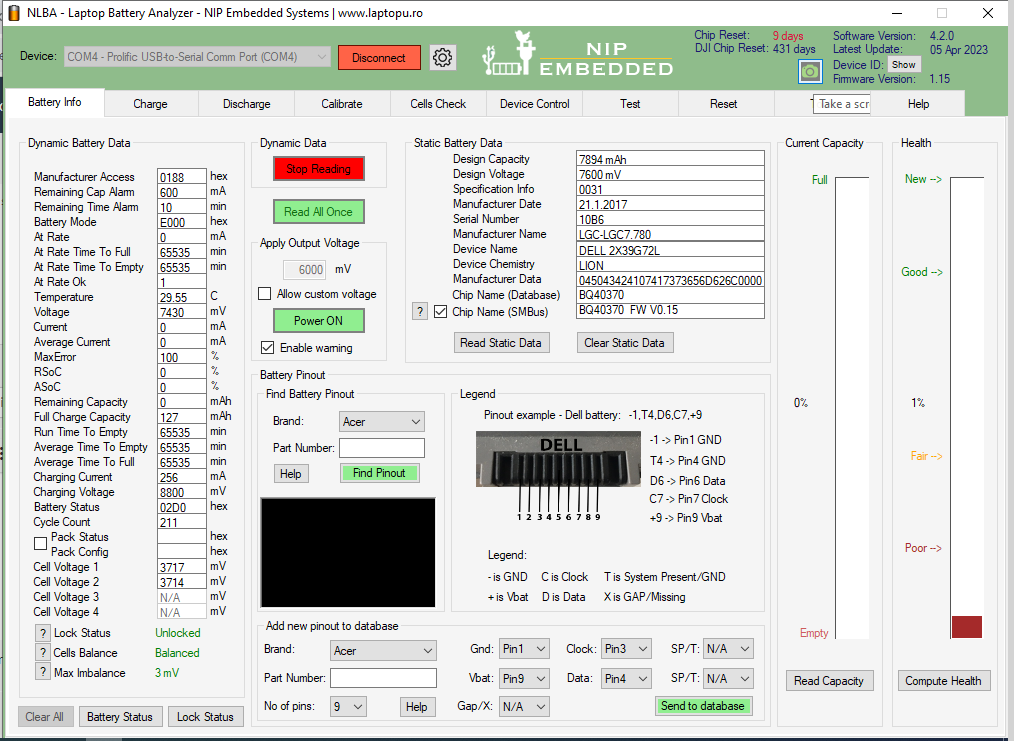

 Checked the dump. It still has FCC = 127mAh so it will not work correctly.

Posted by: @djibattworkshop

Checked the dump. It still has FCC = 127mAh so it will not work correctly.

Whoa! Could you fix for me?

Posted by: @djibattworkshop

dont use bq304xx FCC edit tutorial to work with bq403xx chips. These chips use different byteorder.

Good to know!

Posted by: @djibattworkshop

Also dont use BatInfo tab to search for FCC in the dump. It is converted in background from 10mWh units to mAh so it will confuse search and could find not proper location in eeprom. You already bricked one chip this way.

I should use the other software or is there a better method?

you say that you edited FCC to 7800 using Nlba1 software.

Could you confirm it is reported correctly on BatInfo tab ?..
