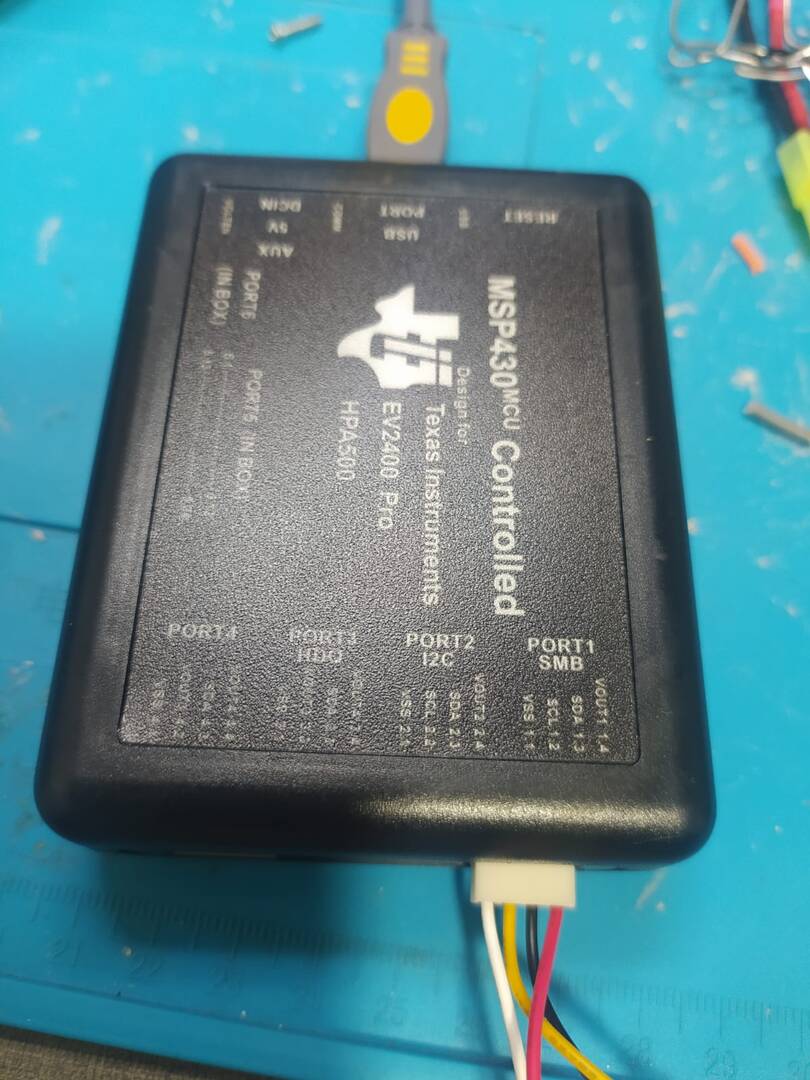

Good morning, could you help me, just tell me if this device I bought on Aliexpres can read the batteries,It didn't communicate with any connection here in the nlba1 software or in bqstudio, now I don't know if it's a defect, or a fake or I don't know how to use it, it would only be for reading the batteriesWould you have any advice, thanks
Please tell us what kind of Windows is installed on your laptop.
He even found it but didn't recognize the battery, I also don't know if it is connected to my software nlba1 would read the same battery as the nlba1 read, that's my doubt
Do you hear usb connect sound when cable is connected to laptop ?..

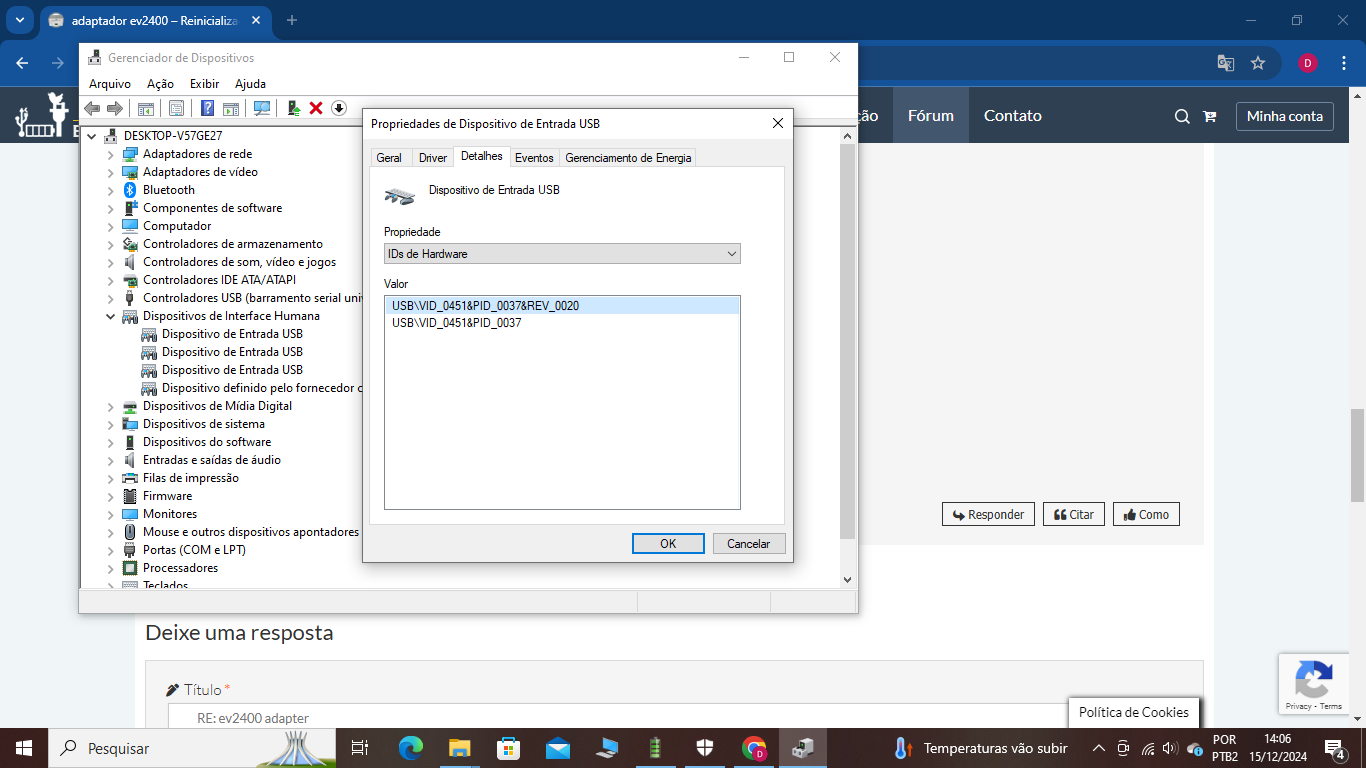

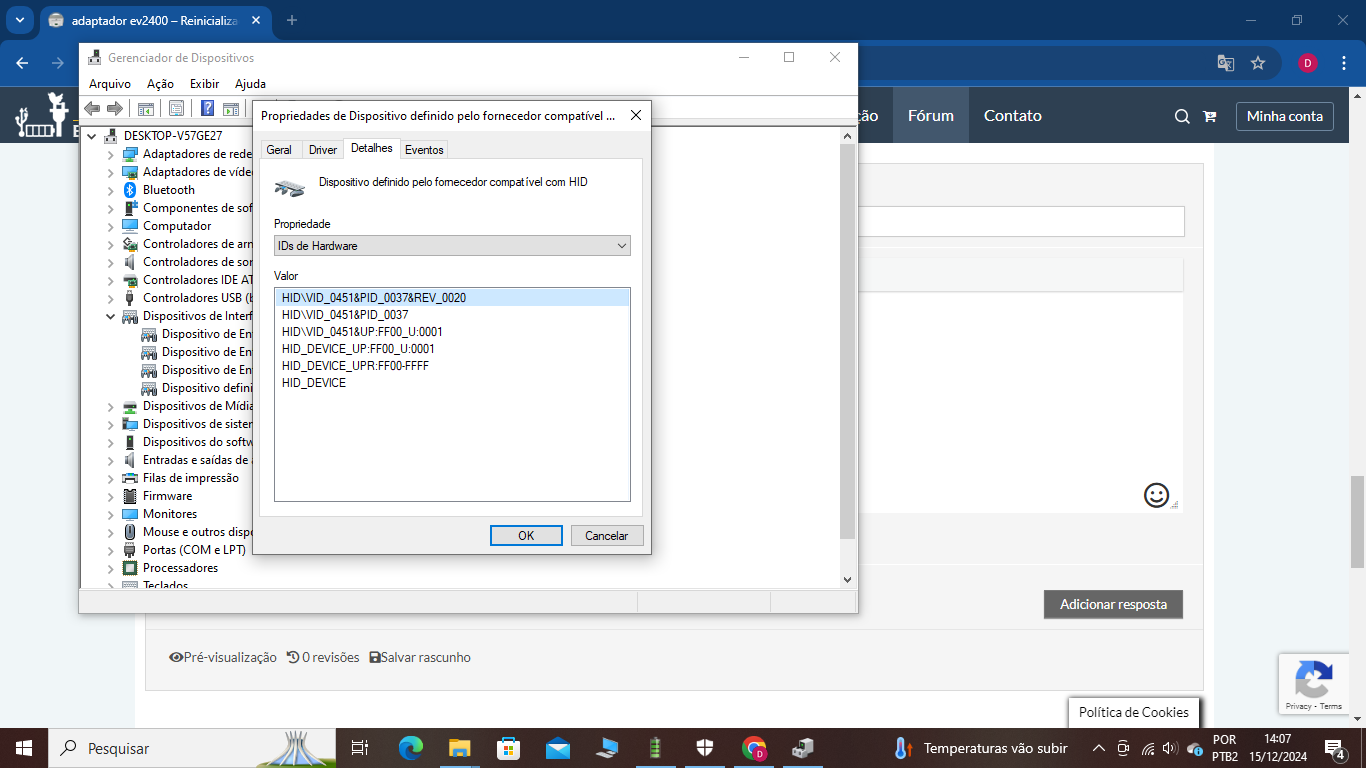

Also go to Device Manager, and check if new usb device is found when cable is connected. If so, right-click on it and select Properties, then go to Details tab, select Hardware Ids and paste a picture.

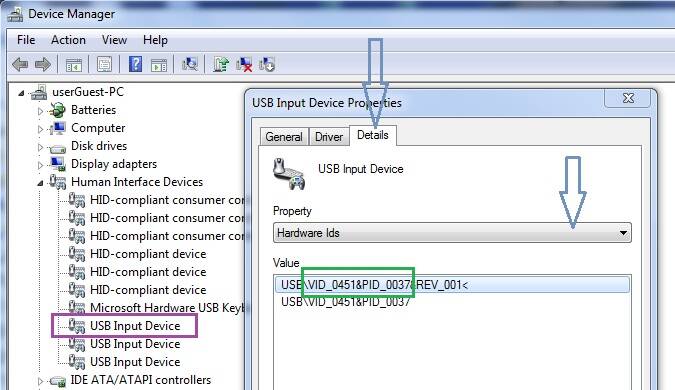

Below is just an example how ev2400 Chinese clone adapter looks like in Device Manager
Good. Now measure the voltage on Port 1 Smbus, pin C and pin D relatively to pin G.
Multimeter black probe on VSS 1.1, red probe on SCL 1.2, then on SCL 1.3 pins.
@djibattworkshop I don't know if it's my multimeter but it gave 3.20 in both
SCL == 3.20v
SDA == 3.20v
is it correct ?..
So now connect any good battery. Start NLBA1 software, select ev2300, press Connect button.
@djibattworkshop He asked for the serial soon and I gave it ok
I put a charged dell xcmrd battery
Now press Read button and paste a picture.
I just called
vss 1.1 on earth
scl no clock
sda date
