Lenovo L13M4P71 A2168 Clone FCC bug

Page 1 / 2 Next

Last Post

RSS

sajantherev

(@sajantherev)

Honorable Member Customer

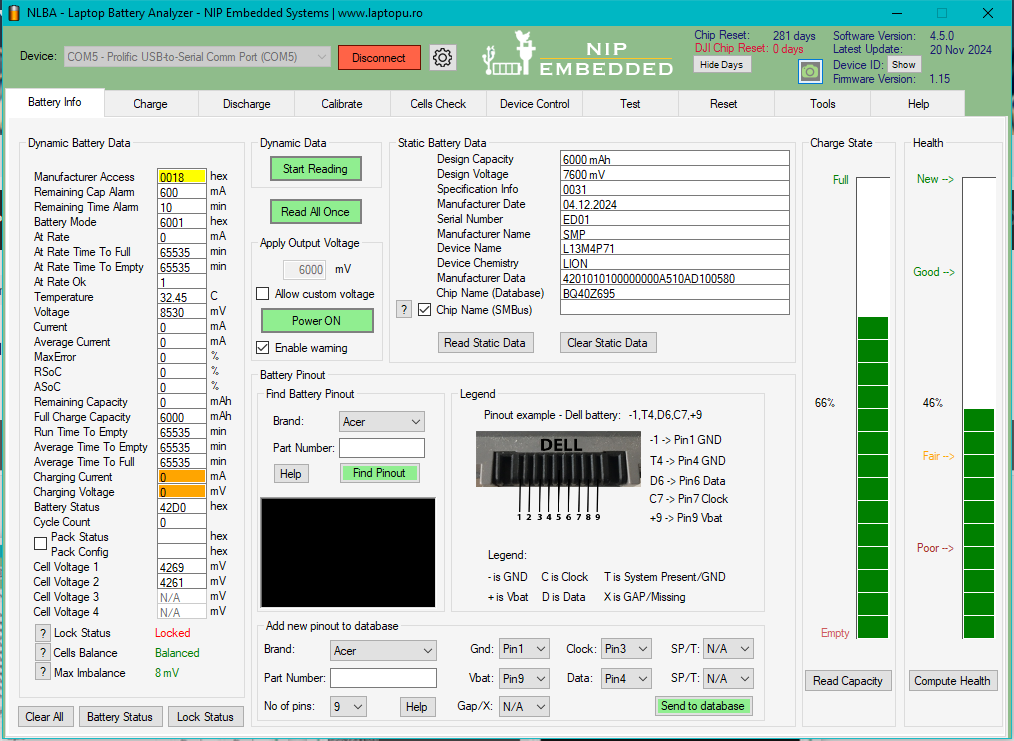

seems like chip manipulate to be BQ40Z695, visual check this batt use a2168 controler.

ReplyQuote

Topic starter Posted : 03/12/2024 8:28 am

DjiBattWorkshop

(@djibattworkshop)

Member Moderator

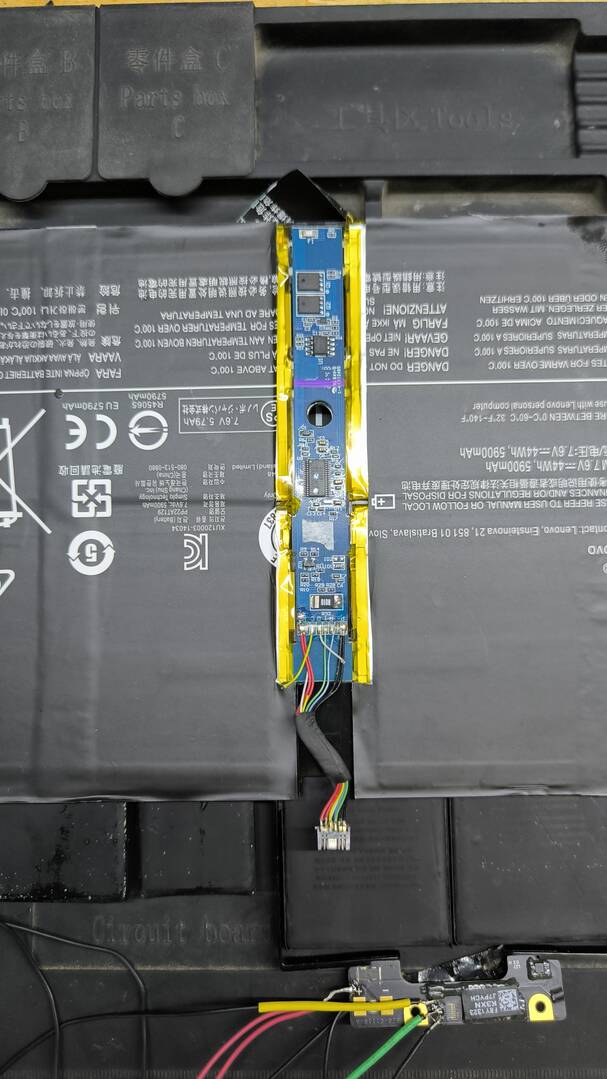

Do you observe small green submodule on the pcb ?..

ReplyQuote

Posted : 03/12/2024 9:16 am

sajantherev

(@sajantherev)

Honorable Member Customer

Do u mean U1? First time see this

ReplyQuote

Topic starter Posted : 03/12/2024 12:45 pm

DjiBattWorkshop

(@djibattworkshop)

Member Moderator

Try to change FCC using bq20zXXX plugin.

ReplyQuote

Posted : 03/12/2024 2:58 pm

sajantherev

(@sajantherev)

Honorable Member Customer

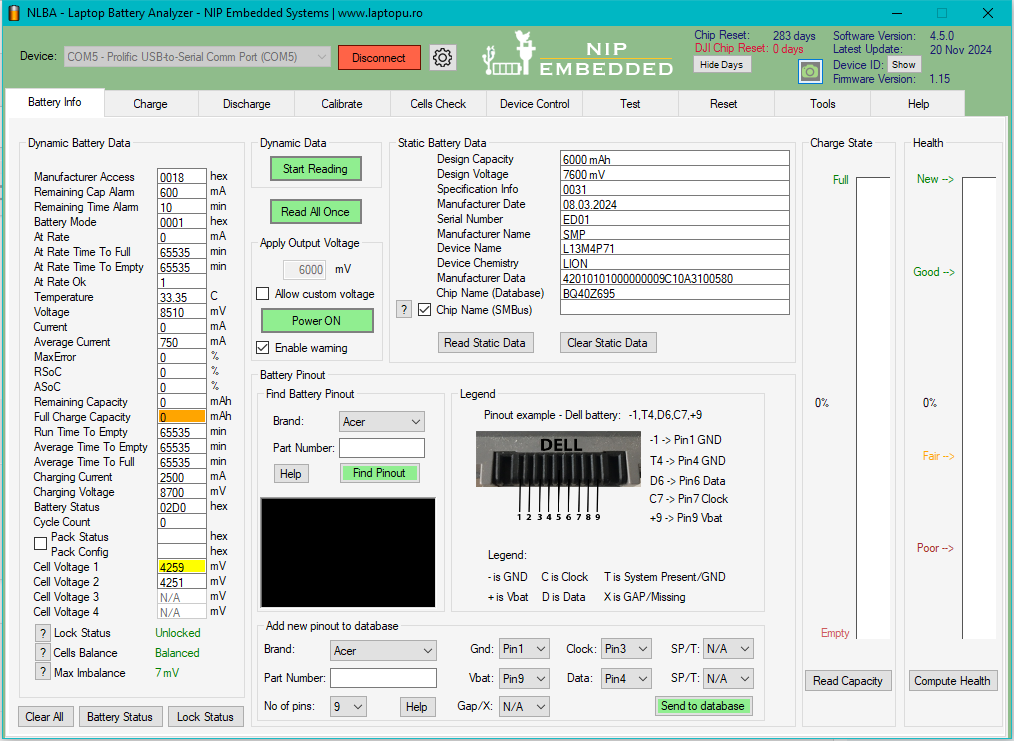

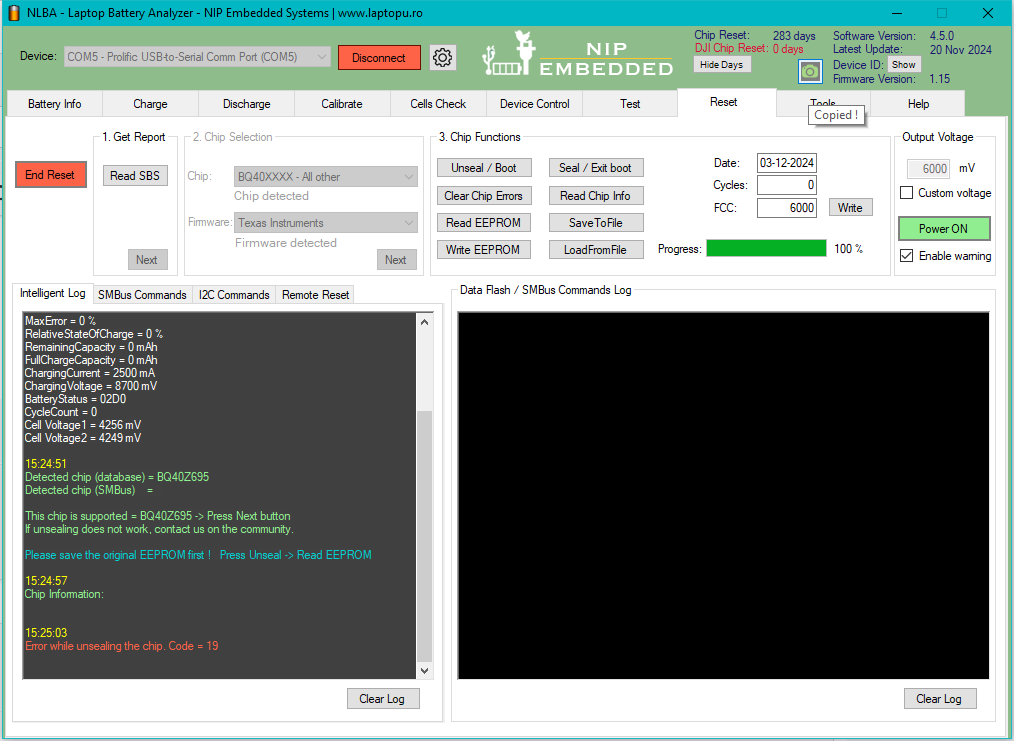

fcc change but make battery lock

ReplyQuote

Topic starter Posted : 04/12/2024 3:40 am

DjiBattWorkshop

(@djibattworkshop)

Member Moderator

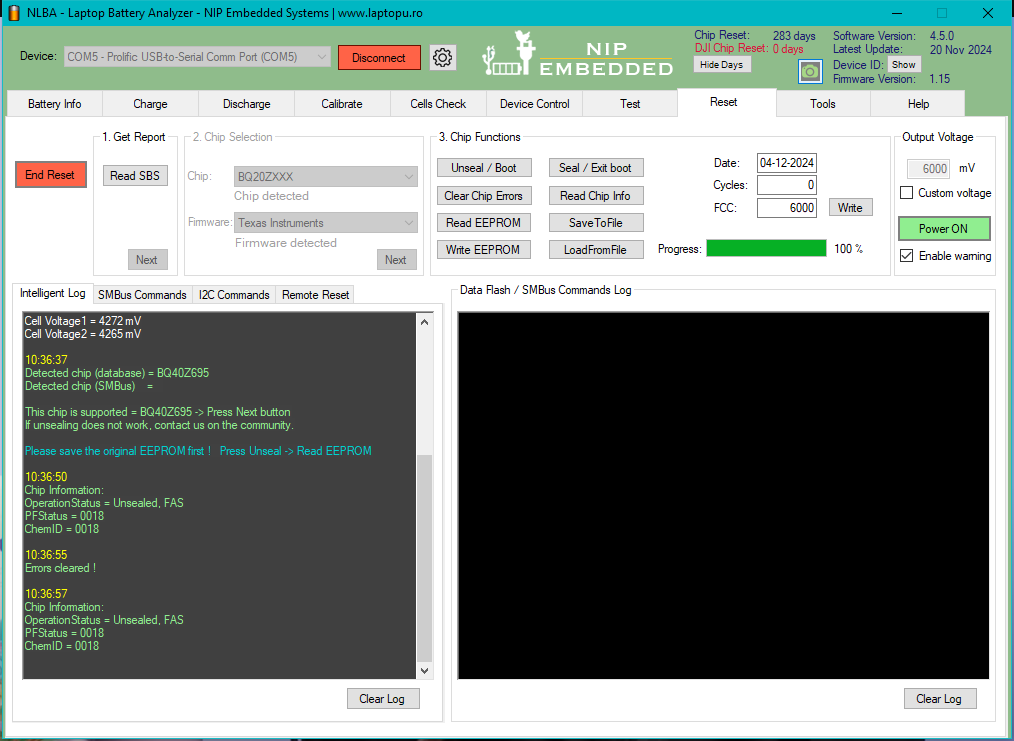

Press ClearChipErrors button.

ReplyQuote

Posted : 04/12/2024 8:16 am

sajantherev

(@sajantherev)

Honorable Member Customer

@djibattworkshop still same

ReplyQuote

Topic starter Posted : 04/12/2024 1:47 pm

sajantherev

(@sajantherev)

Honorable Member Customer

ReplyQuote

Topic starter Posted : 05/12/2024 6:25 am

DjiBattWorkshop

(@djibattworkshop)

Member Moderator

Try to read eeprom

ReplyQuote

Posted : 05/12/2024 6:33 pm

sajantherev

(@sajantherev)

Honorable Member Customer

@djibattworkshop

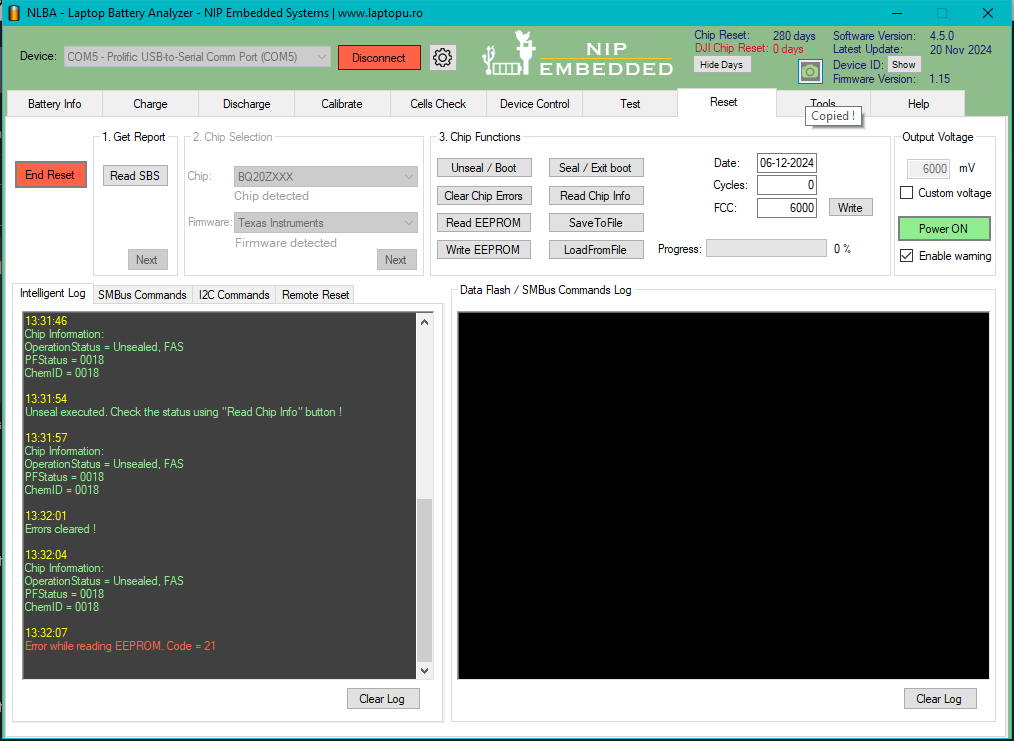

failed, can't read eeprom

ReplyQuote

Topic starter Posted : 06/12/2024 6:33 am

sajantherev

(@sajantherev)

Honorable Member Customer

any solution ?

ReplyQuote

Topic starter Posted : 10/12/2024 7:45 am

DjiBattWorkshop

(@djibattworkshop)

Member Moderator

It looks this chip has custom firmware. So it is not supported by the software. The solution is to install genuine Lenovo pcb with bq40z695a chip. You could try any 2S Lenovo PCB if you dont have L13M4P71 board.

ReplyQuote

Posted : 10/12/2024 12:58 pm

sajantherev

(@sajantherev)

Honorable Member Customer

@djibattworkshop found the original bms with the same device code, I need a firmware adjustment

ReplyQuote

Topic starter Posted : 11/12/2024 11:50 am

sajantherev

(@sajantherev)

Honorable Member Customer

ReplyQuote

Topic starter Posted : 12/12/2024 7:31 am

DjiBattWorkshop

(@djibattworkshop)

Member Moderator

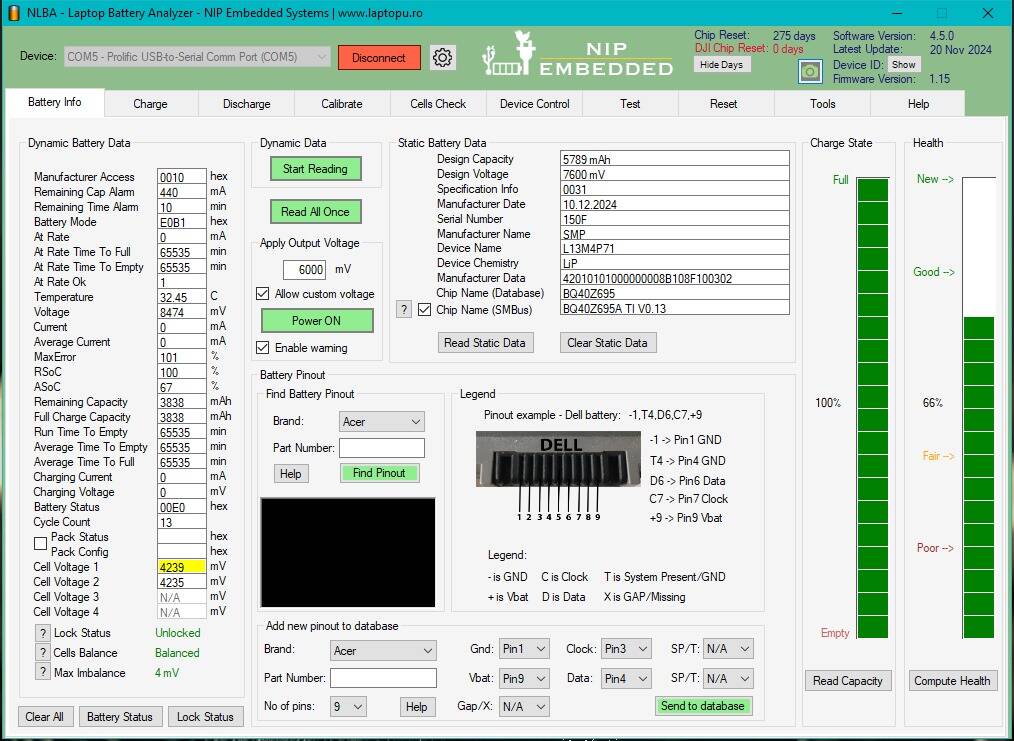

Looks good. Check battery in laptop.

ReplyQuote

Posted : 12/12/2024 9:17 am
