[Solved] Unable to unlock BQ30420 FW v3.10

Page 1 / 2
    Last Post
  RSS
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

Hello,kindly help battery shows "Error Cleared" but its still locked in the Locked Status and unable to Charge


Chip name:BQ30420 FW v3.10

Topic starter Posted : 21/01/2023 12:31 pm
torture
 torture
(@torture)
Member Moderator

SP pin not connected to ground.

The topic title should also include battery part number.

Posted : 21/01/2023 12:35 pm
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

@torture

Connector 1:
Number of Pins: 6
Pinout: -1,D4,C5,+6

does not show Sys Pin

Topic starter Posted : 21/01/2023 12:38 pm
torture
 torture
(@torture)
Member Moderator

Battery part number?

Posted : 21/01/2023 12:41 pm
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

MAC Register 0x8E88 definitely says System Present is not connected.

Paste picture of connector to find out SP pin.

Posted : 21/01/2023 12:41 pm
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

Battery part number:9mgcd(Dell)



Topic starter Posted : 21/01/2023 12:42 pm
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

@torture part number:9mgcd(Dell)

Topic starter Posted : 21/01/2023 12:42 pm
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator
Posted by: @johnchanda3

Connector 1:
Number of Pins: 6
Pinout: -1,D4,C5,+6

does not show Sys Pin

 It is pinout of Acer battery.

Your battery is for Dell.

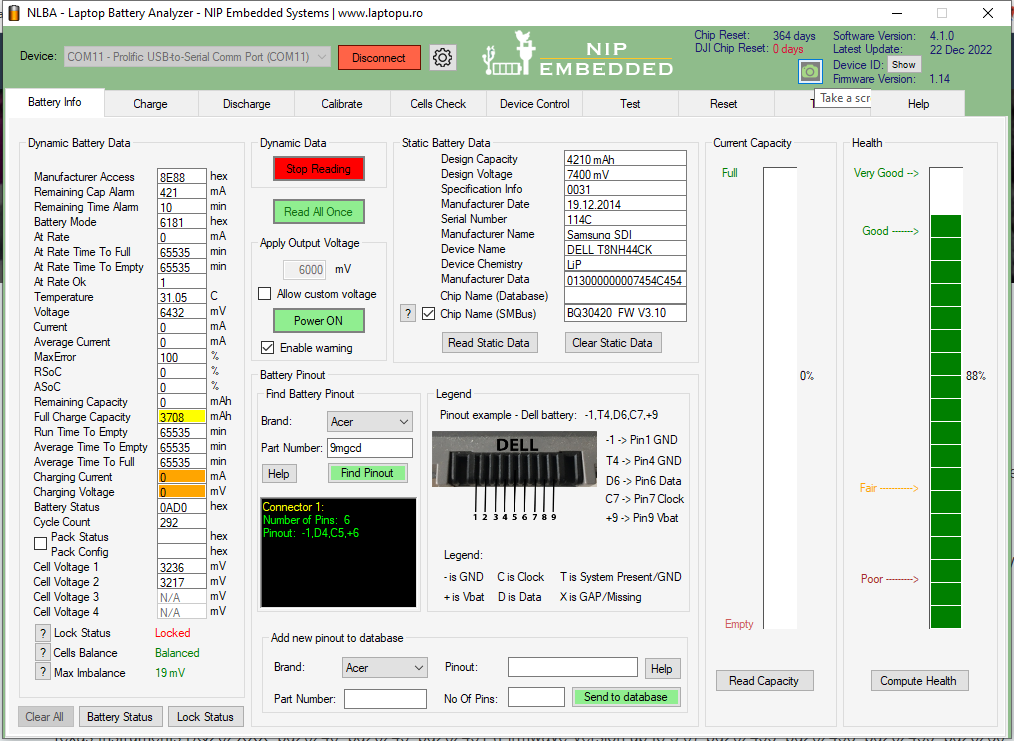

IMG 20230121 144303

Have you read device documentation how to find out connector pinout?

Have you looked video reviews and tutorial ?

It is well explained there.



Posted : 21/01/2023 12:45 pm
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

@djibattworkshop


sorry that's the pin out



Topic starter Posted : 21/01/2023 12:48 pm
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

still cant see sys pin

Topic starter Posted : 21/01/2023 12:48 pm
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

@djibattworkshop


Many Thanks  found the SP and was successful'' Smile Smile Smile Smile Smile



Topic starter Posted : 21/01/2023 1:23 pm
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

Submit correct pinout to edit the database.

Posted : 21/01/2023 2:24 pm
Chandaj
 Chandaj
(@johnchanda3)
Estimable Member Customer

@djibattworkshop 😀



Topic starter Posted : 23/01/2023 5:51 am
Nexus Fusion
 Nexus Fusion
(@david-vernon)
Eminent Member Customer

Hi all I am having a strange issue with this battery. The setup is below but I found I needed a ground on pin 1&2 to get it to read.
when trying to unlock this one it is greyed out..
Battery will not charge see attached.



Any reason it will not unlock?

Thanks in advance.

This post was modified 2 years ago by Nexus Fusion
Posted : 20/03/2024 11:36 am
Nexus Fusion
 Nexus Fusion
(@david-vernon)
Eminent Member Customer

Sorry I just see this chip is different BQ9000 SANYO V44450037
