dell batteries didn't charge

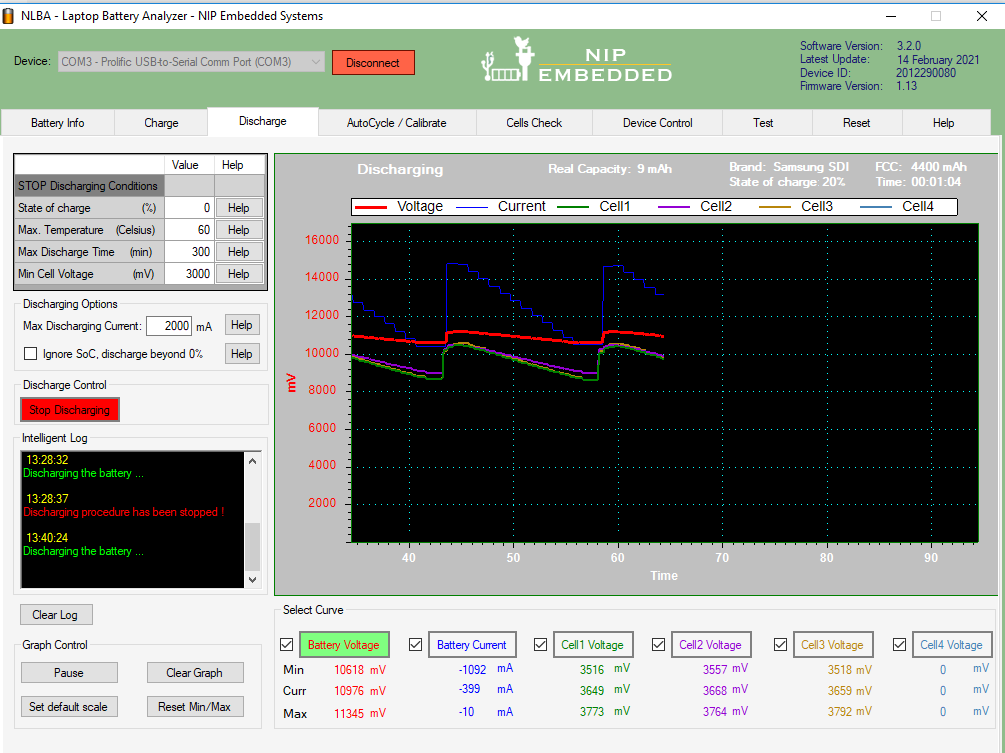

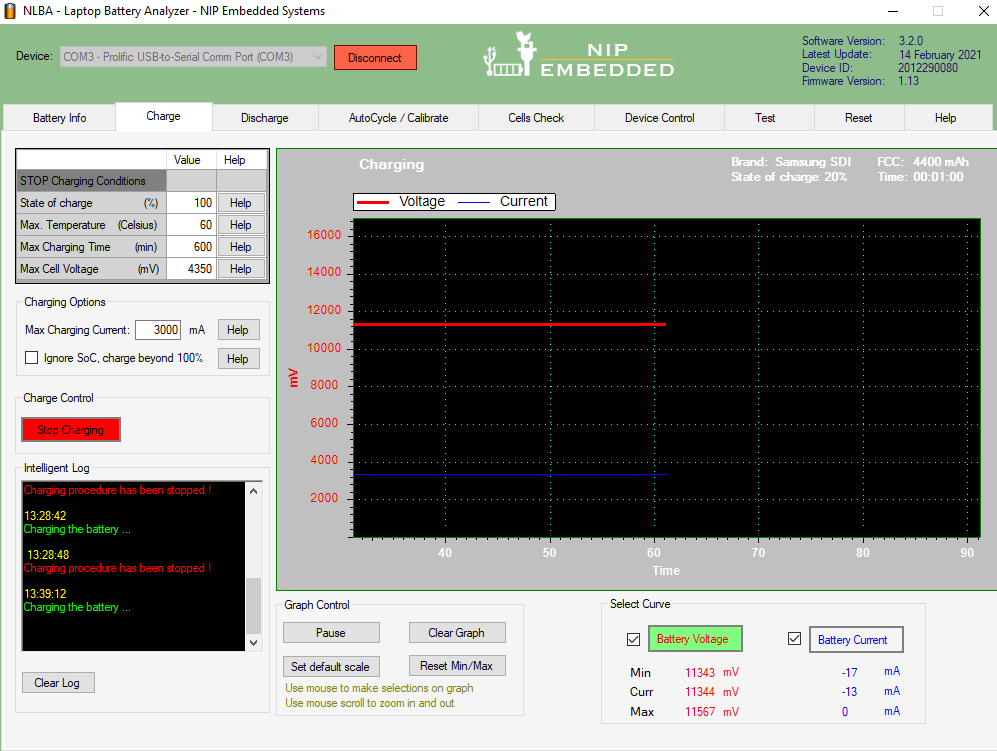

when i try to charge dell batteries give me -ve current as in the pictuer
discharge

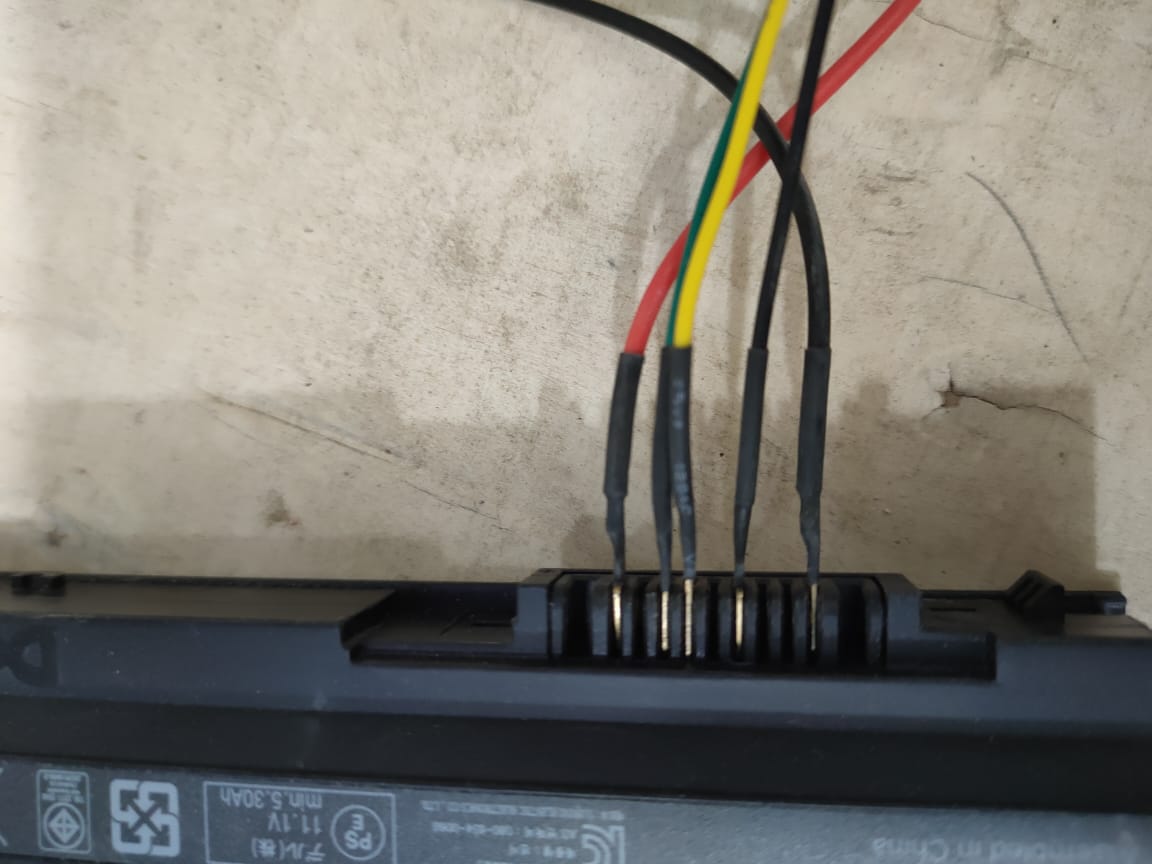

connection

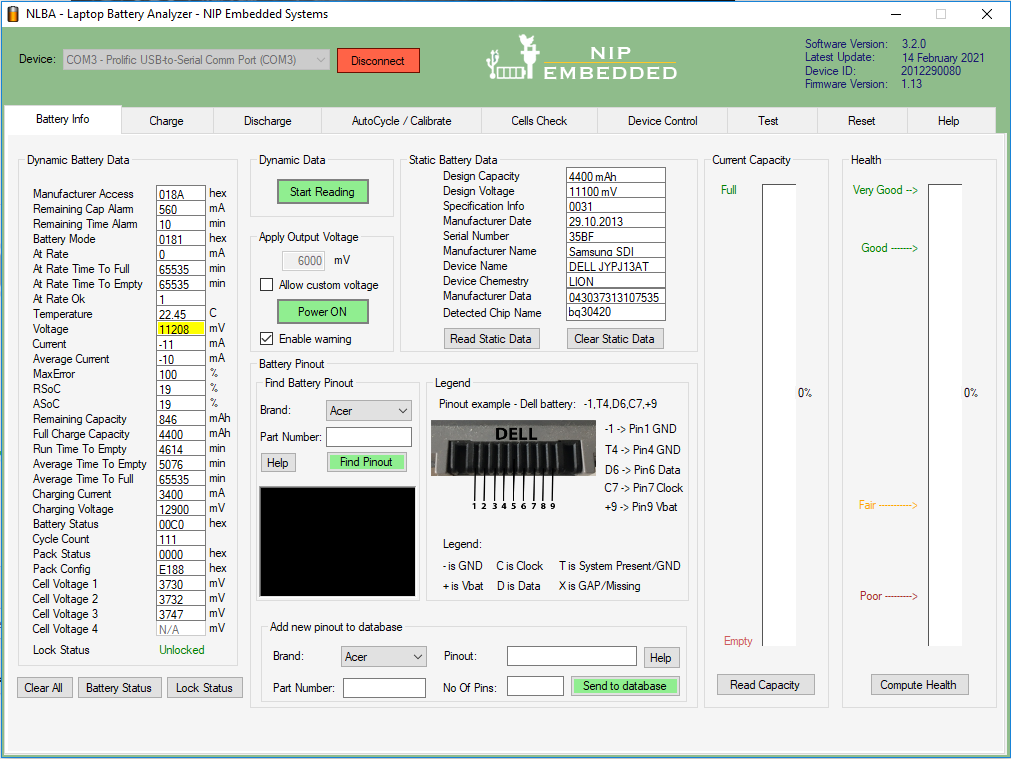

Add a picture from first tab Battery Info with all parameters.
is battery Dell genuine ?
yes battery genuine i have a lot of dell batteries all have the same problem
NLBA device must work with all batteries like this one. I have one on my desk, so it works perfectly. Let's see, maybe something is wrong with your box.
Let's do one test:
1. Disconnect battery green connector from NLBA device
2. Go to Battery Info tab and press Power On (10000mV).
3. Check Output LED from NLBA device, is it ON ?
4. Measure the voltage between V and G on green connector, is it about 10V ?
NLBA device must work with all batteries like this one. I have one on my desk, so it works perfectly. Let's see, maybe something is wrong with your box.
Let's do one test:
1. Disconnect battery green connector from NLBA device
2. Go to Battery Info tab and press Power On (10000mV).
3. Check Output LED from NLBA device, is it ON ?
4. Measure the voltage between V and G on green connector, is it about 10V ?
output led is off
the voltage 0v
Please contact me on whatsap.
thank you very much for great support the problem was solved and SW really brilliant and very helpful for me thanks again
👍 👍 👍
Don't hesitate to post any other questions you will have. We are here to help you !
