[Solved] Acer Battery AS10D81 Unloking Problem

    Last Post
  RSS
saqibcomputers
 saqibcomputers
(@saqib-bukhari)
Estimable Member

hi

How are you ?

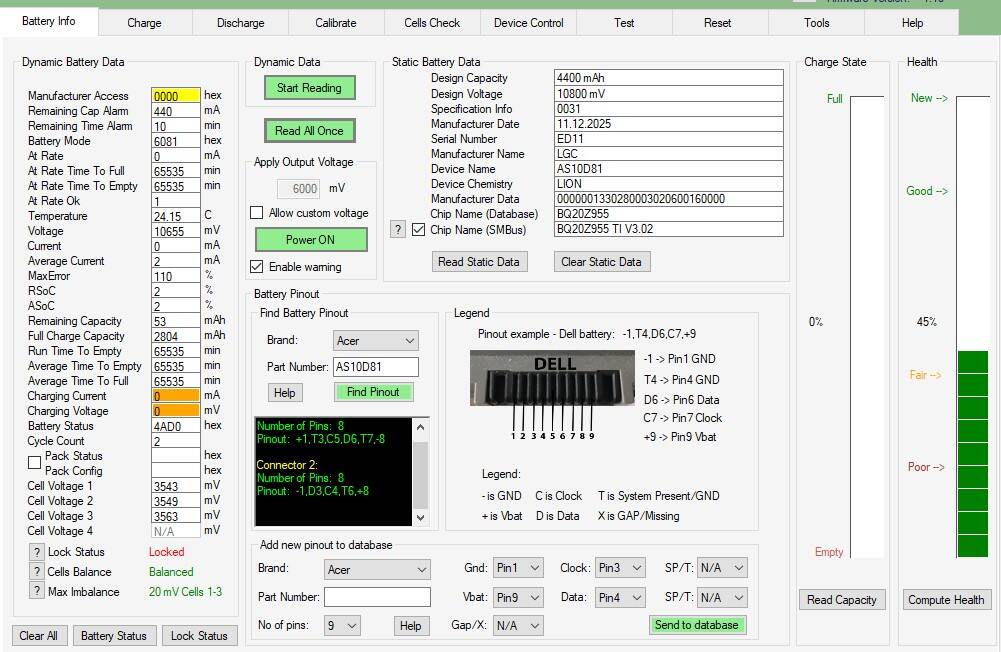

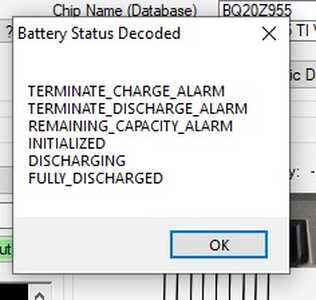

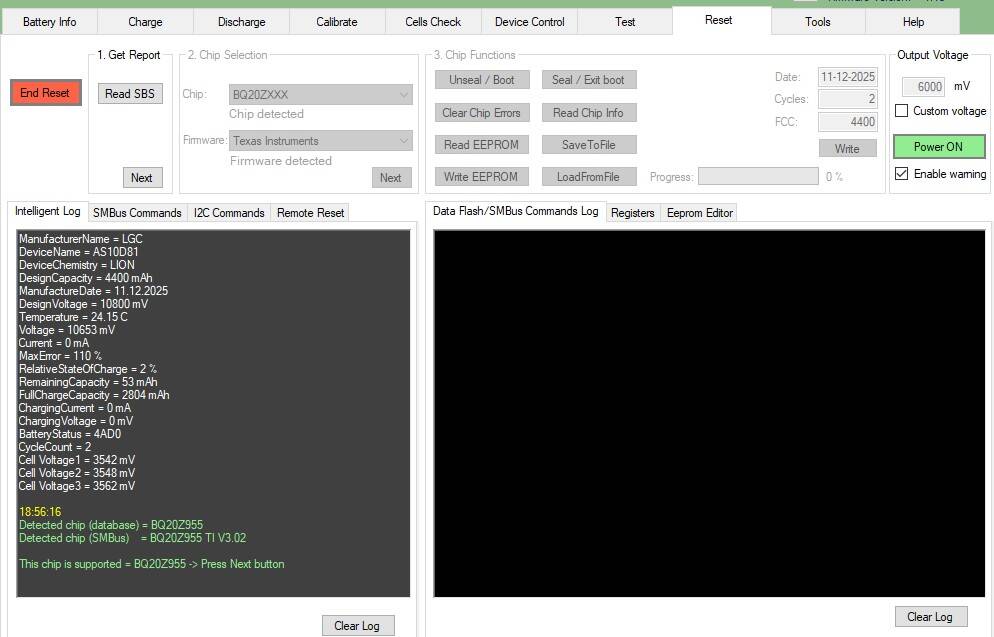

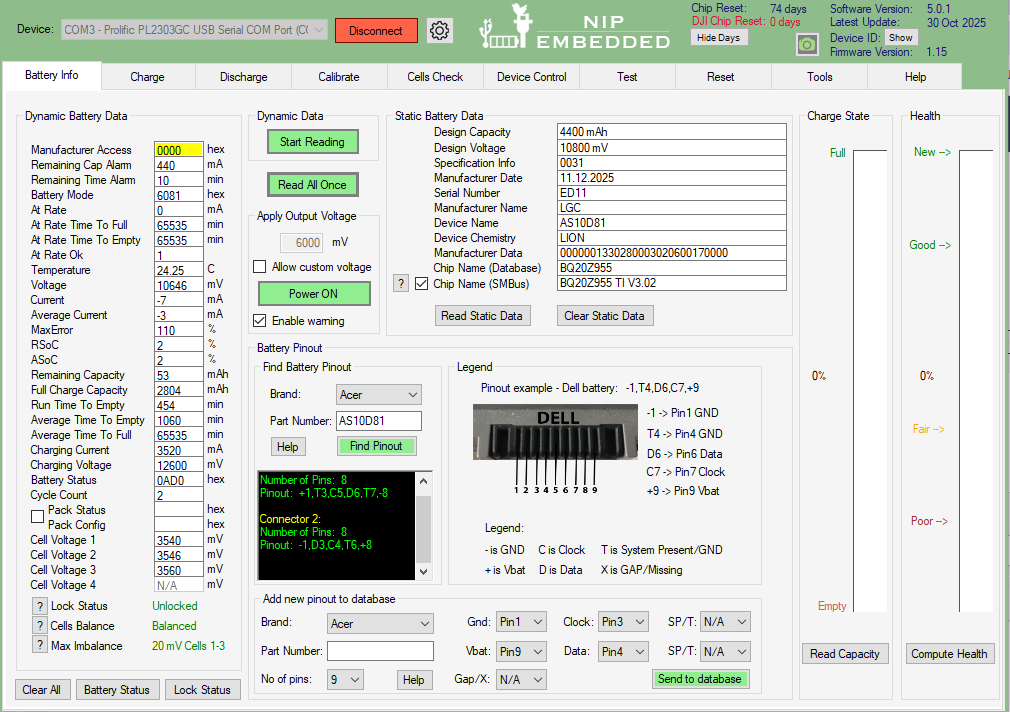

I am facing an issue with this battery. I have attached all pictures and screenshots.
Can you please guide me how this problem can be solved and how to unlock this battery?

1
2
3
ReplyQuote
Topic starter Posted : 11/12/2025 2:01 pm
loliconic
 loliconic
(@loliconic)
Member Moderator

@saqib-bukhari

Make sure you connected the system present pin.

ReplyQuote
Posted : 11/12/2025 2:36 pm
loliconic
 loliconic
(@loliconic)
Member Moderator

@saqib-bukhari

Go to the reset tab
Read chip info
Unseal
Read chip info
Clear chip errors
Read chip info
Paste a picture here.

ReplyQuote
Posted : 11/12/2025 2:37 pm
saqibcomputers
 saqibcomputers
(@saqib-bukhari)
Estimable Member

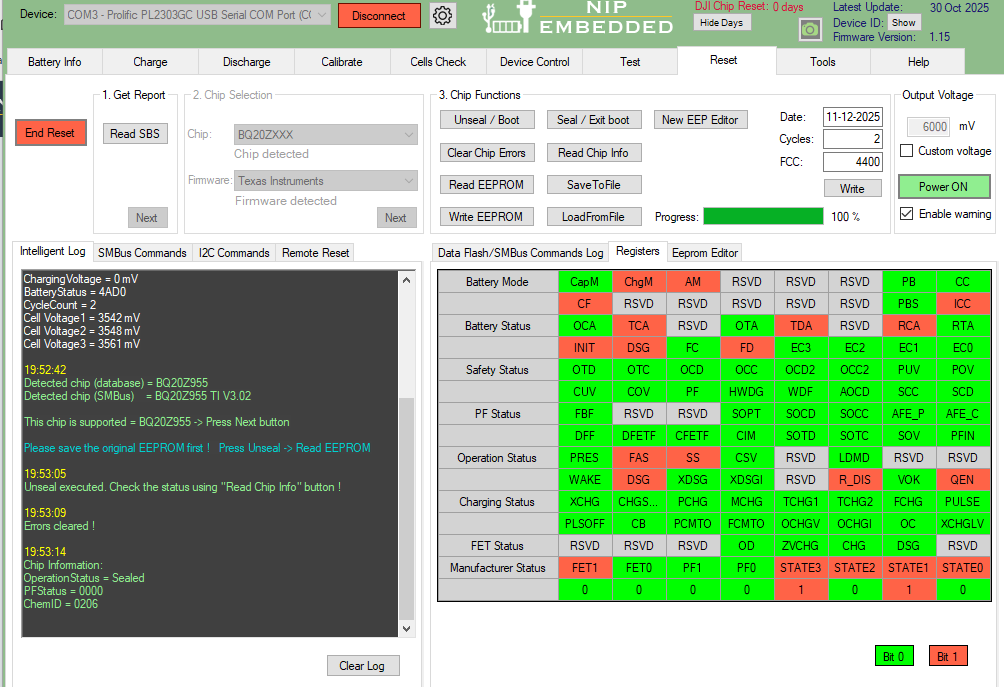

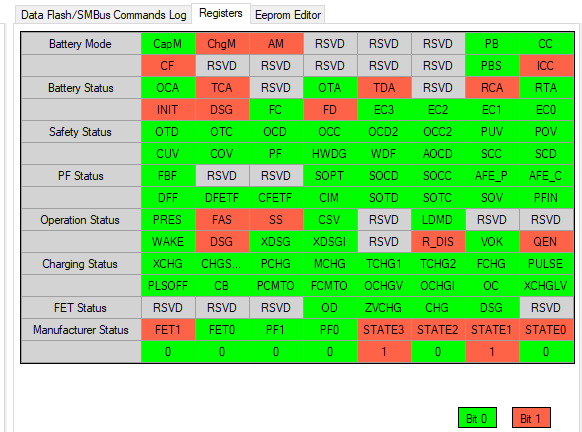

Posted by: @loliconic

@saqib-bukhari

Go to the reset tab
Read chip info
Unseal
Read chip info
Clear chip errors
Read chip info
Paste a picture here.

ReplyQuote
Topic starter Posted : 11/12/2025 2:51 pm
loliconic
 loliconic
(@loliconic)
Member Moderator

@saqib-bukhari

I think you didn't connect the system present pin.

ReplyQuote
Posted : 11/12/2025 2:52 pm
saqibcomputers
 saqibcomputers
(@saqib-bukhari)
Estimable Member

@loliconic

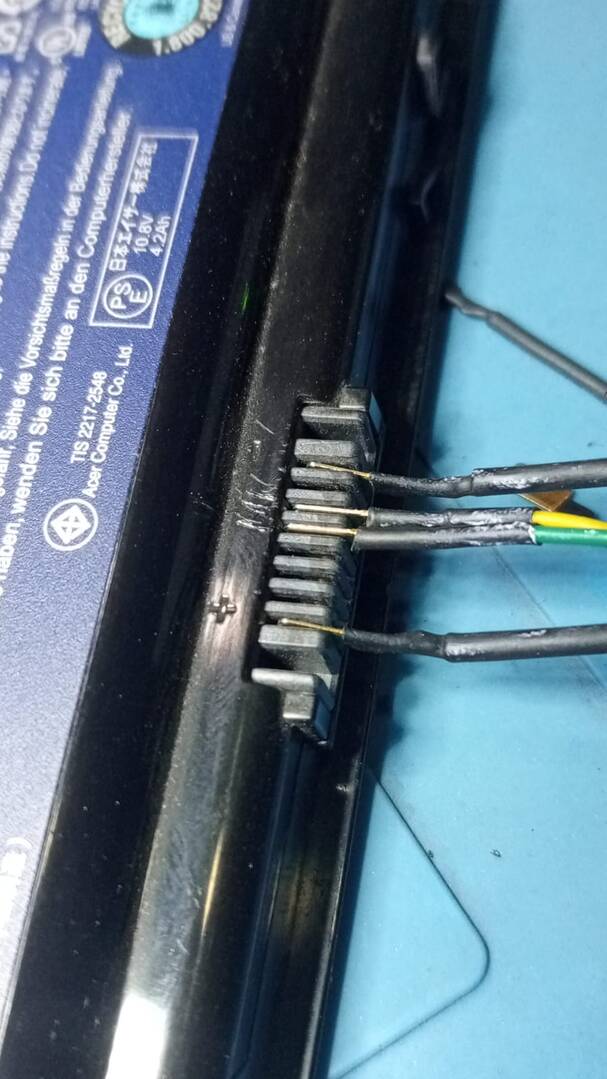

pin
bt



ReplyQuote
Topic starter Posted : 11/12/2025 2:56 pm
saqibcomputers
 saqibcomputers
(@saqib-bukhari)
Estimable Member

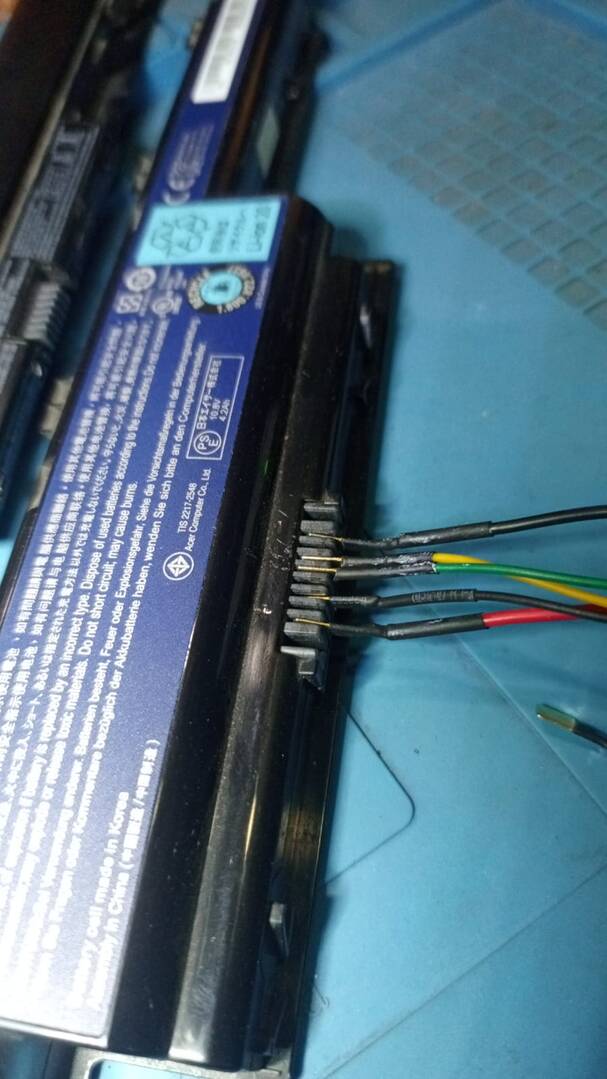

Solved Thank You So much

ok
ReplyQuote
Topic starter Posted : 11/12/2025 2:58 pm
loliconic liked
loliconic
 loliconic
(@loliconic)
Member Moderator

@saqib-bukhari

Good job!

ReplyQuote
Posted : 11/12/2025 3:10 pm
saqibcomputers
 saqibcomputers
(@saqib-bukhari)
Estimable Member
Posted by: @loliconic

@saqib-bukhari

Good job!

How did you know that I did not connect the Present pin?
Can you please guide me about this?

ReplyQuote
Topic starter Posted : 11/12/2025 3:36 pm
loliconic liked
tracker135n9
 tracker135n9
(@tracker135n9)
Noble Member Customer

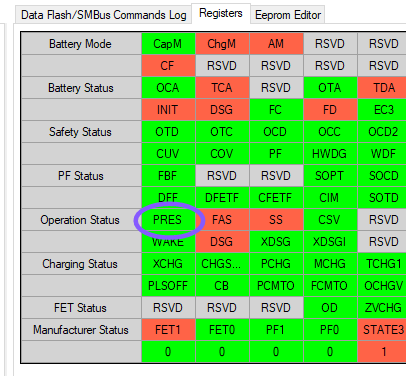

 Green "PRES" bit indicates System Present pin is not connected to ground.

IMG 20251211 180837

You could find all bits description in the bq20z95 Technical Reference Manual.

ReplyQuote
Posted : 11/12/2025 4:10 pm
loliconic liked
mickey
 mickey
(@mickey)
Estimable Member

@saqib-bukhari

All Acer batteries have a sis pin, so you don't have to think about it too much.

ReplyQuote
Posted : 11/12/2025 5:43 pm
saqibcomputers liked
saqibcomputers
 saqibcomputers
(@saqib-bukhari)
Estimable Member

@mickey Thanks again 👍😊

ReplyQuote
Topic starter Posted : 11/12/2025 6:42 pm
