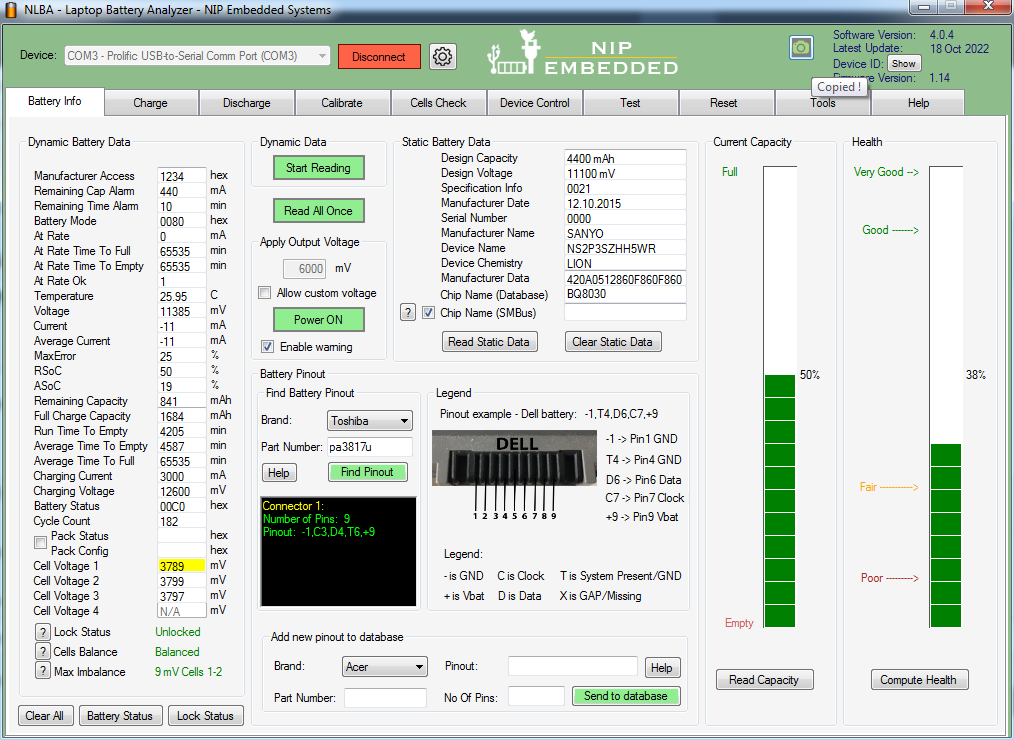

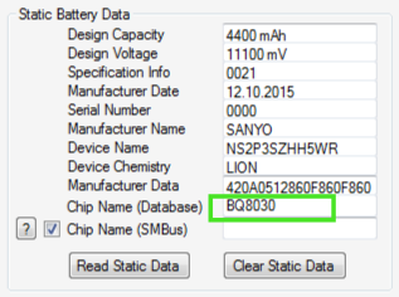

Before changing the cell

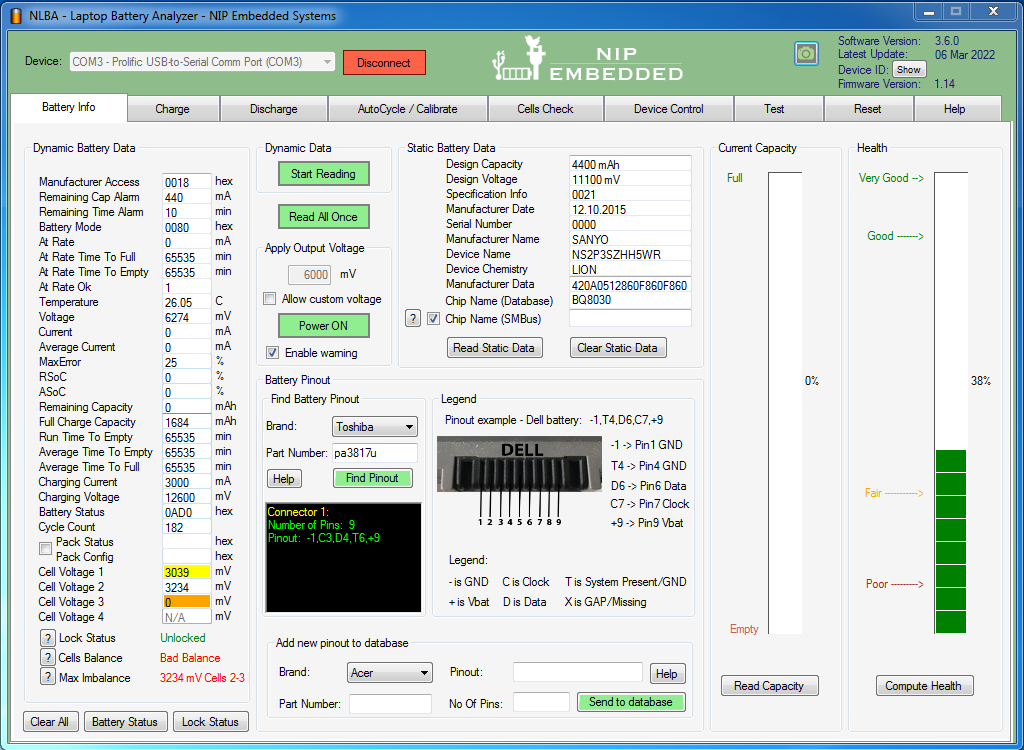

After changing the cell

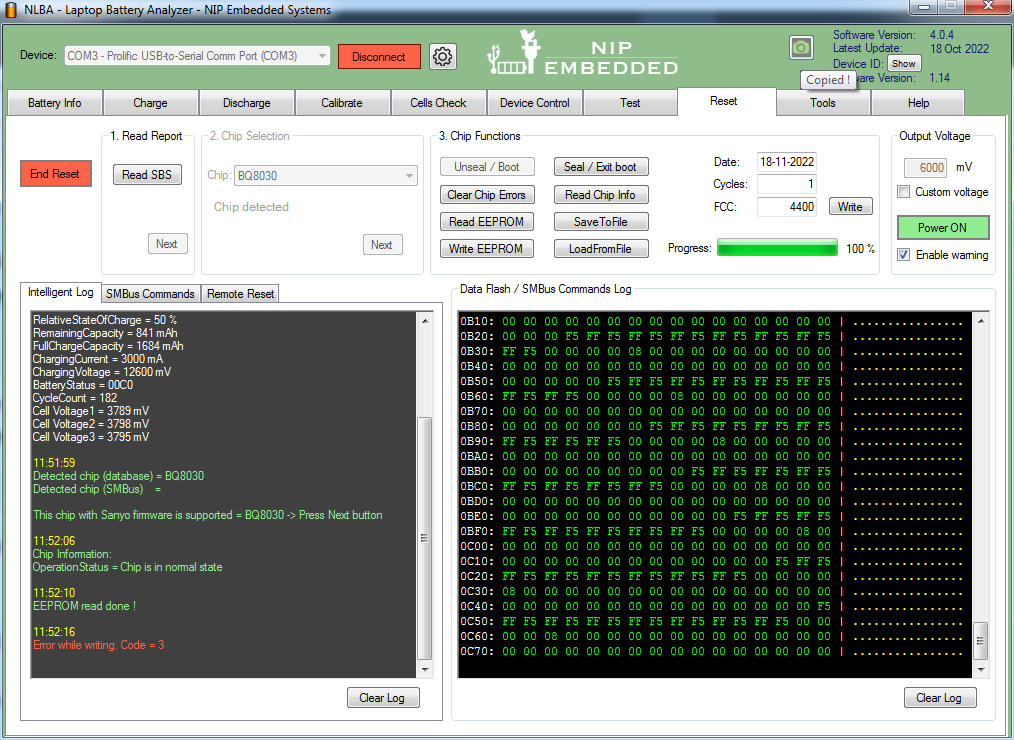

In the reset tab
Post screenshot from cells check tab.
Go to SMbus commands tab run the following command and post response.
Register 0x43 ReadBlock

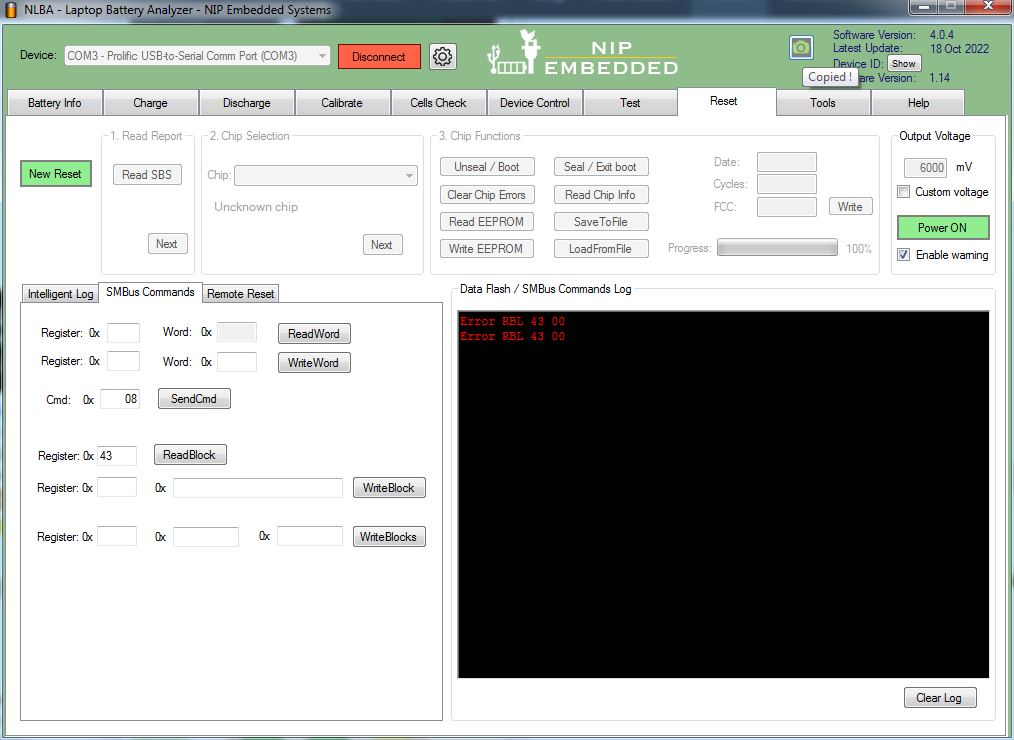

After executing the command

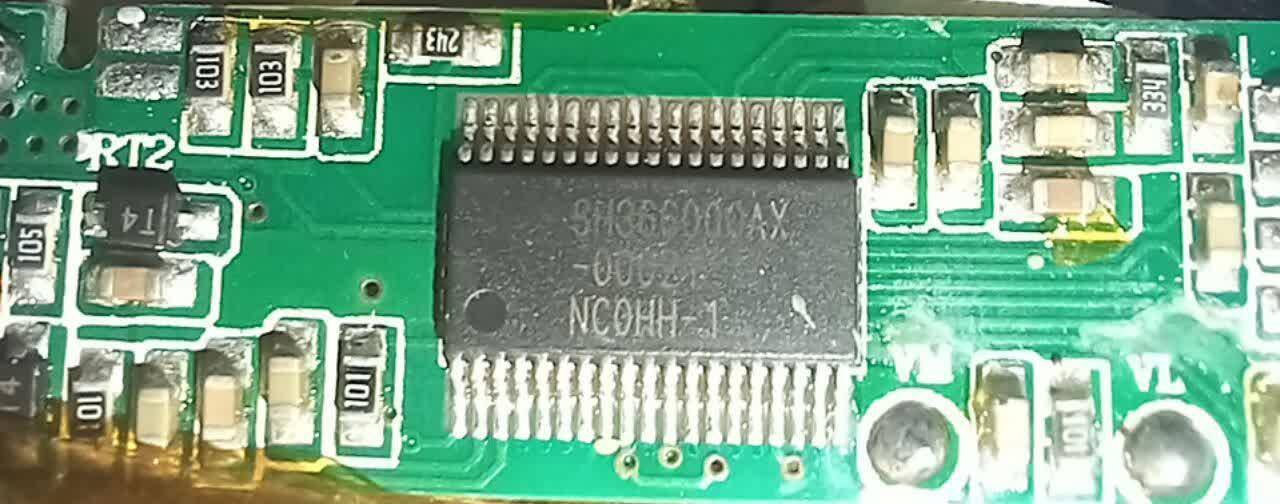

Paste picture of the chip.
This chip is not supported. Thats why cycles could not be reset.
SH36xxxx is not genuine chip, it used in cheap aftermarket batteries. Genuine chip for this Toshiba battery is bq8030.

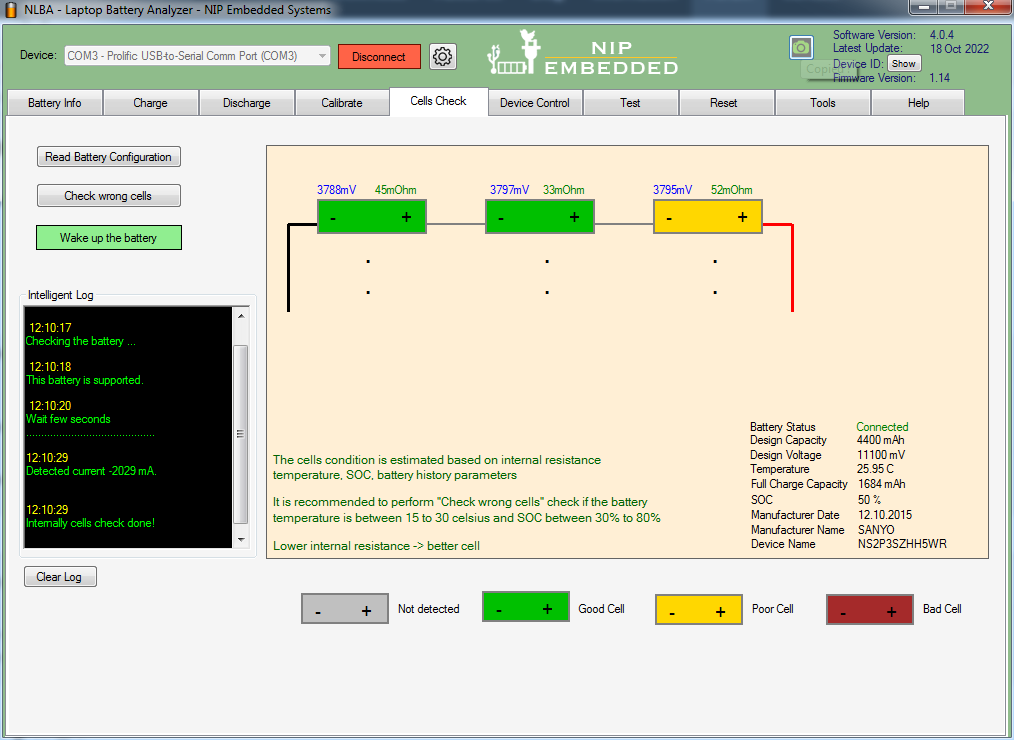

Screenshot of the Check Cells tab
By the way cells resistence has big deviation. Have you installed new or being used cells?
@djibattworkshop The battery is not locked, can you use the battery after calibration, won't there be any problem?
Try to make full calibration cycle. If capacity will be relearned you could continue use the battery.
All cells are new
Then ground and power wires from Pcb to the cells probably have not enough thickness which cause voltage drop under the load and different resistance on the first and last stack cells.
