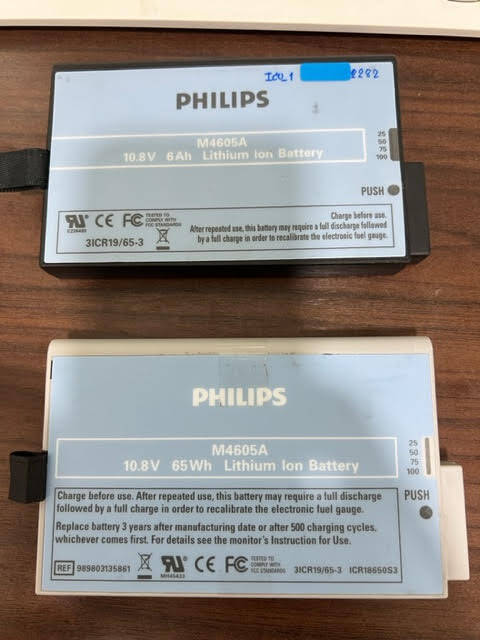

hi i have 2 battery philips M4605A

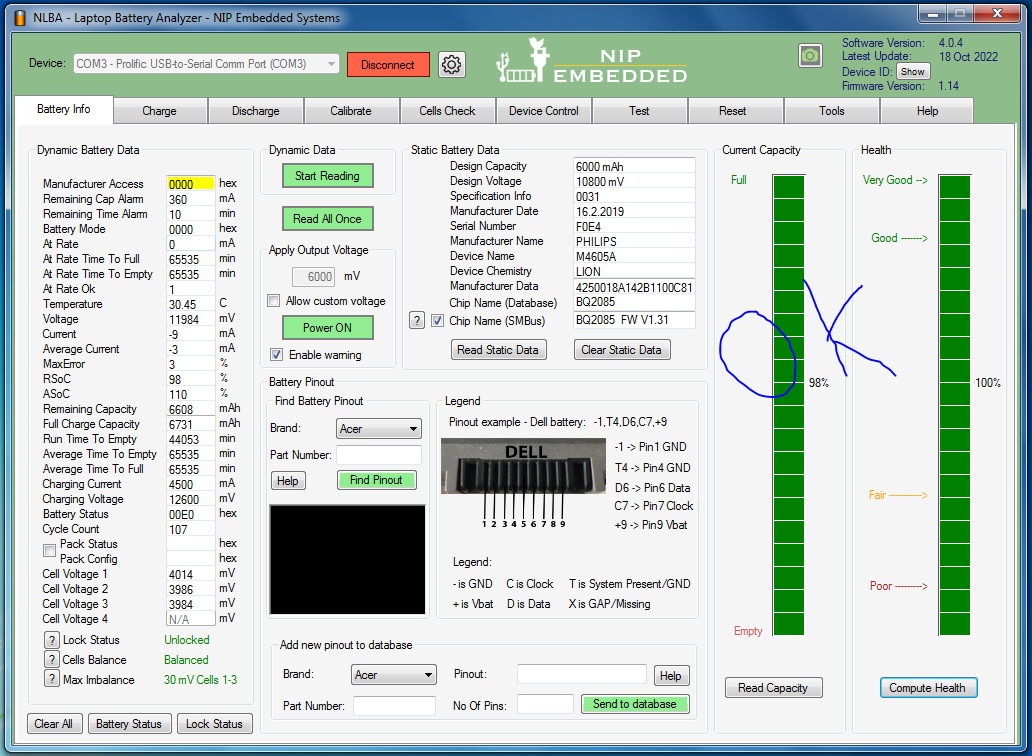

1 battery is ok can use

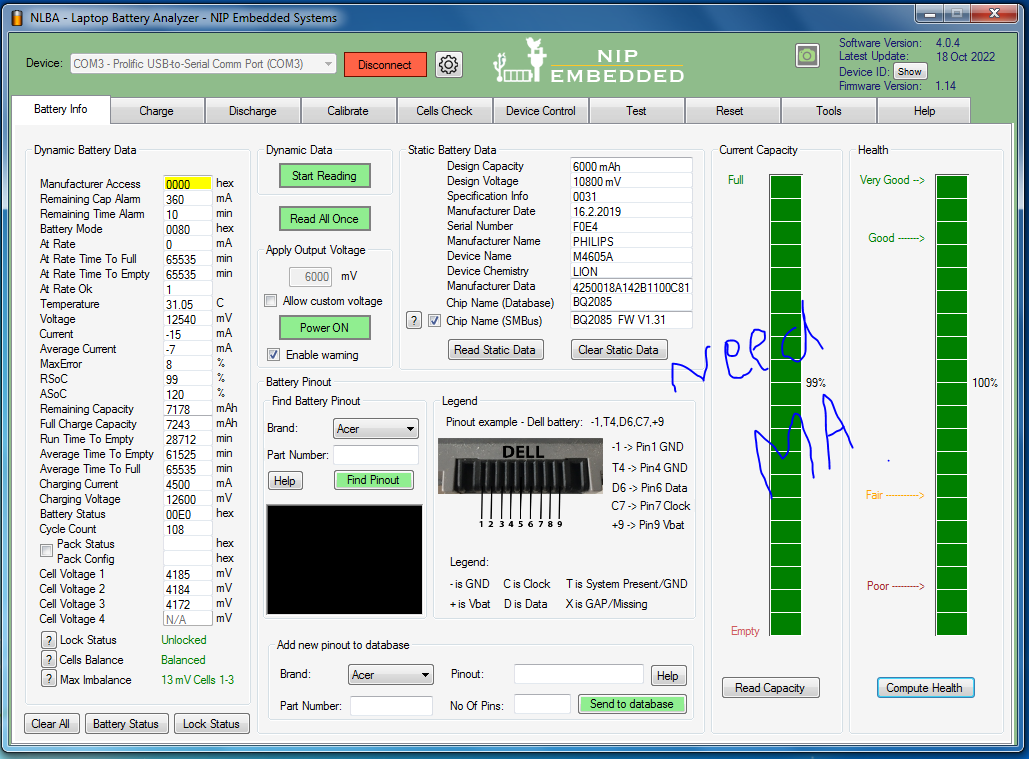

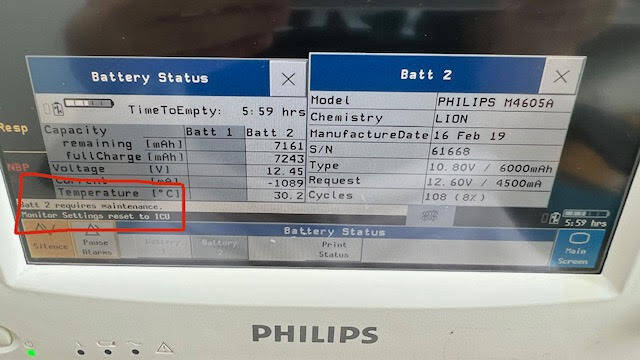

1 battery is device show battery requires maintenance (replace new cell already)
i try copy EEROM for good battery but is still show popup on device.
detail as show on picture
please heap me to resolve this
thank you
This is because CF bit is set in Battery Mode which tells to device that capacity could not be trusted and calibration cycle is required.
Check these pictures. And refer to SBS v1.1 documentation for bitmap explanation.
Run full charge and discharge cycle to solve this issue.

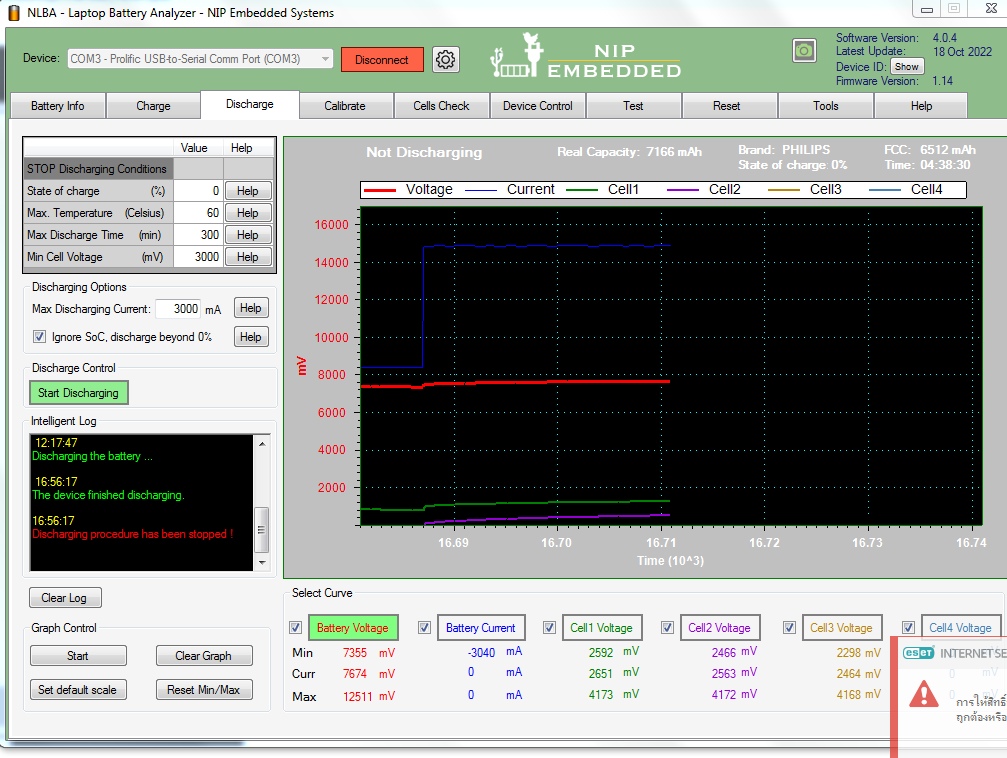

@djibattworkshop hi i Run full charge and discharge cycle is do not solve ,battery mode is change, can be i do . thank you
Calibration cycle was done not correctly or chip was soft reset after it.

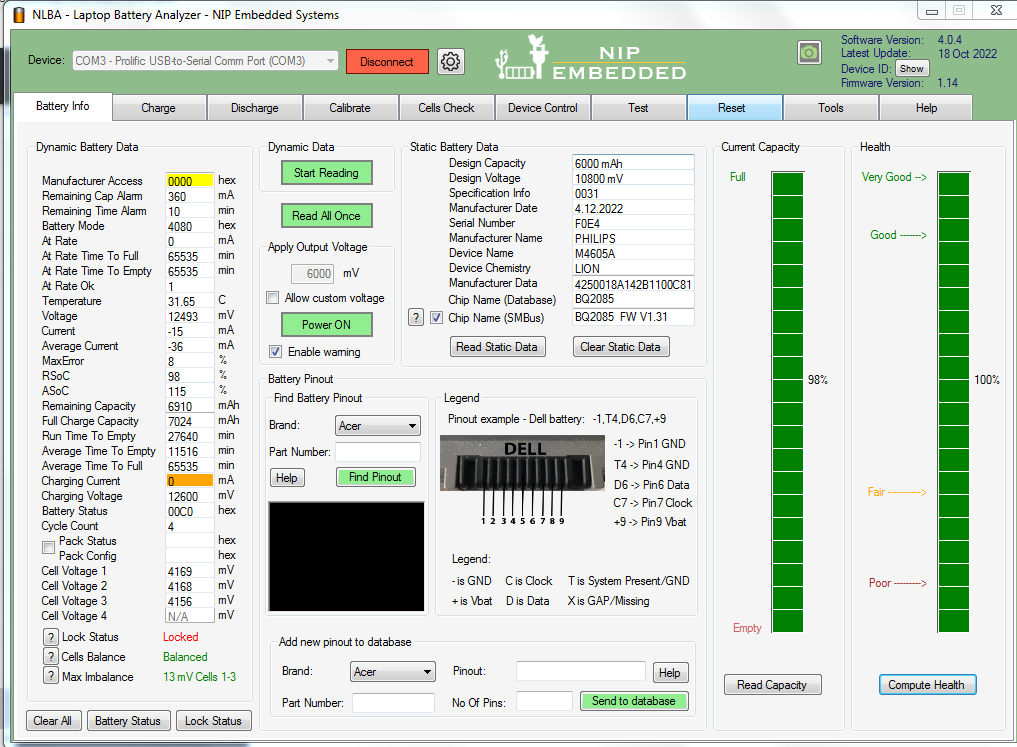

Battery Mode CF bit still not changed, also MaxError still 8%.

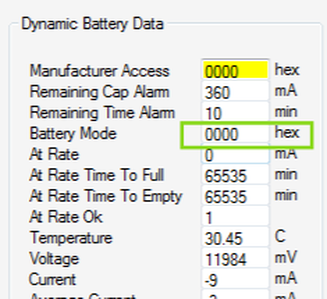

After successful calibration cycle CF bit also know as Relearn Flag should be cleared like on the very first picture and MaxError should return to 1% .
- Charge the battery to 100%
- Wait 30 min
- Discharge the battery to 3.0v on any cell
- Dont Unseal or Reset the chip !
- Paste discharge log

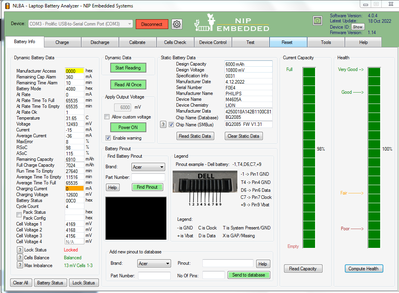

- Paste BatInfo picture
- Discharge the battery to 3.0v on any cell
You did not follow this advice.
Instead, you did continue discharging the battery beyond safety limits.

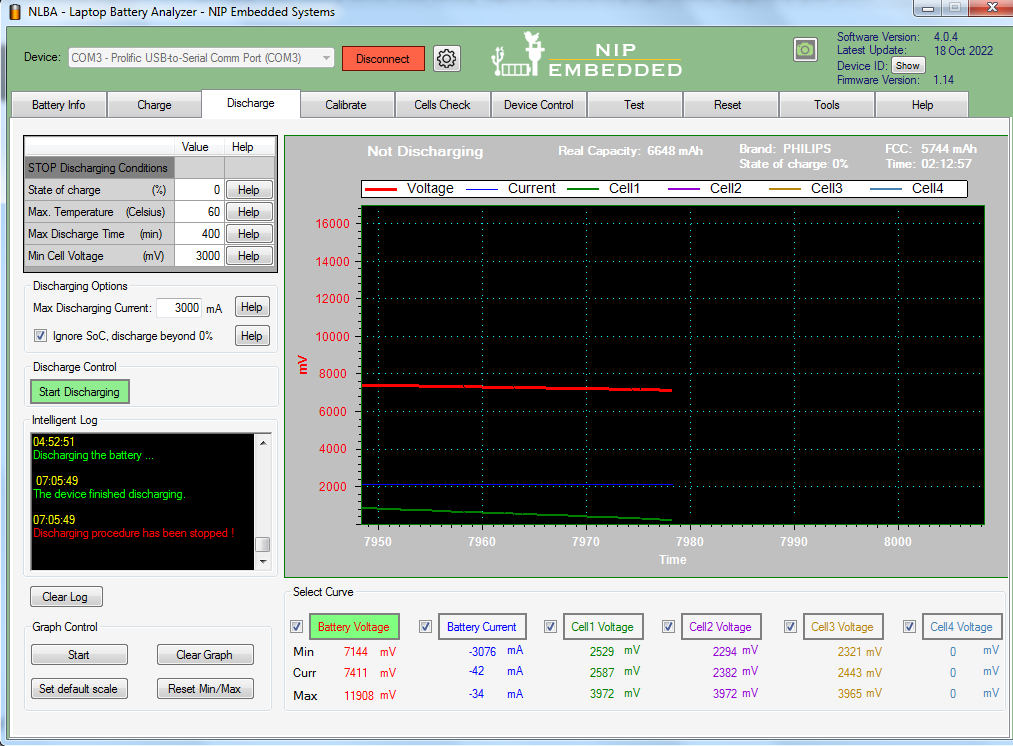

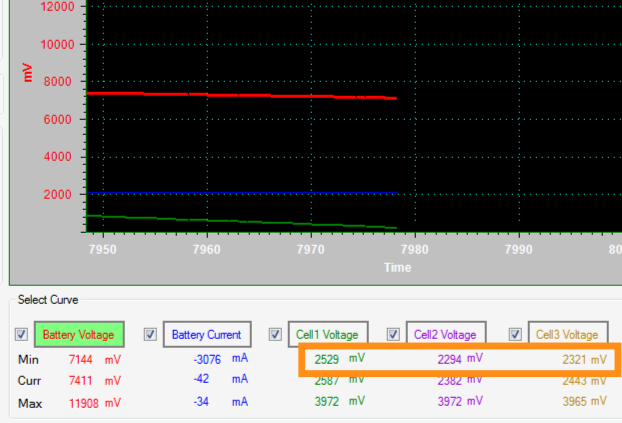

Check this picture, cells voltages dropped too low, it could deteriorate their characteristics very fast.
Why did the chip allow so deep discharge ?
It could be Pack Makers fault. Sometimes they are negligent to properly program safety limits.

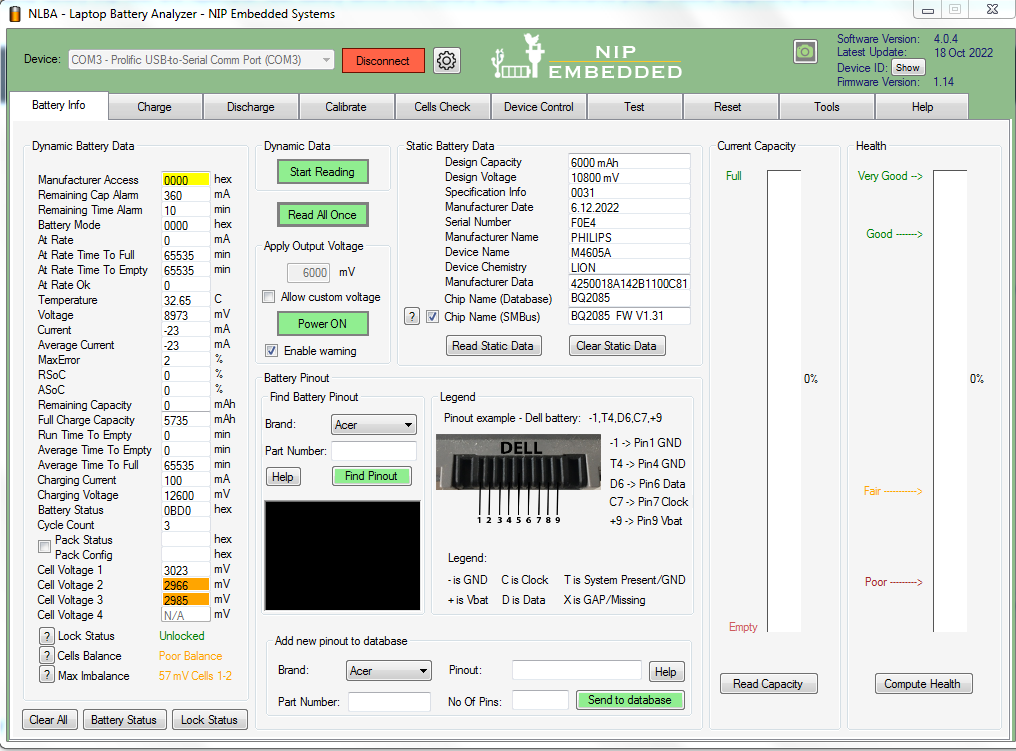

@djibattworkshop first i try change and discharged but battery is still over 3.0v and i check battery info battery mode is same old , second i try deep disordered follow in picture and i try install to device is ok no have massages,
By the way , you do have tall me how can discharge for 3.0 v by not function deep discharge for next time.
Thanks you
how can discharge for 3.0 v by not function deep discharge for next time.

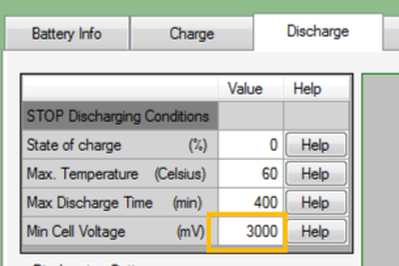

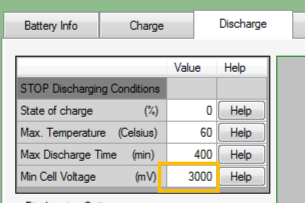

The best way would be to exploit this option in Discharge Stop criterias.
But not sure if it works correctly.
So presently the only way to monitor cells voltages continiously and to stop discharge manually as soon as any cell reach 3.0 volts.
Hello, I hope you are doing well. I would like to know what the unseal and full access keys are for the Philips battery.
Just buy the license, you don't need to know the keys.
