Posted by: @oussama-drama

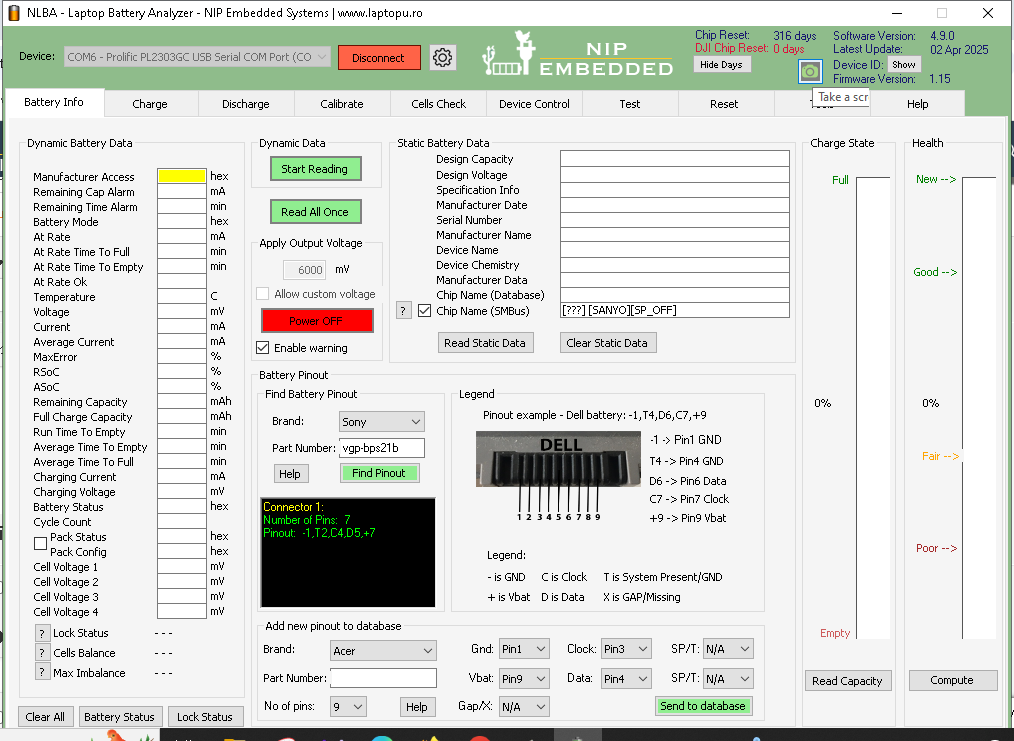

battery not detected in lab

 Is it detected in laptop ?..

Posted by: @oussama-drama

whats the problem

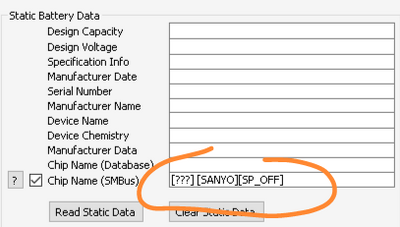

 Some chips could not be read until System Present pin is properly connected to ground. Software gives you a prompt what to do next.

So connect SP pin to ground and retry.

@djibattworkshop

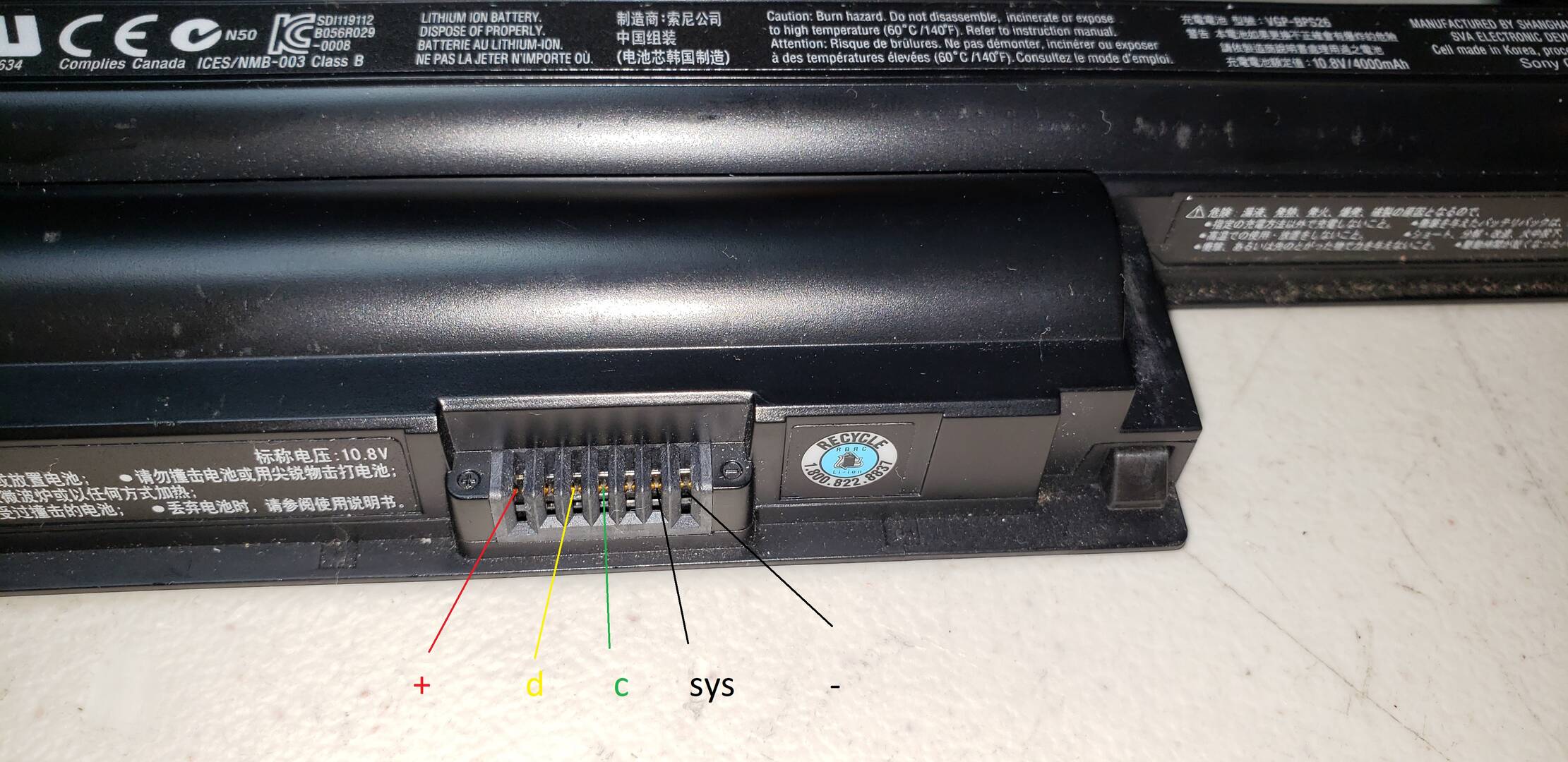

sp is 3.22v

in battery

 Use 1k Ohm resistor.

@djibattworkshop

same problem

i use 1k ohm between sp and gnd

 Check battery in laptop.

@djibattworkshop

in laptop

no battery detected

 Paste picture of the chip.

@djibattworkshop

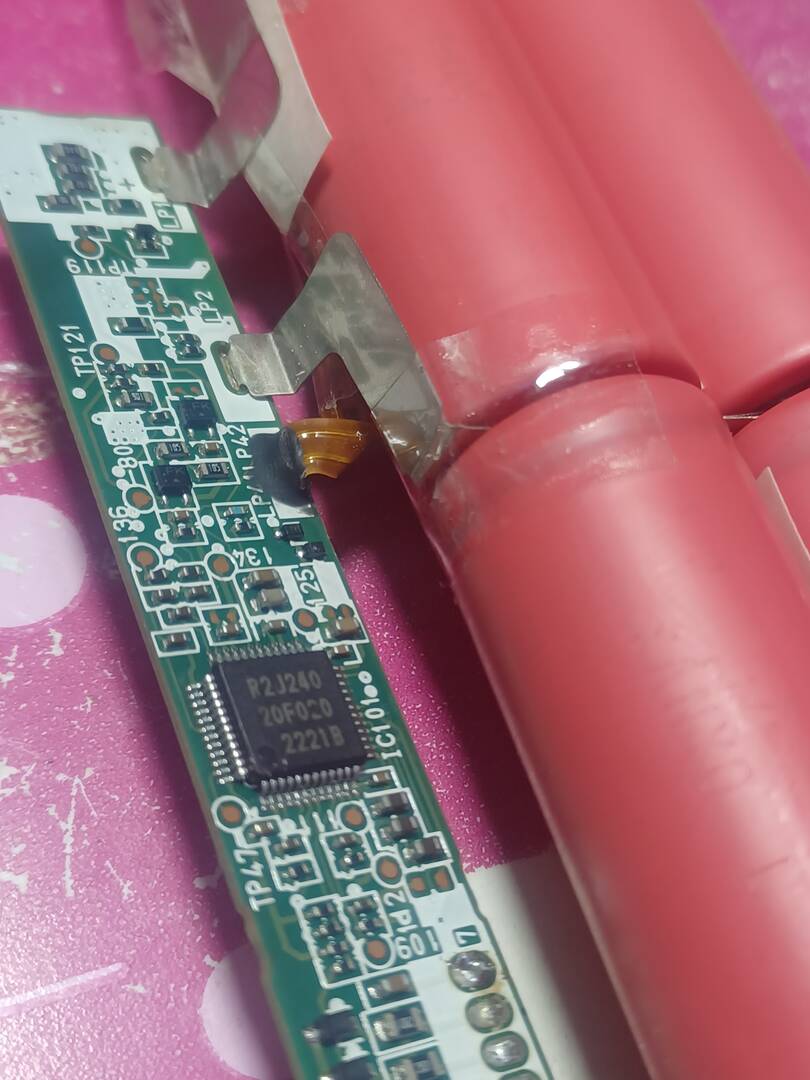

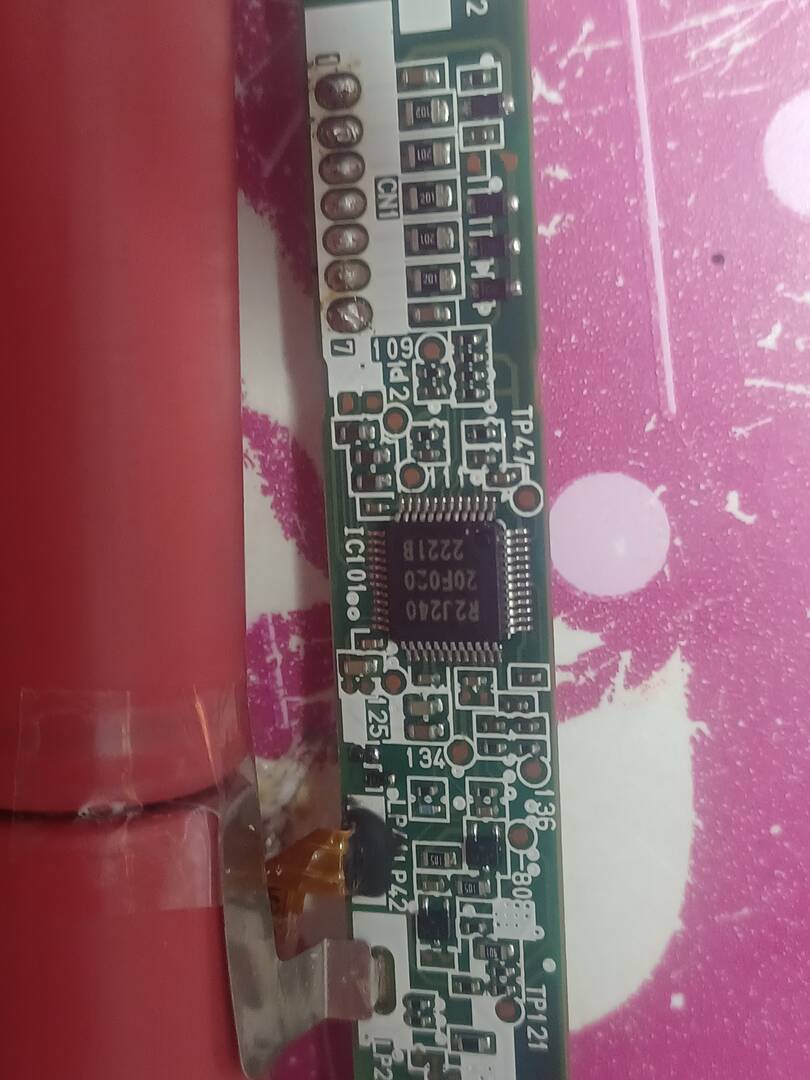

 So chip is Renesas R2J240_20F020. Cells made by Sanyo and whole pack also was made by Sanyo on request from Sony. Most probably chip firmware is also Sanyo made.

 This chip is currently not supported by the license.

 If you have ev2300 or ev2400 we could try to read it remotely.

@djibattworkshop

chip not suported no ev2300 ev2400

so no way 😞

tnank u  @djibattworkshop

This model battery in working state is readable by NLBA software so the problem is most likely in the PCB or firmware. Considering that it's also not detected in the laptop.

Posted by: @torture

This model battery in working state is readable by NLBA software

 Do you remember if System Present pin state matters on this battery in the term of SBS parameters readout ?..

I really don't remenber because it's been a long time since a had such a battery in my hands. But i think SP pin did not affect paramaters readout.
