Bq20z45 ti v1.05 Replacing Cells Read Data eror

Page 2 / 2
sajantherev
(@sajantherev)
Honorable Member Customer

@djibattworkshop For example, what should the value be?, and how to solve this case?

ReplyQuote
Topic starter Posted : 26/04/2024 3:17 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

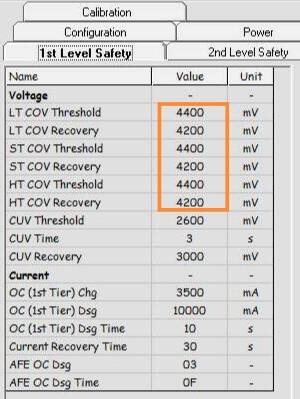

 1st Level Safety tab

 Change all instances of 4400mV to 4250mV (Cell OverVoltage setpoint)

 Change all instances of 4200mV to 4050mV (Cell OverVoltage Recovery)

IMG 20240426 185703

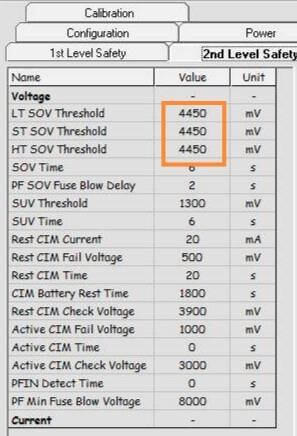

 2nd Level Safety tab

 Change all instances of 4450mV to 4300mV (Safety OverVoltage setpoint)

IMG 20240426 185834



ReplyQuote
Posted : 26/04/2024 4:08 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

 Next steps are Chemistry profile and Sbs profile reprogramming.

 p.s.

Basically we not provide support for use of bqEVSW software because it is not NIP-Embedded product. But you could refer documentation and application notes from official developer on how to use this software. Also their support forum has a lot of useful information.



ReplyQuote
Posted : 26/04/2024 4:11 pm
sajantherev
(@sajantherev)
Honorable Member Customer

every edit the value always returns to default, ex : 4.250 always back to 4400mv

ReplyQuote
Topic starter Posted : 27/04/2024 6:29 am
sajantherev
(@sajantherev)
Honorable Member Customer

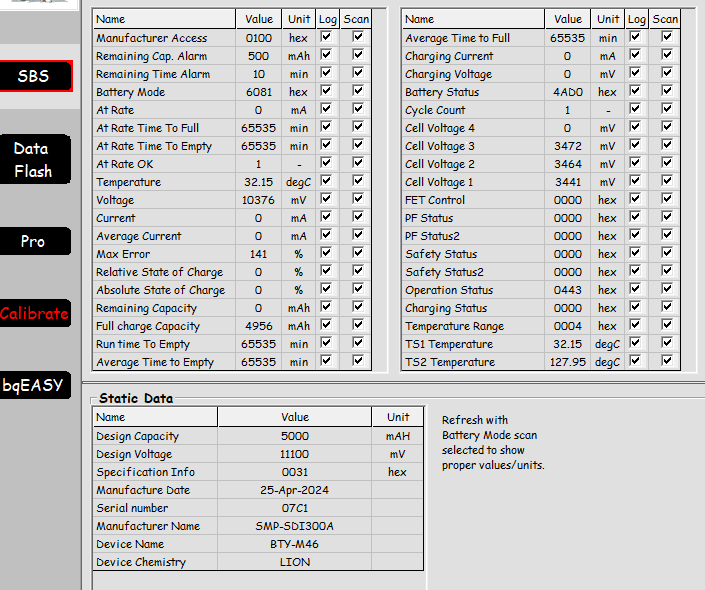

SBS display now

max error 141
design voltage 11100
charging volts 0
charging current 0

ReplyQuote
Topic starter Posted : 27/04/2024 6:41 am
DjiBattWorkshop
(@djibattworkshop)
Member Moderator
Posted by: @sajantherev

every edit the value always returns to default

 Unseal the chip and clear PF flags

ReplyQuote
Posted : 27/04/2024 10:28 am
sajantherev
(@sajantherev)
Honorable Member Customer

@djibattworkshop

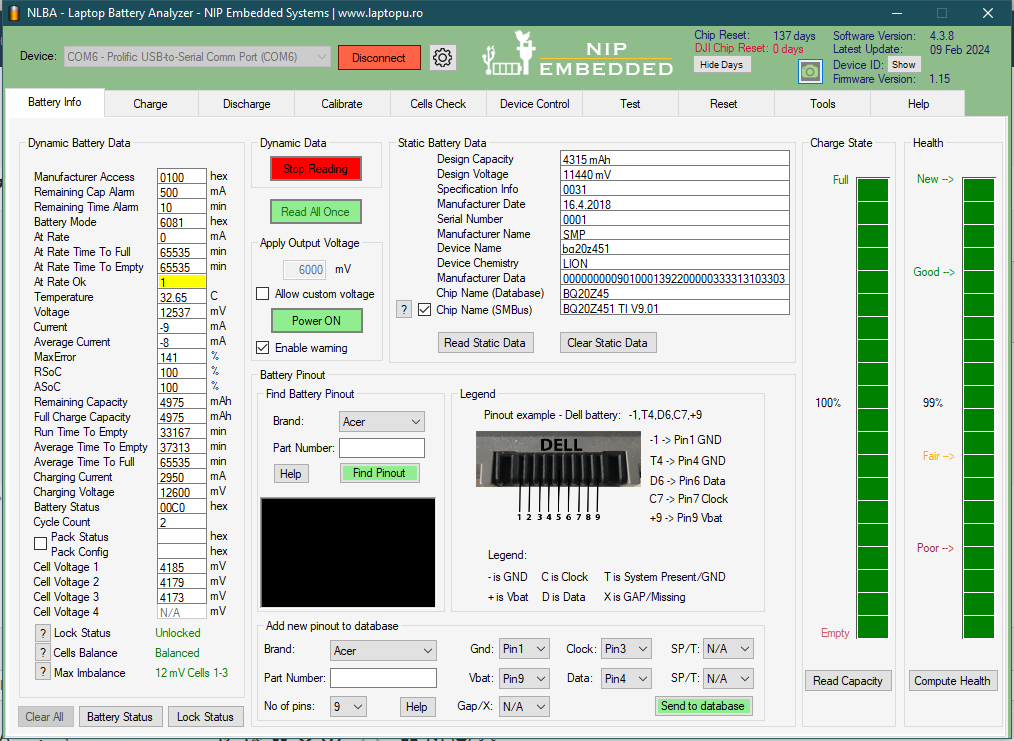

The parameters seem to have changed a lot, but the max error is 141%, I've drained it to 3v and left it for 2 hours, and fully charged it, left it for 5 hours.

ReplyQuote
Topic starter Posted : 01/05/2024 1:15 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator
Posted by: @sajantherev

I've drained it to 3v and left it for 2 hours, and fully charged it, left it for 5 hours

 It is wrong method. Check the tutorial carefully.



ReplyQuote
Posted : 01/05/2024 1:23 pm
