Topic starter
Posted : 31/07/2024 11:34 am

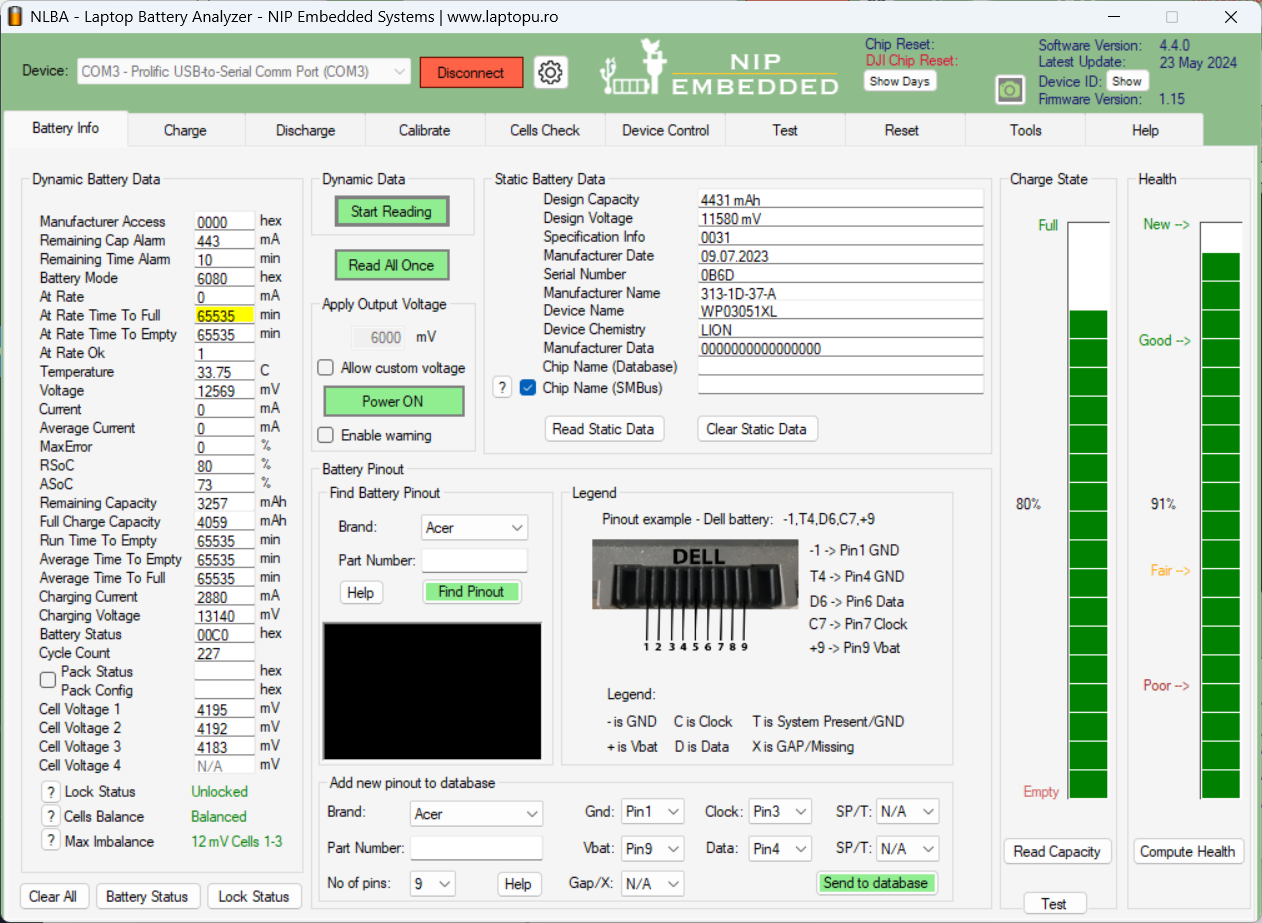

battery seems unlocked but not discharging.
visually confirmed chip as 045A20.
fuse ok
Topic starter
Posted : 31/07/2024 11:37 am

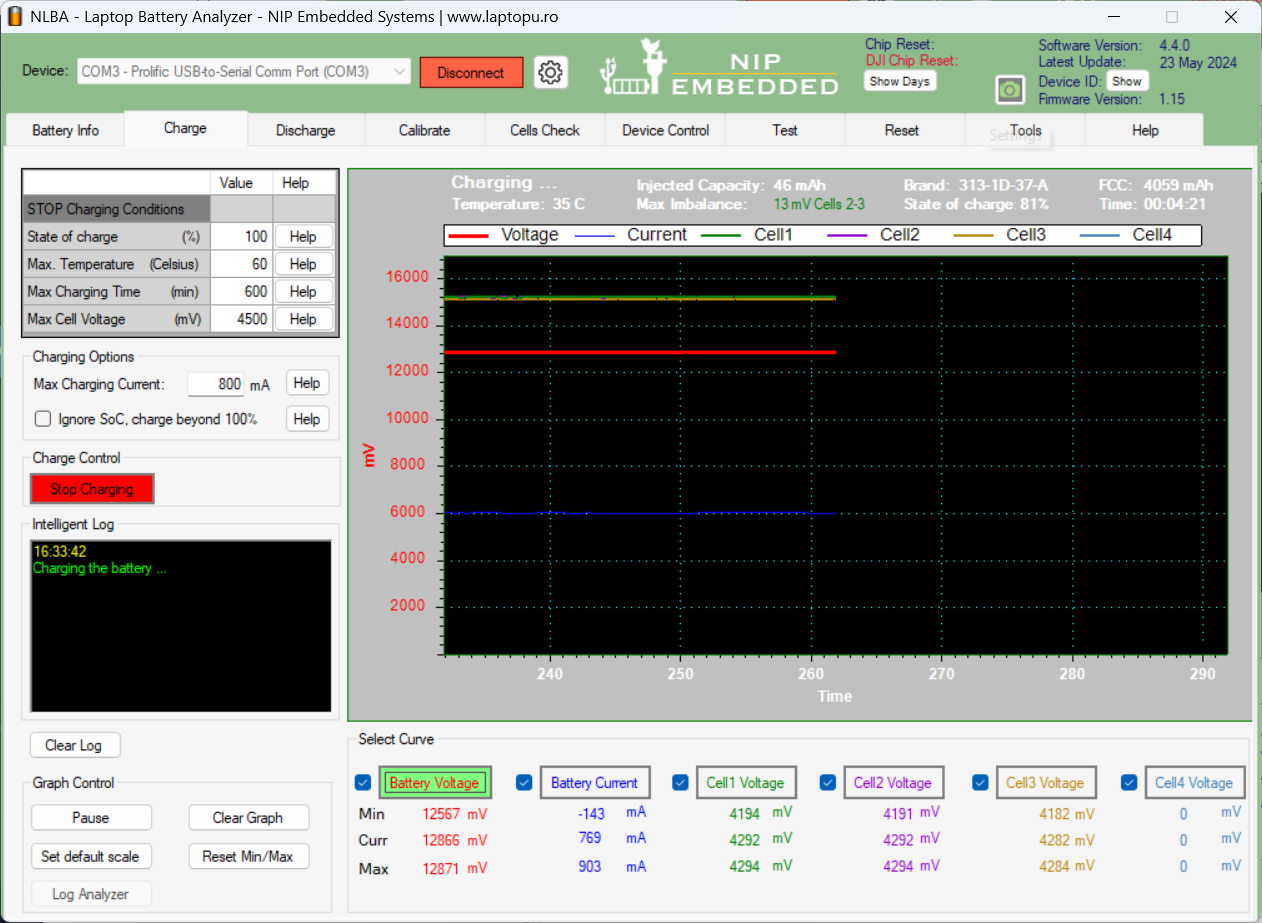

charging ok
Topic starter
Posted : 31/07/2024 11:38 am
seems mosfet issue as they are getting too hot.
how to figure out which one is charging and discharging mosfet?
Topic starter
Posted : 31/07/2024 1:44 pm
Faulty mosfet could be detected with a FLIR, it become hot first. Another mosfet which is good become preheated by temperature dissipation through the pcb. It should have more cold color.
Posted : 31/07/2024 2:08 pm
