Lenovo L11P6R01 BQ8055A SANYO-LNV V760014 - low charging current

    Last Post
  RSS
florin
 florin
(@agache-florin)
Eminent Member Customer

Hello,

old cells have been replaced

new capacity 6300

please help increase charging current to 2600ma

1
2



ReplyQuote
Topic starter Posted : 06/08/2024 10:49 am
florin
 florin
(@agache-florin)
Eminent Member Customer

dump sent

ReplyQuote
Topic starter Posted : 06/08/2024 1:00 pm
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

 reflash with fixed eeproms, each has FCC 6300mAh but different charge current settings, then paste updated BatInfo page pictures

ReplyQuote
Posted : 07/08/2024 2:27 pm
florin
 florin
(@agache-florin)
Eminent Member Customer

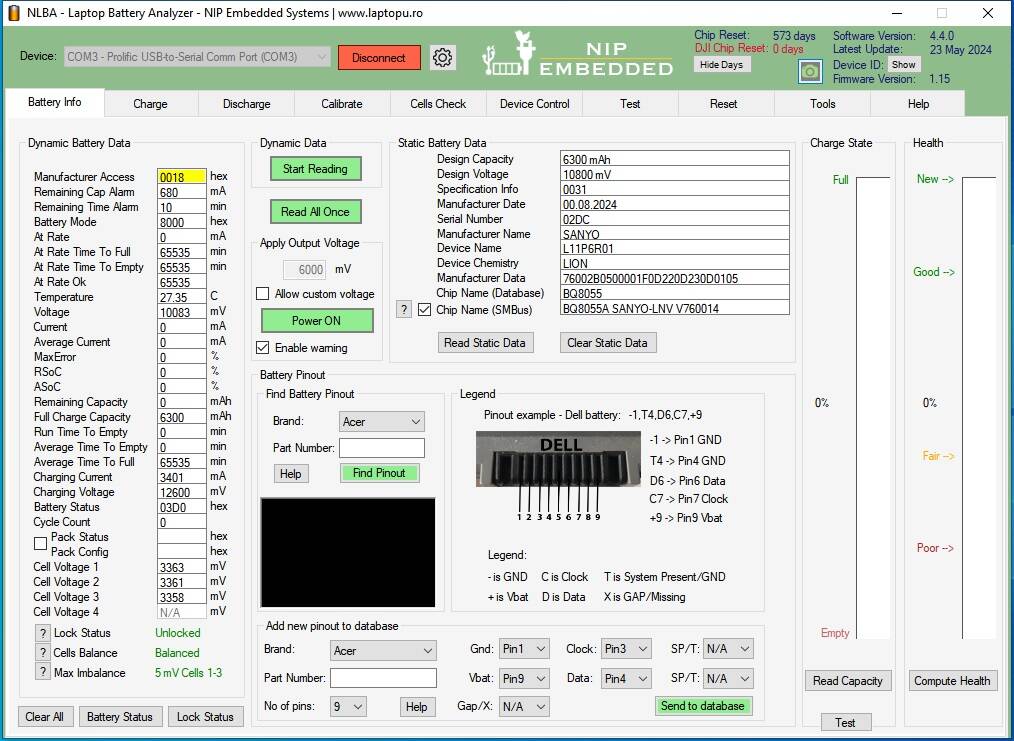

FIX1
FIX2



thank you for your work

CC is a little to high

2400-2600mA is a good choise for a reasonable charging time and battery life

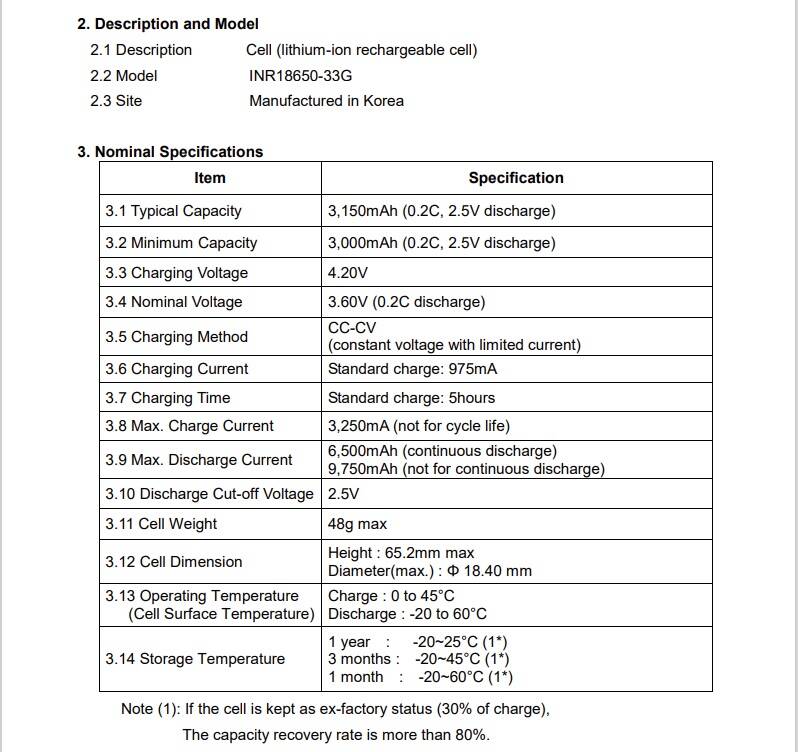

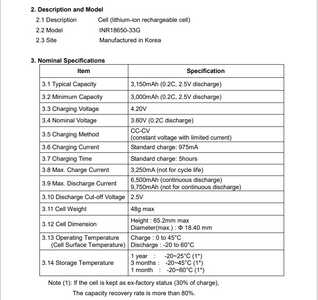

INR18650 33G 1

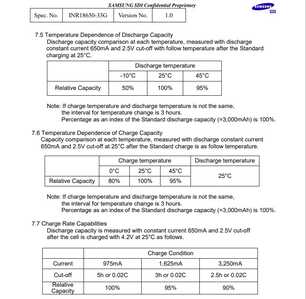

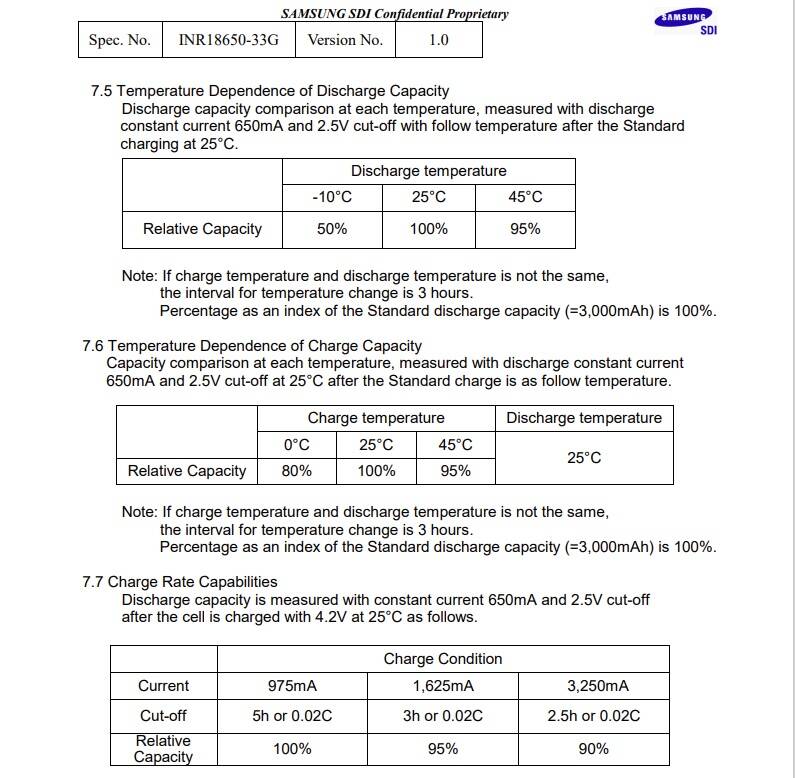

INR18650 33G 2
ReplyQuote
Topic starter Posted : 08/08/2024 8:02 am
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

It is 3S2P battery. So charge current per cell is 1/2 of SBS Charge current.

So 3100 / 2 = 1550mAh per cell. It is less then 0.5C.



ReplyQuote
Posted : 08/08/2024 11:15 am
