Problem in performing Fujitsu battery chip calibration and sealing process FH1LS44 (BQ20Z45 TI V1.04)

Page 2 / 2
tracker135n9
(@tracker135n9)
Noble Member Customer

ChemId 100 was designed for Lithium Ion18650 cells with LiCoO2 chemistry composition.

 Are you sure that new cells have same chemistry composition ?

 Another question, why TI Chemistry Selection tool has thousands of different ChemIds for different cells type if setting 0100 would do the trick ?

ReplyQuote
Posted : 15/09/2025 5:41 pm
Aghababaei
(@aghababaei)
Reputable Member Customer

@tracker135n9

You are right
My cells are lithium ion with a capacity of 4400 and a voltage of 3.7 volts.
In my country, Samsung, LG or Panasonic cells are not available and the only brand that I have used for a long time and was satisfied with and has real capacity and good quality is the Chamelion brand.
I only followed the instructions in the tutorial on the forum and I don't know exactly which chemical code to use.
Because the battery catalog does not give much explanation about its chemistry.

If you can guide me on which chemical code to choose, I would be grateful.
Thanks



ReplyQuote
Topic starter Posted : 15/09/2025 6:32 pm
tracker135n9
(@tracker135n9)
Noble Member Customer

 First, try to find same brand and type cells in TI chemistry catalogue.

ReplyQuote
Posted : 15/09/2025 6:37 pm
Aghababaei
(@aghababaei)
Reputable Member Customer

@tracker135n9

That is, cells that are the same in terms of capacity and voltage as well as chemical structure as this cell (lithium ion)?
Did I understand correctly?

ReplyQuote
Topic starter Posted : 15/09/2025 6:39 pm
tracker135n9
(@tracker135n9)
Noble Member Customer

 Cells that have same brand and type.

 For example:

 Samsung ICR18650-28A

 Panasonic NCR18650B

 Molicel INR-18650-P26A

 First word is brand so company which manufactured the cells. Second word is cells type. It specifies cells capacity, voltage, chemistry composition and so on.

This information is printed on the cell insulation cover.

ReplyQuote
Posted : 15/09/2025 6:49 pm
Aghababaei
(@aghababaei)
Reputable Member Customer

@tracker135n9

That's right, I registered an ICR18650 with a capacity of 2200 per cell.

ReplyQuote
Topic starter Posted : 15/09/2025 6:52 pm
tracker135n9
(@tracker135n9)
Noble Member Customer

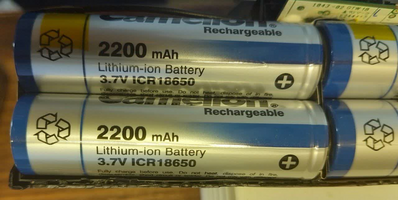

 Paste picture of cells label.

ReplyQuote
Posted : 15/09/2025 7:26 pm
Aghababaei
(@aghababaei)
Reputable Member Customer

@tracker135n9

ReplyQuote
Topic starter Posted : 16/09/2025 10:12 am
tracker135n9
(@tracker135n9)
Noble Member Customer

 Me dont know this brand and which chemistry it uses.

ReplyQuote
Posted : 16/09/2025 10:21 am
Aghababaei
(@aghababaei)
Reputable Member Customer

@tracker135n9

Is there no solution?
I searched a lot but I couldn't find a complete catalog.

ReplyQuote
Topic starter Posted : 16/09/2025 10:32 am
loliconic
(@loliconic)
Member Moderator

@aghababaei

Change the cells with some cells that you know chemistry.

ReplyQuote
Posted : 16/09/2025 11:35 am
tracker135n9
(@tracker135n9)
Noble Member Customer
Posted by: @aghababaei

I searched a lot but I couldn't find a complete catalog.

 Download latest catalog from TI website. Take into account that Chamelion company should send their cells to Texas Instruments lab in order they add their cells into catalog. If Chamelion brand could not found there use GPCCHEM tool to find closest match cells with similar characteristics. Note that capacity does not matter for ChemId selection. Only chemistry composition and properties of the cells matters.

ReplyQuote
Posted : 16/09/2025 11:38 am
tracker135n9
(@tracker135n9)
Noble Member Customer
tracker135n9
(@tracker135n9)
Noble Member Customer

https://www.ti.com/tool/GPCCHEM#tech-docs

ReplyQuote
Posted : 16/09/2025 11:47 am
tracker135n9
(@tracker135n9)
Noble Member Customer

https://www.ti.com/lit/slva725

ReplyQuote
Posted : 16/09/2025 11:48 am
