Recell Lenovo L12M4E01 BQ30695A TI V0.10

    Last Post
  RSS
sajantherev
 sajantherev
(@sajantherev)
Honorable Member Customer

 im trying to recelling ,cell before all dead, this my first time to recell, is this possible using bqEVSW software ?
I changed the LGABC21865 cell to ICR18650-26C

Info: batteries cannot be unsealed in NLBA

ReplyQuote
Topic starter Posted : 23/02/2024 1:01 pm
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

Try to unseal it over Remote Server.



ReplyQuote
Posted : 23/02/2024 1:19 pm
sajantherev
 sajantherev
(@sajantherev)
Honorable Member Customer

@djibattworkshop

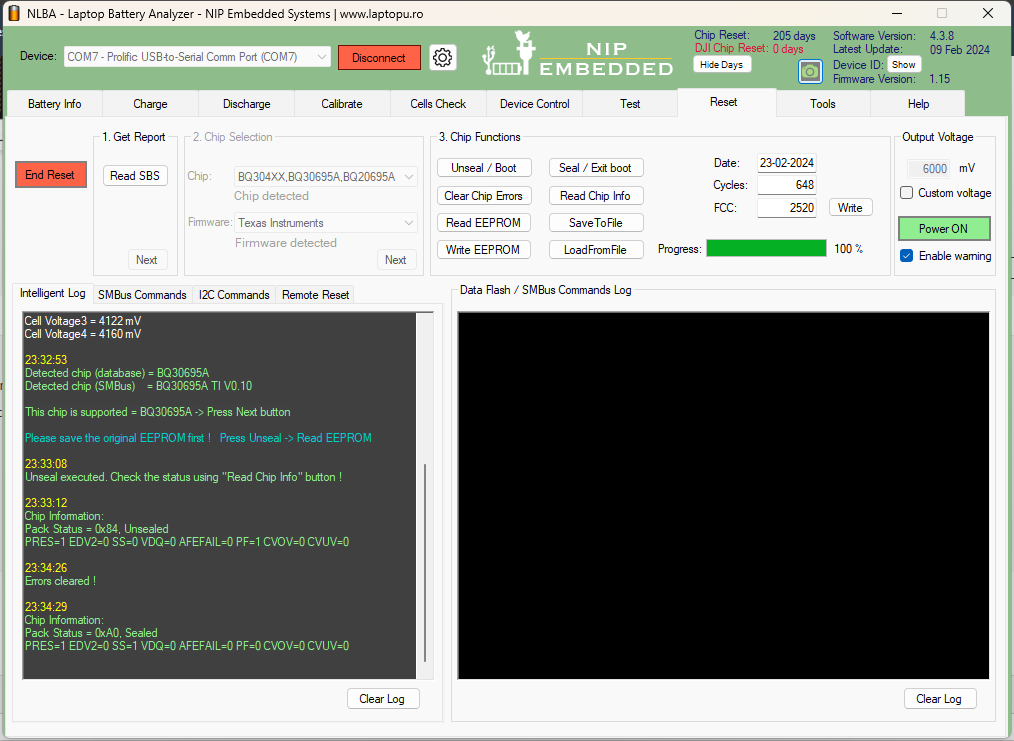

unseal is working now



ReplyQuote
Topic starter Posted : 23/02/2024 1:22 pm
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

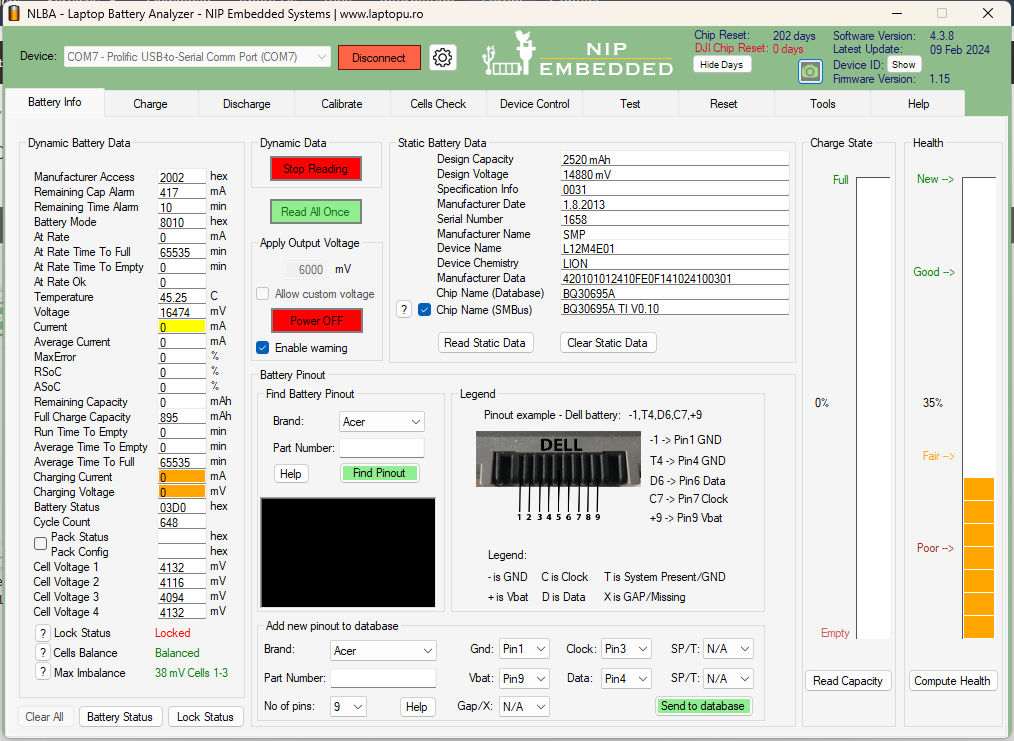

Press Clear Chip Errors button

Then paste updated BatInfo tab picture too.





ReplyQuote
Posted : 23/02/2024 1:56 pm
sajantherev
 sajantherev
(@sajantherev)
Honorable Member Customer

@djibattworkshop




ReplyQuote
Topic starter Posted : 23/02/2024 4:35 pm
Nicusor
 Nicusor
(@azzido)
Member Admin

@sajantherev

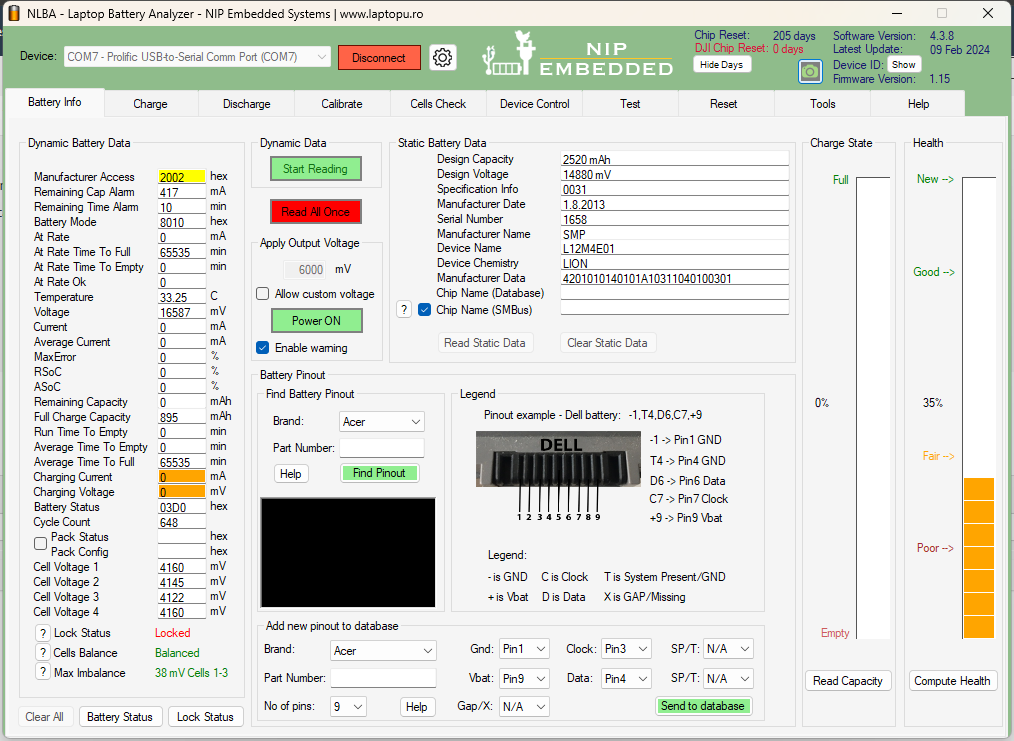

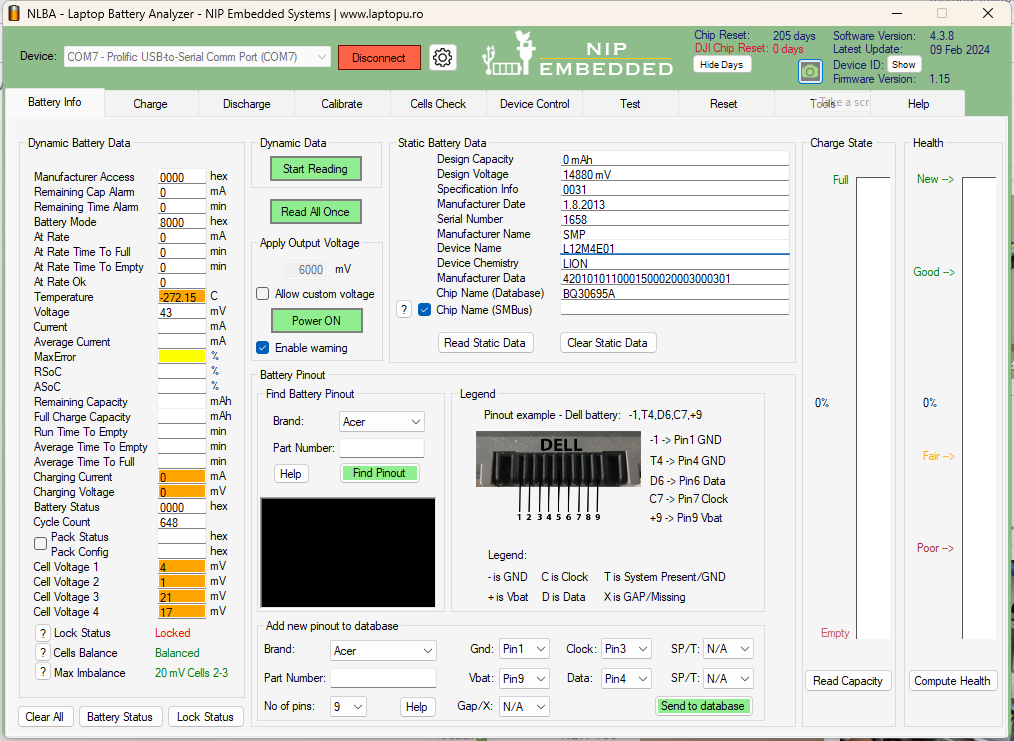

Something is strange. In the left picture, the chip is detected while in the right picture, the chip is not detected. Have you mixed the pictures ?

NLBA Laptop Battery Analyzer with Chip Reset & Repair Option

ReplyQuote
Posted : 25/02/2024 8:53 pm
sajantherev
 sajantherev
(@sajantherev)
Honorable Member Customer

@azzido


This is the correct one.

ReplyQuote
Topic starter Posted : 26/02/2024 3:48 am
sajantherev
 sajantherev
(@sajantherev)
Honorable Member Customer

@azzido Can this battery use Bq software? because I changed the cell with a different behavior

ReplyQuote
Topic starter Posted : 26/02/2024 3:50 am
