[Solved] [Remote Reset] ASUS C21N1603 BQ30Z55 FW V6.08

    Last Post
  RSS
ExNovo
 ExNovo
(@exnovo)
Eminent Member Customer

Battery n°2

Hello, need to unlock another ASUS battery, is almost new 17 cycles, cell balanced, fuse OK, 95% of health.

battery 2
ReplyQuote
Topic starter Posted : 20/12/2021 9:28 am
ExNovo
 ExNovo
(@exnovo)
Eminent Member Customer

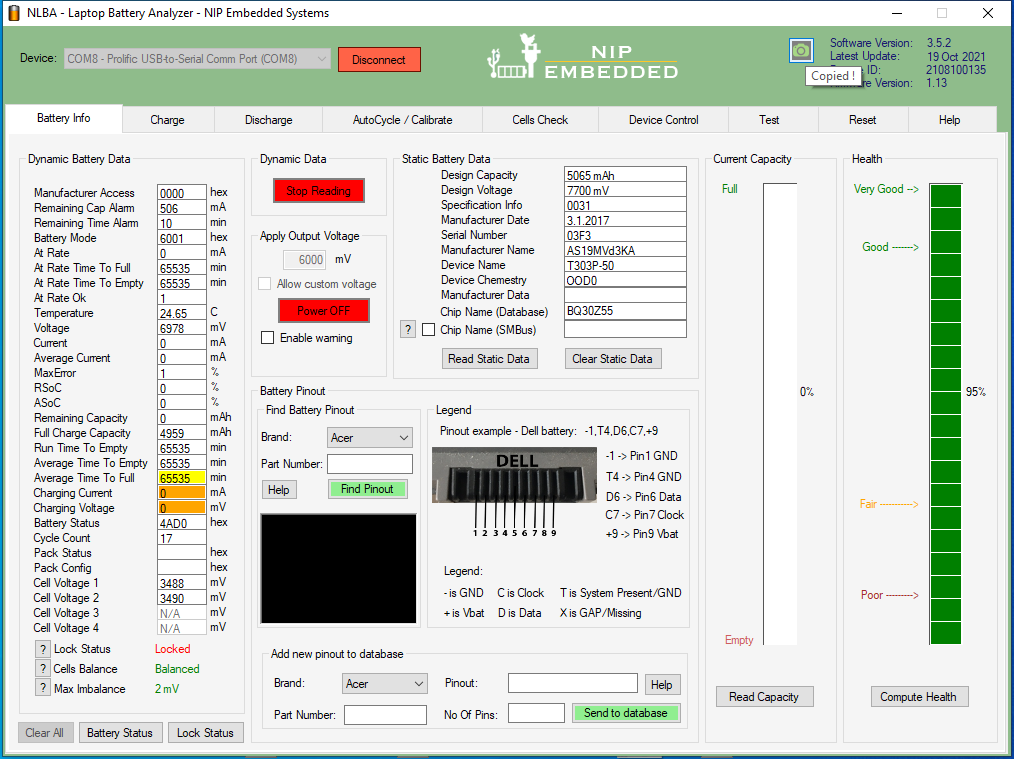

ManufacturerName = AS19MVd3KA
DeviceName = T303P-50
DeviceChemistry = OOD0
DesignCapacity = 5065 mAh
ManufactureDate = 3.1.2017
DesignVoltage = 7700 mV
Temperature = 20,35 C
Voltage = 6985 mV
Current = 0 mA
MaxError = 1 %
RelativeStateOfCharge = 0 %
RemainingCapacity = 0 mAh
FullChargeCapacity = 4959 mAh
ChargingCurrent = 0 mA
ChargingVoltage = 0 mV
BatteryStatus = 4AD0
CycleCount = 17
Cell Voltage1 = 3491 mV
Cell Voltage2 = 3493 mV

1000
Detected chip (database) = BQ30Z55
Detected chip (SMBus) = BQ30Z55 FW V6.08

1000
This chip is not supported.

ReplyQuote
Topic starter Posted : 20/12/2021 9:40 am
Nicusor
 Nicusor
(@azzido)
Member Admin

@exnovo

Approved. Contact the new responsible for battery remote reset.

NLBA Laptop Battery Analyzer with Chip Reset & Repair Option

ReplyQuote
Posted : 20/12/2021 3:10 pm
ExNovo liked
ExNovo
 ExNovo
(@exnovo)
Eminent Member Customer
battery 2
battery 2

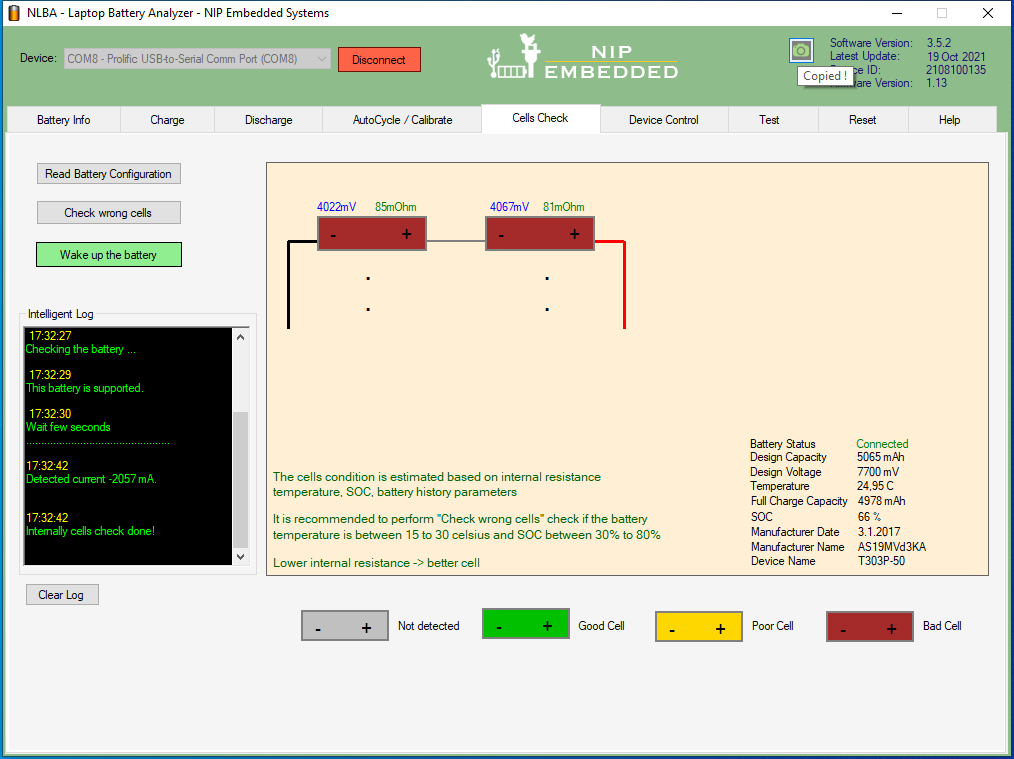

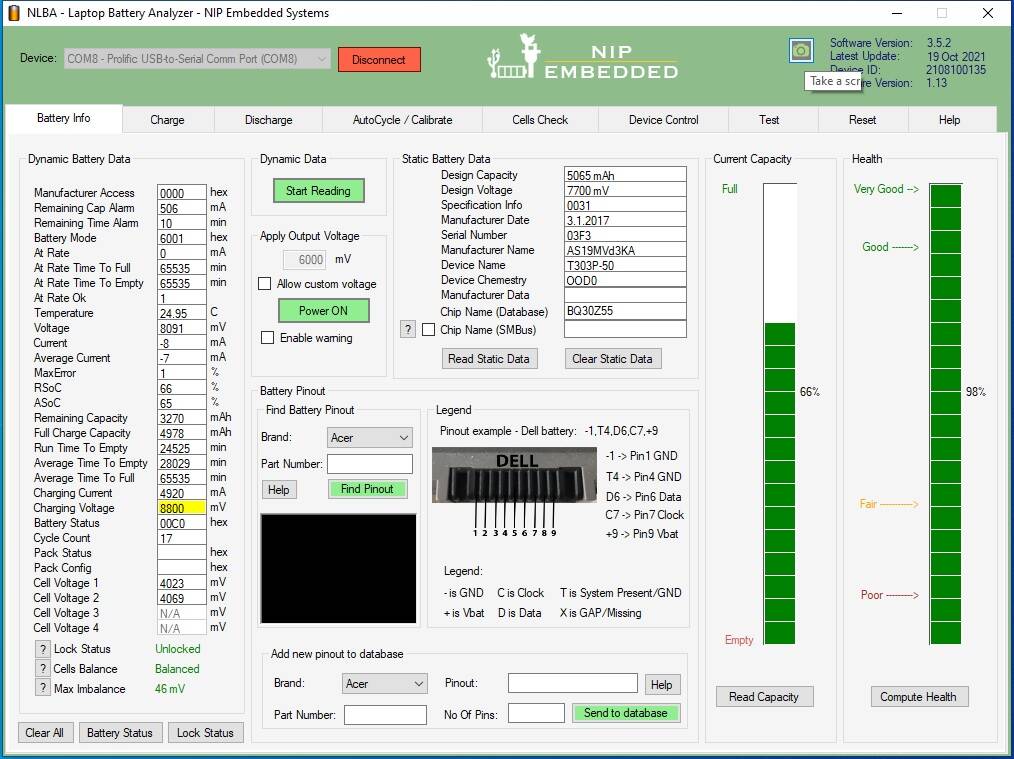

Battery fixed, report bad cell, but it work good under load, i will test durability.

Thanks to the new responsible Albert.

ReplyQuote
Topic starter Posted : 20/12/2021 4:45 pm
