[remote reset] hp np03xl BQ30Z551 TI V1.16

    Last Post
  RSS
exwilliam
 exwilliam
(@exwilliam)
Reputable Member Customer

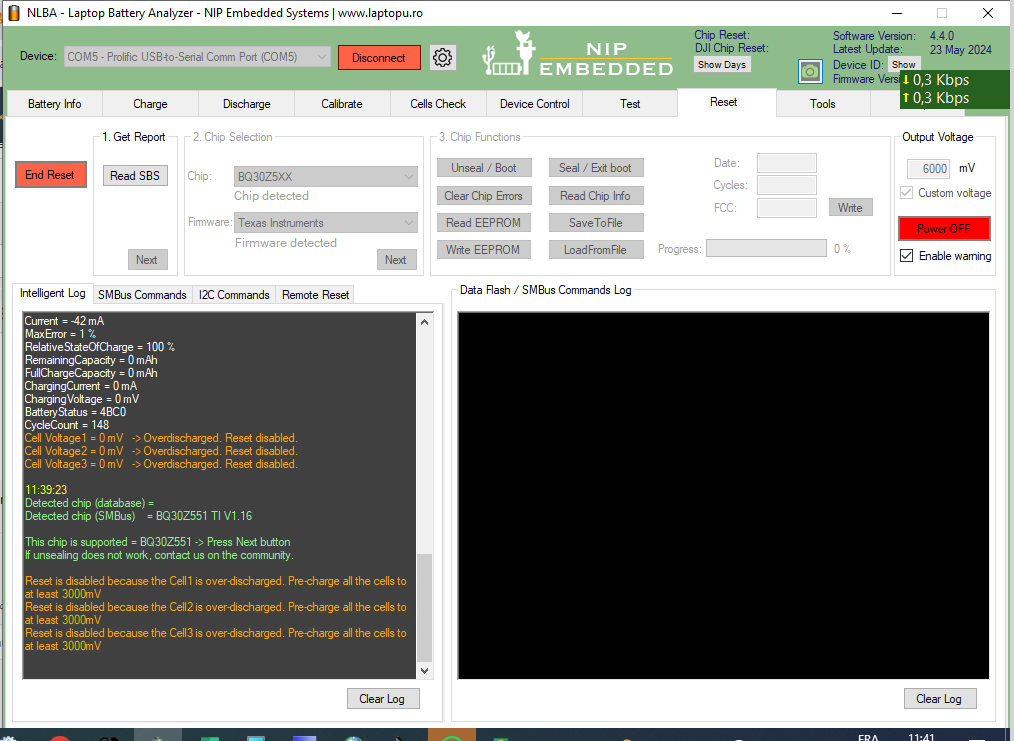

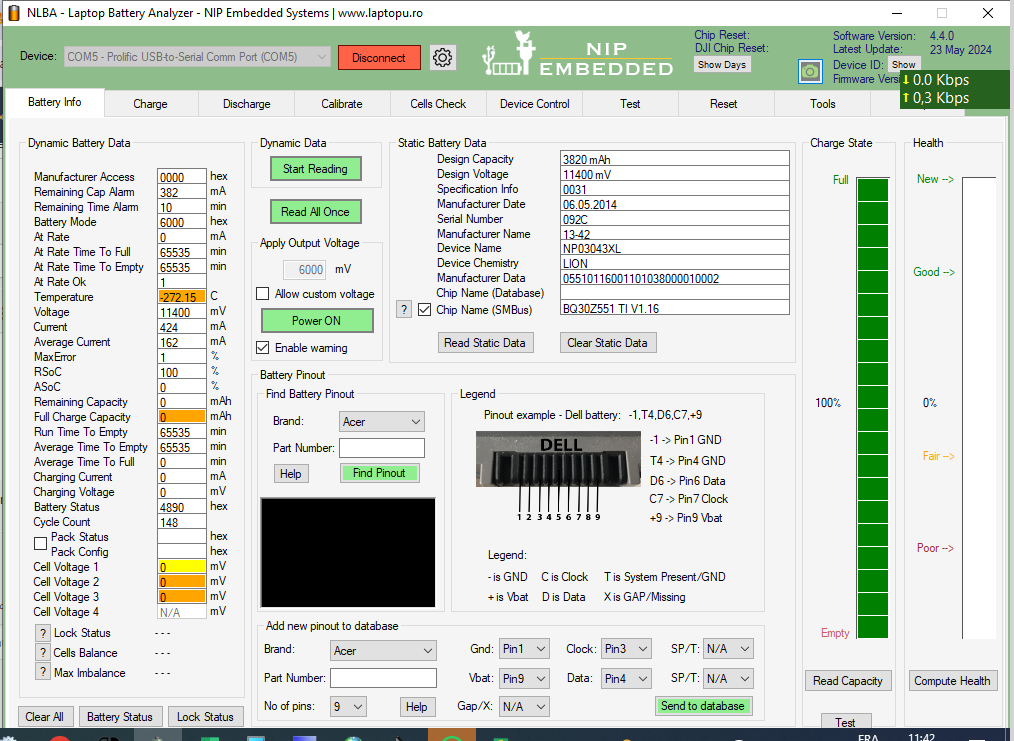

Unable to read voltage properly, it is showing 0v when all the cells are charged and balanced 3,8v.

Fuse is ok.



ReplyQuote
Topic starter Posted : 14/08/2024 10:46 am
exwilliam
 exwilliam
(@exwilliam)
Reputable Member Customer

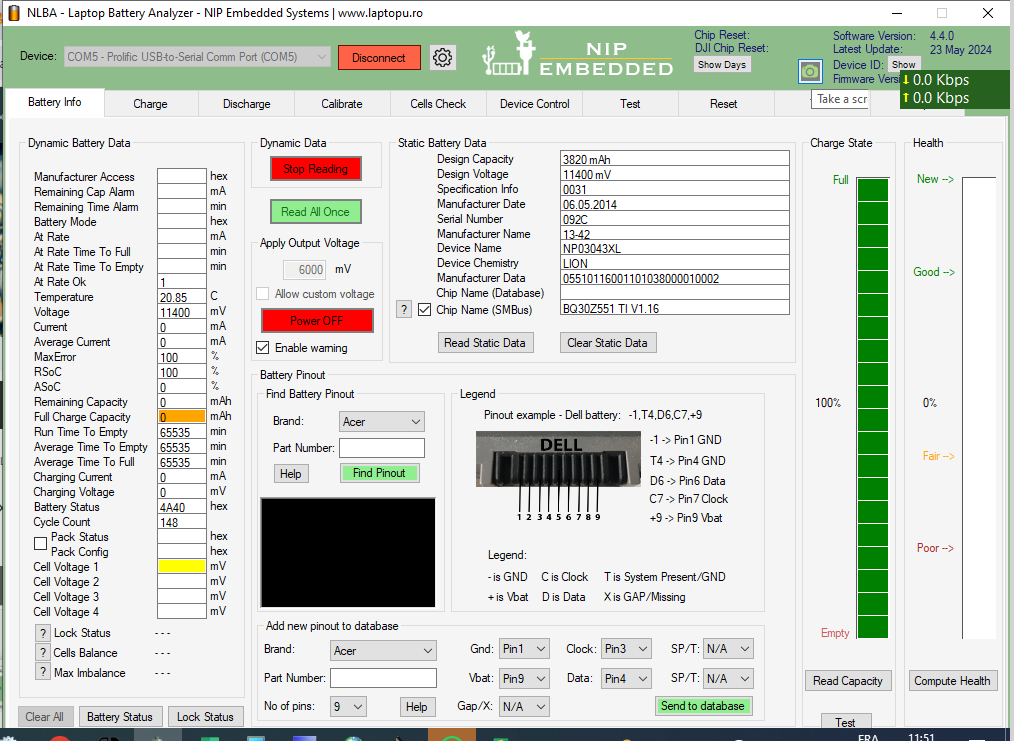

Here, no cell voltage reading but right temperature is showing.

ReplyQuote
Topic starter Posted : 14/08/2024 10:53 am
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

 Chip is in cyclic reset due to AFE failure. It could not be unsealed remotely. This issue was described many times on the forum

https://www.laptopu.ro/community/laptop-battery-chip-reset-and-repair/hp-np03xl-bq30z551-v1-15-read-parameters-error/

https://www.laptopu.ro/community/forum-nlba1-laptop-battery-analyzer-and-repair-tool/hp-me03xl-laptop-battery-with-chip-name-bq30z551-could-not-show-accurate-parameter-reading/

https://www.laptopu.ro/community/forum-nlba1-laptop-battery-analyzer-and-repair-tool/my-nlba1-device-was-unable-to-read-nor-detected-my-hp-bo03xl-laptop-battery-cells-voltage-correctly/

https://www.laptopu.ro/community/laptop-battery-chip-reset-and-repair/hv03xl-reset/

https://www.laptopu.ro/community/laptop-battery-chip-reset-and-repair/hp-hv03xl-bq30z551-v-1-16-reset/

https://www.laptopu.ro/community/forum-nlba1-laptop-battery-analyzer-and-repair-tool/hp-at02xl-laptop-battery-with-chip-name-bq30z551-couldnt-read-out-data-correctly/



ReplyQuote
Posted : 14/08/2024 11:06 am
