Rsoc and Asoc is stuck at 0%

Rahmat Aziz
(@rahmat-aziz)
Trusted Member Customer

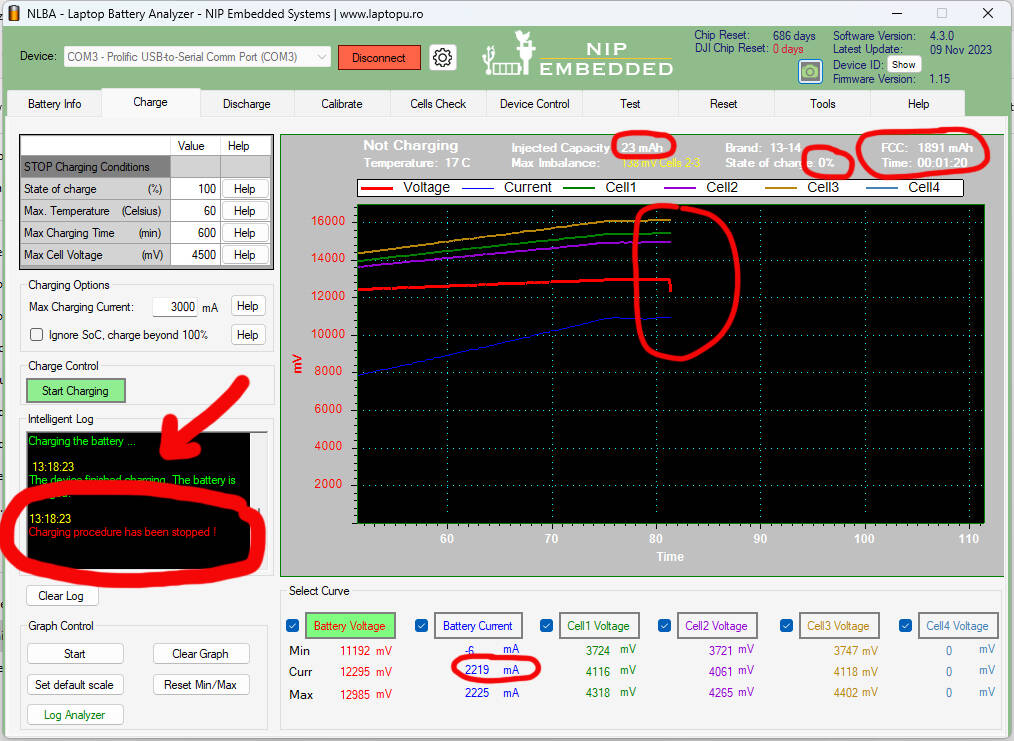

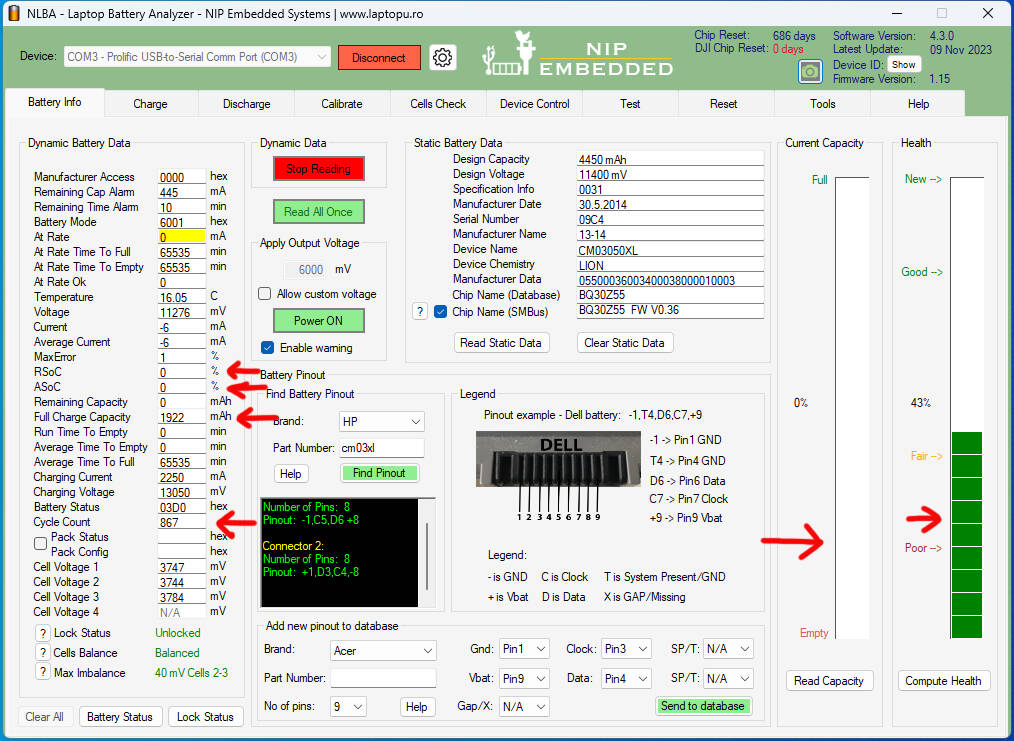

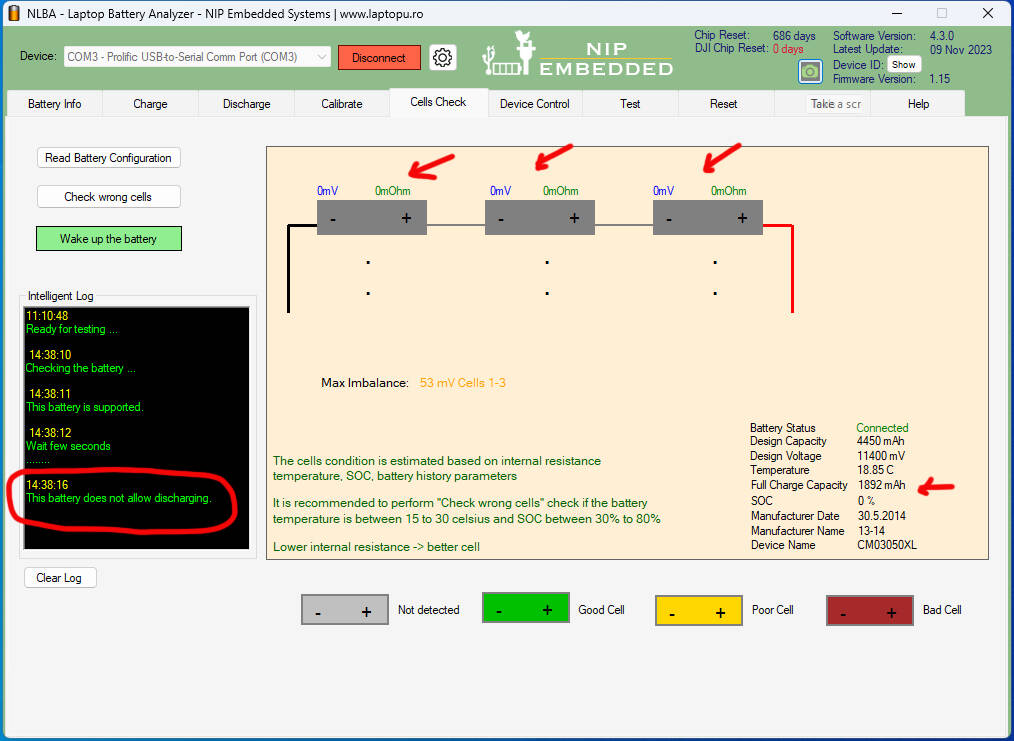

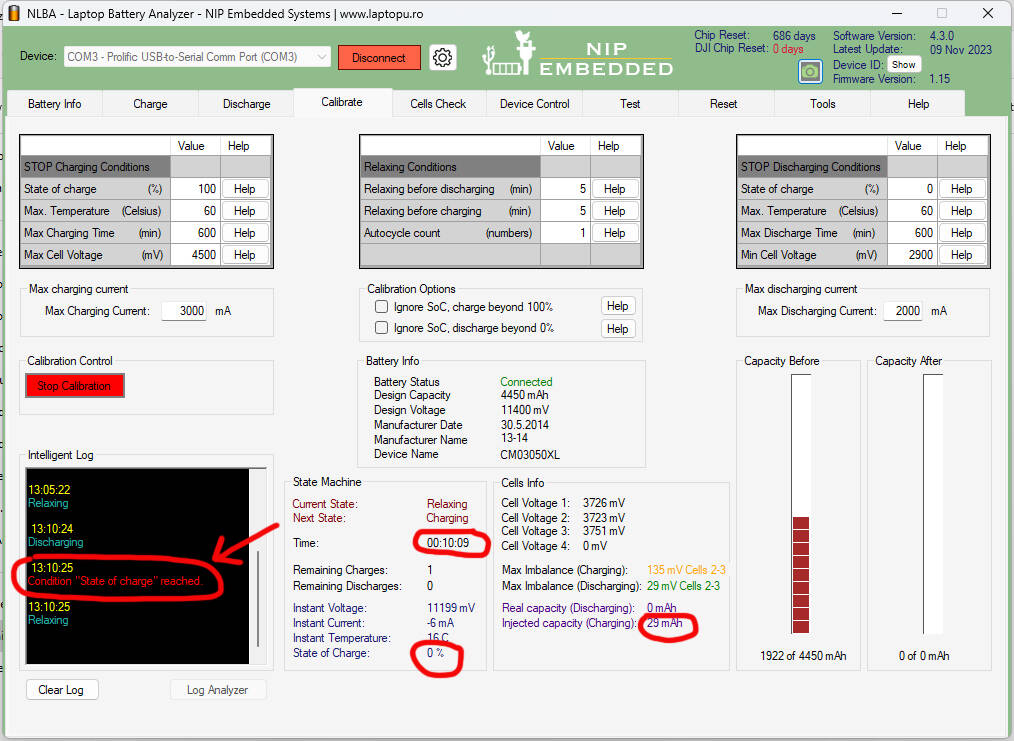

Untitled 2
Untitled 1
Untitled 5
Untitled 4
Untitled 3

hello sir

Could it be that the cells are dead or there is some other problem?



ReplyQuote
Topic starter Posted : 11/01/2024 11:07 am
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

 Cells produced in 2014 and have over 800 cycles.

 What do you expect from such a battery ?..

 Check the log.

Static unbalance is 65mV (at no current).

Dynamic unbalance is 154mV (in charge).

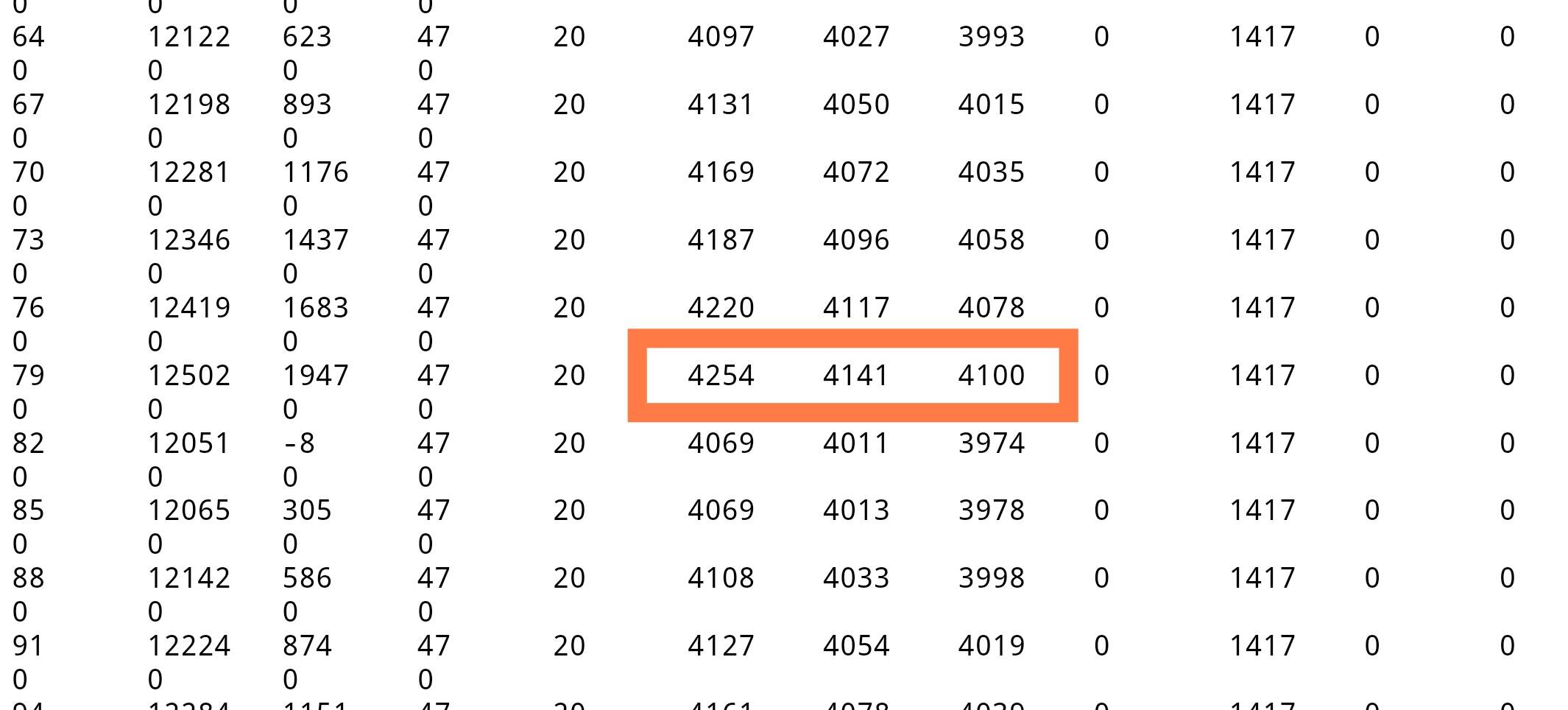

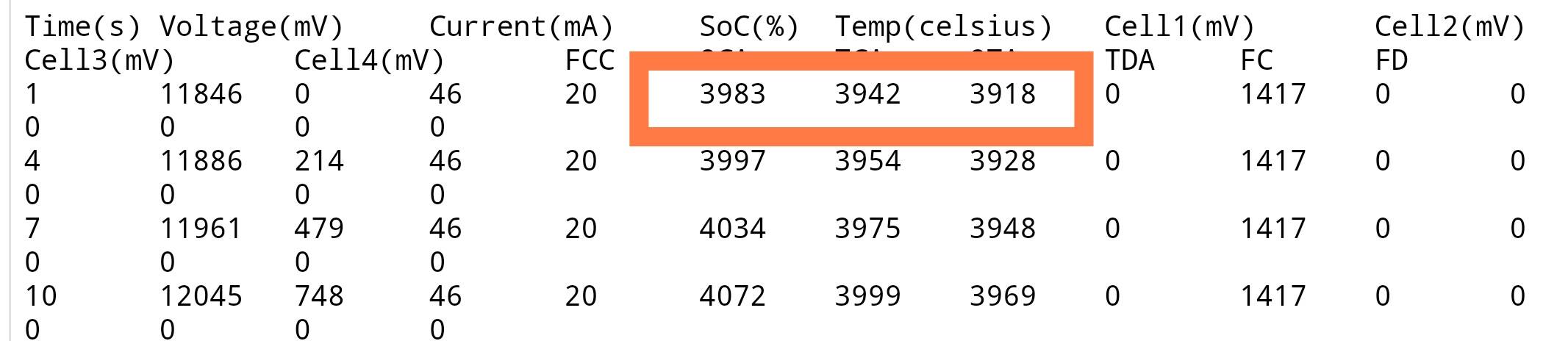

IMG 20240111 133348
IMG 20240111 133120

 It is too much and causes charge issue. Cell 1 goes beyond safety limit and chip stop charge to prevent overheating.

Consider rebuilding a battery with new cells.

 If customer is happy with small runtime like a backup battery you could try to precharge Cell 2, Cell 3 to minimize static unbalance. So battery could be fully charged.



ReplyQuote
Posted : 11/01/2024 11:41 am
Rahmat Aziz
(@rahmat-aziz)
Trusted Member Customer

@djibattworkshop

Thank you very much sir

ReplyQuote
Topic starter Posted : 11/01/2024 12:02 pm
