[Solved] Sunwoda x300 with chip BQ20Z70 TI V1.60 unlocked but not working

    Last Post
  RSS
Fogonazo
 Fogonazo
(@ventas)
Noble Member Customer

I have recelled, I could unseal, clean errors, change cycles, but led is still off, but fuse is OK.
This battery was working previously so I suspect mosfet problem, how can I confirm that?

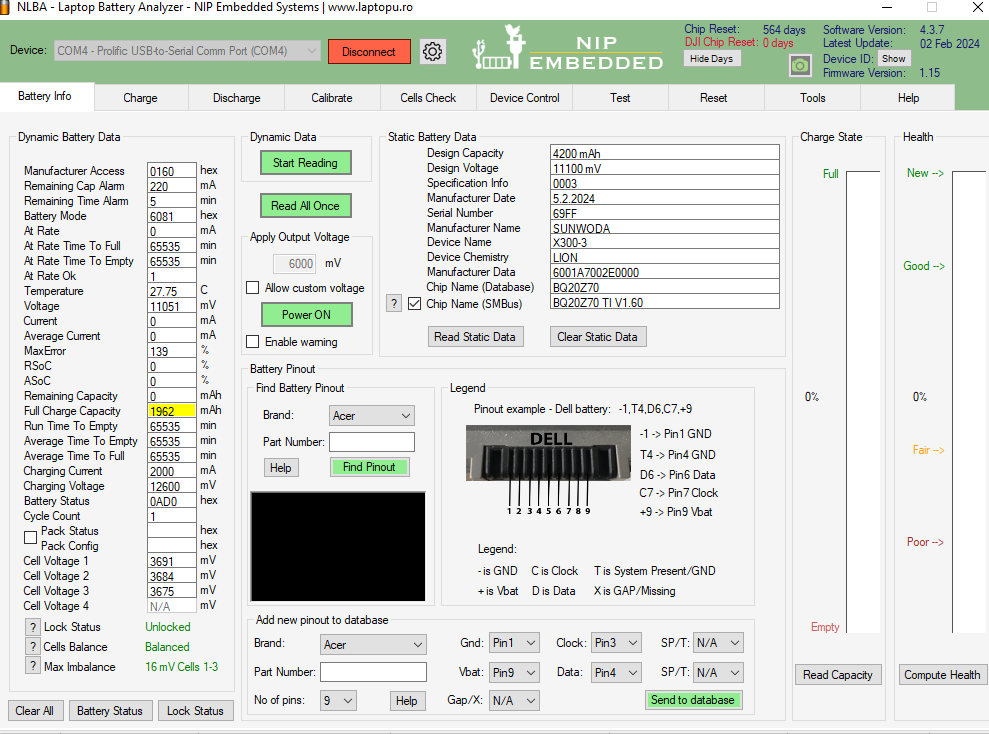

Captura0

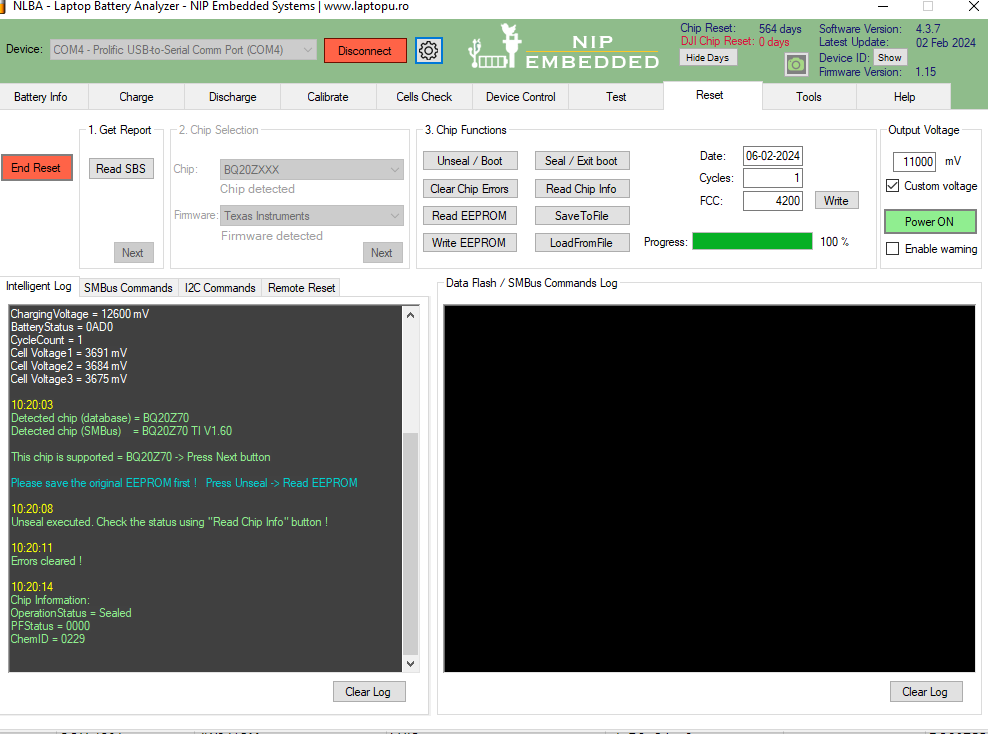

Captura

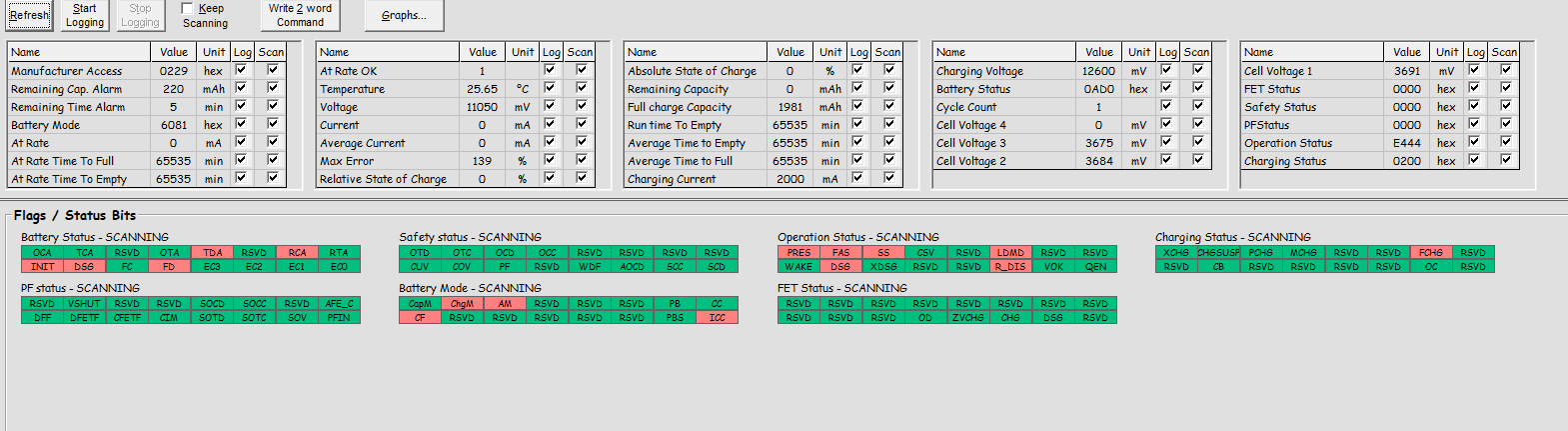

Captura2
ReplyQuote
Topic starter Posted : 06/02/2024 1:39 pm
Fogonazo
 Fogonazo
(@ventas)
Noble Member Customer

Fuse is an old style two pin fuse, I replaced with a silver wire 8A fuse.

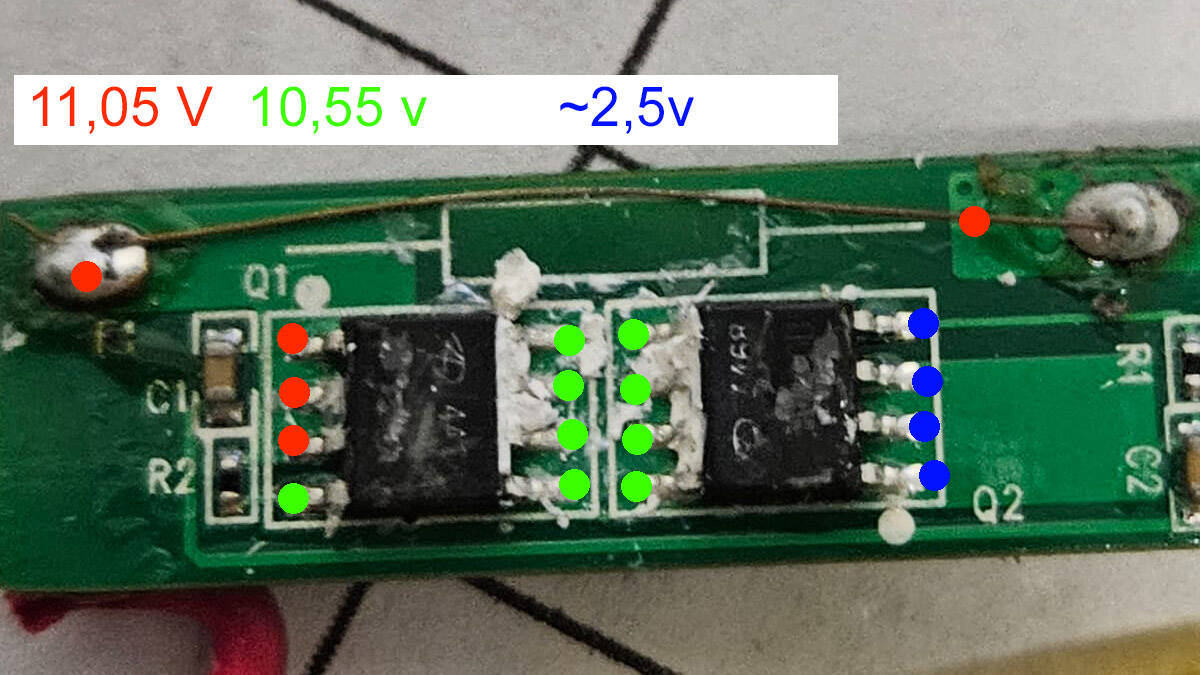

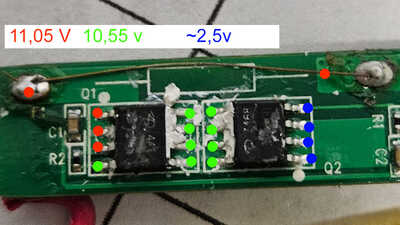

Voltages on mosfets are those on the picture:

WhatsApp Image 2024 02 06 at 10.52.13 copia



ReplyQuote
Topic starter Posted : 06/02/2024 2:18 pm
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

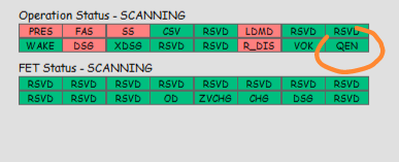

 Impedance Tracking is Off so no Charging and Discharging.

IMG 20240206 165635

 Reprogramming procedure was not followed correctly.

 Unseal the chip then send WW 00 0021 command. Then Seal chip back.



ReplyQuote
Posted : 06/02/2024 2:58 pm
Fogonazo liked
Fogonazo
 Fogonazo
(@ventas)
Noble Member Customer

@djibattworkshop Thanks! solved.

ReplyQuote
Topic starter Posted : 06/02/2024 3:08 pm
