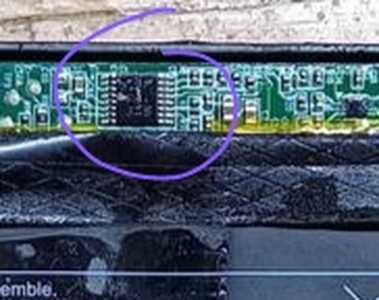

What is printed on this chip ?..
So it is protections chip. It does not have communication port.
Check other side of pcb.
Bms ini tidak mempunyai PCB Di bawahnya.
lalu bagaimana chip ini berkomunikasi dengan bios?
English please
@djibattworkshop sorry ,This BMS Does not have a pcb underneath
then how does this chip comunicate with the bios?

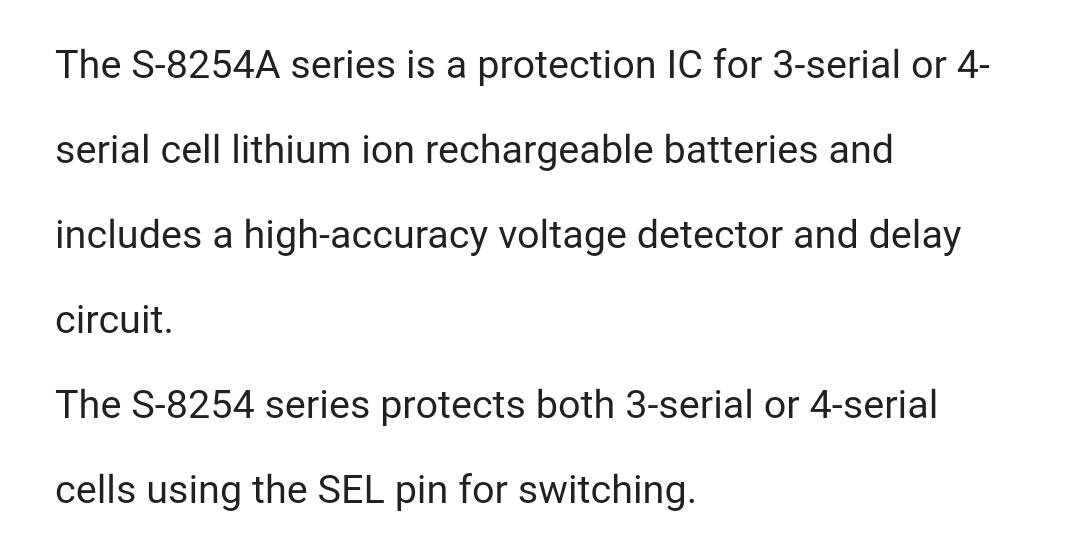

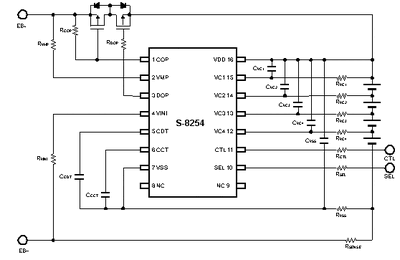

Check the datasheet of S8254AB chip.
It does not have communication port.
This battery does not have SMBus, so NLBA1 cannot communicate with it.
then how does this chip comunicate with the bios?
It looks battery has i2c communication.
If you have laptop, download NirSoft BatteryInfoView software. Run it and paste picture.

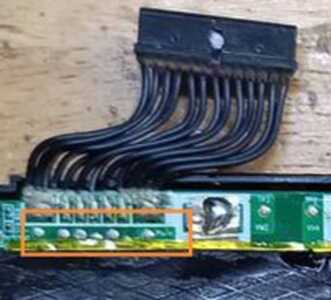

Also paste better picture of this area to check if communication port is marked on the pcb.

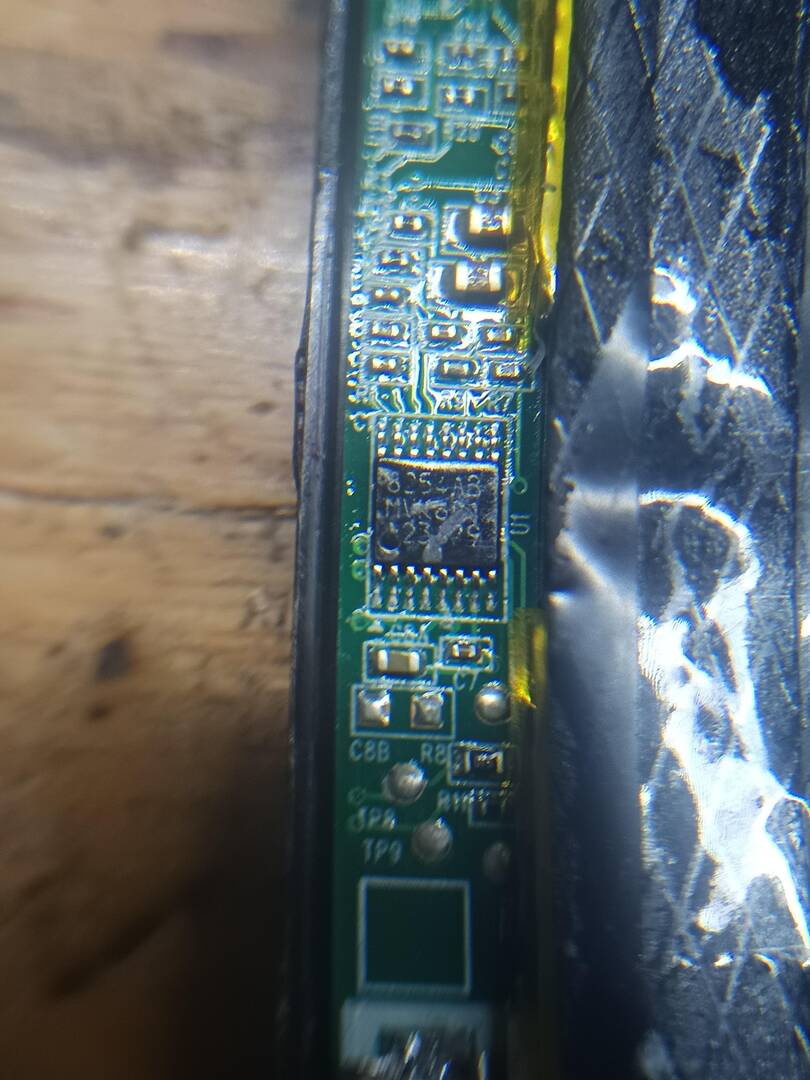

Also check what is printed on this chip

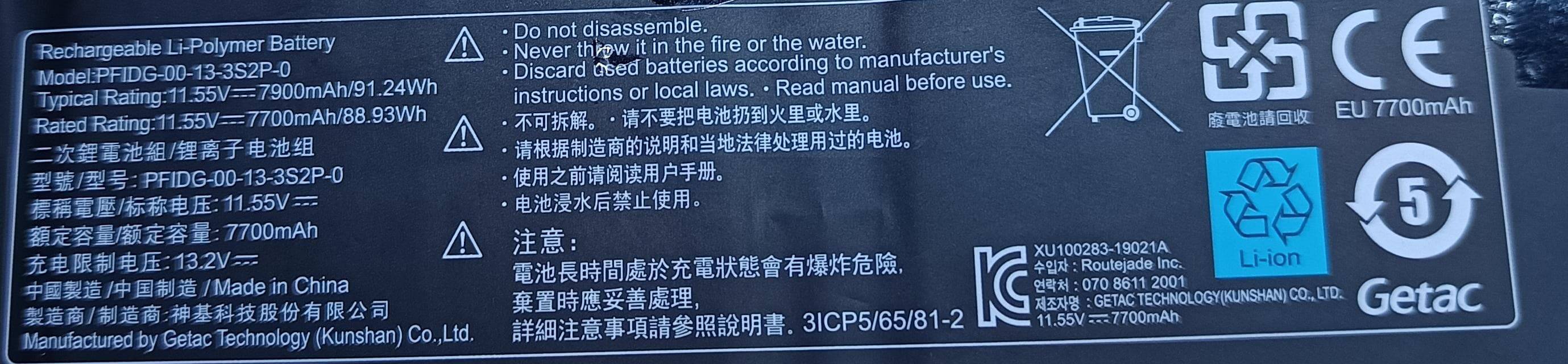

@djibattworkshop ill check, btw this batt have 4 cell 13.2v mean this is bat 2.8v right ?
this batt have 4 cell

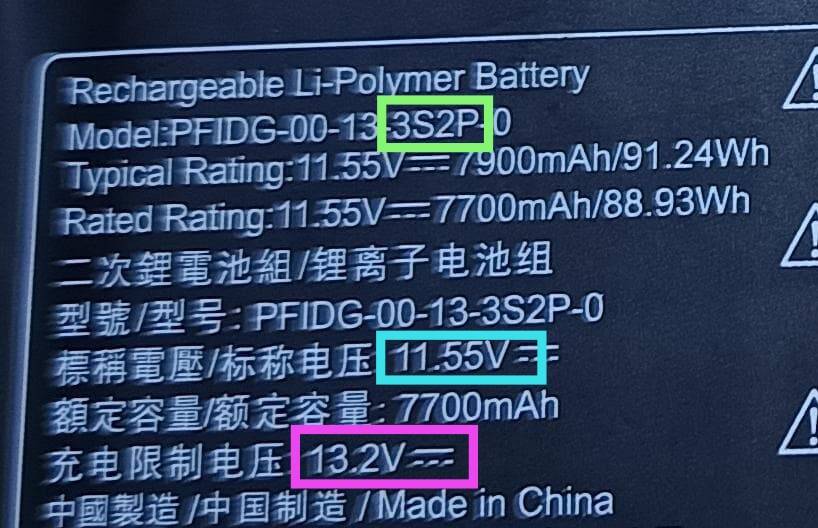

It is 3S2P battery, so 6cells totally.
Nominal 11.55 so 3.85v per cell.
Max Charge is 13.20 so 4.40v per cell.
