DJI Spark battery specs and pinout

Model: MB1,   Nominal Voltage: 11.4,   Design Capacity: 1480mAh,   Design Energy: 16.87Wh,    Max.Charge Voltage: 13.05V,

Cells in Use: LiPoHV 3.80V (4,35V) 5.62Wh, Size: 6.3X33X60mm, Manufacturer: ATL,  Cells Config: 3S1P;

DJI Mavic Mini battery specs and pinout

Model: MB2, Nominal Voltage: 7.2V, Design Capacity: 2400mAh, Design Energy: 17.28Wh, Max.Charge Voltage: 8.4V,

Cells in Use: Li-Ion 3.70V (4,20V) 2500mAh,   model: Samsung INR18650-25R,   Cells Config: 2S1P;

Chip in Use: bq9003 (Texas Instruments),    Firmware: bq40z307 (DJI);

DJI Mini 2 battery specs and pinout

Model: BWX161, Nominal Voltage: 7.7V, Design Capacity: 2250mAh, Design Energy: 17.32Wh, Max.Charge Voltage: 8.8V,

Cells in Use: LiPoHV 3.85V (4,40V) 2250mAh,   size: 8x34x62mm   Cells Config: 2S1P;

Chip in Use: bq9003 (Texas Instruments),    Firmware: bq40z307 (DJI);

DJI Mavic Air battery specs and pinout

Model: PB1, Nominal Voltage: 11.55V, Design Capacity: 2375mAh, Design Energy: 27.43Wh, Max.Charge Voltage: 13.20V,

Cells in Use: LiPoHV 3.85V (4,40V) 2375mAh,   size: 6.9x37x72mm   Cells Config: 3S1P;

Chip in Use: bq9003 (Texas Instruments),    Firmware: bq40z307 (DJI);

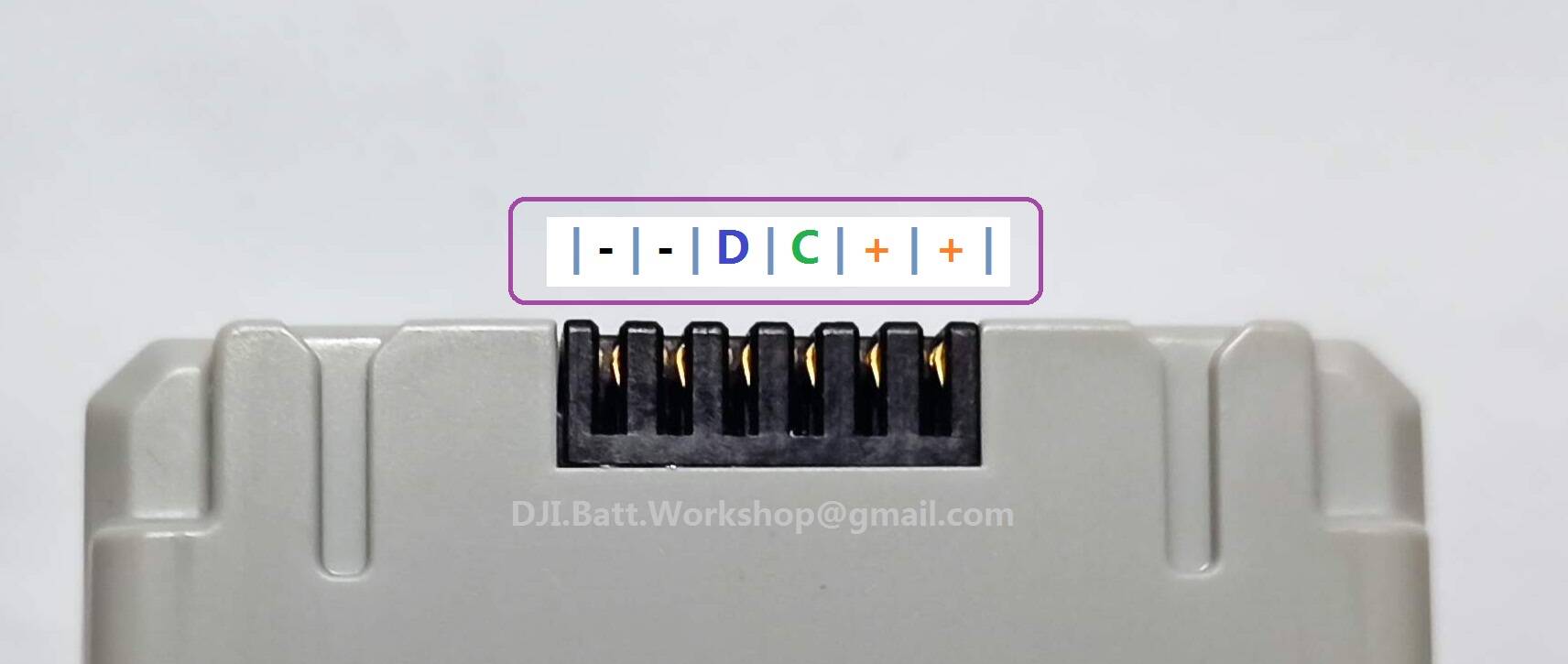

DJI Mini 3 battery specification and pinout

Model Std: BWX162, Nominal Voltage: 7.38V, Design Capacity: 2453mAh, Design Energy: 18.10Wh, Max.Charge Voltage: 8.50V

Model Plus: BWX162, Nominal Voltage: 7.38V, Design Capacity: 3850mAh, Design Energy: 28.41Wh, Max.Charge Voltage: 8.50V

Model PlusPlus: BWX162, Nominal Voltage: 7.38V, Design Capacity: 4000mAh, Design Energy: 29.5Wh, Max.Charge Voltage: 8.80V

Cells in Use: LiPo 3.69V (4,25/4.40V) 2453/3850/4000mAh, Cells Config: 2S1P;

Chip in Use: bq9003 (Texas Instruments), Firmware: bq40z307 (DJI);

Remark:

Models Std and Plus are DJI factory design for Standard and Pro versions of Dji Mini 3 drone.

Model PlusPlus is LightDrone(TM) chip tuning design based on factory Plus version.

Hola
¿Alguien tiene el diagrama de conexión para el Mavic 2 Pro y el Phantom 4?
Muchas gracias

@laarnova

English please !

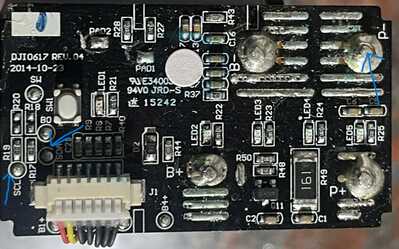

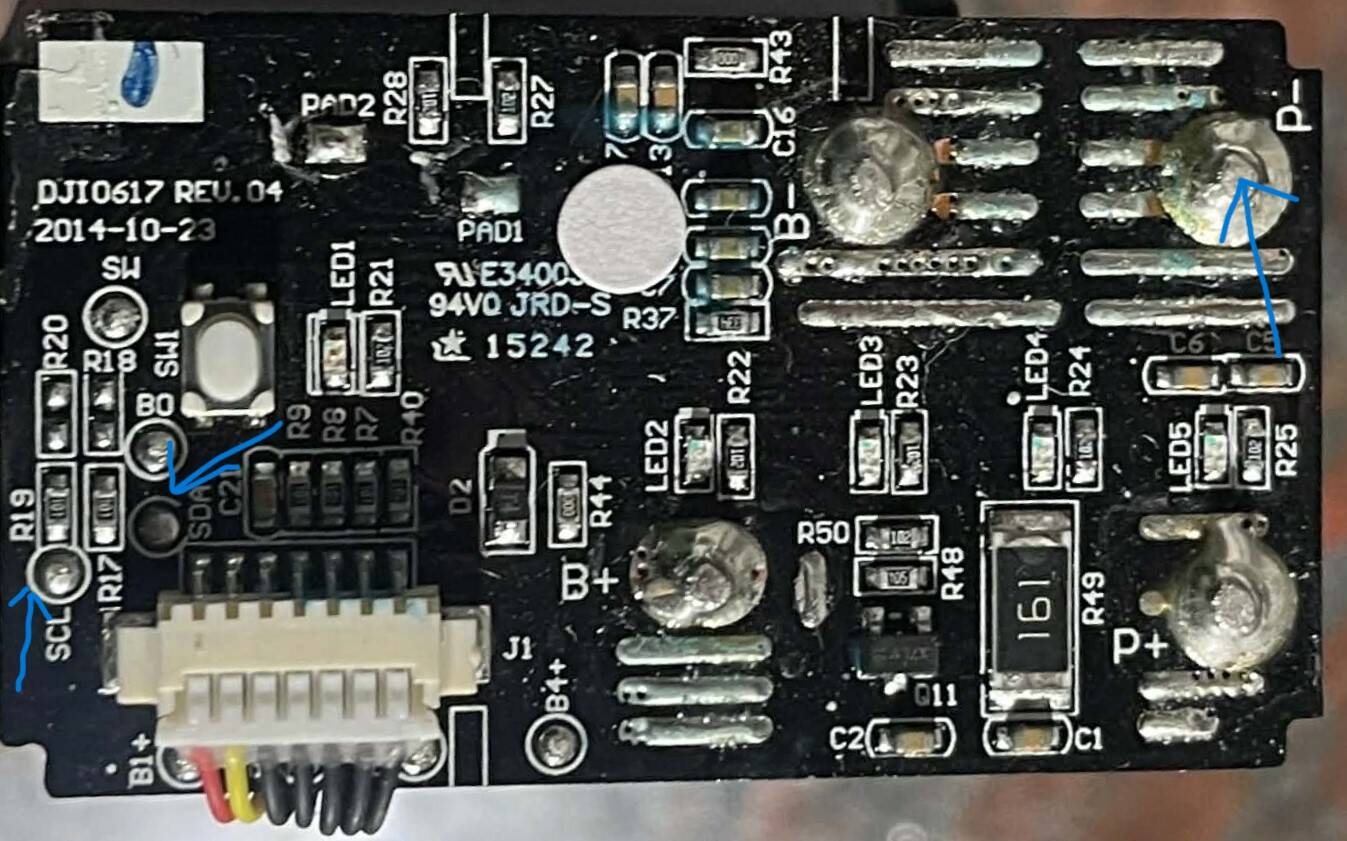

Hello, I need to know if this is the correct connection for a Phantom 3 battery to connect and unlock with NLBA?

Thank you very much

 No.

 Smbus port located on other side of pcb.

Check this topic, it explains how to connect DJI REV0617 PCB properly.

https://www.laptopu.ro/community/reset-and-repair-dji-drone-battery/can-detect-dji-phantom-3-battery-chip/
