[Solved] Dji FBI battery wrong cell voltage

johan22102210
(@johan22102210)
Reputable Member Customer

Dji FBI battery wrong cell voltage

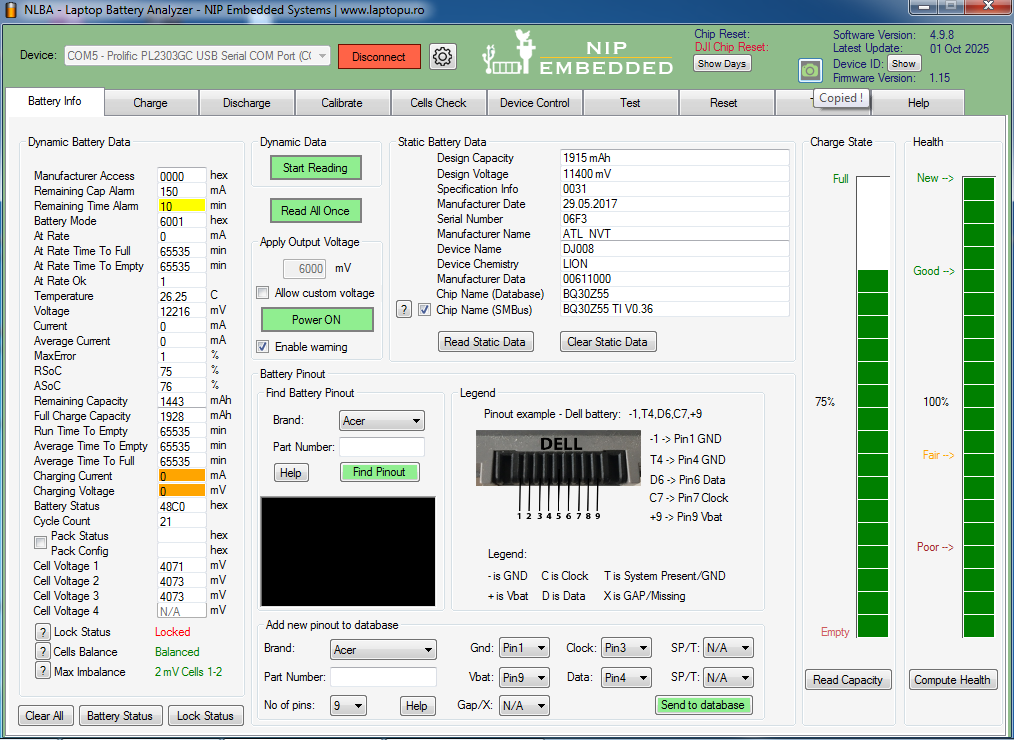

i chech with multimeter , cells ok 4.07 4.07 4.07

same problem on 02 batteries

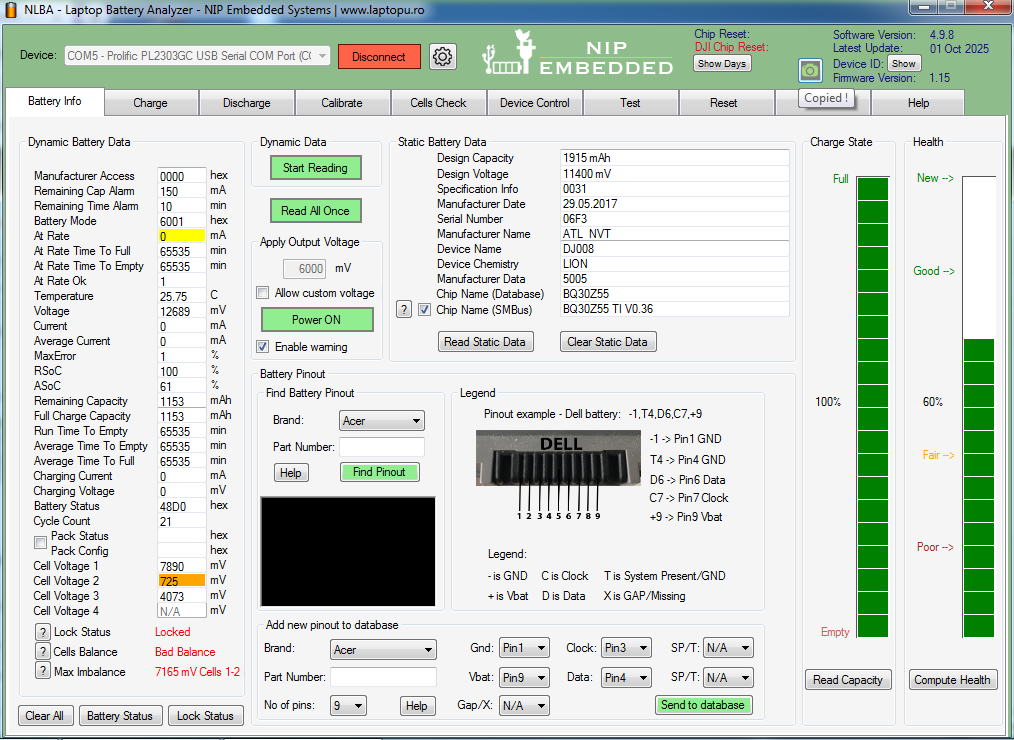

1 st

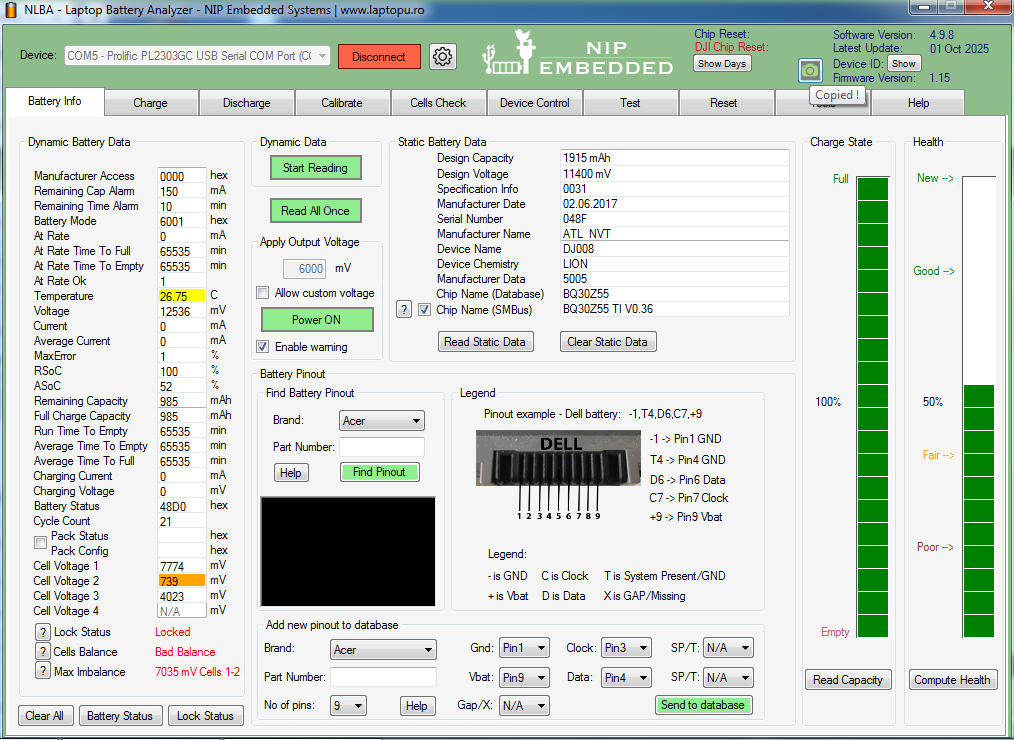

2nd




ReplyQuote
Topic starter Posted : 14/10/2025 6:01 am
loliconic
(@loliconic)
Member Moderator

@johan22102210

You didn't solder the cells well on the PCB.

ReplyQuote
Posted : 14/10/2025 12:04 pm
tracker135n9
(@tracker135n9)
Noble Member Customer

 On this battery cells are well spot-welded on the factory.

ReplyQuote
Posted : 14/10/2025 4:37 pm
johan22102210
(@johan22102210)
Reputable Member Customer

@tracker135n9

yes

i think the cable from first pcb to 2nd have problem

i jump it

now working

ReplyQuote
Topic starter Posted : 14/10/2025 4:54 pm
loliconic liked
tracker135n9
(@tracker135n9)
Noble Member Customer
Posted by: @johan22102210

i think the cable from first pcb to 2nd have problem

 Yes, when balancing cable is not properly attached or oxidised then this issue is observed.

ReplyQuote
Posted : 14/10/2025 7:14 pm
