Dear
i tried to unlock DJI Mavic Air battery but still the charging disable
i unseal the battery it gives unseal successful but it wont clear error and enable the charging
Chip Information:
OperationStatus = 0x00007300, Sealed, Charging Disabled, Discharging Disabled
PFStatus = Chip must be unsealed to read DJI PF
ChemID = 3856
eeprome file attched

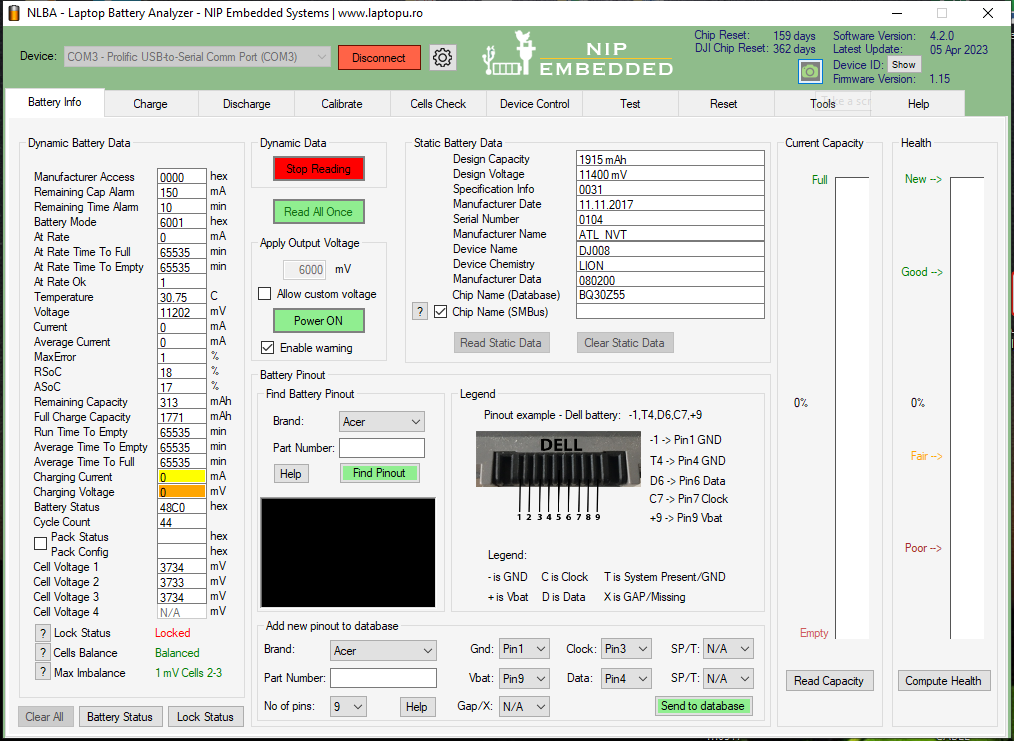

Switch on the battery by Push-button short and long click. Confirm LED indicator lit, then read and paste updated BatInfo picture.
after some troubleshooting i found that the reset can clear all error but when you read battery information its shows that the battery are locked , by turning on the battery it remove the lock and you can do all test while the battery are turned on also the charging must start with the battery turned on for me case solved
Of course, you must turn on the battery to make sure the NLBA1 checks the lock/unlock status.
Is the battery genuine ?
i tried to unlock DJI Mavic Air battery
It is not Dji Mavic Air battery.
Different Design Capacity, Design Voltage, Production Year, Device Name and Chip.
It is battery for DJI Mavic Pro drone. There is rule on the forum to not mix different batteries in one topic.
Each battery should be discussed in its own topic.
Goodnight,
Connect everything and make a jumper from the positive to the positive of the last cell phone opposite the connector, hold tight to avoid any problems, press the power button and do the clear PF procedure.
