Posted by: @1059587230

How to Connect DJI T30 Plant Protection Drone Battery to NLBA Device

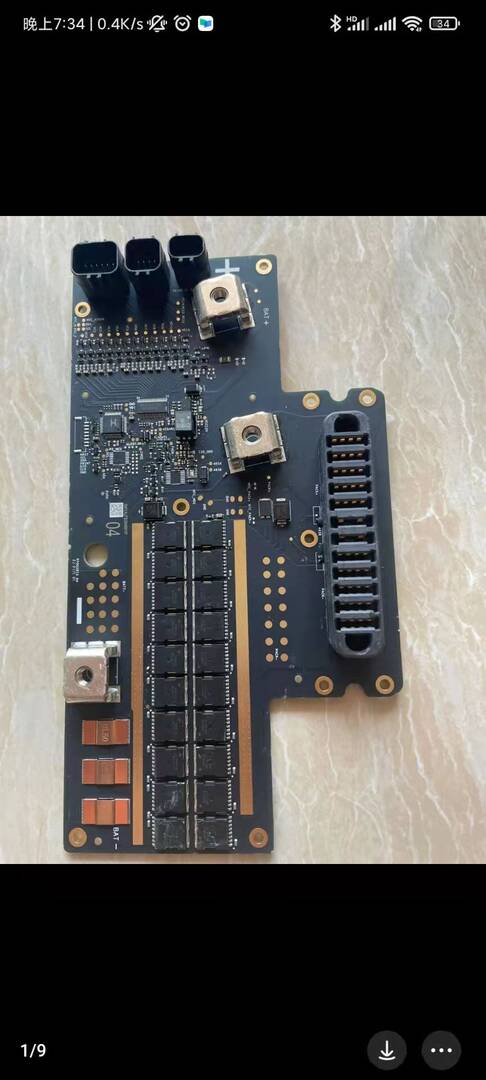

Show a picture with the PCB.

@azzido

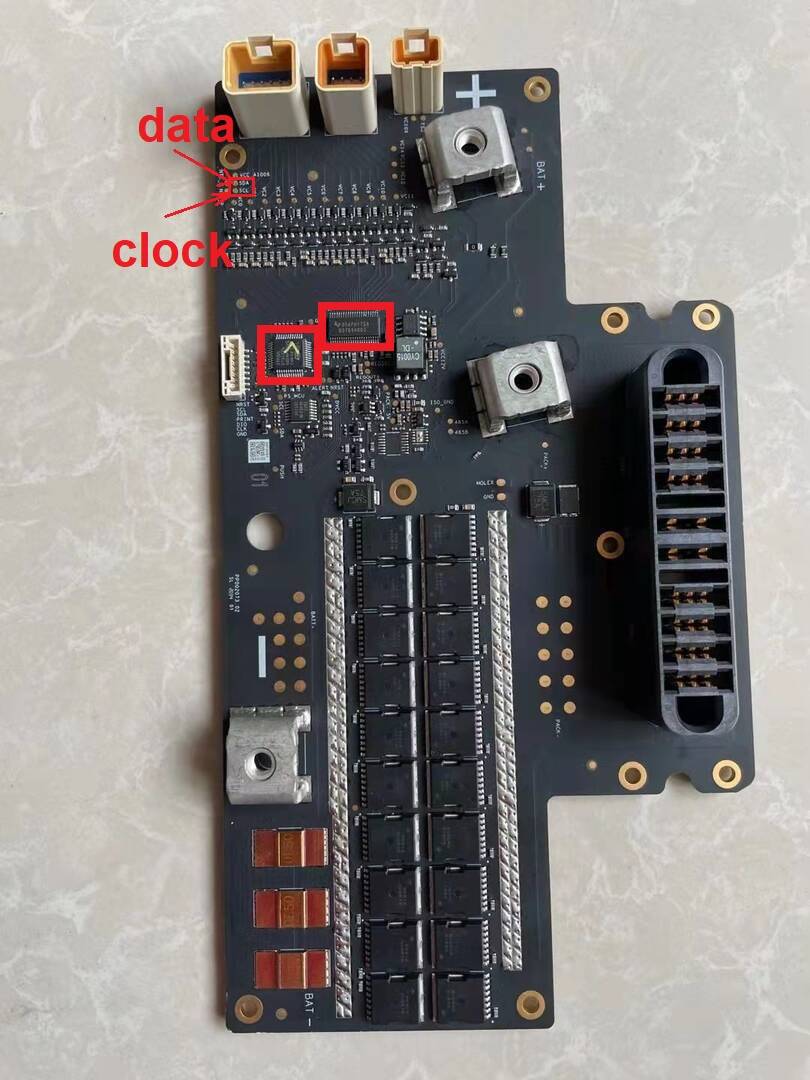

Clock & data connections can be found here you will also need ground connection point from PCB and you should be able to establish comunication with cells connected to PCB.

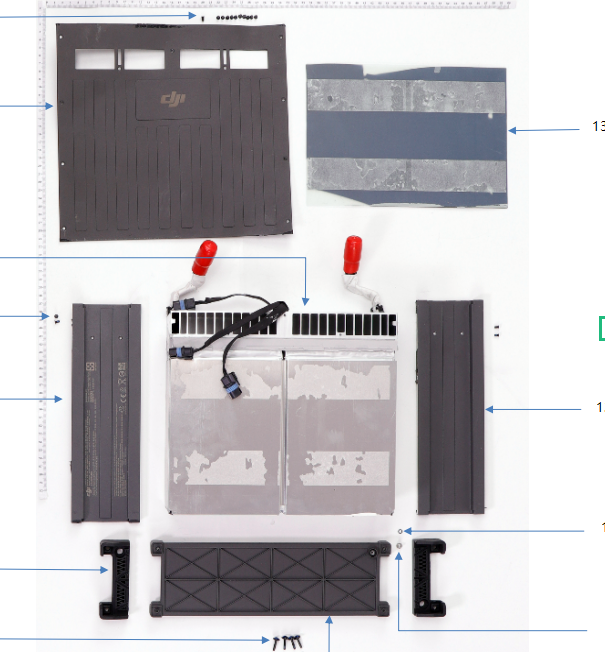

By the way do you know what type of cells it uses? Lipo pouch cells or standart 18650?

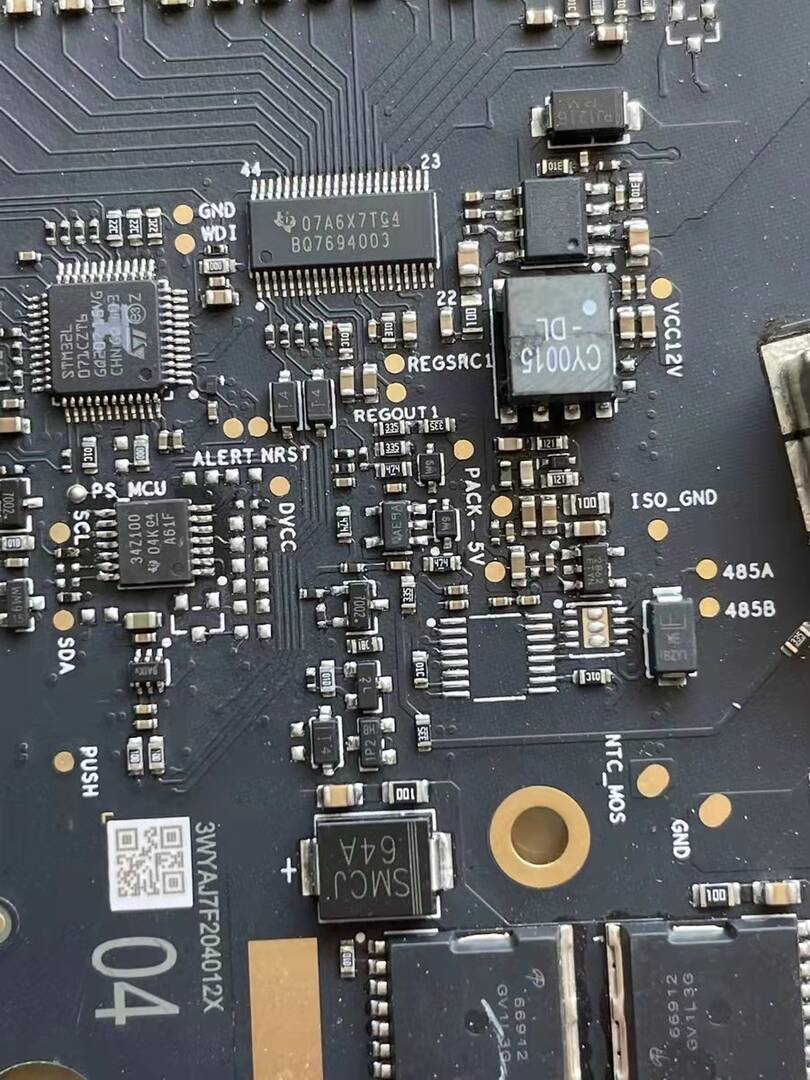

Please take close up photos of the 2 chips so they can be identified.

@torture The battery cell is nickel cobalt lithium manganate, and the chip is BQ764003 and the MUC is STM32.

@torture

@1059587230

Try to connect carefully clock, data and gnd to NLBA1 and see if you can read parameters. Note that you need to supply power to the board using the cells, I mean the cells have to be connected to the board.

I don't have the NLBA1 device

@azzido Have you unlocked the battery of the DJI plant protection machine?

Posted by: @1059587230

I don't have the NLBA1 device

Then how do you expect to help you ? What do you actually want to do ?

Why do you ask in the first post how to connect it to NLBA1 if you don't have it ?

@azzido

翻译结果

@1059587230

Your chip is BQ34z100 which has I2C interface instead of SMBus as in laptop batteries. How many batteries do you have ? It can be done by our colleague who is an expert in repairing DJI batteries but currently, he cannot do it because he is living in Ukraine. Now Ukraine is attacked by Russia and he stopped working.

@azzido I have dozens of T30 batteries when will he be back to work I am in China do we have any of you here who are proficient in DJI batteries

@1059587230

As soon as our partner will come back (the Urakine situation improves) I will return to you for sure.

@1059587230

Can you send me an email using contact form ?
