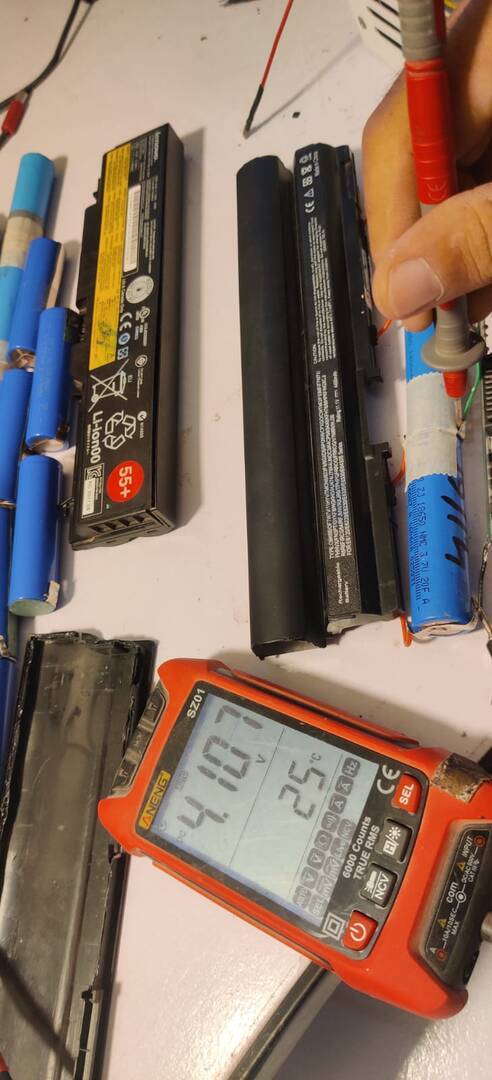

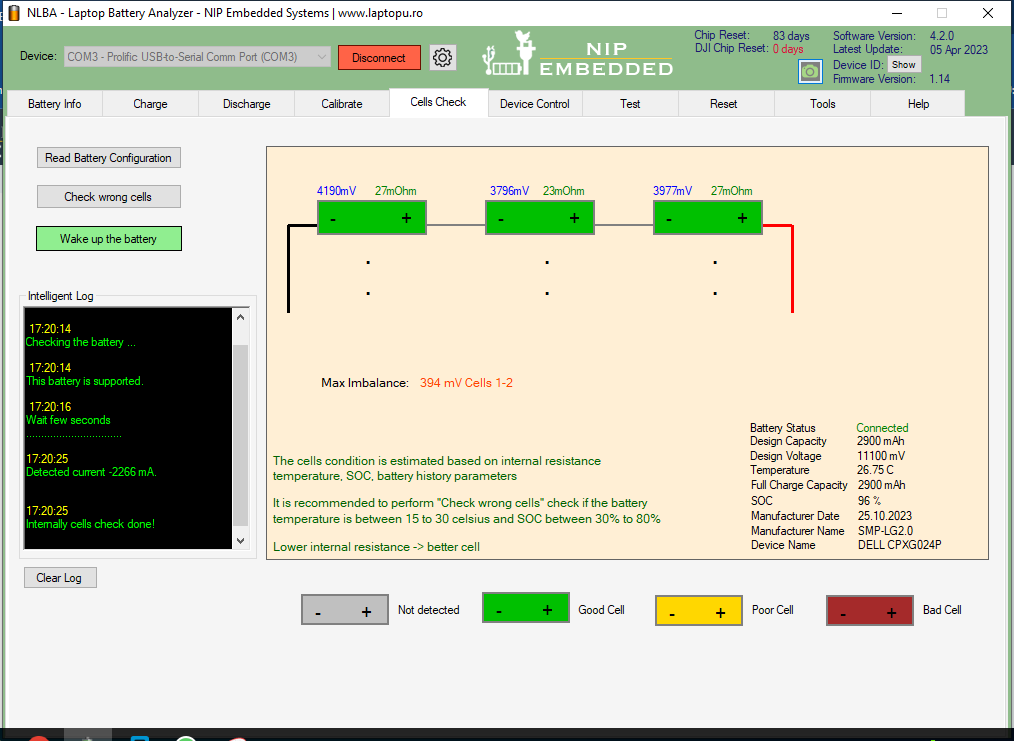

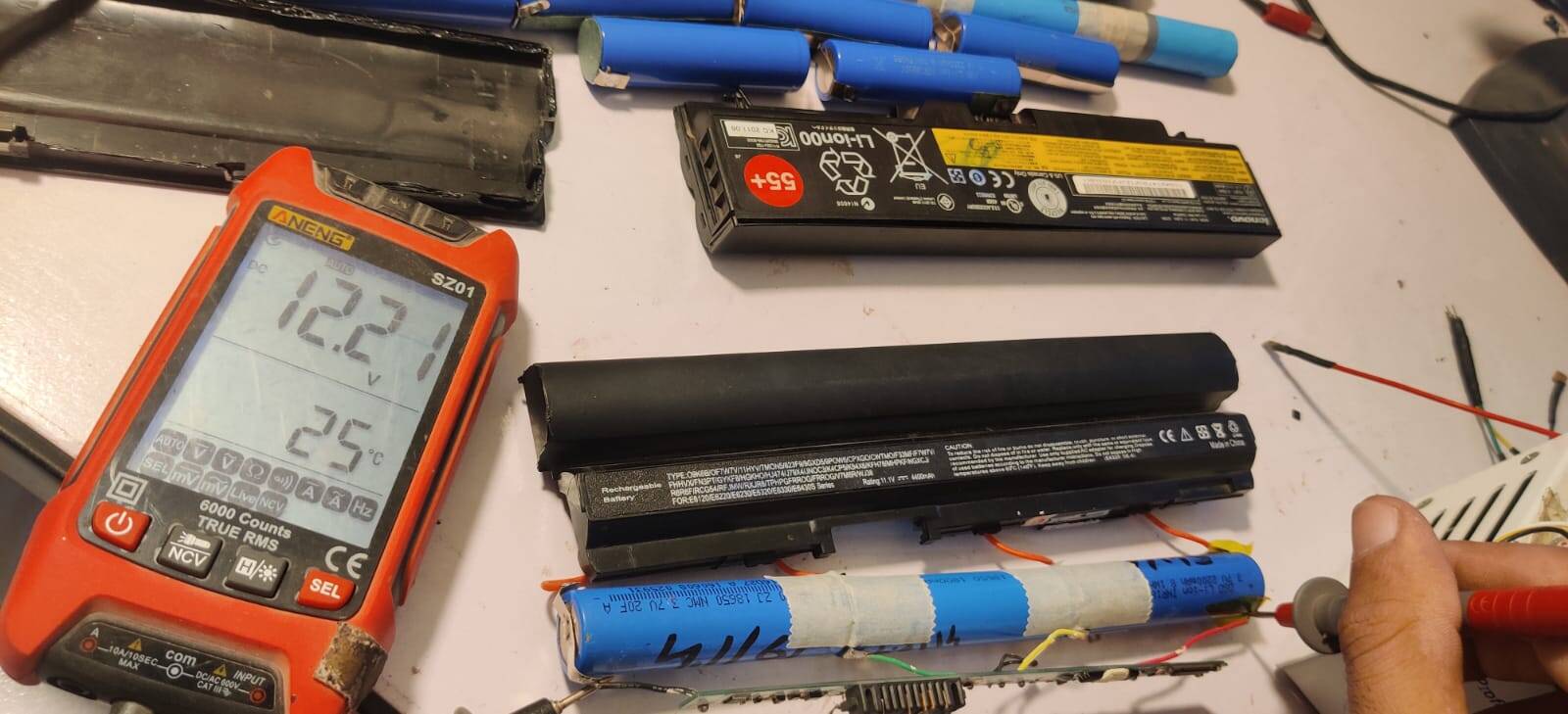

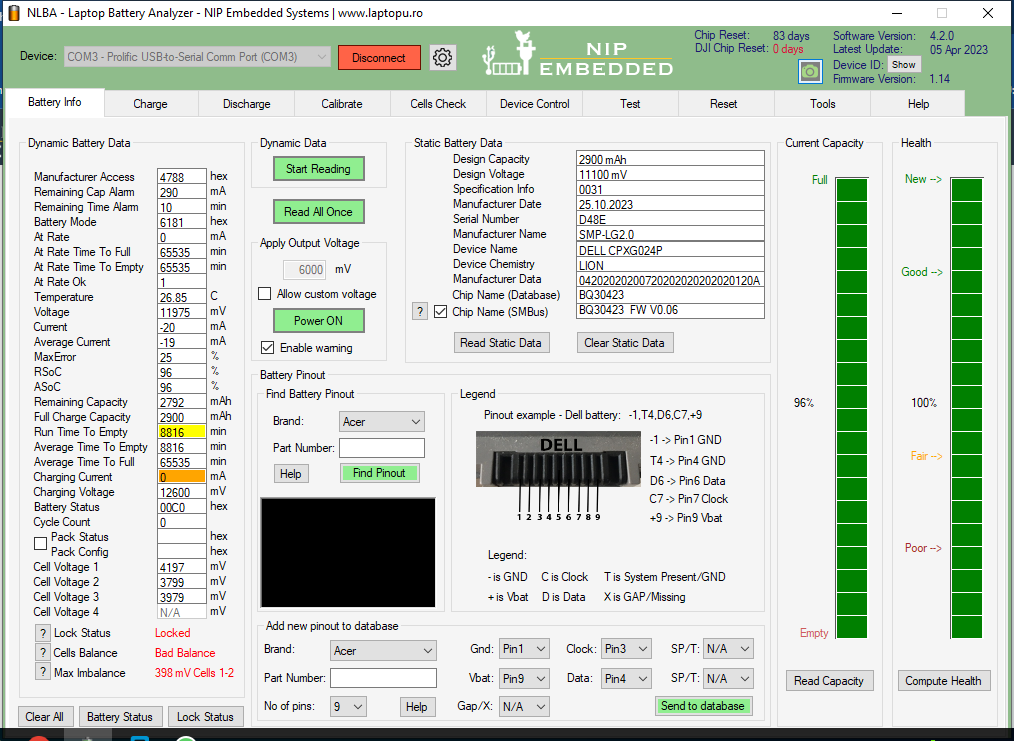

This battery shows dynamic behavior after resetting its cell voltage values, which are correct as per pack voltages, but after a few minutes, values automatically change and shows bad balance eventhough cells are well balanced
.
Probably wrong channel was catched.

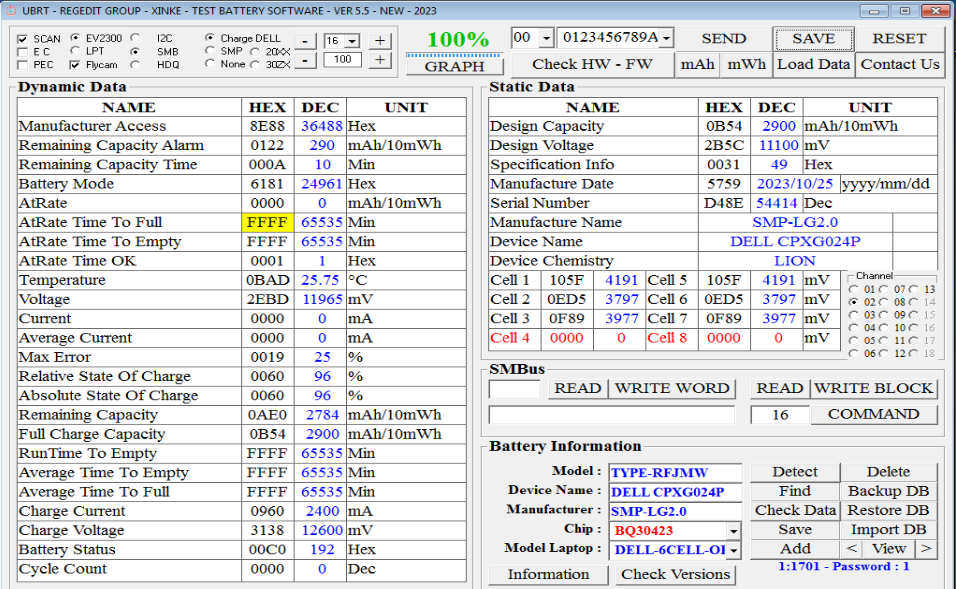

Try to read cells voltages by Test Battery Demo software.
Try all 13 channels to find one with correct cells voltages.

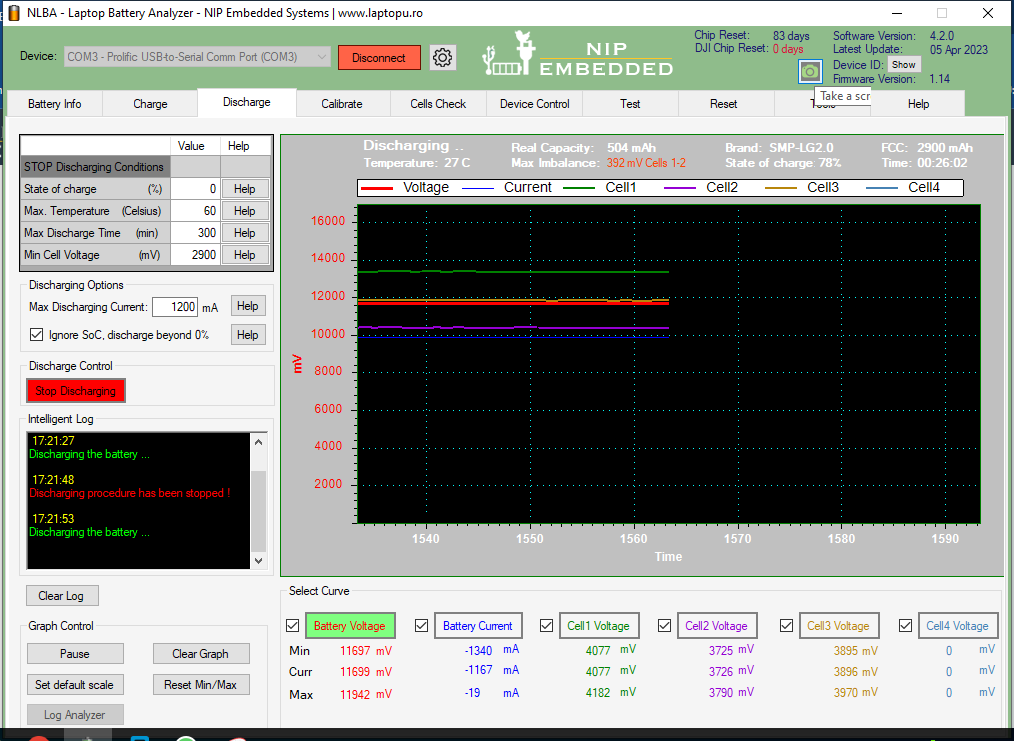

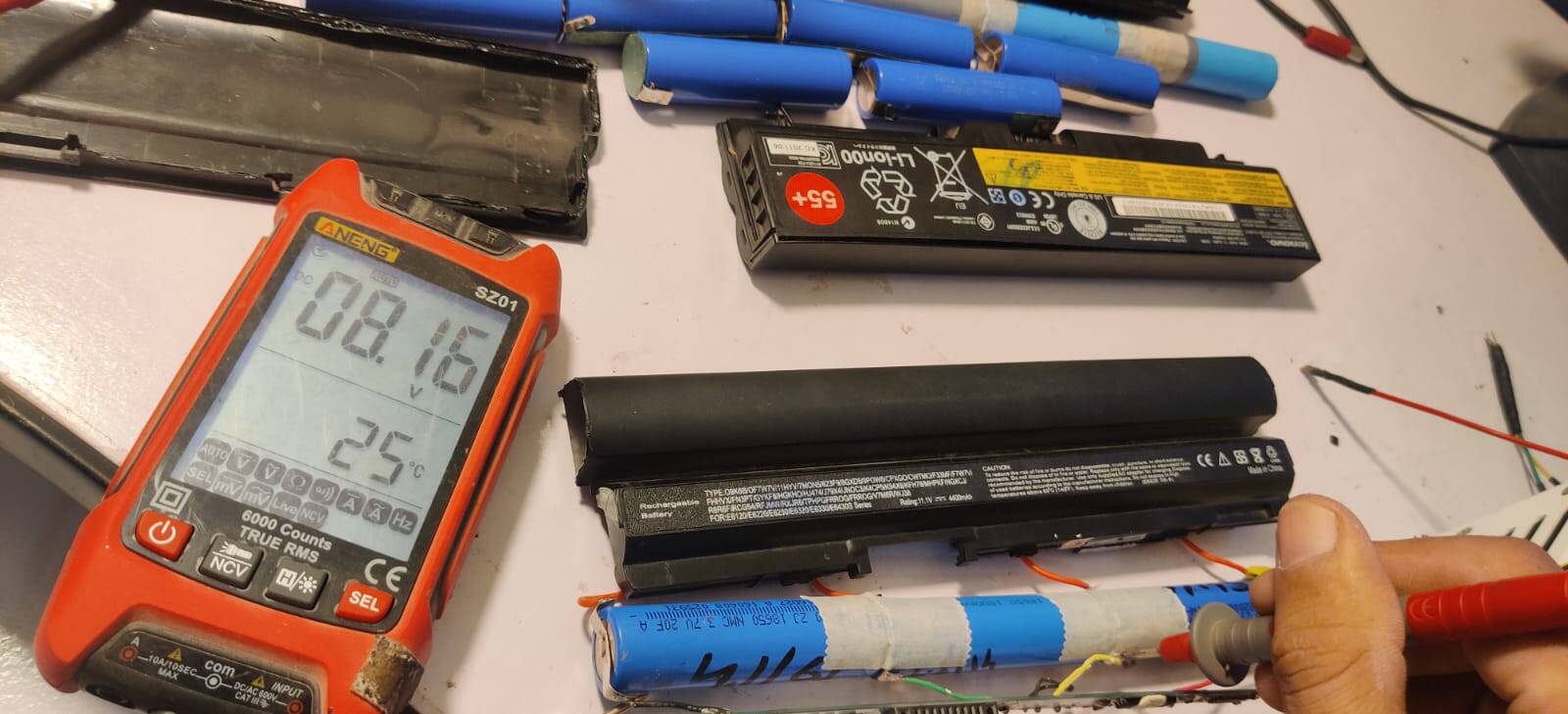

@djibattworkshop The result is the same on different channels Now I am trying to check the BMS working using the discharge tab. If the pack voltage is disturbed after complete discharge, then there is a problem in the program or BMS because the cells are well-tested. If there is another issue, kindly mention it here
bms is faulty and should be replaced or repaired
