DELL RRJDX94I - BQ40370 TI V1.10 - do not accept clear chip error

Last Post

RSS

expromedia

(@expromedia)

Trusted Member Customer

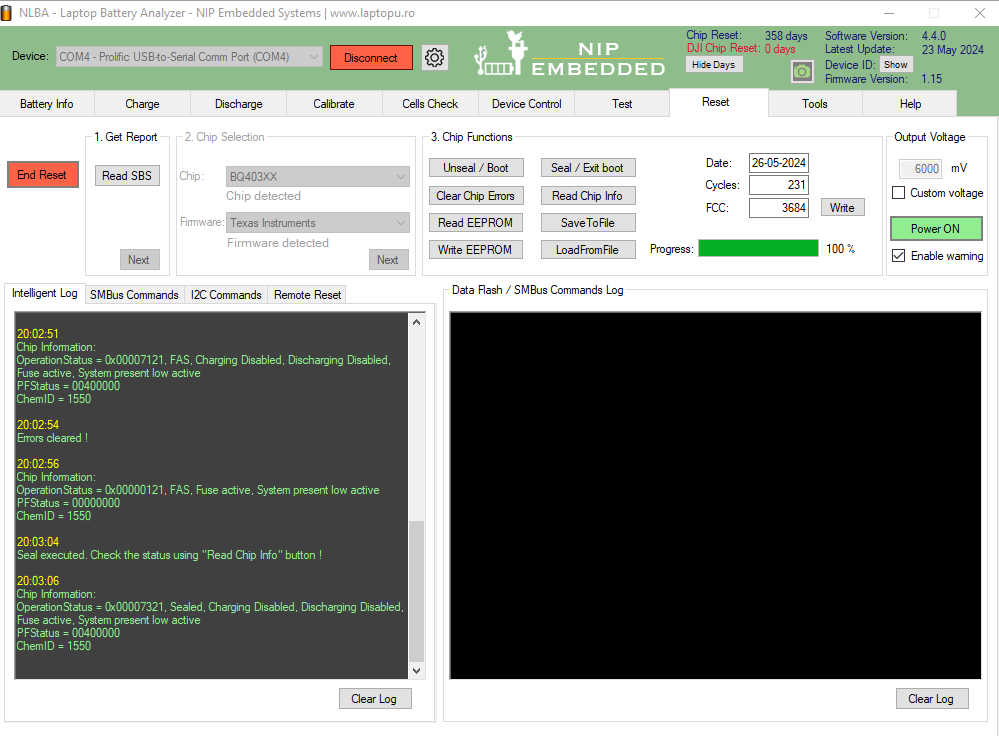

DELL RRJDX94I - BQ40370 TI V1.10 - do not accept clear chip error after unseal

ReplyQuote

Topic starter Posted : 26/05/2024 5:10 pm

torture

(@torture)

Member Moderator

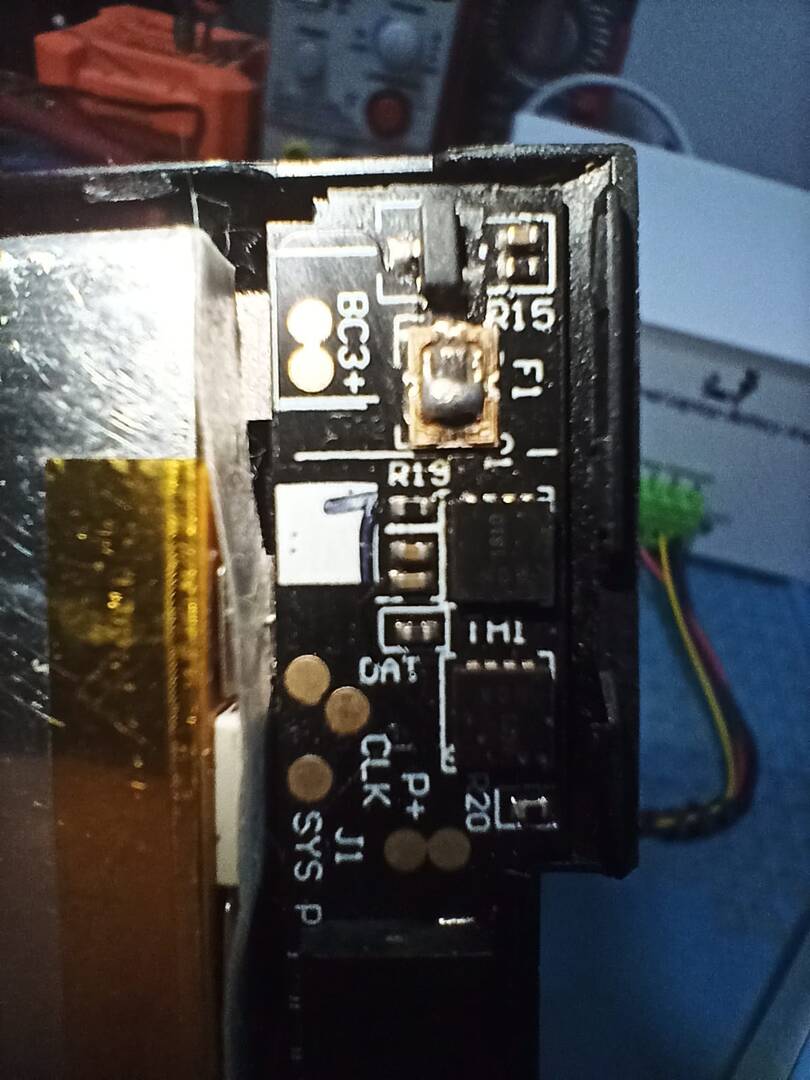

Post a good quality close up photo of the fuse.

ReplyQuote

Posted : 26/05/2024 5:33 pm

expromedia

(@expromedia)

Trusted Member Customer

ReplyQuote

Topic starter Posted : 26/05/2024 5:44 pm

torture

(@torture)

Member Moderator

It was explained many times on the forum how to properly restore this type os fuse and there is also detailed tutorial.

You have probably bridged the gap between the control pin and the power pins causing damage to the fuse control mosfet.

ReplyQuote

Posted : 26/05/2024 7:42 pm
