[Solved] Dell RU006 6Cell Battery with BQ8030 after new cells added charging current not edited

    Last Post
  RSS
Habib Ullah
 Habib Ullah
(@sajid)
Reputable Member Customer

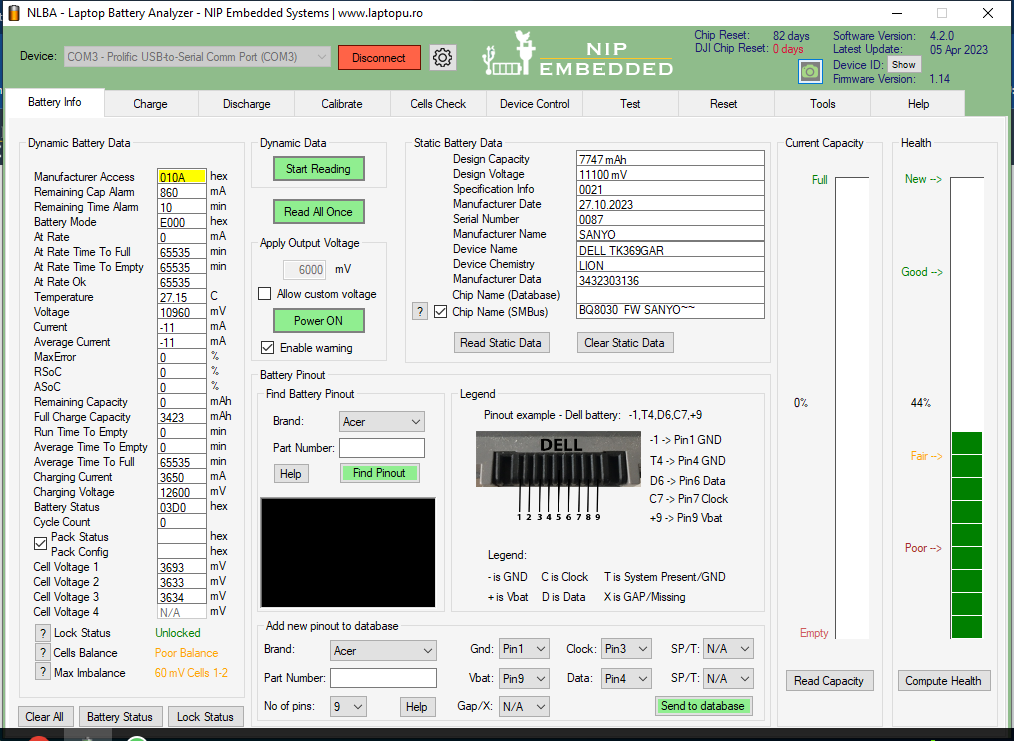

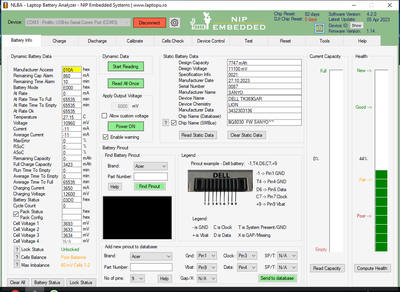

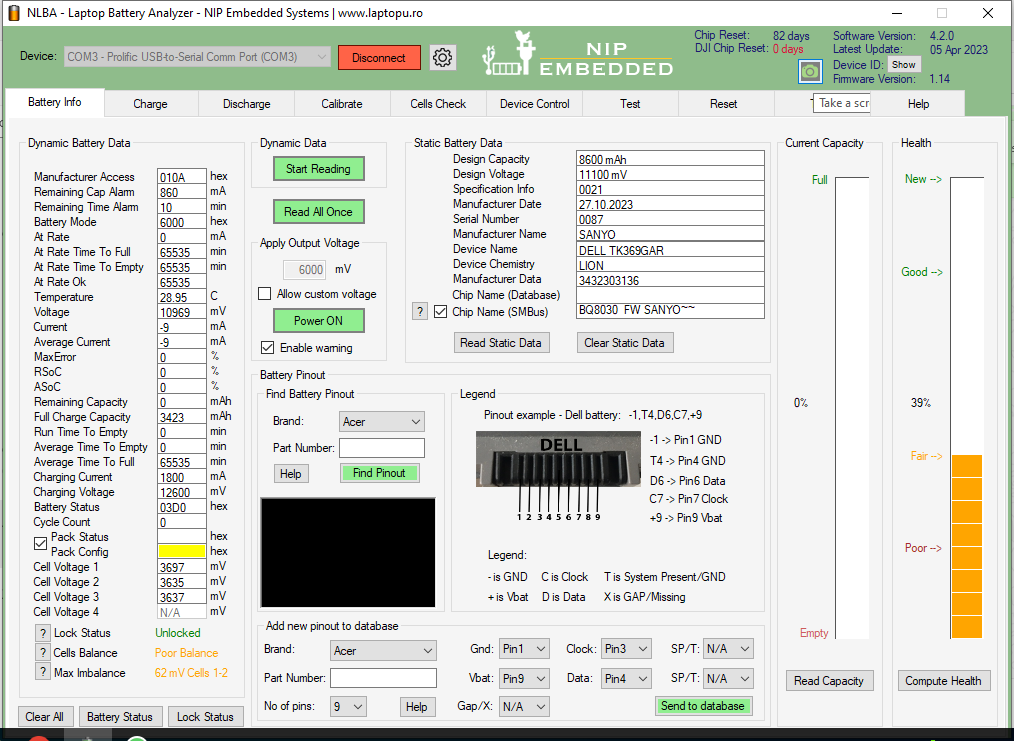

@torture I have tried with hex editor to change the charging current 3650mA to 2400mA for 6Cells having pack capacity 3400mAh but it shows 0mA after updating .eep kindly guide me how to change the current?

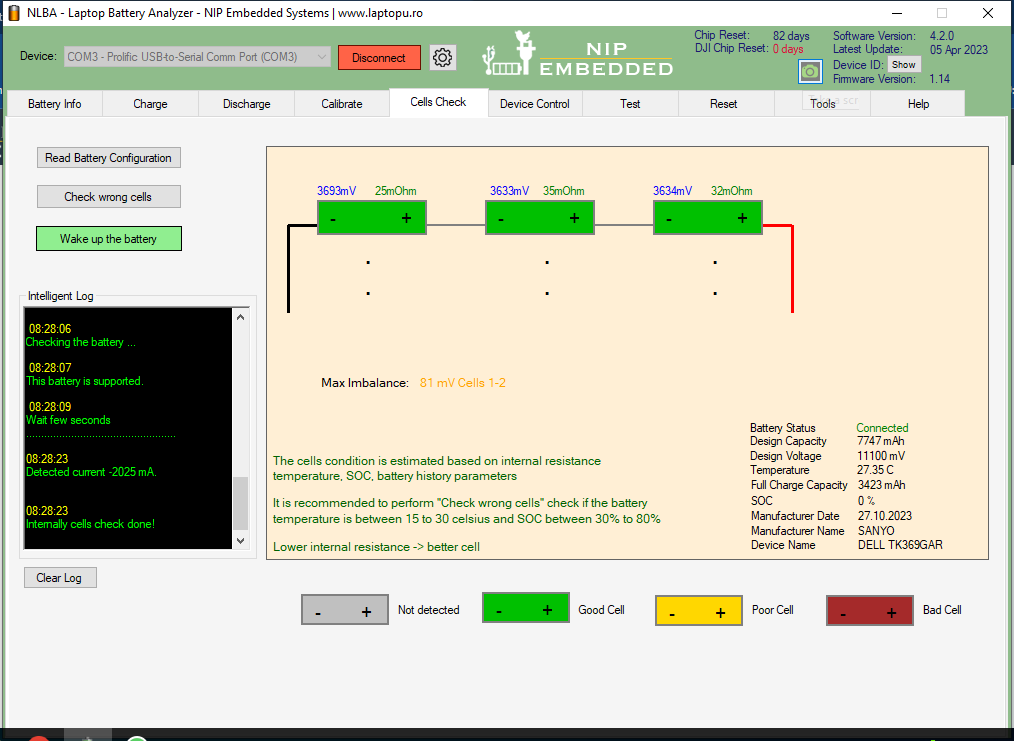

Note: Cell will be balanced with external supply after correct current file

RU006.eep
ReplyQuote
Topic starter Posted : 27/10/2023 3:30 am
torture
 torture
(@torture)
Member Moderator
Posted by: @sajid

I have tried with hex editor to change the charging current 3650mA to 2400mA

Value is protected by a checksum which must also be computed so it's not that simple.

I will check the dump when i have time.

ReplyQuote
Posted : 27/10/2023 6:07 am
Habib Ullah
 Habib Ullah
(@sajid)
Reputable Member Customer

@torture thank you




ReplyQuote
Topic starter Posted : 27/10/2023 7:49 am
