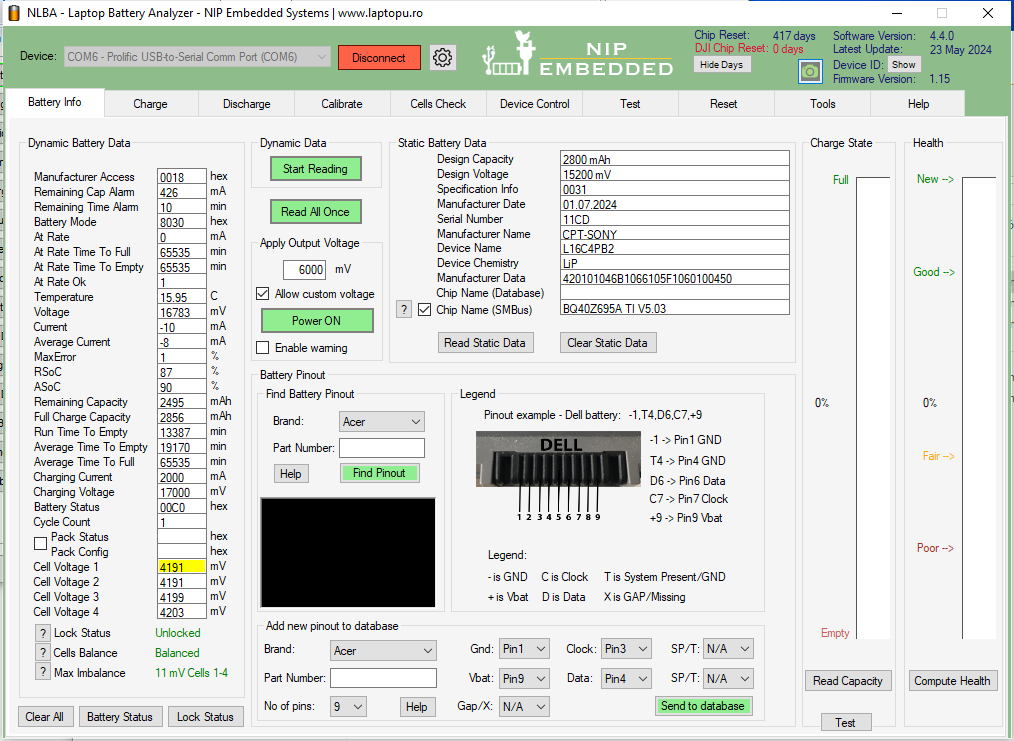

I have recelled, unlocked with NLBA and reprogrammed with EV2300, but FCC is still under 500mAH
I have tried writing again with NLBA and it changed. So, up to now it is solved
It will drop back below 500mAh on the next grid point.
Send the dump to email to fix it
@djibattworkshop I have another Lenovo L14M2P21 - BQ40Z695A TI V2.02 battery with same issue, shall I open another topic? could be the same problem?
I have recelled,
which kind of cells did you installed, LiPo or LiHv ?..
@djibattworkshop in this case 3,8v 3000mah LiHV (nominal is 3000mah, but real is 2800 or less)
But some parameters in eeprom were changed to use LiPo 4.20v cells while another left for LiHv 4.35v.
@djibattworkshop I do not remember having changed voltages, I only changed FCC, and Cells voltage EOC value but may be I get confused as I am repairing other Lenovo battery with same issue but which has 3.7 cells.
However I am sending you again original Backup eeprom, instead of reprogrammed one.

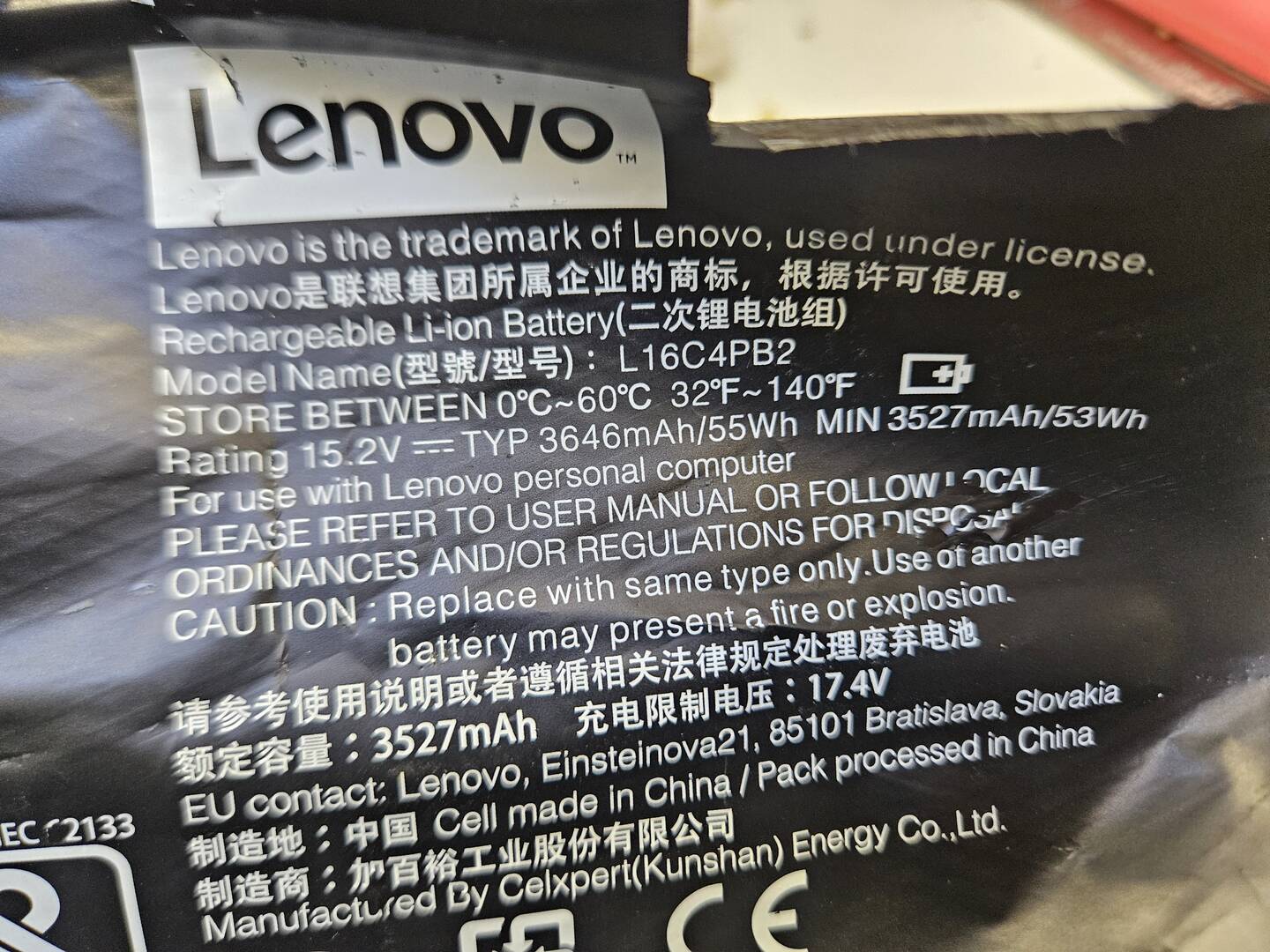

This battery uses originally four 3,8 cells
Now I have changed Update status to 00 and I will perform a calibration process.
