locked for chargering dell TIGAM3C5 with chip name BQ30472 FW V1.01 please help.

    Last Post
  RSS
echemjoshua2050
 echemjoshua2050
(@echemjoshua2050)
Reputable Member Customer

I have equally checked chip by drop lead on top still it refuse to charge. please help thank so much.

ReplyQuote
Topic starter Posted : 27/11/2023 12:17 pm
torture
 torture
(@torture)
Member Moderator

Connect SP pin to ground to enable charge/discharge.

ReplyQuote
Posted : 27/11/2023 12:51 pm
echemjoshua2050
 echemjoshua2050
(@echemjoshua2050)
Reputable Member Customer

Please I have connected system present pin even when I finished reset the battery which make the battery unsealed now but the battery refused to charge. Also I have equally checked the ic

ReplyQuote
Topic starter Posted : 28/11/2023 9:15 am
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

Paste updated BatInfo tab picture with SP pin connected.



ReplyQuote
Posted : 28/11/2023 9:47 am
echemjoshua2050
 echemjoshua2050
(@echemjoshua2050)
Reputable Member Customer
ReplyQuote
Topic starter Posted : 28/11/2023 10:04 am
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

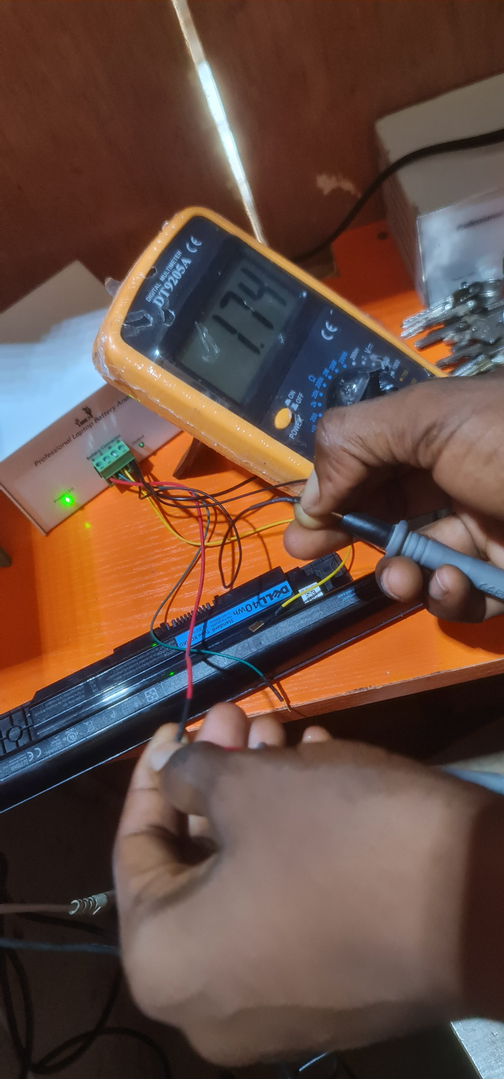

Check SP wire with multimeter.



ReplyQuote
Posted : 28/11/2023 10:11 am
echemjoshua2050
 echemjoshua2050
(@echemjoshua2050)
Reputable Member Customer
ReplyQuote
Topic starter Posted : 28/11/2023 10:28 am
DjiBattWorkshop
 DjiBattWorkshop
(@djibattworkshop)
Member Moderator

no need to check Vbat wire

only SP wire should be checked



ReplyQuote
Posted : 28/11/2023 11:19 am
