Medical battery- how to change FCC of Bq20z45

Battery works
(@daivid)
Estimable Member Customer

Hello,

I have bout new designed of battery, and the capacity is different. the designed capacity is 3840 but the new battery is 2800.



would you please guide for this topic.



I have also bought EV2300, but I am new on this and need your help.





ReplyQuote
Topic starter Posted : 29/08/2024 7:16 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator
Battery works
(@daivid)
Estimable Member Customer

@djibattworkshop

Thanks it was very powerful link but i have problem.

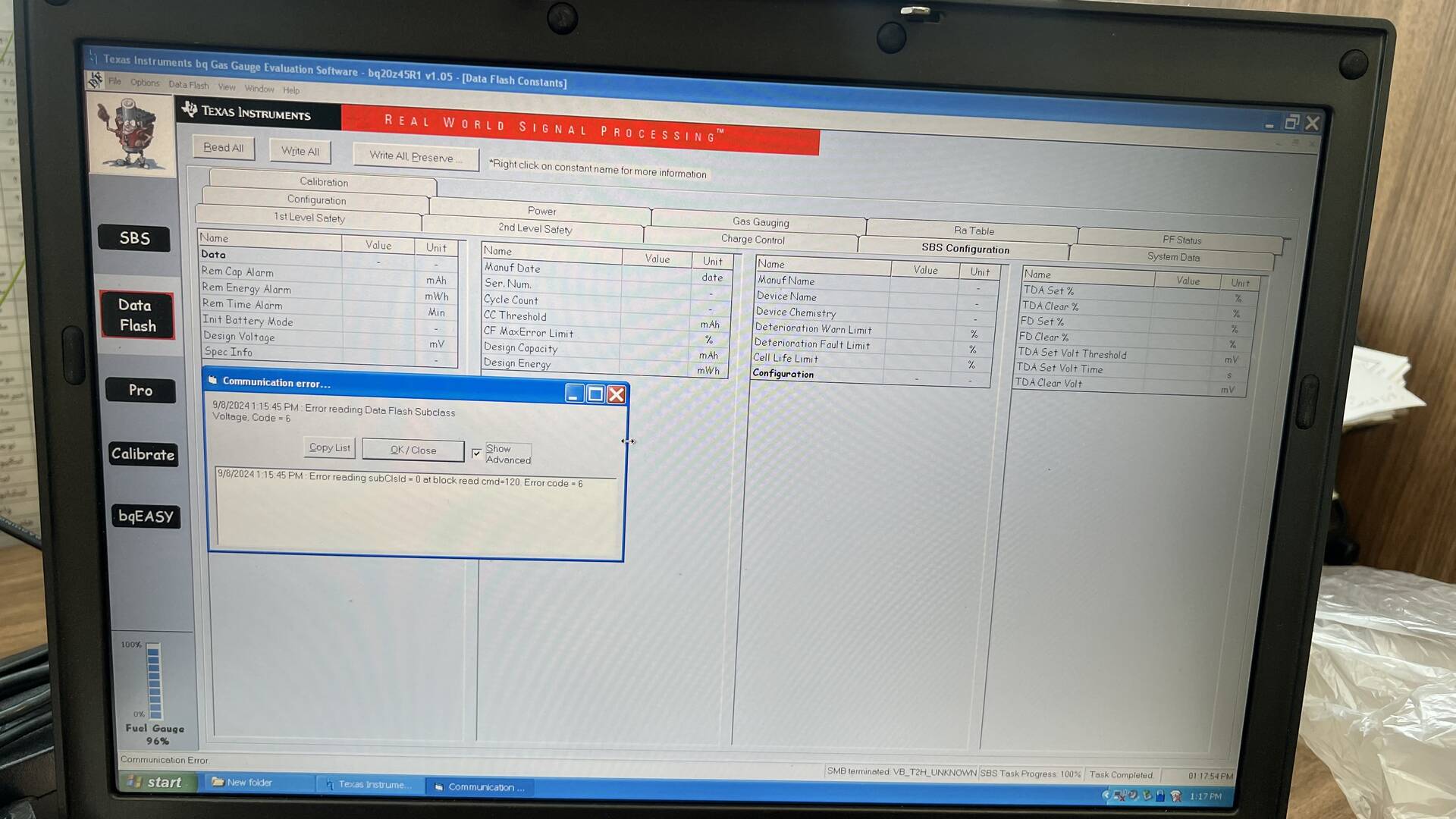

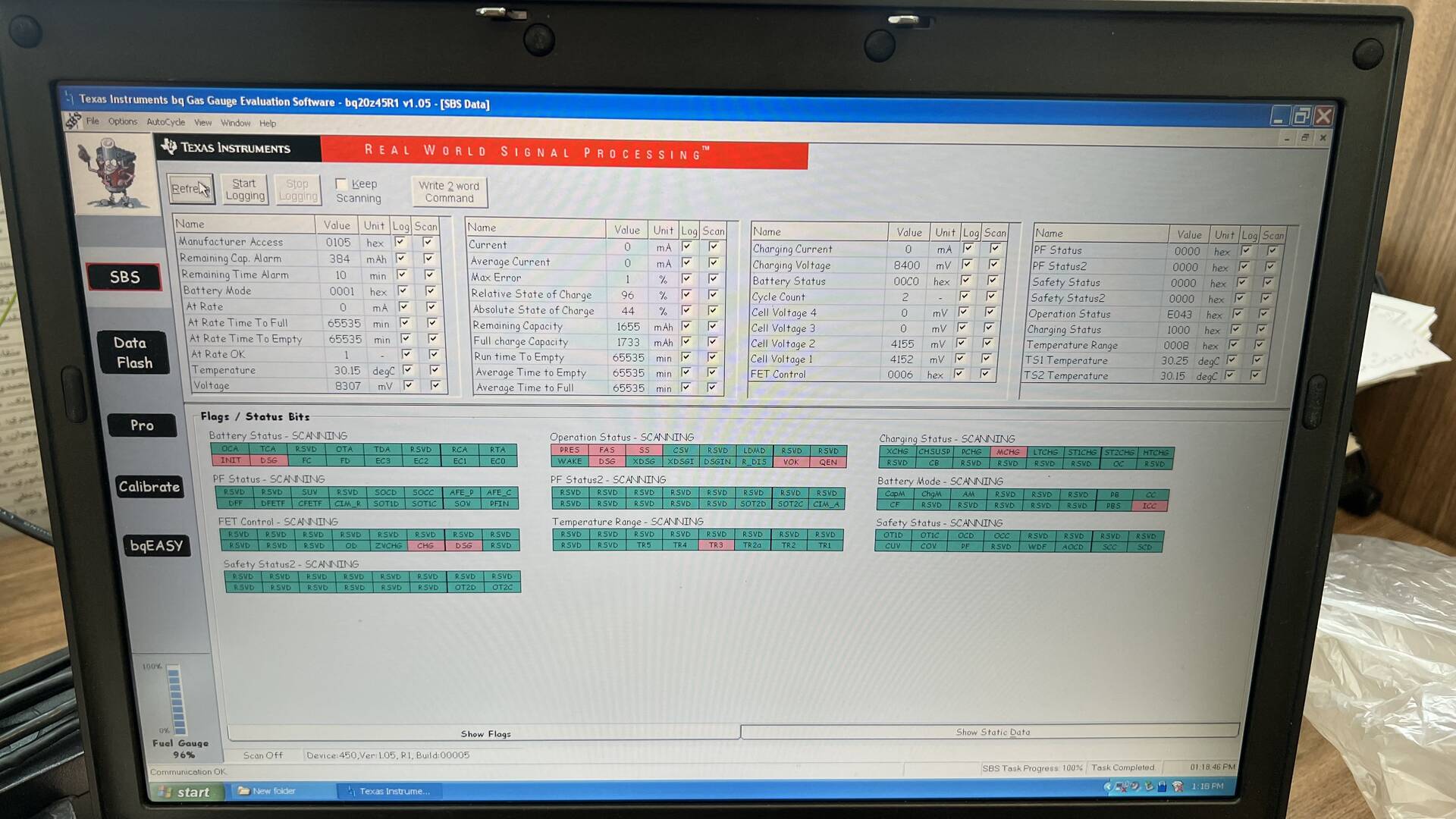

i tried my best, but i have communication problem.



could you check .

IMG 0119
IMG 0120
ReplyQuote
Topic starter Posted : 08/09/2024 9:53 am
Battery works
(@daivid)
Estimable Member Customer

@djibattworkshop

problem solved, I forgot to leave the battery after unsealing

ReplyQuote
Topic starter Posted : 08/09/2024 12:26 pm
Battery works
(@daivid)
Estimable Member Customer

@djibattworkshop

Dear I have a question before selecting Chemistry ID,



previous Chemistry ID which belongs to defected battery is 1178, new battery which I have selected is near to previous battery, but I can't find this ID on the list of BQ Evaluation.



can you help me in this way

ReplyQuote
Topic starter Posted : 12/09/2024 10:52 am
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

 If cells chemistry is very similar to previous it could be left unchanged. According to TI appnotes accepted difference is 3%.

 But if you still want change it update chemistry plugin to latest version.

ReplyQuote
Posted : 12/09/2024 11:10 am
Battery works
(@daivid)
Estimable Member Customer

@djibattworkshop

how can i have last chemistry ID ?



ReplyQuote
Topic starter Posted : 12/09/2024 11:49 am
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

 From TI portal

https://www.ti.com/tool/GASGAUGECHEM-SW#overview



ReplyQuote
Posted : 12/09/2024 12:15 pm
Battery works
(@daivid)
Estimable Member Customer

@djibattworkshop

thanks for your kind reply, meanwhile I have no account and no access



is that possible for you to load that file here, then i can download it from here

ReplyQuote
Topic starter Posted : 12/09/2024 12:42 pm
DjiBattWorkshop
(@djibattworkshop)
Member Moderator

 me dont have latest updater. TI banned my account because it uses gmail. The only allowed accounts are from EDU, GOV and business domains.

ReplyQuote
Posted : 12/09/2024 2:45 pm
