Hi. new philips battery.

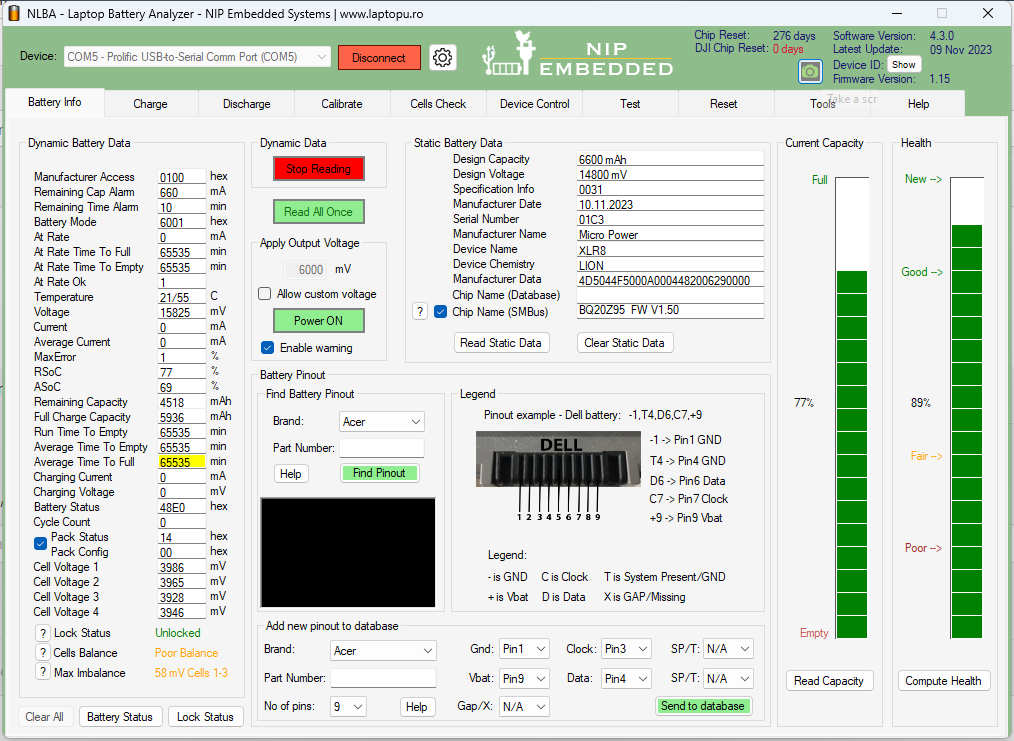

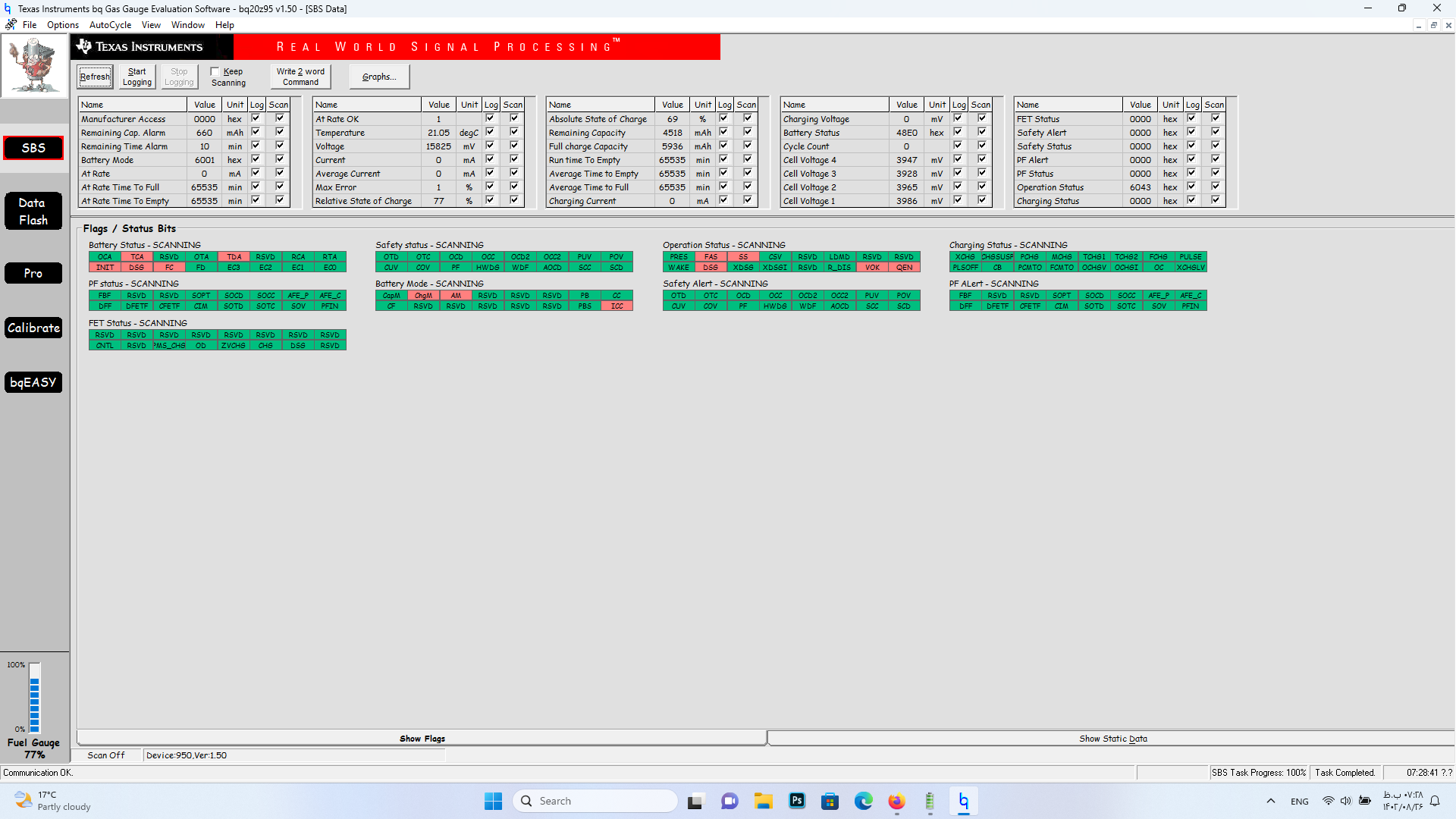

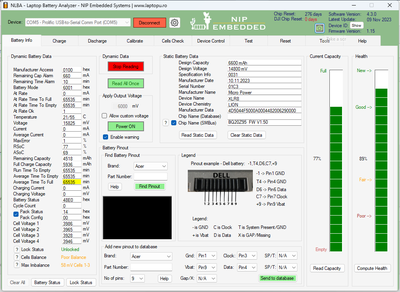

this is the bat info + sbs info.
How can I fix it?
14.8v - 6.6Ah - LiOn
You have not specified the battery model. It should be in your topic title.
How can I fix it?
Connect sp pin to ground.
battery model
Philips bq20z95- it is for a medical defibrillator
Connect sp pin to ground
it is connected but the output led is off. pf is 0
I have tried every combination for sp pin . none turned the output led on.
it is connected

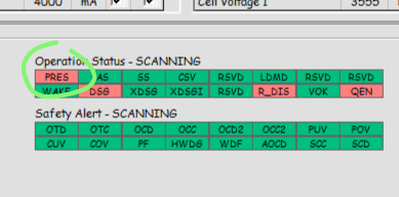

It's not. When you you connect it PRES bit will be active, now it's not.
none turned the output led on
Output LED can be off for another reason. First find SP pin.
PRES bit will be active
great info.
I will check every pin now and refresh it until PRES is active.
Hi again

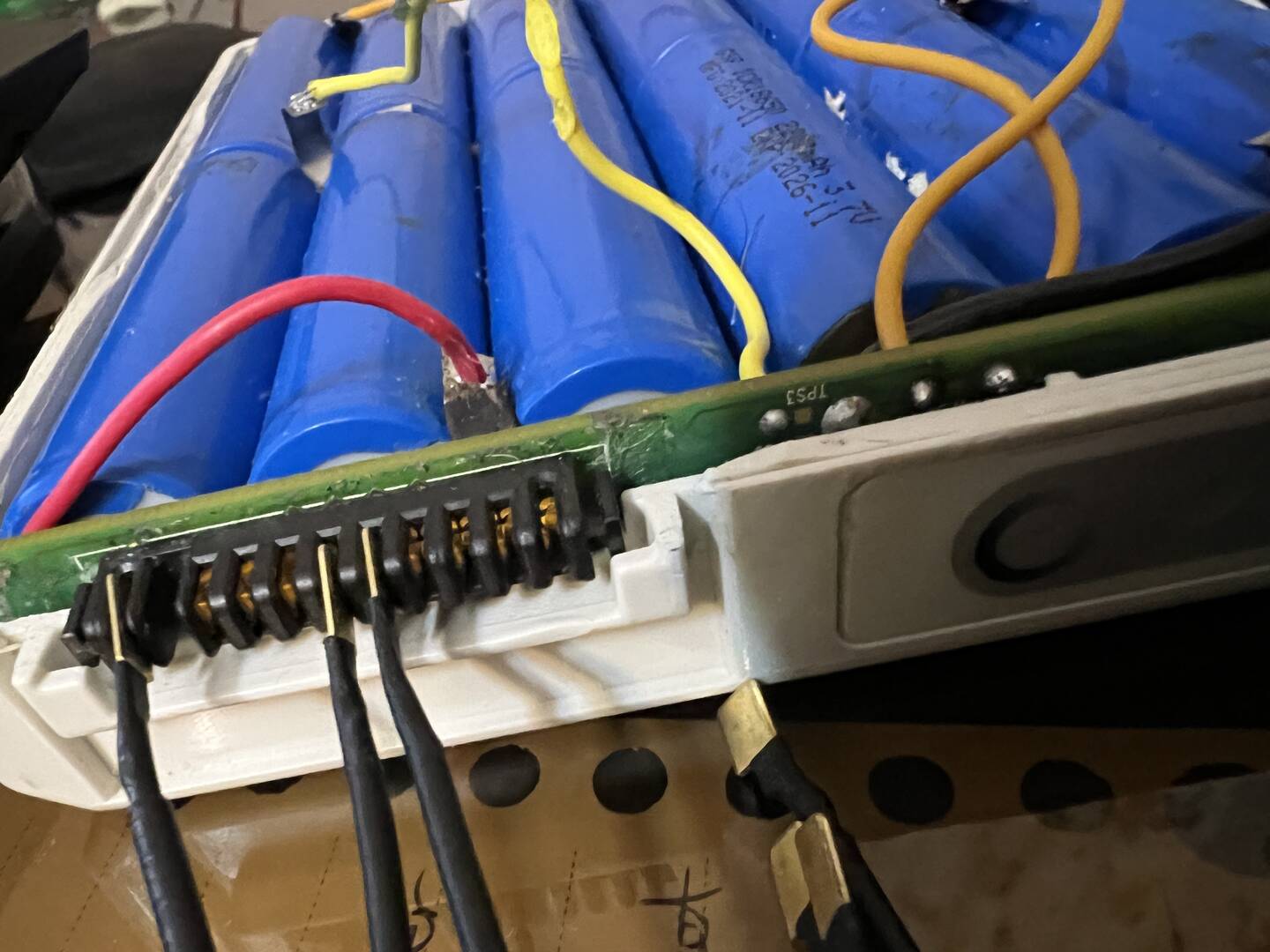

I tried every possible combination with the remaining 7 pins with all 3 black wires connected to nlba1
none turned PRES on
Hi. new philips battery

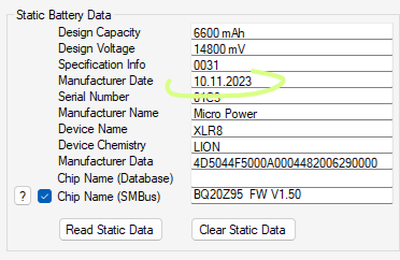

this battery was produced 6 days ago ?..
@djibattworkshop no sir I have already tried resetting the battery and failed.
What was initial Cycle Counter and Production date ?..
before you pressed "write" button
this battery was produced 6 days ago
I said new battery because I have another open topic about Phillips battery . I said new to point out that it is not the previous one. Thank you
Please return back initial cycle counter and production date. They have nothing to do with charge or discharge issues.
I tried every possible combination with the remaining 7 pins with all 3 black wires connected to nlba1
none turned PRES on
you have another topic with same battery, PRES pin is active there
https://www.laptopu.ro/community/postid/24771/
which pin did you use on those battery in the role of System Present pin ?..
@djibattworkshop I have replaced cells and done this reset. But if you consider it necessary then I will do as you say.
