I have replaced cells and done this reset
You did mention it before.
which pin did you use on those battery in the role of System Present pin ?..
???
which pin did you use on those battery in the role of System Present pin ?..
???
You need to find out which pin is System Present pin.

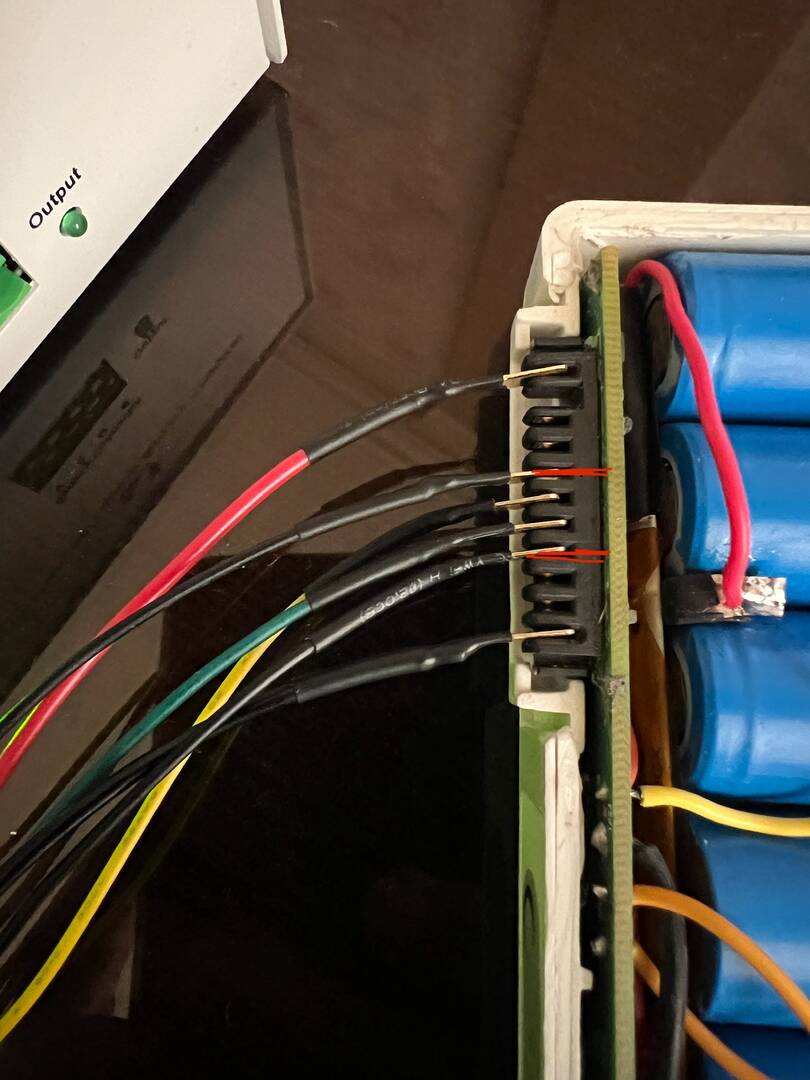

- Disconnect all the wires
- Connect only Gnd, Clock and Data to battery connector
- take picture of wiring
- read battery with bqEVSW
Paste bqEVSW SBS page snapshot and picture of 3 wires connected.
p.s.
It should be done on second battery from other topic !
It should be done on second battery from other topic
I don't have access to that one.
I had to return it to the owner.
Ok. Paste picture of battery label and pcb from both sides.
