If you jumpered control pin even for a second, FUSE_CONTROL_MOSFET is damaged immediately and chip could not be unlocked.

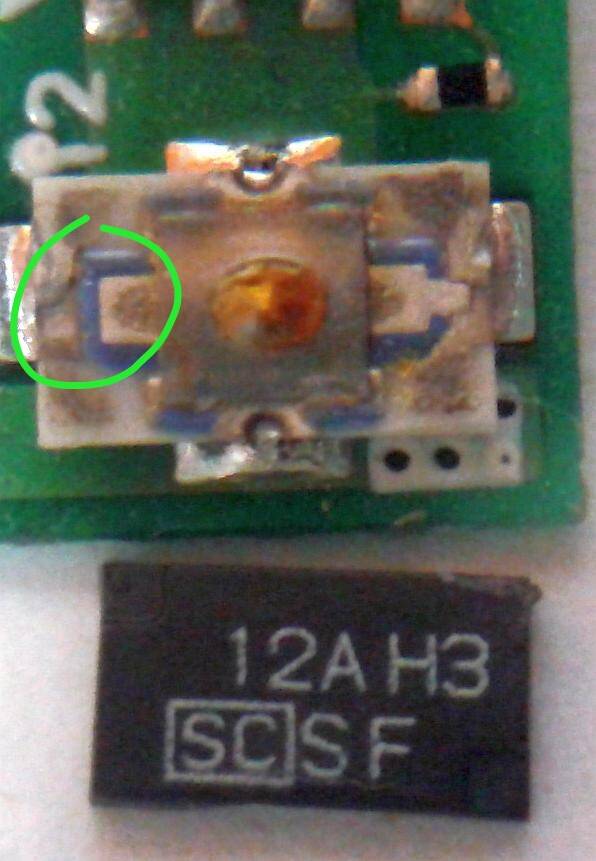

Air gap shown on the picture in green circle should never be bridged with a jumpers or solder drops. Otherwise pcb or chip could be damaged.
Posted : 17/01/2024 6:54 pm
