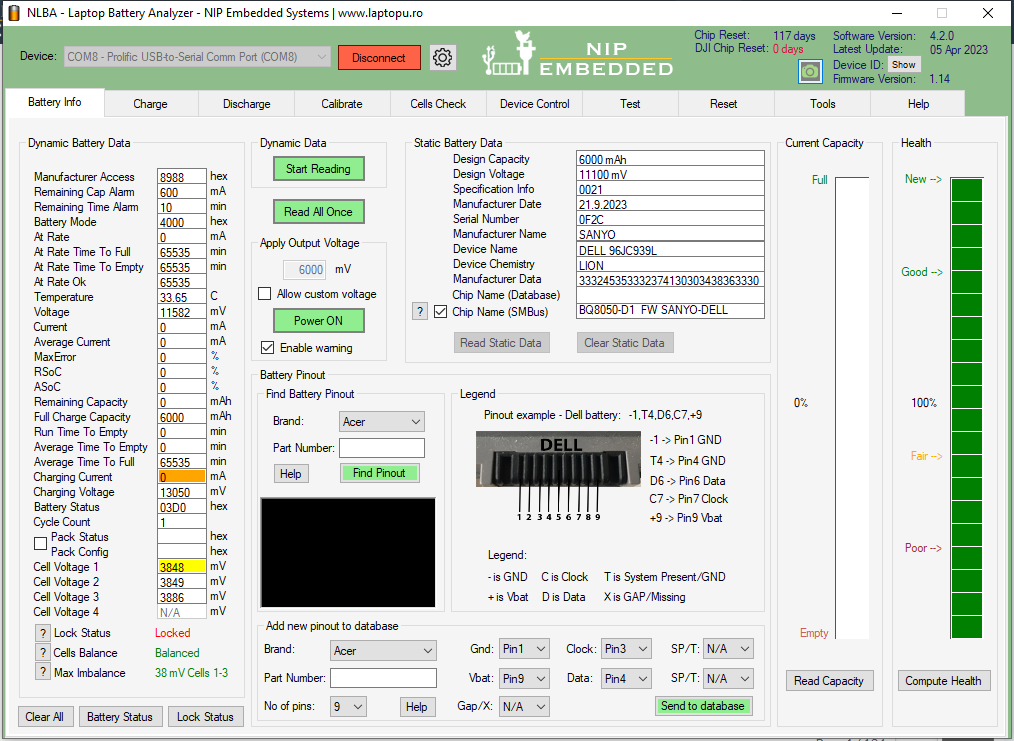

New Cells replaced with old cells now I want to change the charging current in the following dump file. @torture @djibattworkshop kindly help me in this problem.

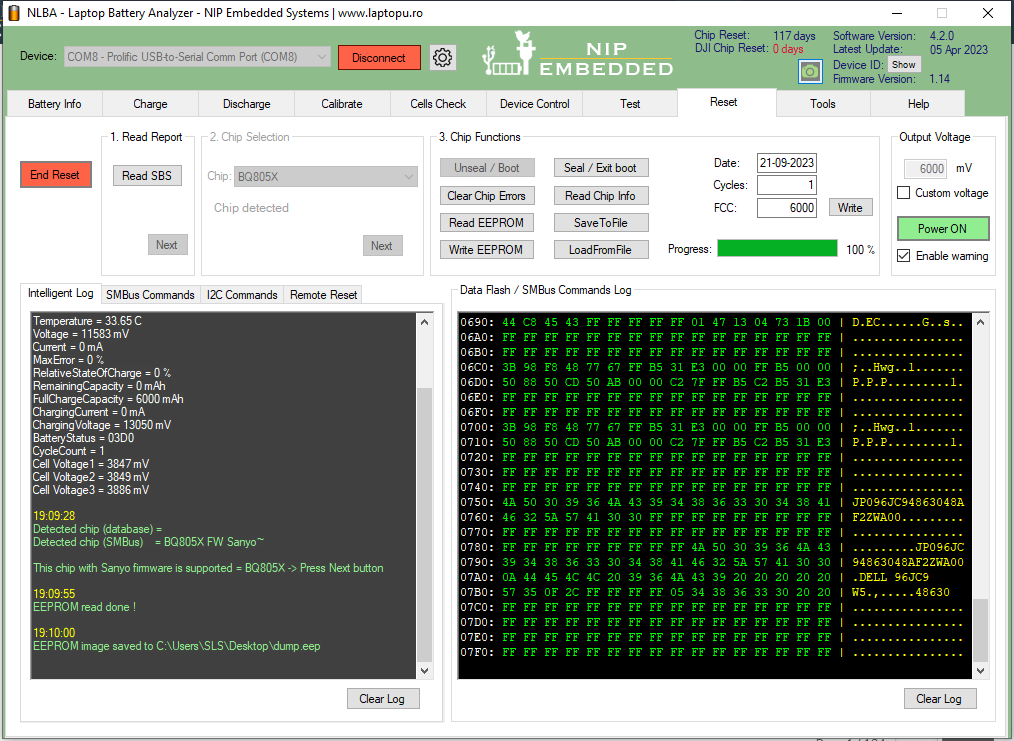

Chip is locked, thats why Charging Current is zero. First of all check and recover the fuse. Then press Clear Chip Errors button to unlock the chip.
@djibattworkshop I did many time after succesfull message chip still locked fuse is also well soldered and checked by multimeter

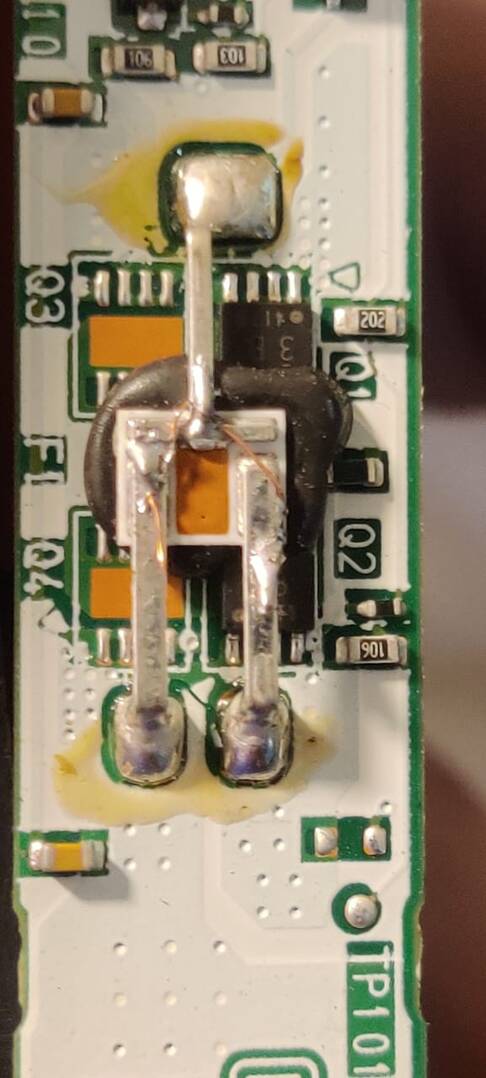

Paste picture of the fuse.
It was discussed in tutorial to not touch control pin of the fuse. Otherwise fuse control mosfet could be damaged. In this case chip could not be unlocked. Because chip checks fuse control circuit.
Check this tutorial how to recover this type of fuse.
Only power feeder pins should be connected by a jumper. Control pin should never be touched with it.
Feel free to paste updated snapshot.
New Cells replaced
have you installed 4.20 or 4.35 type of cells ?..
Have you checked original cells type before rebuilding the battery ?..

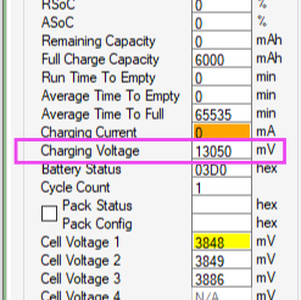

It uses LiHv 4.35v type of cells. Check Charge Voltage parameter.
Standard 4.20v cells will be overcharged beyond safe limits and degrade its capacity fast. Consider installing 4.30 or 4.35v type of cells.
