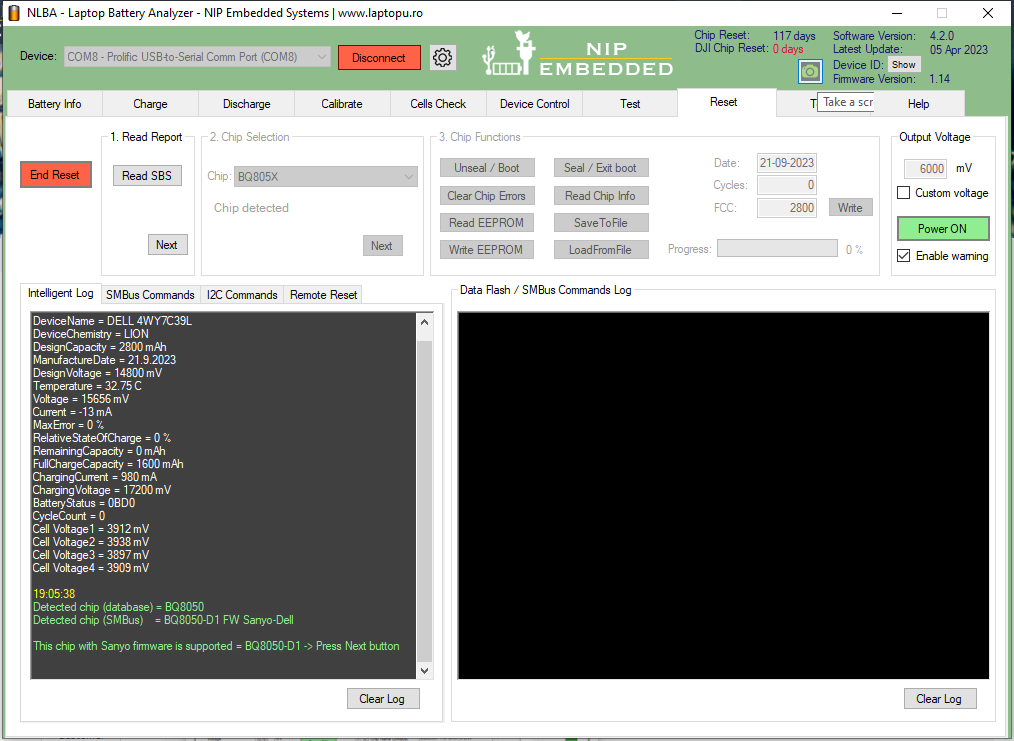

New Cells replaced with old cells now I want to change the charging current in the following dump file. @torture @djibattworkshop kindly help me in this problem.
Is the battery charging?

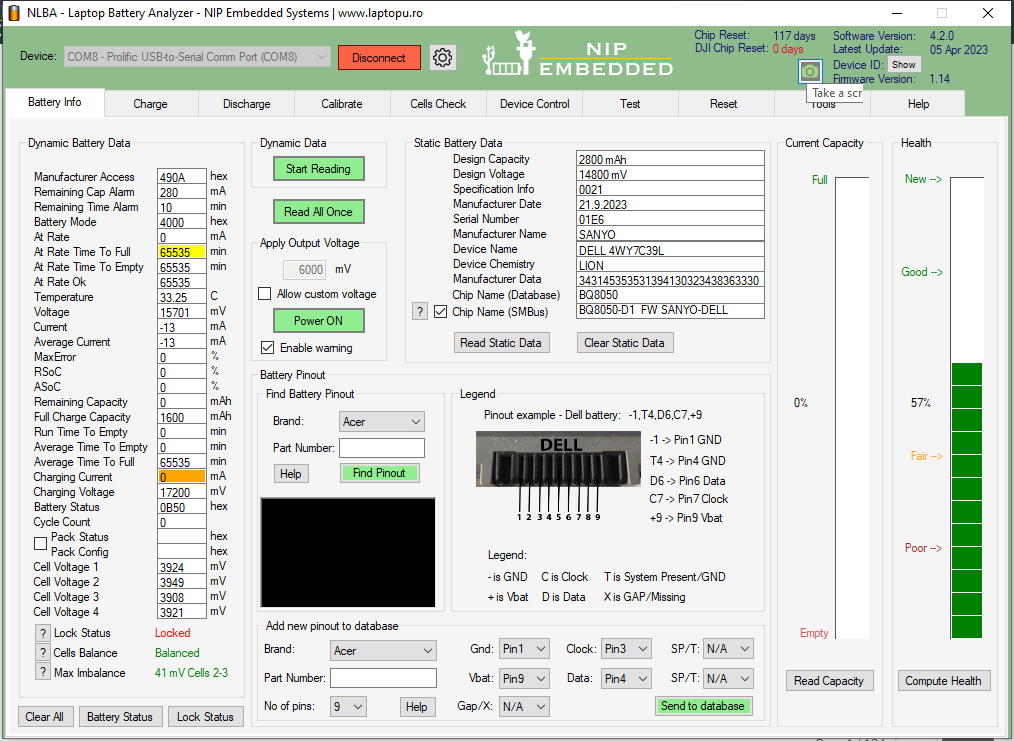

Charging current request is 0 which is not ok.
Go to charge tab start charging wait 30s and post screesnhot.

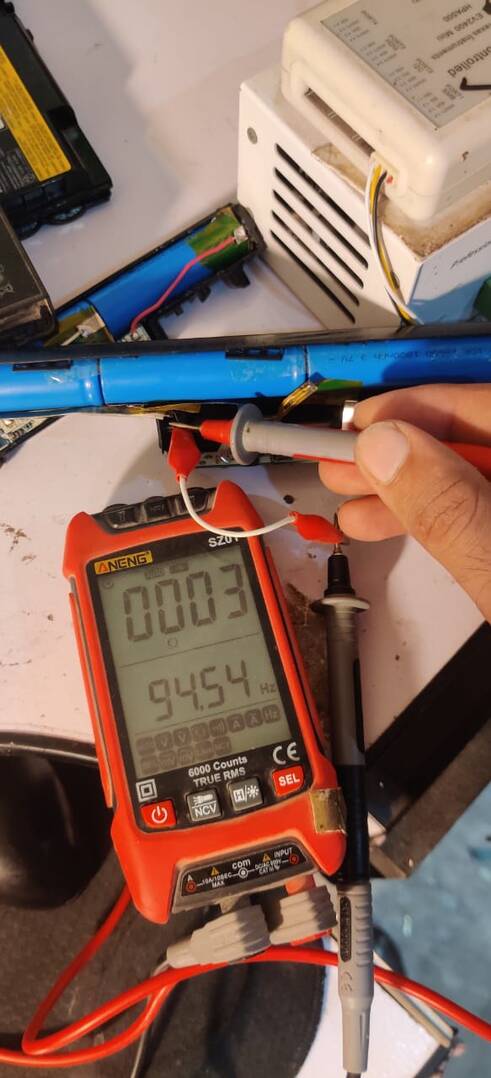

@torture Very sad circuit is looking dead not able to read anything...is there any way to solve this issue?... 1.5v present on data line
it looks like static eeprom was edited and checksum check was not passed. In this case discharge is working but charge is locked.
Check if pcb is warm or cold.

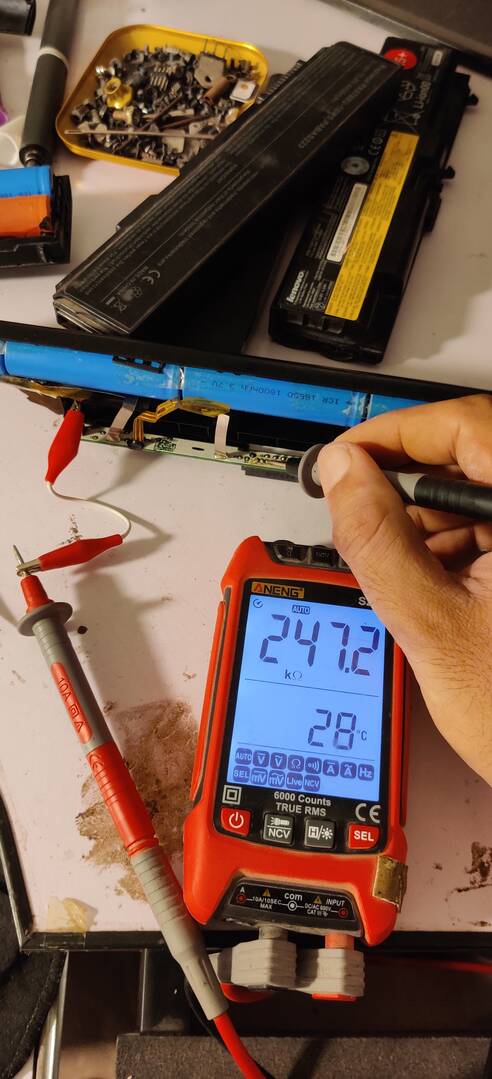

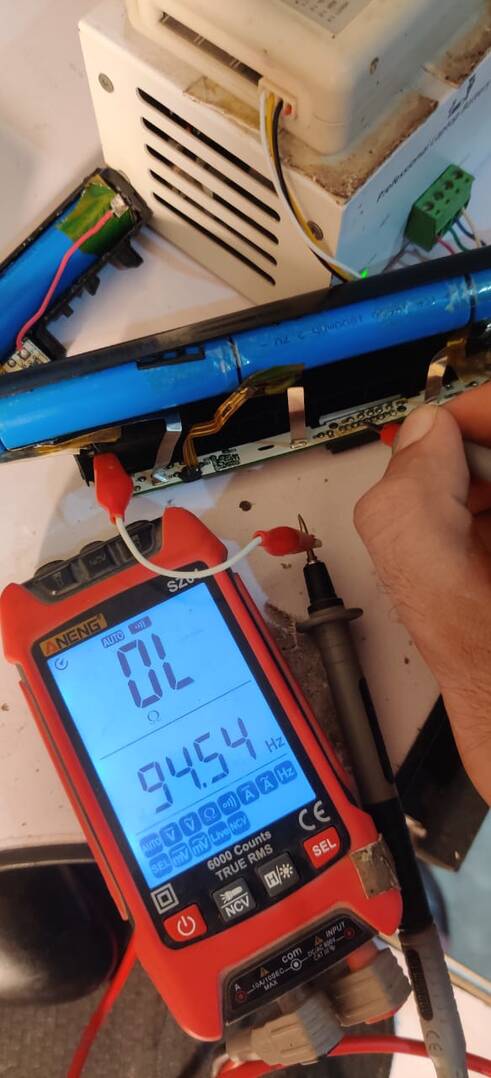

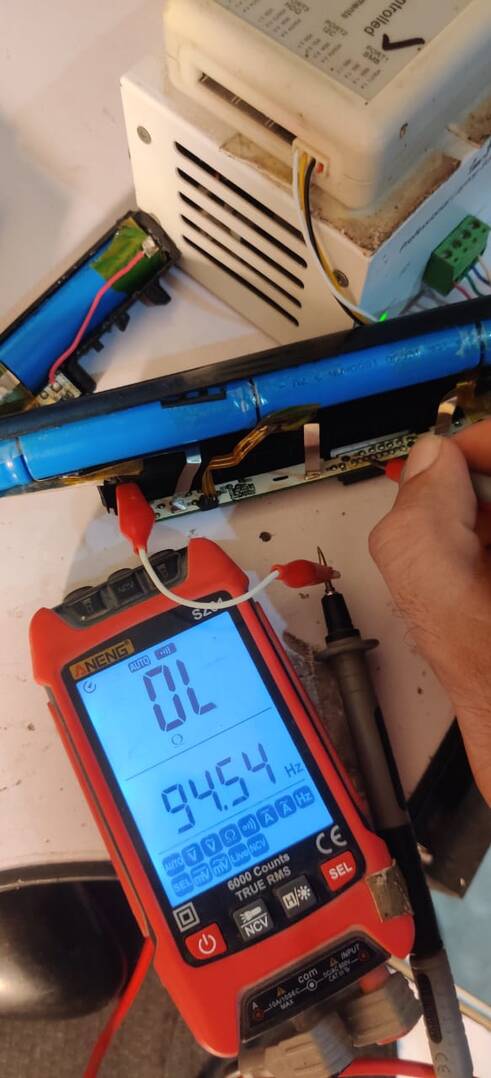

disconnect a battery from Nlba1, and check SCL and SDA pins on battery connector using multimeter on diode check, post direct and reverse values measured.

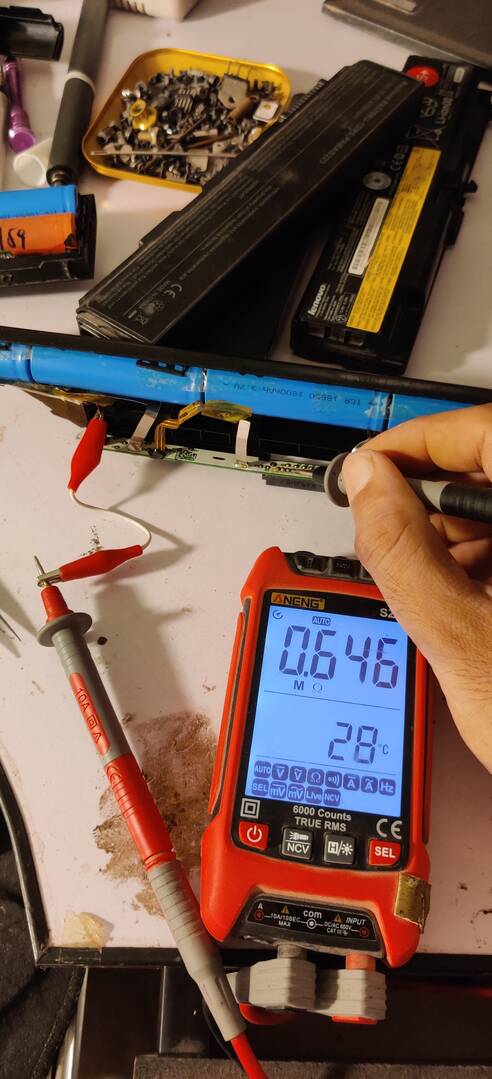

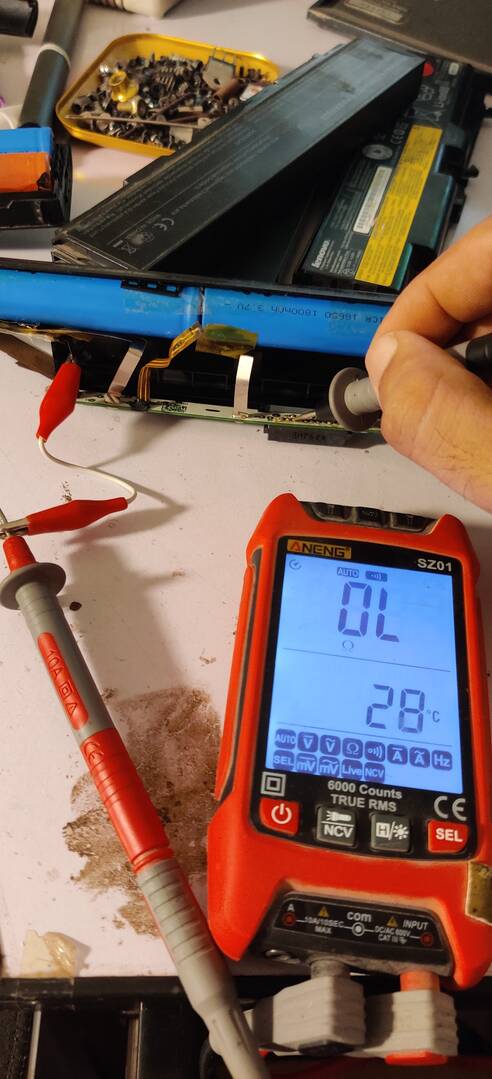

It is direct check. Run a reverse check too with red probe on the ground.
Is it diode check menu ?..

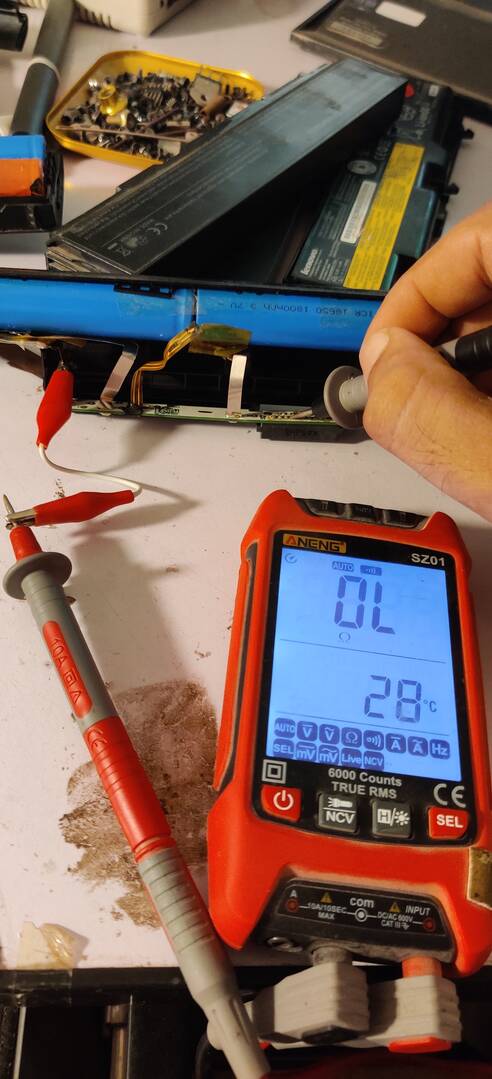

It looks like a resistance meter

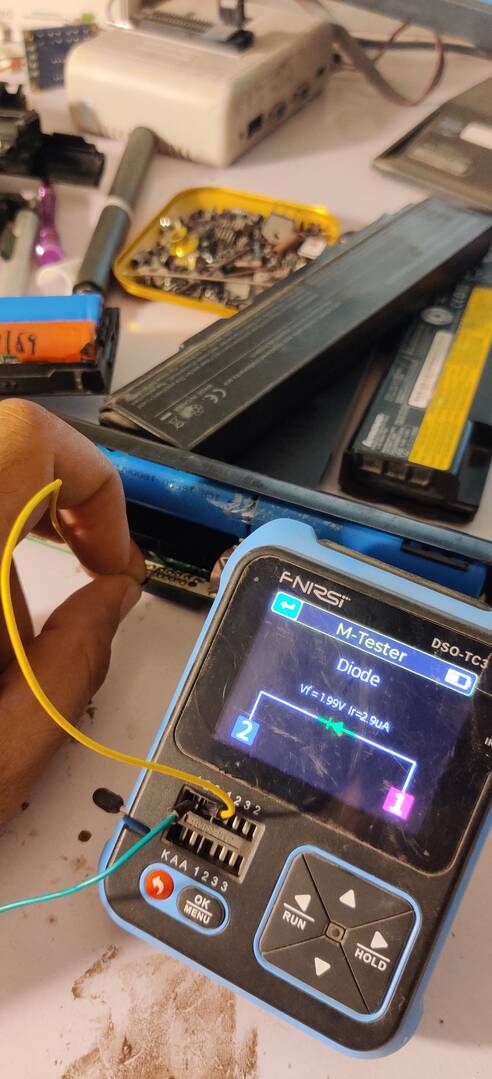

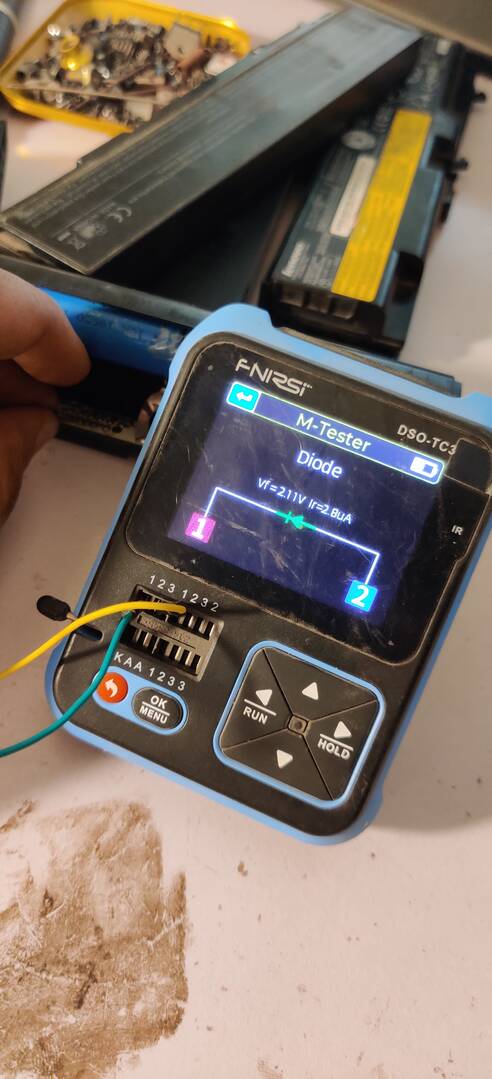

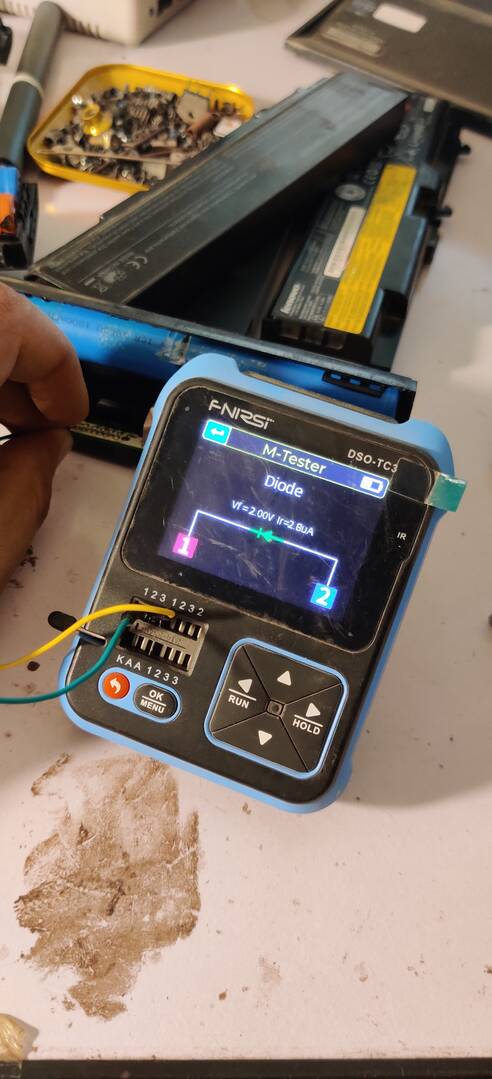

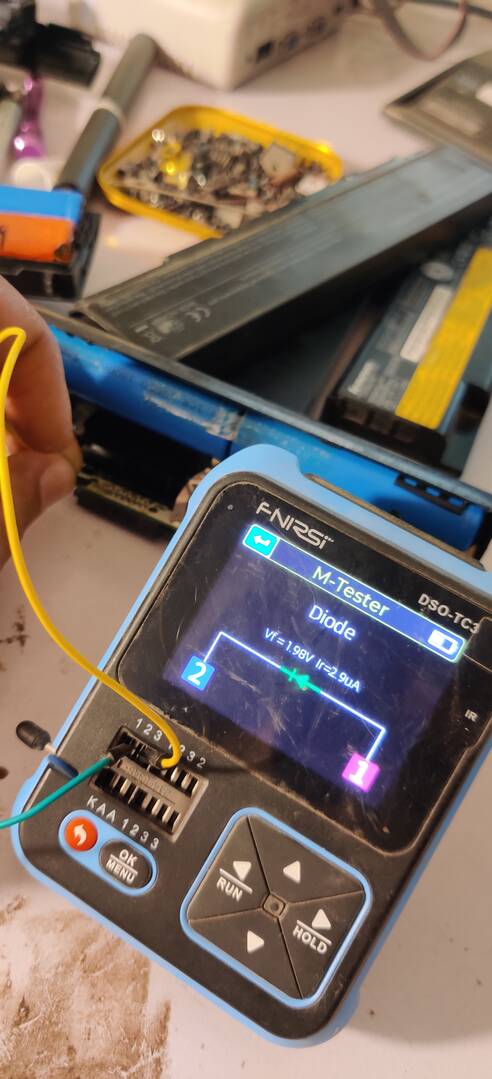

It shows Open Line. Take a working diode and check if tester could measure it correctly in direct and reverse connection.
