I tried looking for the pinout on the NLBA 1 device but i couldn't find any match
PLS I NEED SUPPORT
prueba con esta amigo
-1, C2, D3, SP5, +8
Thanks for the reply i appreciate
but i need with this other thing, pls
do you have any ideal of what this
this thing is, do or what it does cause i have been open and replacing cells but this is the first time am seeing this attached to the cells cause the cells of this battery need to be change and replace with another cells.......
@torture

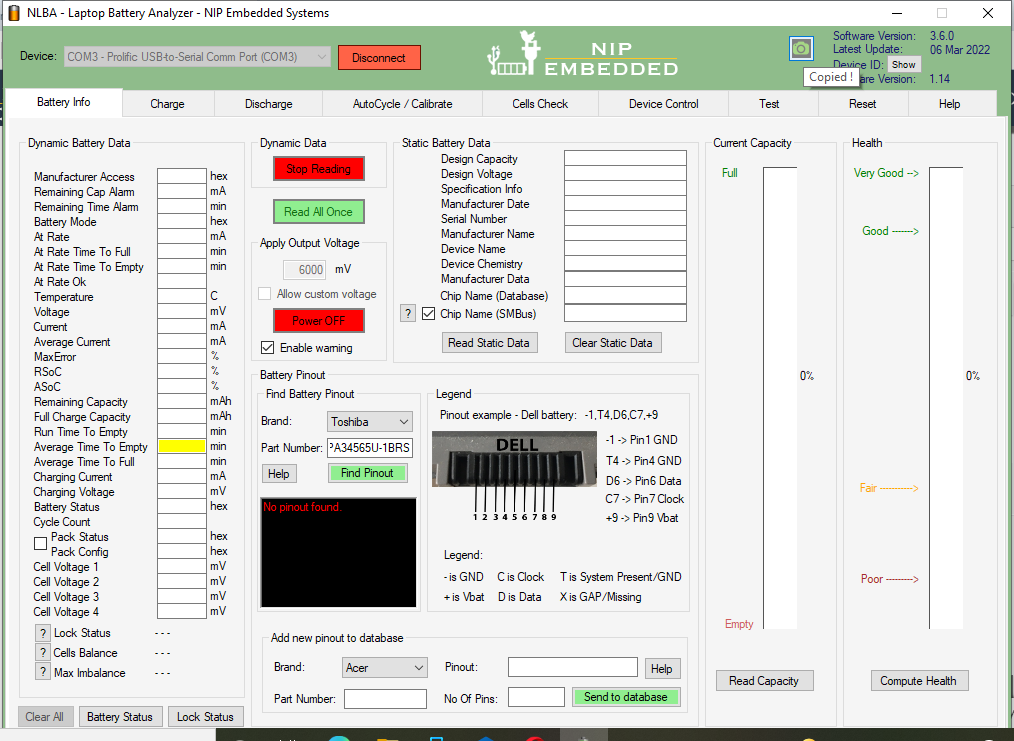

I tired the pinout that you gave here is the results
there is output led but there is no reading,
and i even added the power on
but there is still no data shown

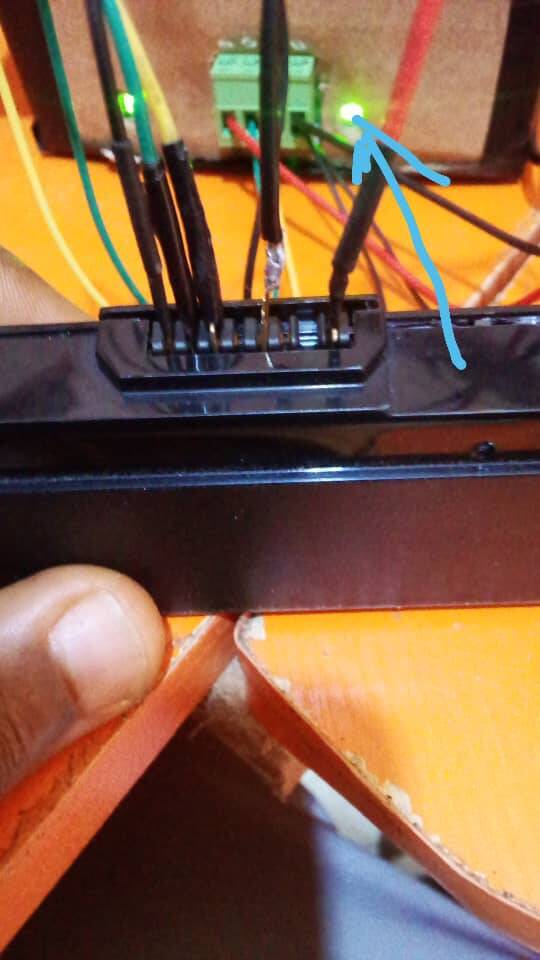

Check if clock & data wires are making proper contact.
YES THERE ARE
This is a thermal protection fuse, but since output LED is on the fuse is working properly.
Since you have opened the battery can you please post pictures on both sides of the PCB so we can identify the chip.
Some of these old Toshiba batteries have only eeprom chip, and if this is the case you will be not able to read any data since there is no SmBus communication.
