Hi, what's wrong with me?
If I set the 6000 volts, the tester tells me I'm getting 6V. But if I change the power to higher, it doesn't work!
The problem is that when I try to add volts to the DJI Spark, Phantom 4, and Mavic 2 batteries, they won't work with 6 volts.
Thank you, and excellent purchase, the NLBA.
Disconnect Vbat wire from the battery and connect another power source with 12 volts to battery Pack- and Pack+ pins to wake up the chip.
Check if battery could be read with this method.

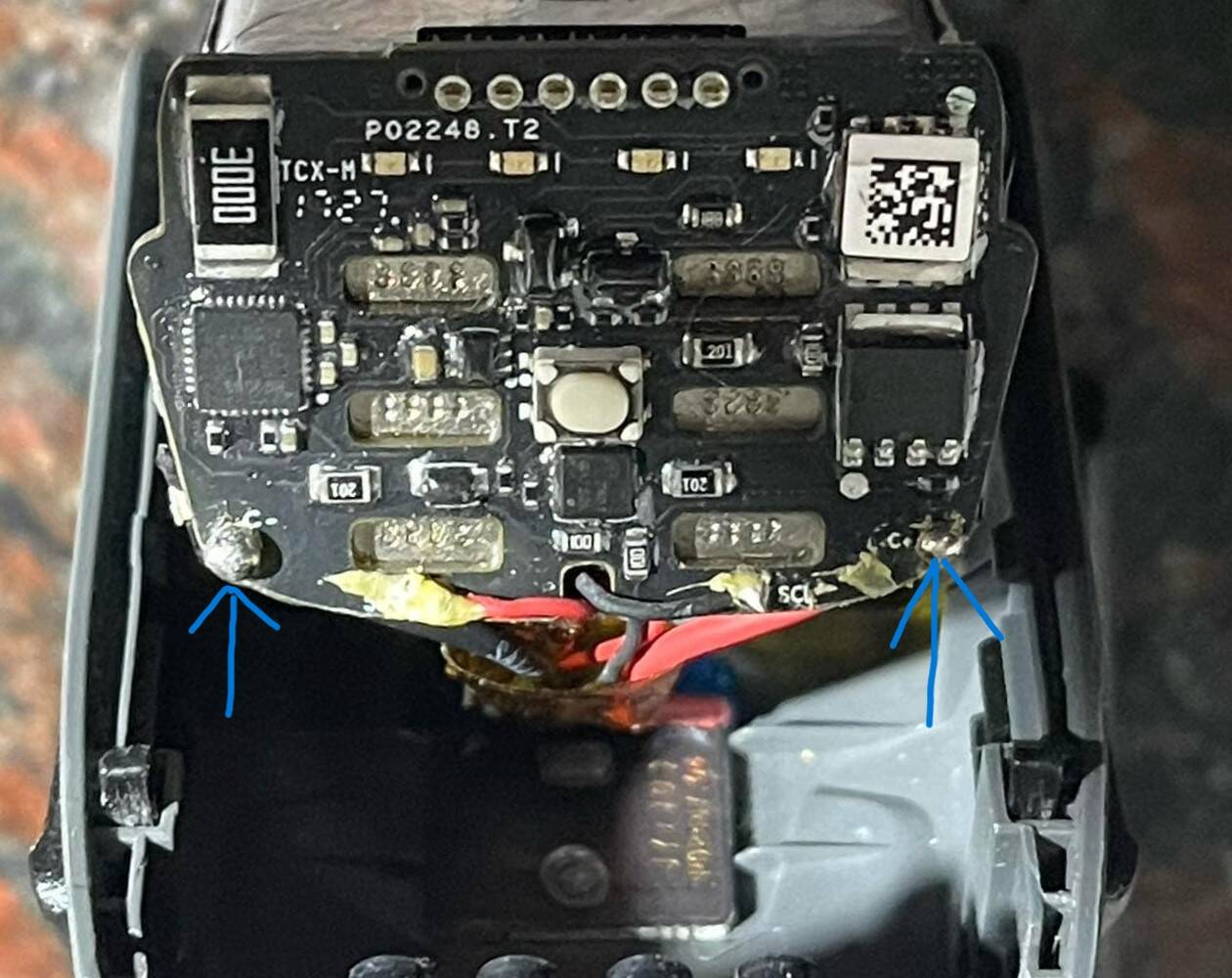

Hi, could I do this with the 12V charger connected where I'm indicating in light blue?
Thanks
No.
Use battery connector to wake up the chip.
Pinout for DJI Spark battery could be found on our forum
