Mavic Air 1 battery info

laarnova
(@laarnova)
Estimable Member Customer

Hi, does anyone know why the battery is unlocked but won't turn on or charge?
Thanks

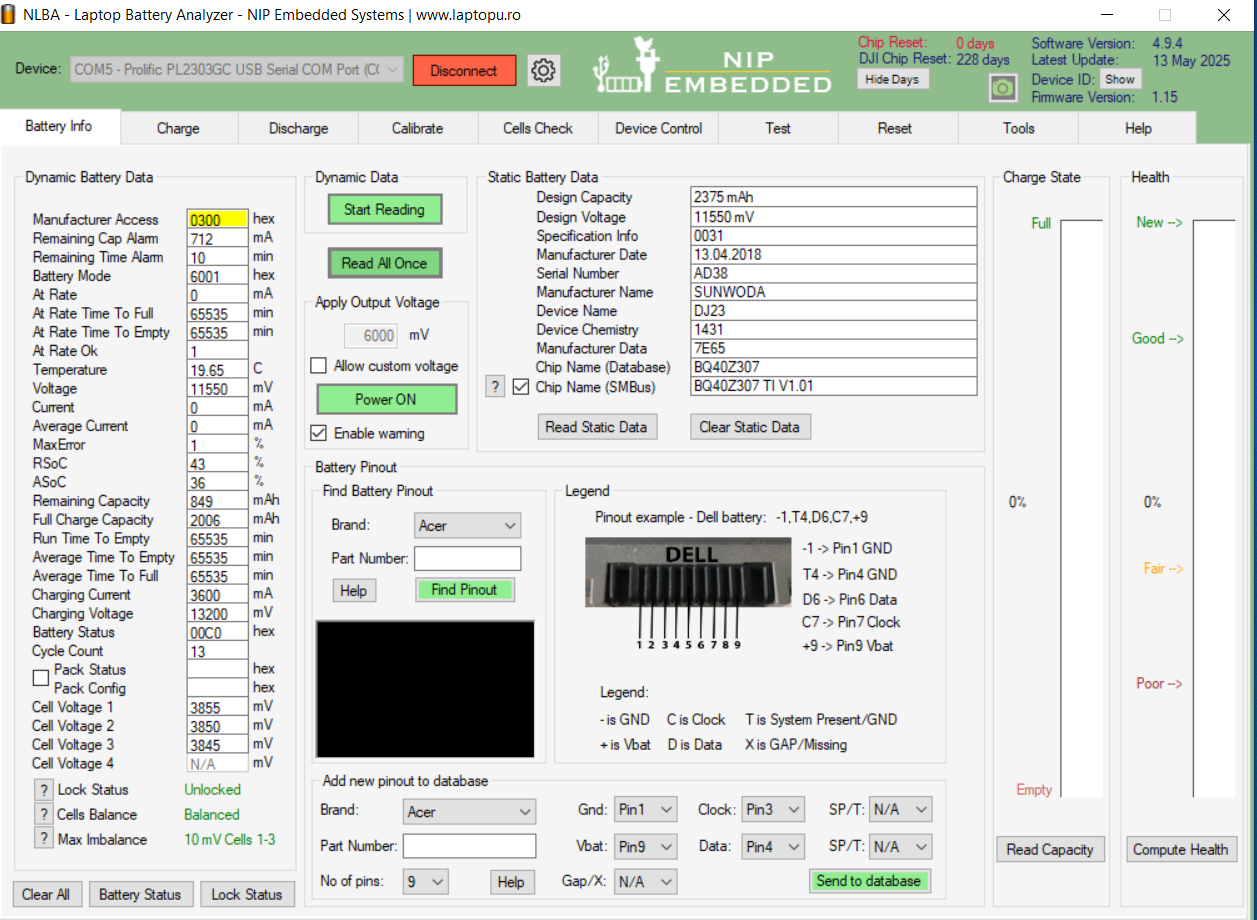

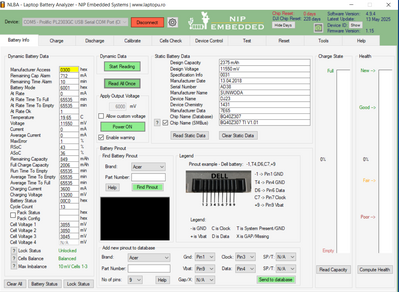

Captura de pantalla (64)

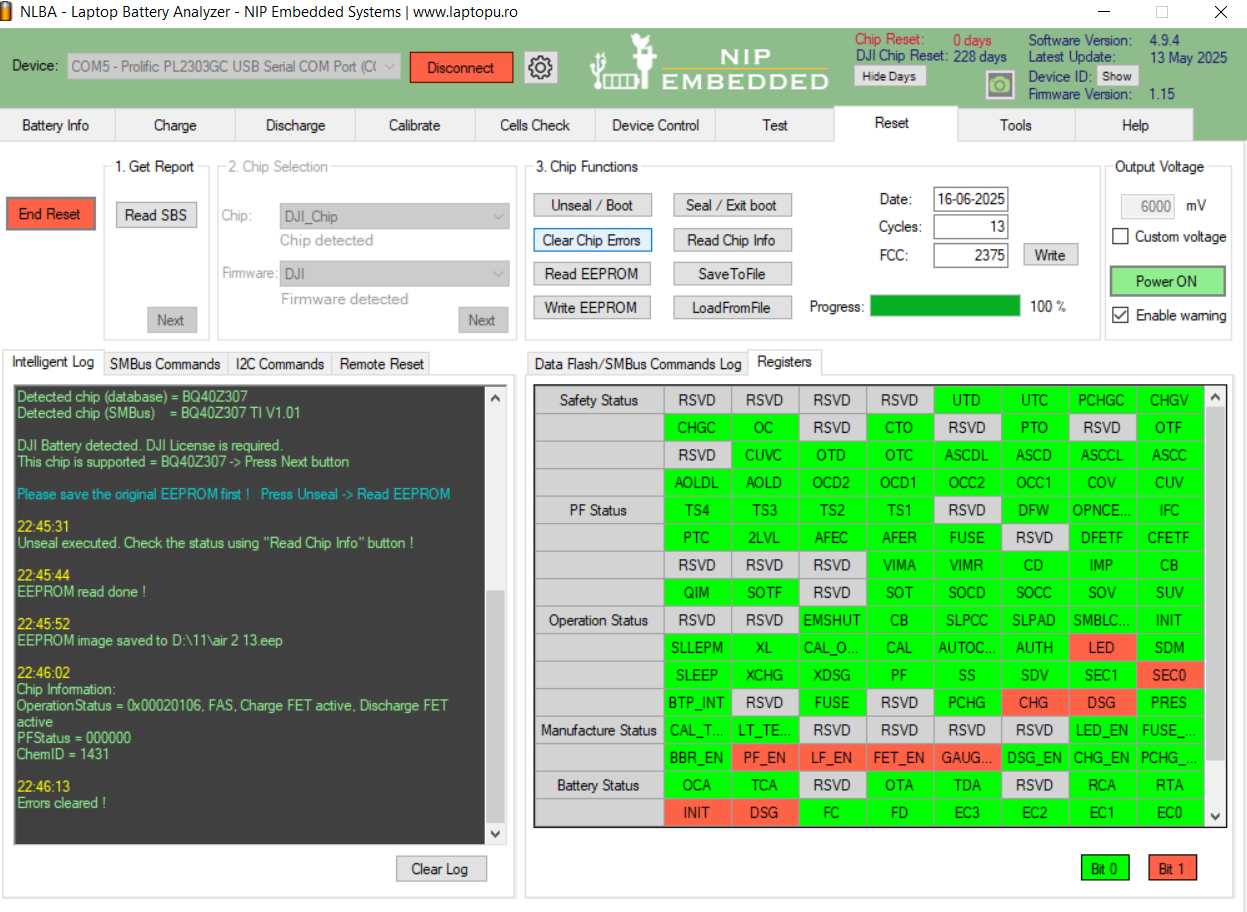

Captura de pantalla (66)



ReplyQuote
Topic starter Posted : 17/06/2025 1:51 am
loliconic
(@loliconic)
Member Moderator

@laarnova

Let the battery charge for one minute in the charge tab, and paste a screenshot here.

ReplyQuote
Posted : 17/06/2025 4:58 am
laarnova
(@laarnova)
Estimable Member Customer

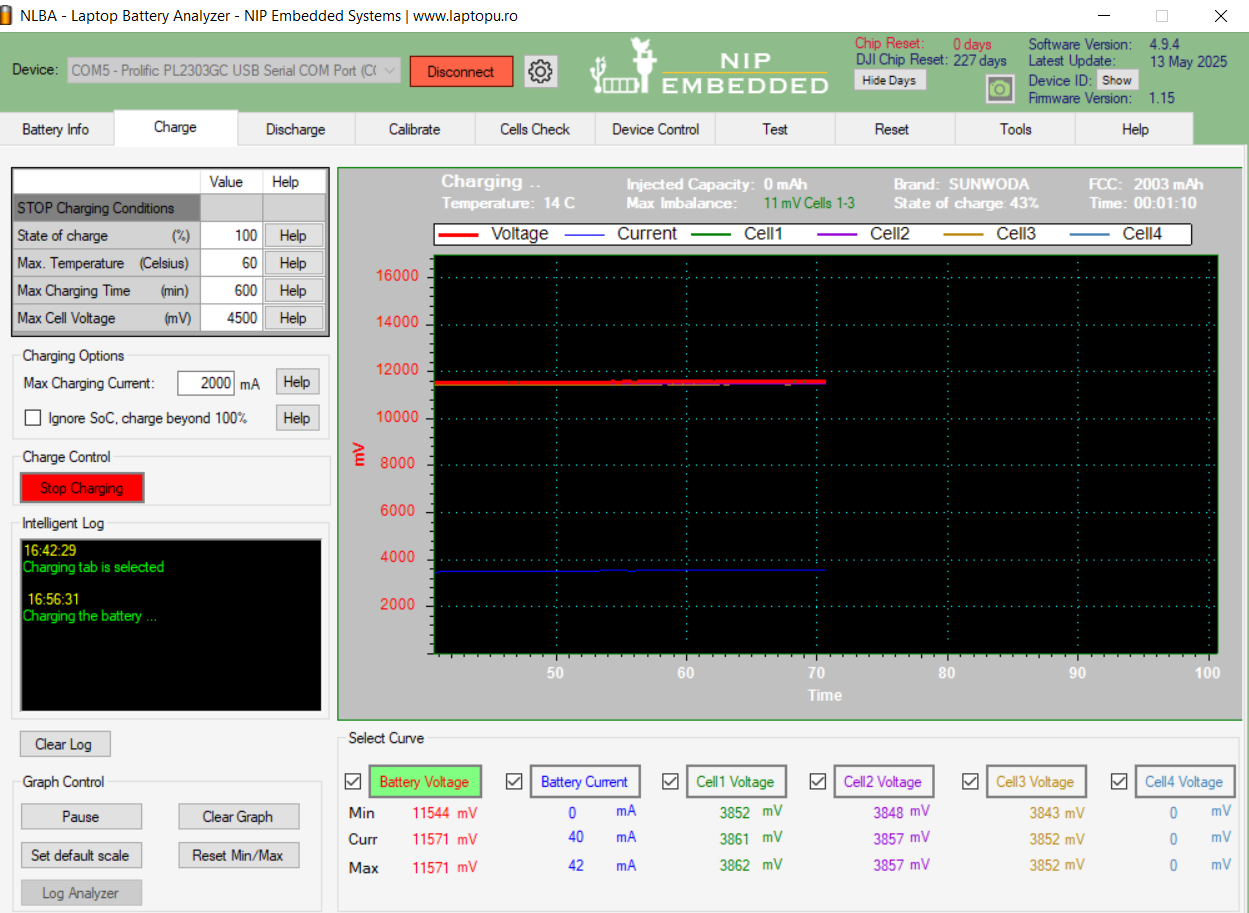

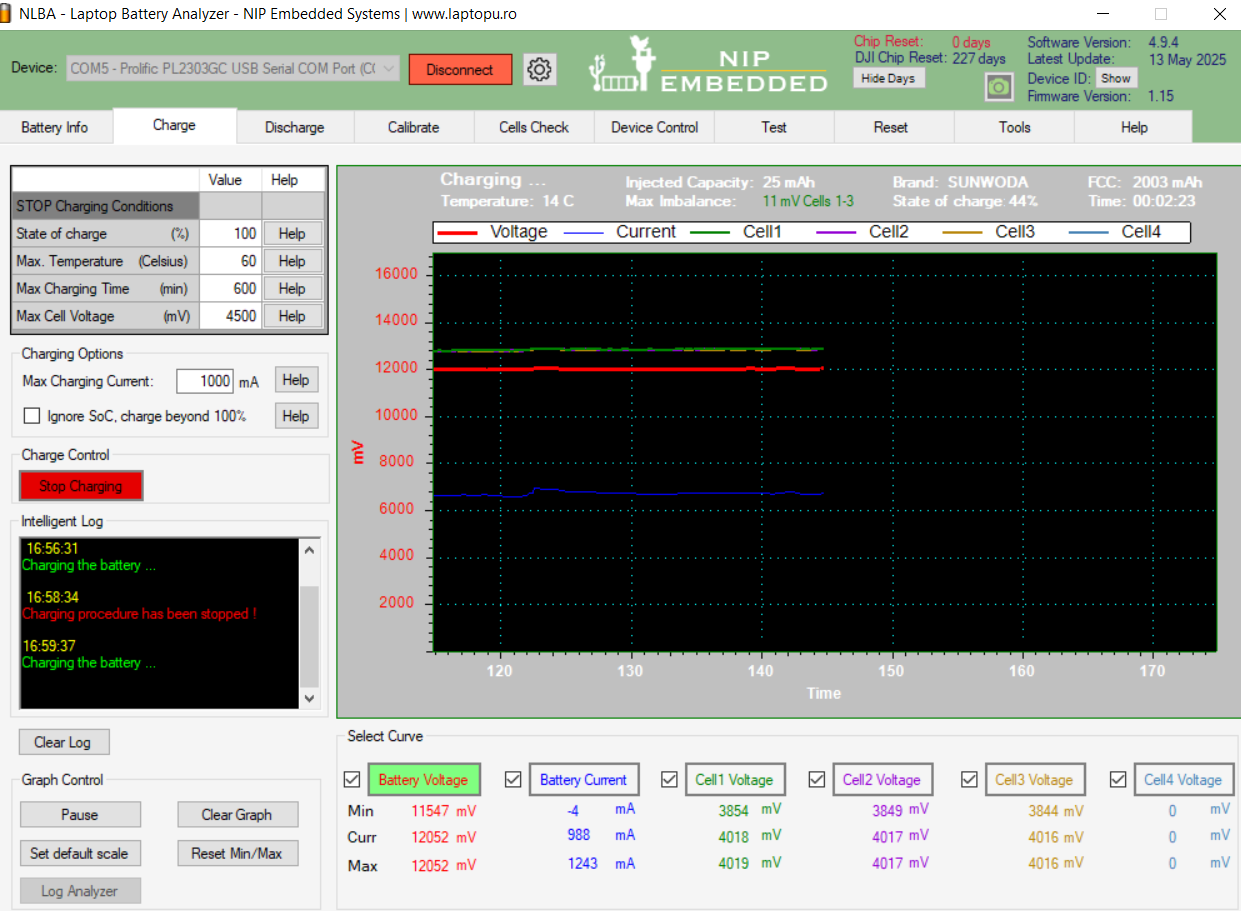

@loliconic Hi, these are two screenshots from when I charged the battery and left it for 10 minutes. It reached 49% charge. This is also the 1-minute screenshot you asked for.
Thanks.

Captura de pantalla (67)
Captura de pantalla (68)



ReplyQuote
Topic starter Posted : 17/06/2025 8:20 pm
loliconic
(@loliconic)
Member Moderator

@laarnova

Does the battery charge with the original charger?

ReplyQuote
Posted : 18/06/2025 5:03 am
laarnova
(@laarnova)
Estimable Member Customer

@loliconic Hello, it cannot be charged with the original charger.

ReplyQuote
Topic starter Posted : 18/06/2025 5:11 pm
laarnova
(@laarnova)
Estimable Member Customer

With the original charger, LED 1 does not work.

ReplyQuote
Topic starter Posted : 18/06/2025 5:36 pm
Nicusor
(@azzido)
Member Admin

@laarnova

It works perfectly using NLBA1. Can you try with another charger ?

NLBA Laptop Battery Analyzer with Chip Reset & Repair Option

ReplyQuote
Posted : 19/06/2025 5:25 am
loliconic
(@loliconic)
Member Moderator

@laarnova

Maybe you accidentally widened the battery pins, and they're no longer making good contact with the charger. Try narrowing them so that they make proper contact with the charger.

ReplyQuote
Posted : 19/06/2025 9:56 am
laarnova
(@laarnova)
Estimable Member Customer





@loliconic

Hello, unfortunately the contacts are fine.
I also noticed that when I charge it with the original charger, LED 2 comes on first, then LED 1 (i.e., the sequence is wrong).
LEDs 3 and 4 never come on.
Thank you.
ReplyQuote
Topic starter Posted : 21/06/2025 4:11 pm
loliconic
(@loliconic)
Member Moderator

@laarnova

Have you changed the cycle count?

ReplyQuote
Posted : 23/06/2025 9:27 am
laarnova
(@laarnova)
Estimable Member Customer

@loliconic Hello, do not change it.

ReplyQuote
Topic starter Posted : 23/06/2025 7:31 pm
loliconic
(@loliconic)
Member Moderator

@laarnova

The unusual behaviour of the LEDs may indicate two possible issues:

  1. A communication problem between the battery and the charger (for example, poor contacts or a damaged battery).

  2. A possible internal error in the battery or its management circuit.

So, please check these two issues.

ReplyQuote
Posted : 25/06/2025 8:56 am
laarnova
(@laarnova)
Estimable Member Customer

@loliconic Hello, thank you very much

ReplyQuote
Topic starter Posted : 25/06/2025 4:49 pm
