phantom 4 pro battery in cell calibration

laarnova
(@laarnova)
Estimable Member Customer

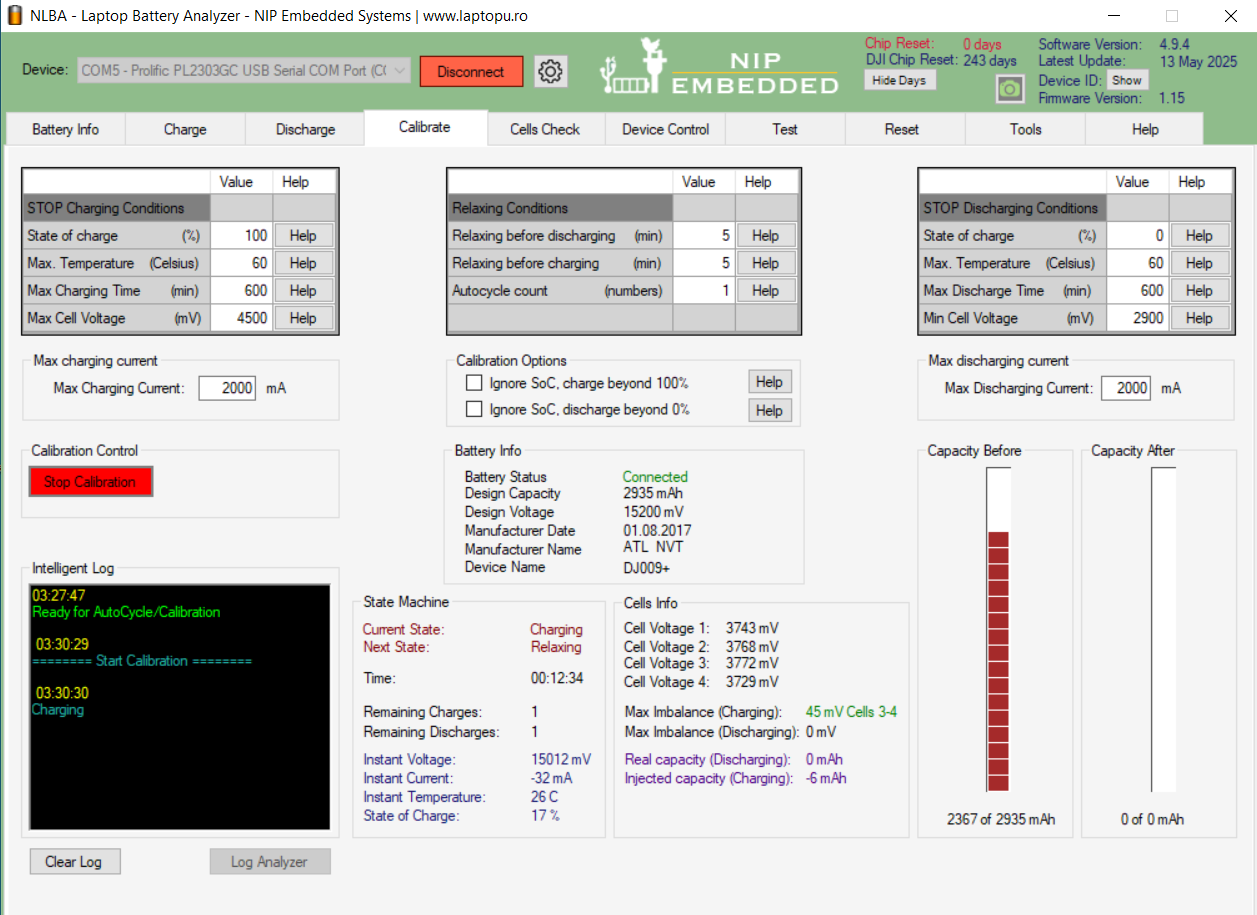

Captura de pantalla (54)
ReplyQuote
Topic starter Posted : 02/06/2025 6:50 am
laarnova
(@laarnova)
Estimable Member Customer

It only unlocks the battery when it's on, it only charges when the battery is on, and it only calibrates cells when the battery is on.
I also noticed that when it's off, it tells me the cell difference is 48 MV, and when I turn it on, the cell difference is 150 MV.
Can I try calibrating and charging while keeping the battery on?
Thanks.



ReplyQuote
Topic starter Posted : 02/06/2025 8:51 am
loliconic
(@loliconic)
Member Moderator

@laarnova

Yes. Try to calibrate the battery when it's on.

ReplyQuote
Posted : 02/06/2025 11:25 am
laarnova
(@laarnova)
Estimable Member Customer

@loliconic The problem is that the difference in cells increases with calibration, now the difference is greater

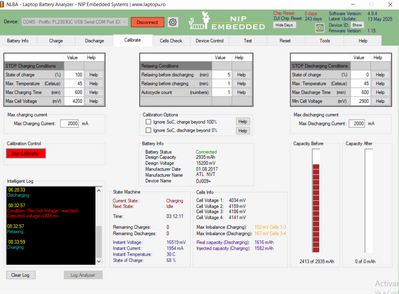

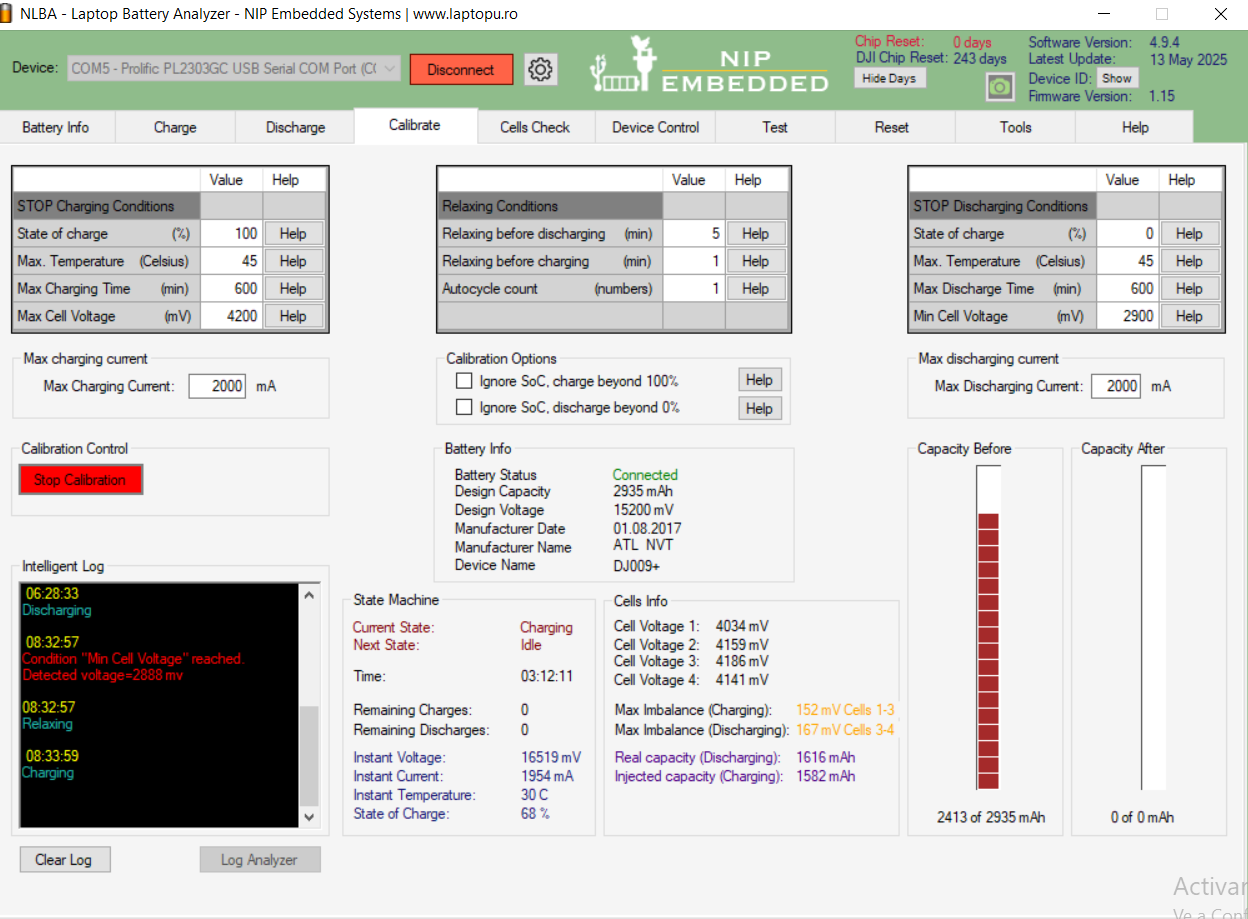

Captura de pantalla (56)



ReplyQuote
Topic starter Posted : 02/06/2025 12:30 pm
loliconic
(@loliconic)
Member Moderator

@laarnova

Probably, your cells are very bad and have different internal resistances, and that's why the imbalance is so big.
Can you do a cell check and paste the result here?

ReplyQuote
Posted : 02/06/2025 12:40 pm
laarnova
(@laarnova)
Estimable Member Customer

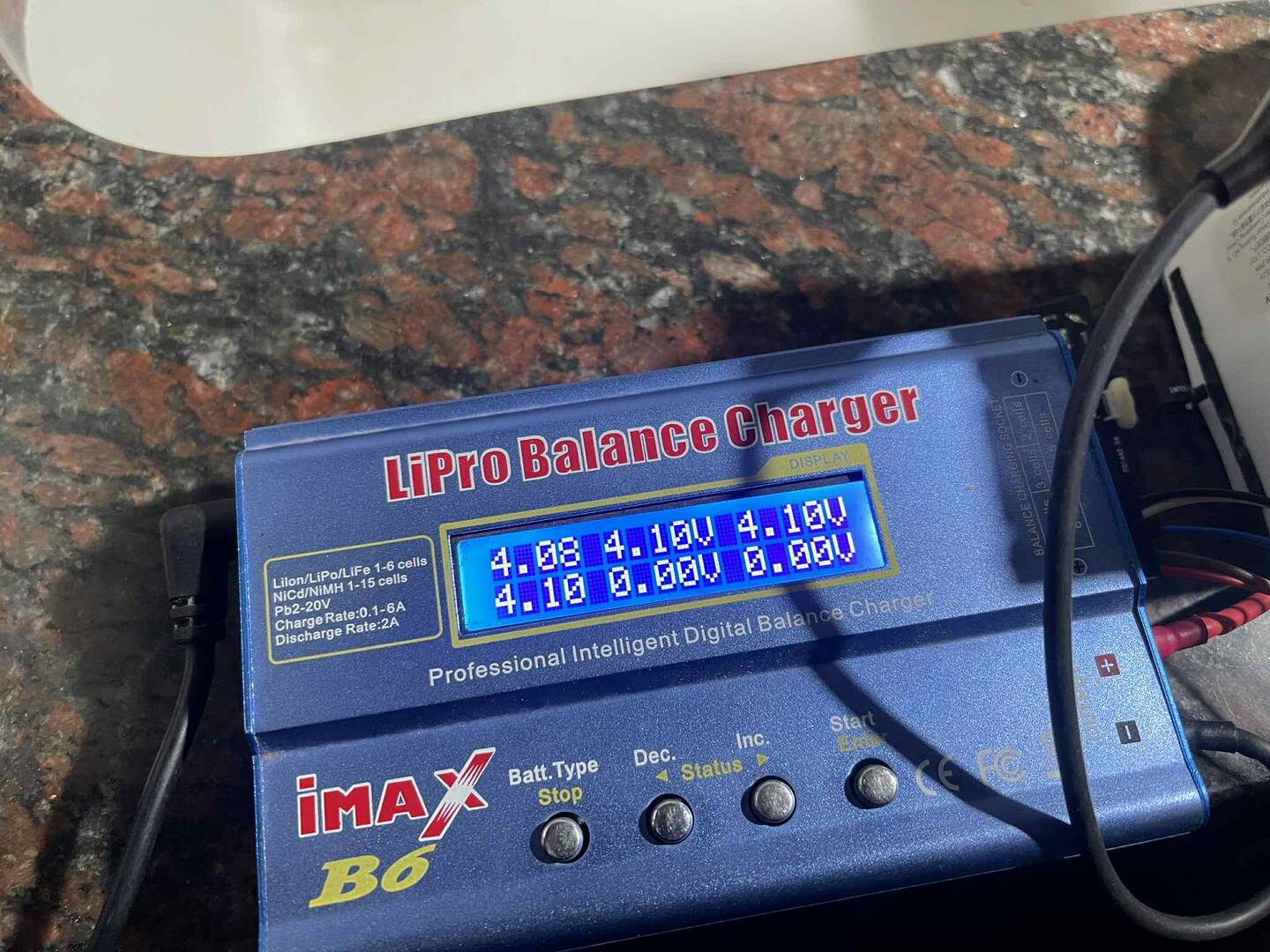

@loliconic Hi, I'm now trying to do the balancing with an Imaxb6 and it doesn't seem so bad, but when I put it back in NLBA it tells me the difference is 70 MV.

6d780a4e 8087 4c2e ad8b 7eded052fdd3



ReplyQuote
Topic starter Posted : 03/06/2025 4:08 am
loliconic
(@loliconic)
Member Moderator

@laarnova

Please perform a cell check when the battery is charged between 30% and 80%.

ReplyQuote
Posted : 03/06/2025 4:50 am
laarnova
(@laarnova)
Estimable Member Customer

@loliconic Ok now I'm calibrating it but when I finish I'll do it, thanks

ReplyQuote
Topic starter Posted : 03/06/2025 5:04 am
laarnova
(@laarnova)
Estimable Member Customer

@loliconic Is the calibration that slow?



ReplyQuote
Topic starter Posted : 03/06/2025 5:06 am
loliconic
(@loliconic)
Member Moderator

@laarnova

Perform a cell health check before starting the calibration. If the cells are degraded or faulty, the calibration process will be ineffective and pointless.

ReplyQuote
Posted : 03/06/2025 5:20 am
DjiBattWorkshop
(@djibattworkshop)
Member Moderator
Posted by: @laarnova

Ok now I'm calibrating it

 It is useless step if cells are faulty.

 Cary out Cells Check like was suggested and SelfDischarge check to figure out cells condition.

ReplyQuote
Posted : 03/06/2025 8:43 am
laarnova
(@laarnova)
Estimable Member Customer

@djibattworkshop Hello, thank you for everything, the battery is working and has already been tested on the phantom.

As always, your after-sales service is excellent.

ReplyQuote
Topic starter Posted : 03/06/2025 8:39 pm
