Hi,
Battery was locked cause of cells under voltage.
I want to unlock it now

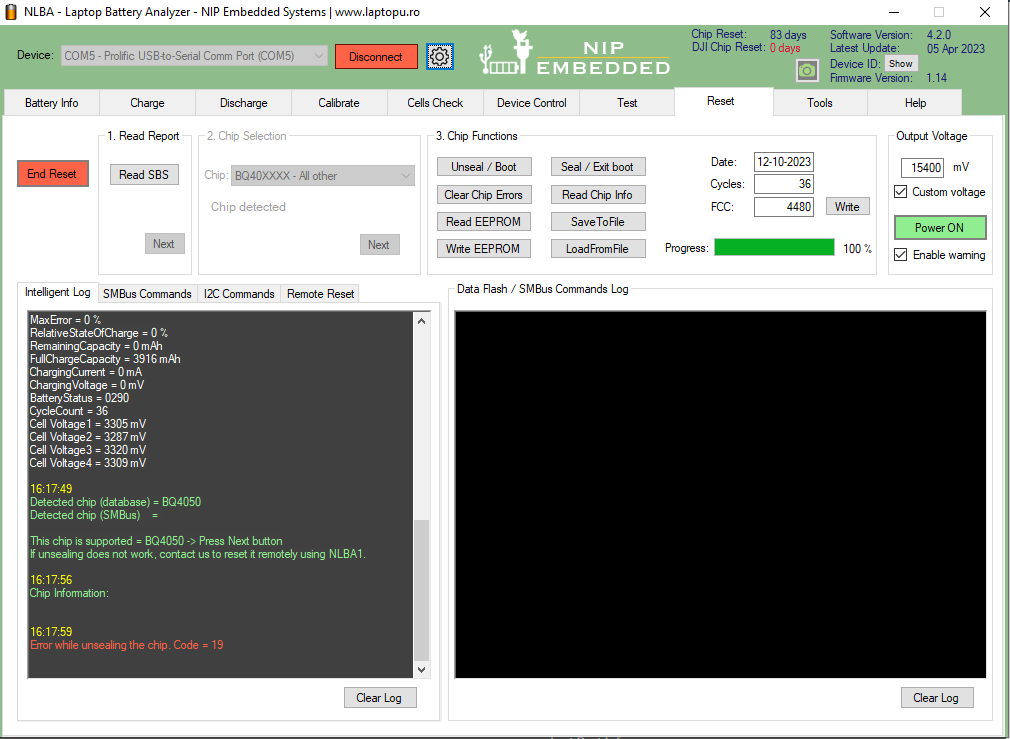

Voltage is good now but no chip info and error on unsealing
Batterie is ASUS C42N1846

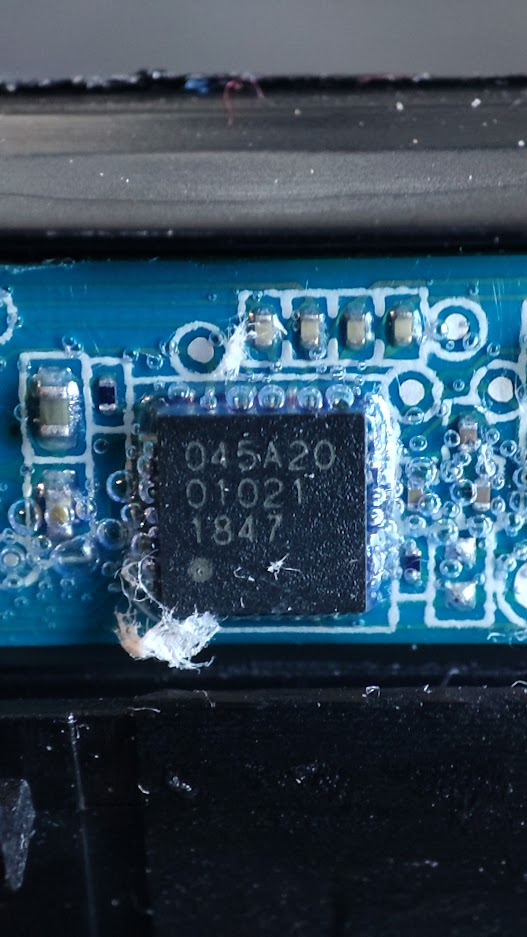

Paste picture of the chip.
It is not bq4050 like was mentioned in the topic title. It is different chip.
@djibattworkshop NBLA reconise it as BQ4050, what type of chip is ? And how can I reset it?
NBLA reconise it as BQ4050,

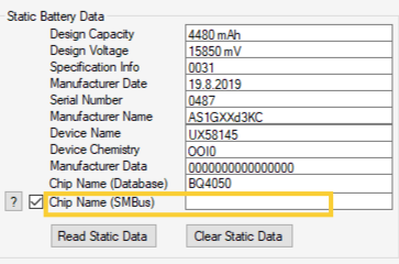

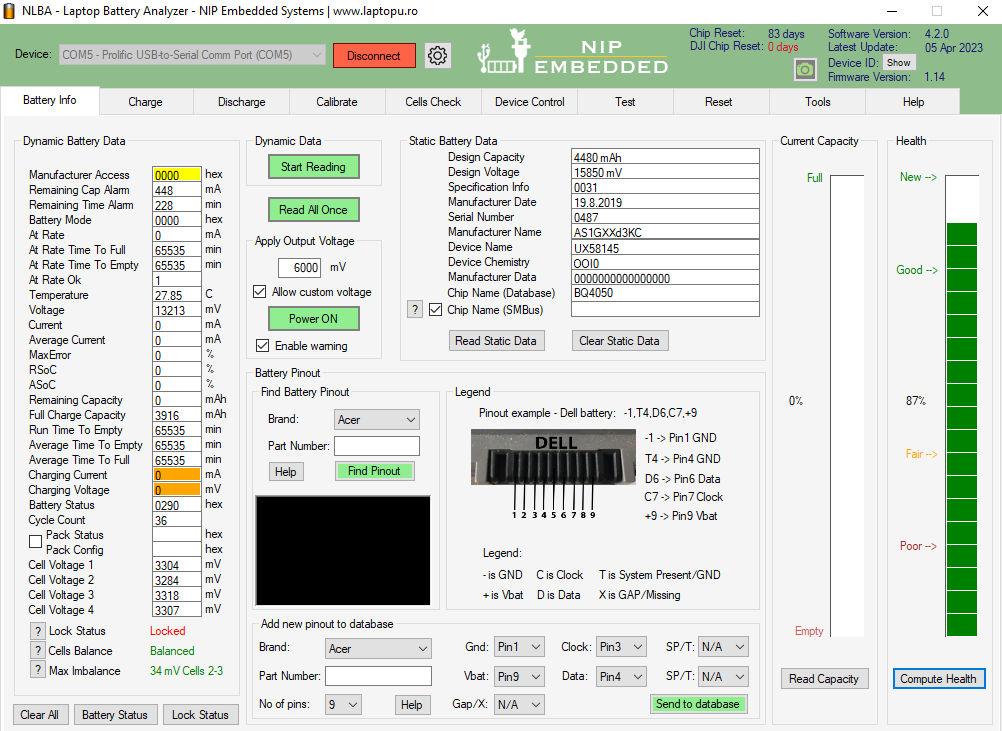

No. Chip was not detected at all. Check BatInfo picture.
Chip Name (Smbus) is empty which means chip should be verified visually on the pcb.
Chip Name (Database) has nothing to do with actually used chip in the battery. It is just a guess based on other batteries which was used by another customers. So other same battery had bq4050 chip on the pcb.
what type of chip is ?
It is Renesas RAJ240_045A20 chip.
Thanks for all informations i'll know it next time
Is this chip resetable by NBLA ?
