Toshiba PA5212U-1BRS chip BQ9000 FW Sanyo low charging current

FJ
 FJ
(@brs)
Noble Member Customer

can this dump be checked/edited for proper parameters as charging current is low.

ReplyQuote
Topic starter Posted : 16/10/2023 4:18 am
torture
(@torture)
Member Moderator

Did you change FCC value?

ReplyQuote
Posted : 16/10/2023 6:01 am
FJ
 FJ
(@brs)
Noble Member Customer
Posted by: @torture

Did you change FCC value?

yes, to check if it effects CC.

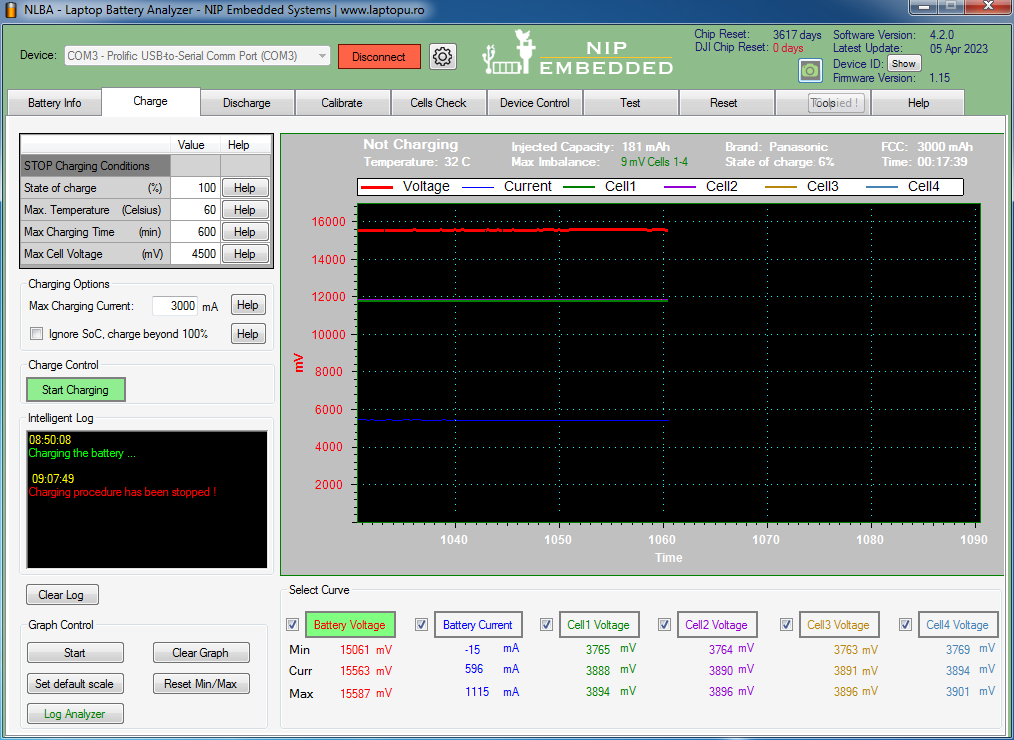

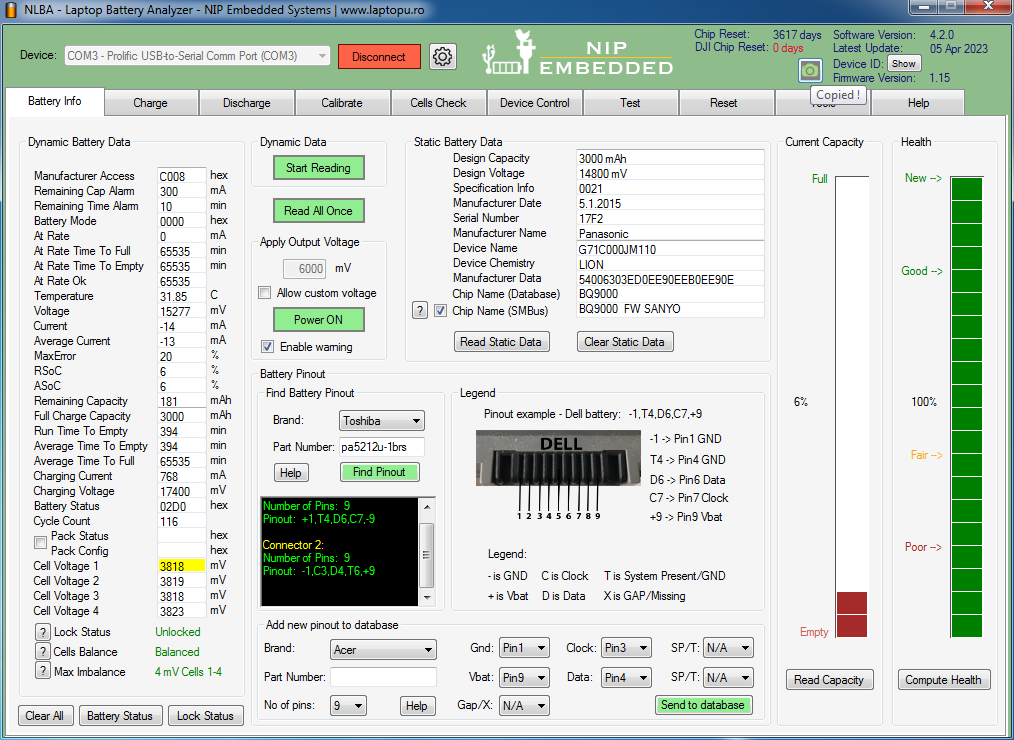

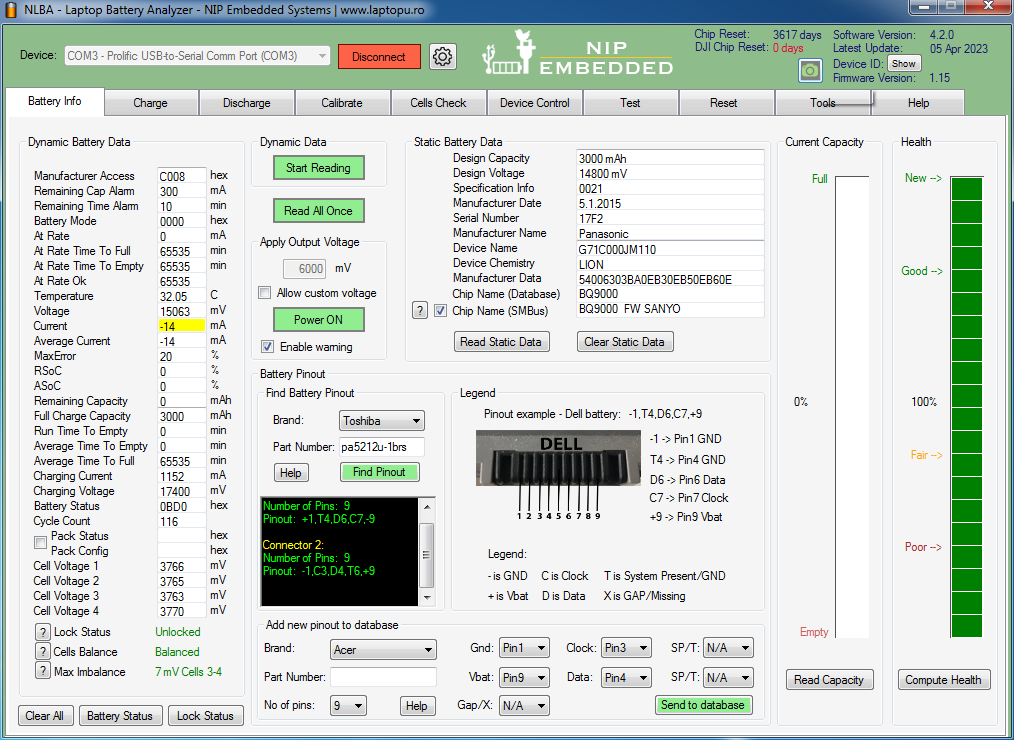

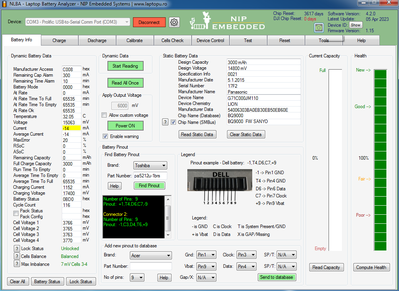

client told it was giving backup more than 2 hours. didn't use laptop for 1 month and now facing slow charging with less than 1 hour backup. before change FCC was around 1200 and CC was 256mA.

ReplyQuote
Topic starter Posted : 16/10/2023 9:51 am
torture
(@torture)
Member Moderator

Run calibration cycle to check cells real capacity and i will check if charge current can be changed independant from FCC.

ReplyQuote
Posted : 16/10/2023 11:07 am
