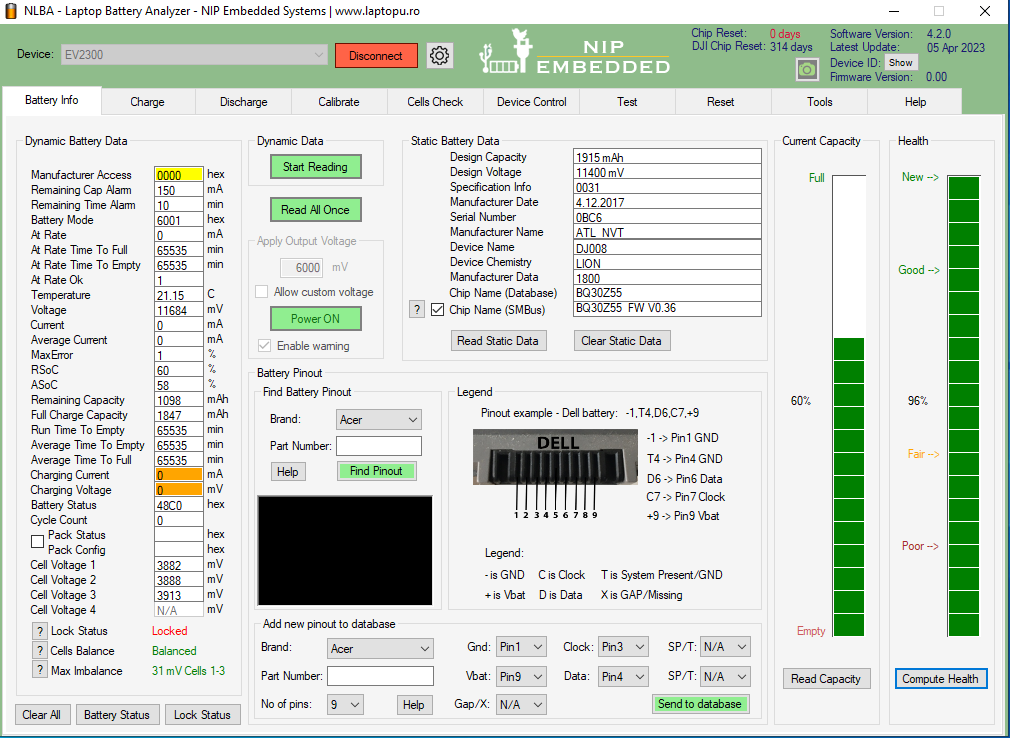

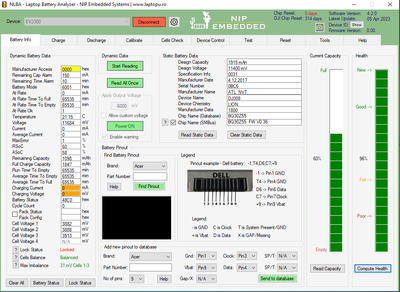

Paste NLBA1 BatInfo picture.

Hi,

I will do that but I have a question, is there a way to connect to the battery to get the information requested without opening the case again?

Also I do not have an NLBA1 I am reading the battery via EV2300.

Thank you!

Do you have DJI License ?..

Yes I do.

 Did you copied the very first initial eeprom ?..

No.

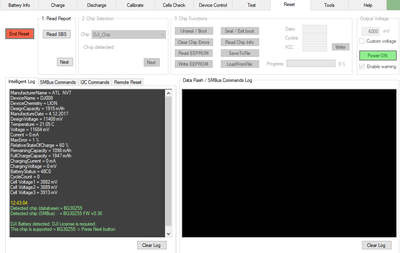

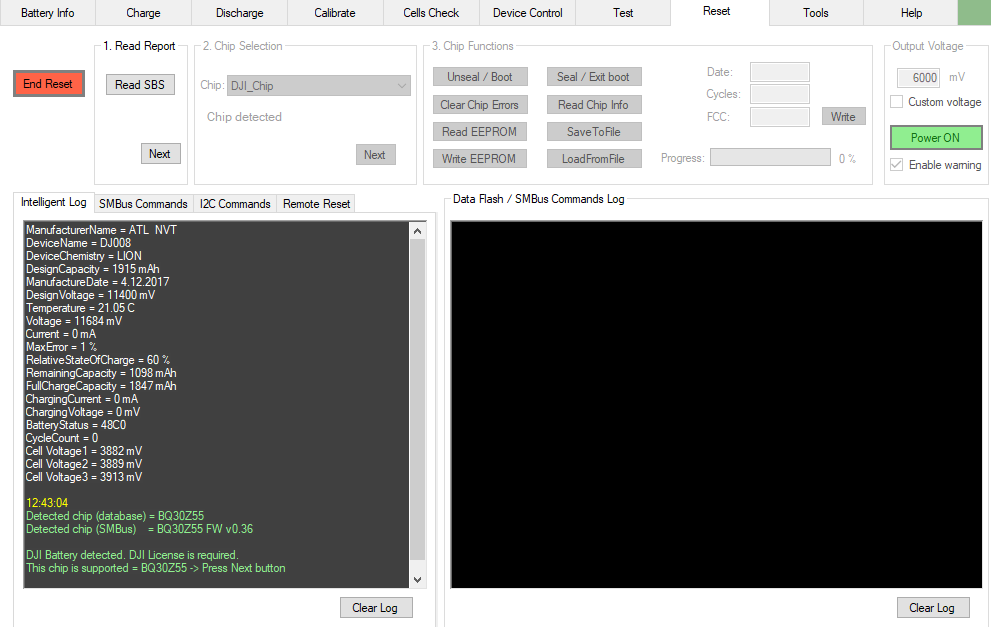

 Read the battery and paste BatInfo page picture.

Hi,

Did you see my question above?

Is there a way to read the battery without opening the case of the battery? If not just let me know and I will open the battery again and give you the requested info.

Thank you!

 Smbus interface located on the Pcb. On the battery connector UART interface is located. These are different ports. Yes, you need to access the pcb to connect NLBA1 device.

OK

Thank you!

I will open the battery and post the requested screen shot.

Hi,

Please find below the required information.

Thank you in advance for your support!

Make sure battery is switched Off by push button and LEDs not lit.

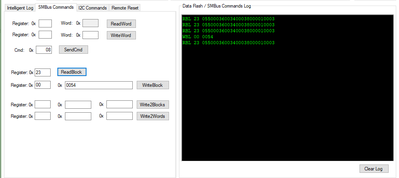

Then go to Smbus tab and send these commands with 5s interval

Register 0x23 ReadBlock

Register 0x23 ReadBlock

Register 0x23 ReadBlock

Register 0x00 WriteWord 0x0054

Register 0x23 ReadBlock

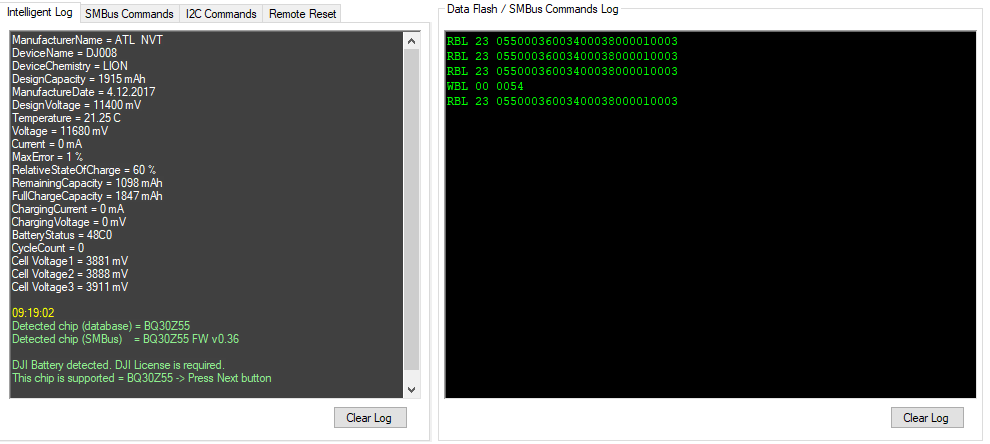

Then paste snapshot of the log

Hi,

I hope this is the information that you need.

Thank you!

Posted by: @djibattworkshop

Register 0x00 WriteWord 0x0054

 This command was sent not correctly.

WriteBlock was pressed instead of WriteWord button.
