Repeat all commands properly.

Hi,

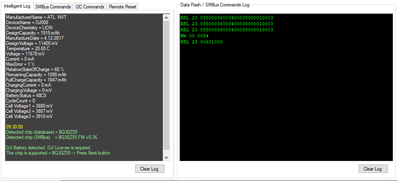

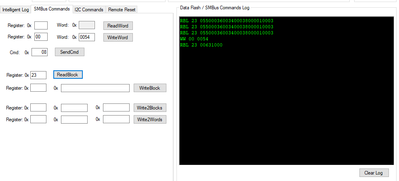

Sorry my bad, with the hope that I did not damage anything, please see the new screen shots below:

When "Battery Authentication Failure" error appeared ?..

Was it since beginning or appeared after disassembly ?..

Hi,

I never had a chance to charge the battery because was over discharged, I had the drone for few years before I got to use it for firs time.

So to answer your question the error appeared after I disassembled the battery.

 It looks something wrong was done with a battery.

read eeprom and attach it.

 do you have ev2300 or ev2400 adapter ?..

EV2300

Here is the log file.

Thank you!

Read the battery using bqEVSW and paste SBS and Safety tab pictures.

Hi,

I am sorry but can you be a little more specific with the instructions.

I do not know what bqEVSW is. Also I do not know the safety tab location.

Thank you!

Hi,

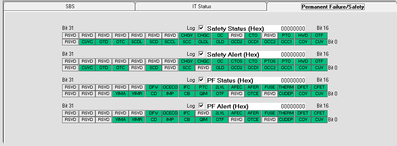

I think I figured out what you are asking for please see below:

Please let me know if you need any other information.

Thank you!

 There was unauthorised changes to chip settings, thats why drone throws "Battery Authentication Fail" error.

- Go to Seal/Authentication page of bqEVSW software

- press Unseal button

- confirm chip is Unsealed

- Go to bqEVSW Pro page button

- Send this command

- Cmd 00, WriteWord 0024

- Go to Seal/Authentication page of bqEVSW software

- press Seal button

- confirm chip is Sealed

- go to SBS tab, press Read button

- paste updated snapshot

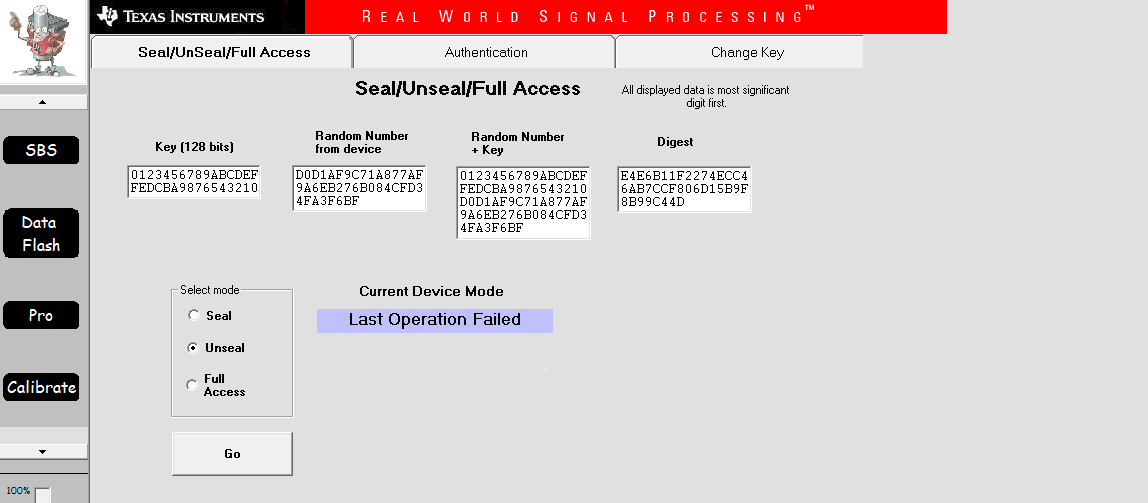

I did not get an error message when I unsealed the battery, picture above is the result after unseal button pressed. Also, I do not know how to check if the battery is unsealed.

Gest to make sure is this where I should make the suggested modification (picture below):

Thank you and please excuse my multiple questions.

Please confirm if this would pe the correct place to send the command.

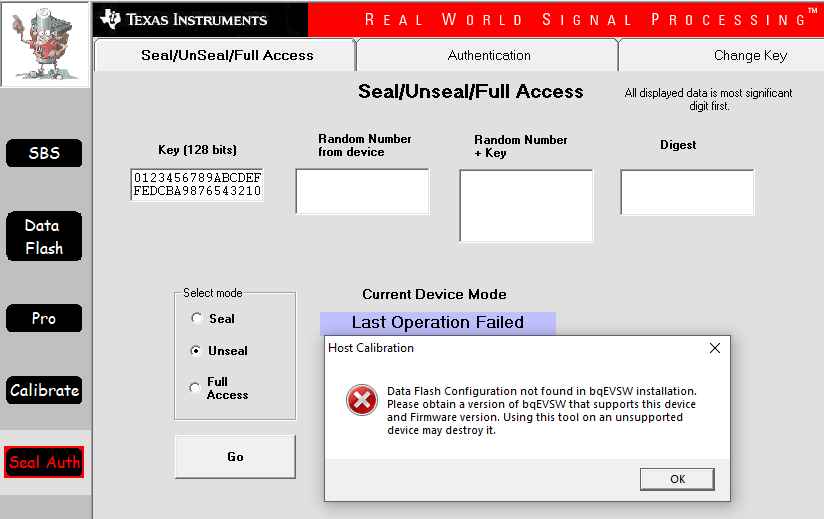

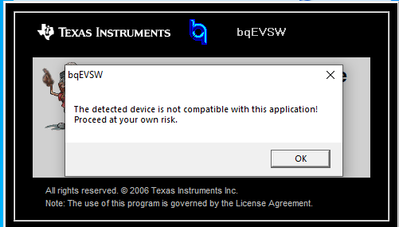

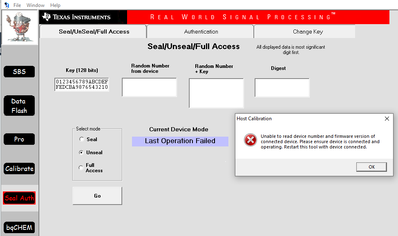

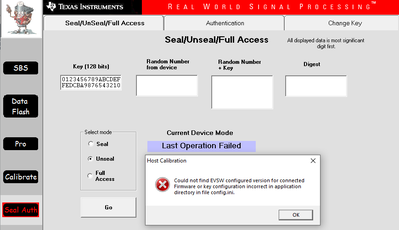

One more thing I would like to add, when I go to Seal Authority tab I get a lot of error messages, please see below screen shots:

Switch off the battery by push button and confirm all indicators Off !
